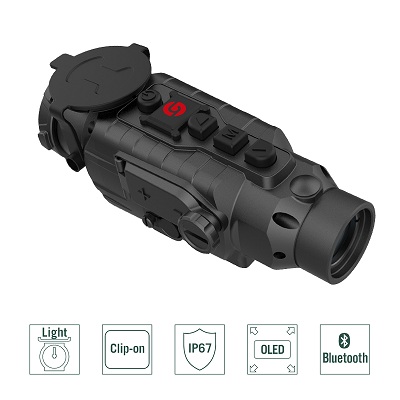

TA435: Thermal Imaging Attachment
TA435: Thermal Imaging Attachment
Endow your daylight scope with Thermal Vision
Application field: Search and RescueLaw enforcementPersonal Vision SystemOutdoor recreation
TA435 is a fashion items with multiple functions. Take it as a thermal imaging attachment adding thermal imaging capability to your scope, or as a portable thermal imaging monocular. This compact, lightweight and durable device can be quickly mounted and dismounted without re-zeroing, providing excellent image in various environments.

TA435 Thermal Imaging Attachment 1.png

TA435 Thermal Imaging Attachment 2.png

TA435 Thermal Imaging Attachment.jpg

TA435 Thermal Imaging Attachment 3.png

TA435 Thermal Imaging Attachment 4.png

TA435 Thermal Imaging Attachment 5.png

TA435 Thermal Imaging Attachment 6.png

TA435 Thermal Imaging Attachment 7.png

TA435 Thermal Imaging Attachment 8.png

TA435 Thermal Imaging Attachment 9.png

TA435 Thermal Imaging Attachment 10.png

TA435 Thermal Imaging Attachment 11.png

TA435 Thermal Imaging Attachment 12.jpg






Detector
Resolution400×300@17μm
Spectral Range8μm~14μm
NETD≤50mk@25℃   /F1.0
Focus   lens
Focal Length35mm   F1.2
FocusingManual   focus
FOV10.66°×8.0°
Image   Processing
Frame Rate50Hz(PAL)/60Hz(NSTC)
Digital Zoom2×、4×
Auto TrackingHotspot   track
CalibrationAutomatic   calibration/ Manual calibration (shutter) /Manual scene compensation
Color PalettesBlack   hot, white hot, red hot, green hot
Contrast/BrightnessAdjustable
Power   Systems
BatteryCR123A×2/ICR16340×2
ChargingOn   External charger
Working TimeContinuous   Operating over 3 hours@25℃
Interface
4-Pin LEMO InterfaceAnalog&video   output
Display   system
OLEDColorful   0.39 inch OLED screen 1024×768
Pupil Distance10mm
Pupil Caliber20mm
Video FormatPAL/NTSC
Digital Zoom1
View FinderMonocular   display(×2) ±5 adjustable diopter
Environment   parameter
Operating Temperature-30℃-50℃
StorageTemperature-45℃-70℃
Humidity Working   and storage10% ~ 95%, Non condensing
Impact500G/1ms
IP levelIP67
CertificateRoHS   Certificate/CE Certificate/FCC Certificate
Physical   Characteristics
Weight≤400g
Size150mm×52mm×57mm
Package
StandardThermal   infrared imager/User manual/Blinder/Warranty
OptionalAdapter   ring/External eyepiece/
CR123A×2(unrechargeable)battery/ICR16340×2(rechargeable)   battery/Charger/Bluetooth remote controller/Lemo video cable/Picatinny   rail
Cover ring adapterA:Compatible with   38/40/42/44/46mm;
Cover ring adapterB:Compatible with   48/50/52/54mm;
 Cover   ring adapterC:Compatible with 56/58/60/62/64mm;
Detection   Range
Human:1.8m×0.5m1000m
Vehicle:2.3m×2.3m2400m
Recognition   Range
Human:1.8m×0.5m500m
Vehicle:2.3m×2.3m1000m


TA435 4.jpg
TA435 2.jpg
TA435 1.jpg
TA435 3.jpg
