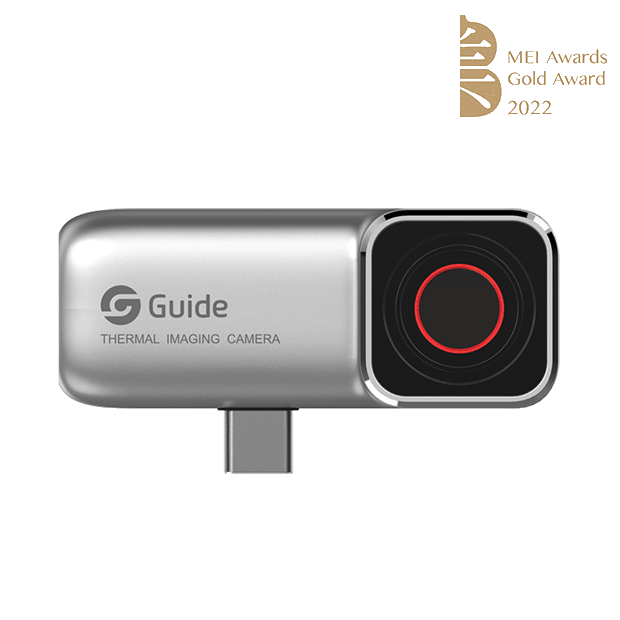

MobIR 2S

MobIR 2S

Thermal Camera for Smartphone

MobIR 2 series is a new generation of infrared thermal imager for smartphone launched by Guide sensmart. Built-in the world's first autofocus WLP infrared module, with higher resolution and performance comparable to professional thermal imaging cameras. This product allows you to see things that you can't see with the naked eye , It can realize real-time temperature measurement, night vision, photography, video and other functions through the mobile phone APP. It is an all-round partner for your daily work, home life and adventure travel.


256×192IR resolution

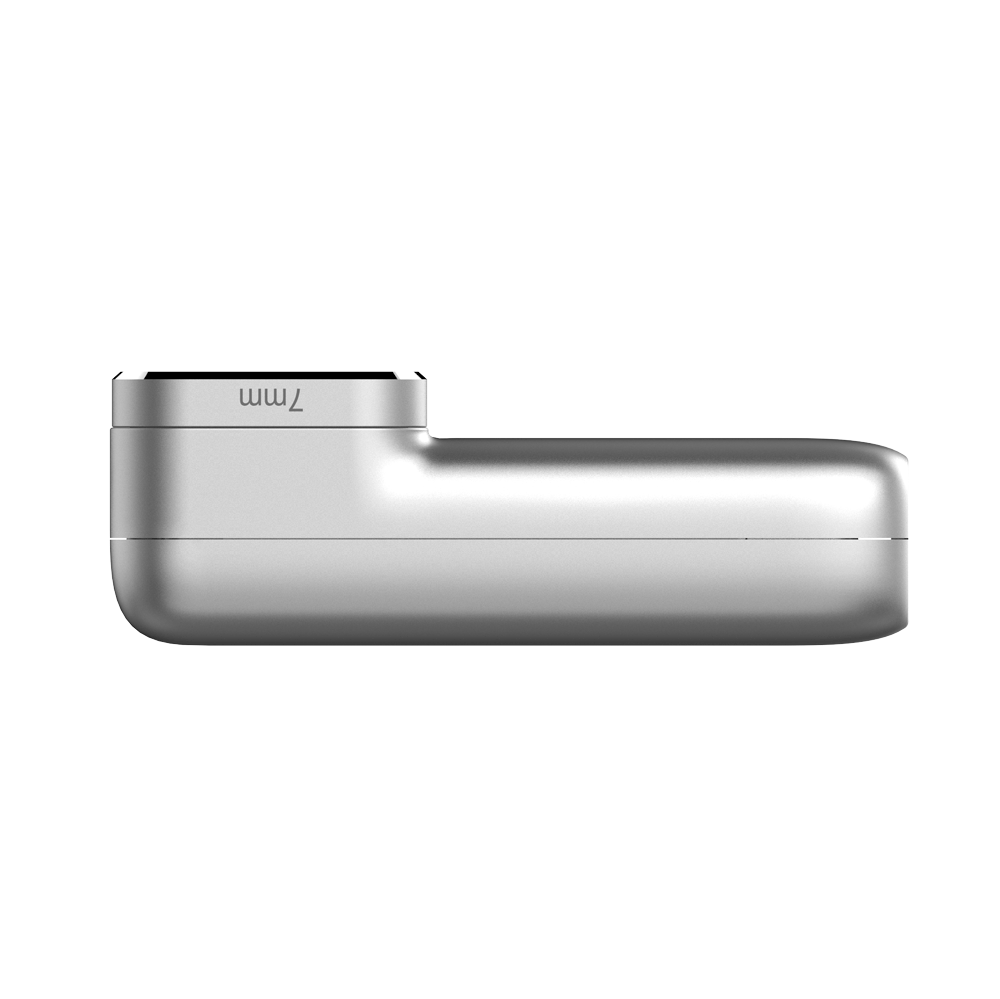

7mmFocus

25°FOV

AutofocusFocus method

Guide MobIR 2S Heat Camera for Phone
Guide MobIR 2S Cell Phone Thermal Camera
Guide MobIR 2S Cell Phone Thermal Camera

The World’s First AutoFocus Thermal Imager for Smartphone

​Versatile Thermal Camera for Smartphone

•100-meter night vision - It helps you clearly identify people and animals hundreds of meters away in the darkness field

•Autofocus - Clearly no matter near or far

•Plug and play - Battery-free design, Easy to use

•±2℃ Conventional temperature measurement accuracy, comparable to professional testing tools.

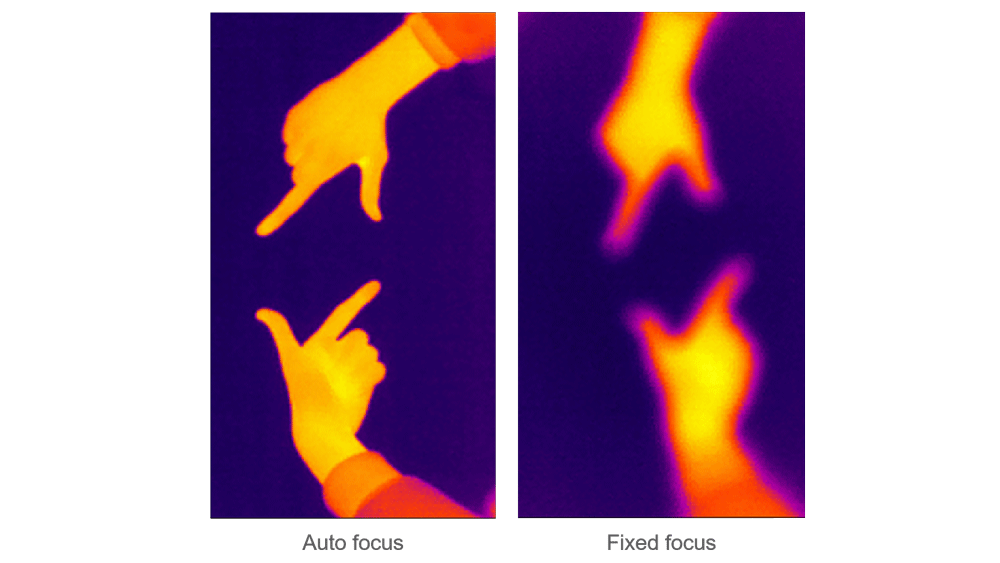

The World's First Autofocus,Infrared Thermal Camera for Smartphone

MobIR 2 built-in world's first autofocus WLP infrared module. Whether the subject is static or moving, you can automatically focus on it by touching the screen to quickly produce clear thermal images.

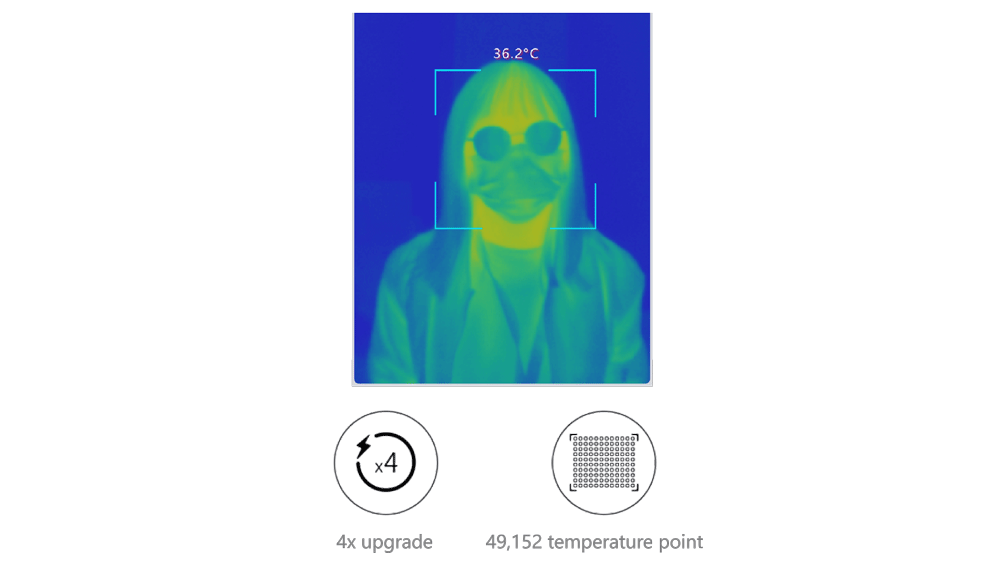

Resolution 256×192,Rich and Clear Details

256×192@12μm indigenously developed WLP encapsulated infrared detector, 49,152 temperature points are presented with cutting-edge technology, high-definition thermal imaging, 4x upgrade.

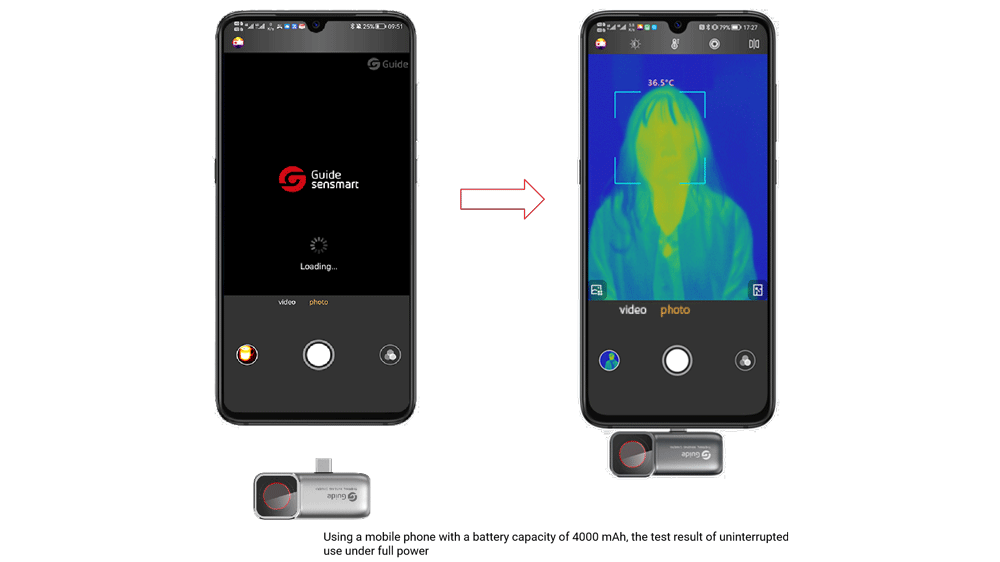

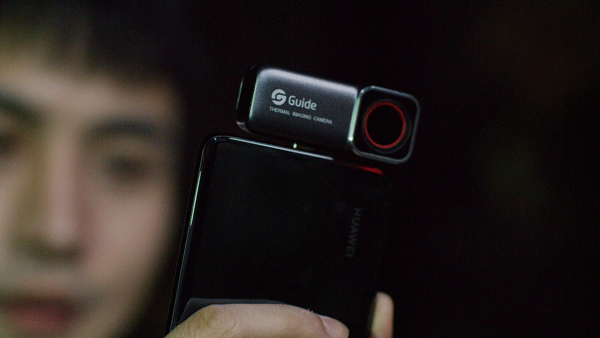

Durable, powered by your smartphone

•Battery-free design, Plug and play,Easy to use

•Low power consumption, Continue working more than 3hrs

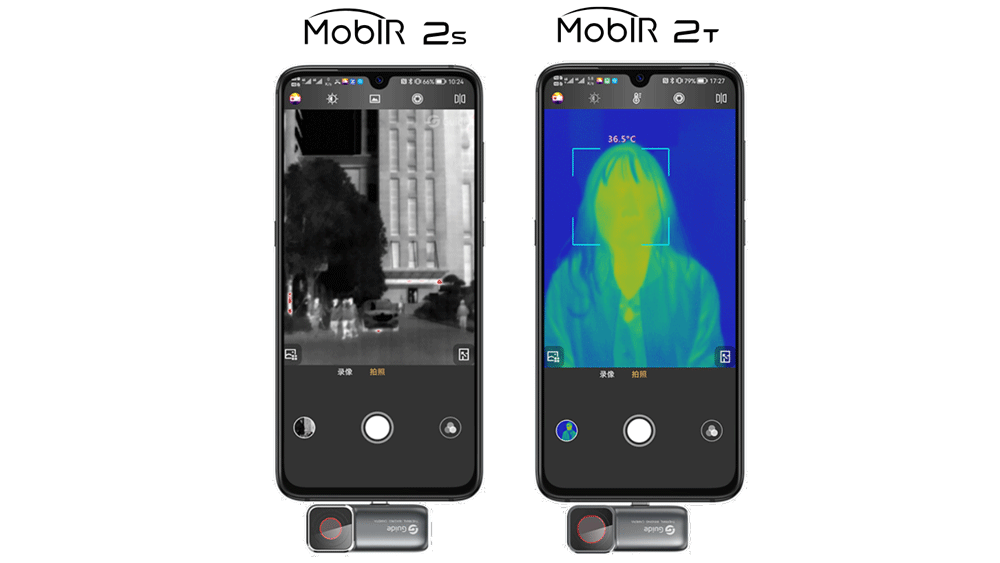

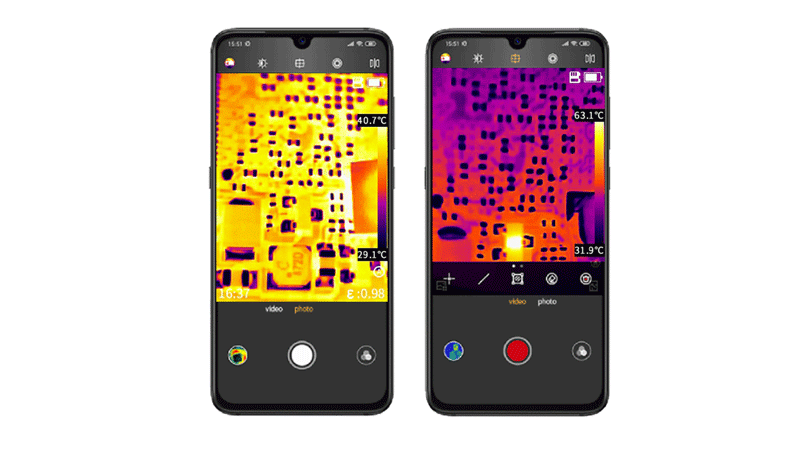

Switching Multiple Scenarios By One Button

MobIR APP supports three modes, which can be easily switched without hassle.

•Conventional temperature measurement——Industrial-class temperature measurement accuracy of ±2°C with a wide range of -20–+ 150°C

•Night vision——Outdoor night vision with recognition distance exceeds 100 meters



±2°C Accuracy, Comparable to Industrial-Class Testing tools

Industrial-class accuracy of ±2°C for temperature measurement, up to 3 spots, 1 line and 2 areas of subjects to be analyzed simultaneously; newly upgraded APP view for conventional temperature measurement, which shows temperature of subjects more intuitively without interference with each other.

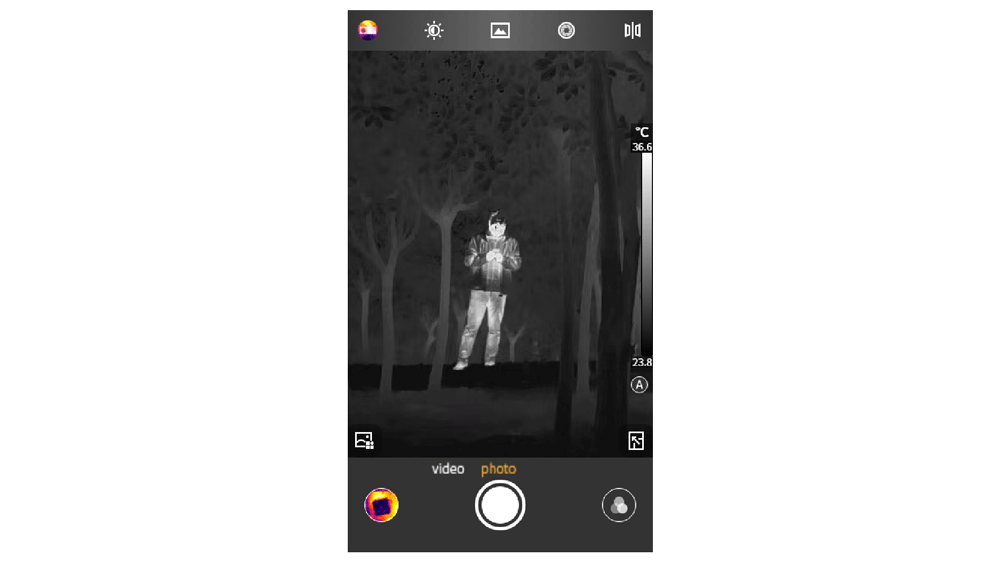

Over 100 Meters of Outdoor Night Vision for Seeing Further and More Clearly

MobIR 2 helps you clearly identify people and animals hundreds of meters away in the darkness field, which is helpful in safe exploration and efficient search and rescue. Long range night vision is more meaningful under seeing clearly.



Media Gallery

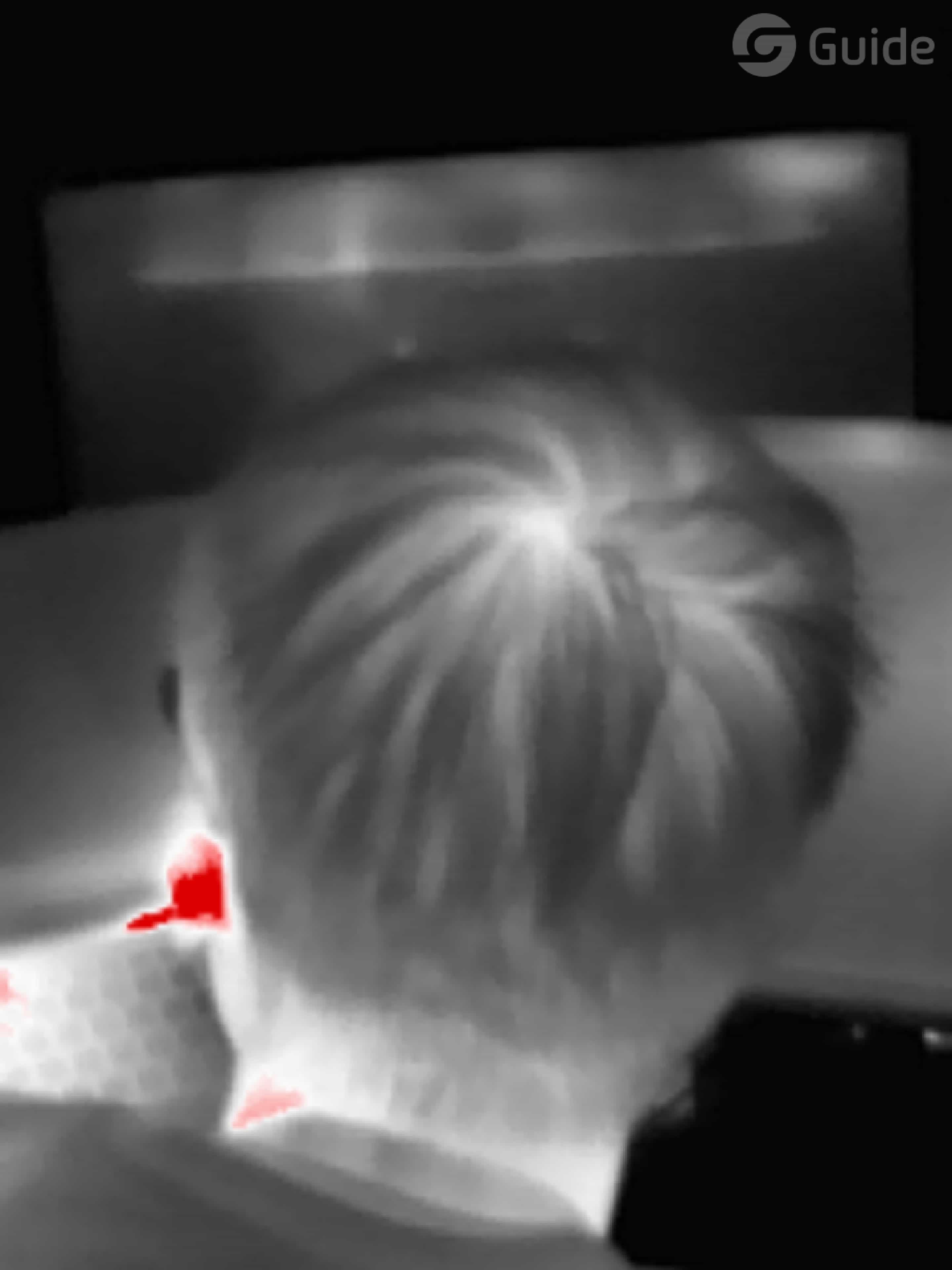

Person

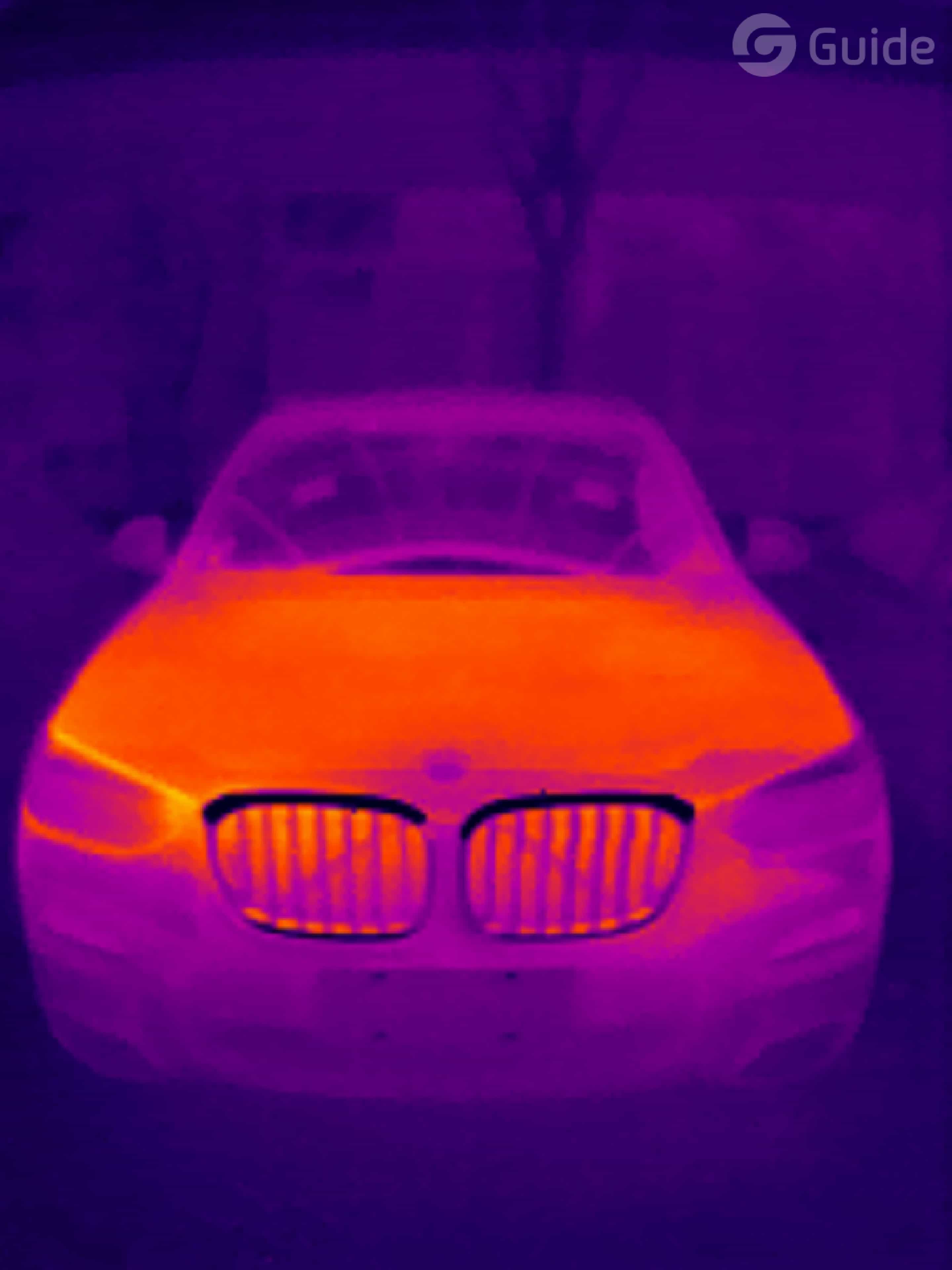

Car

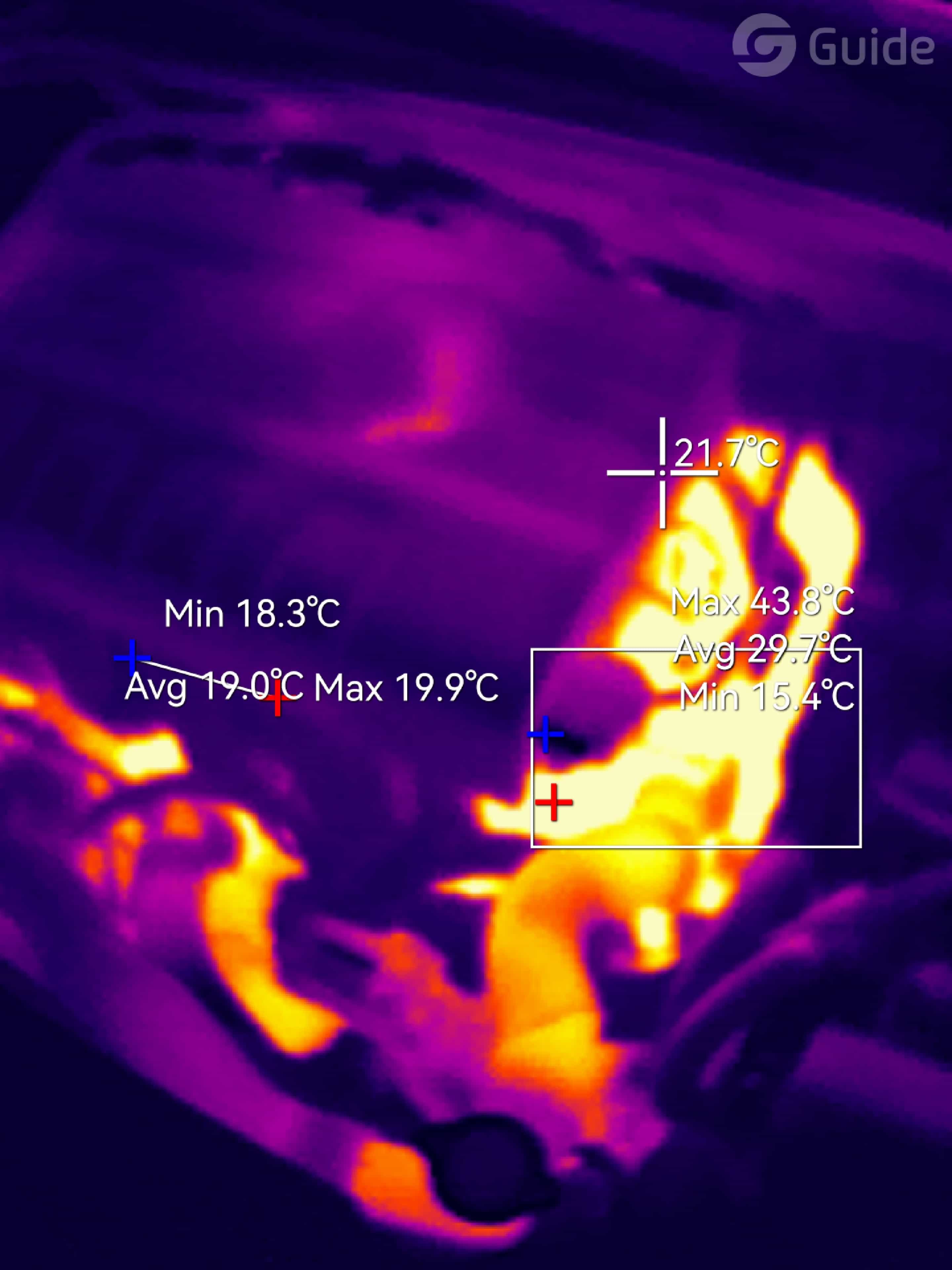

Engine

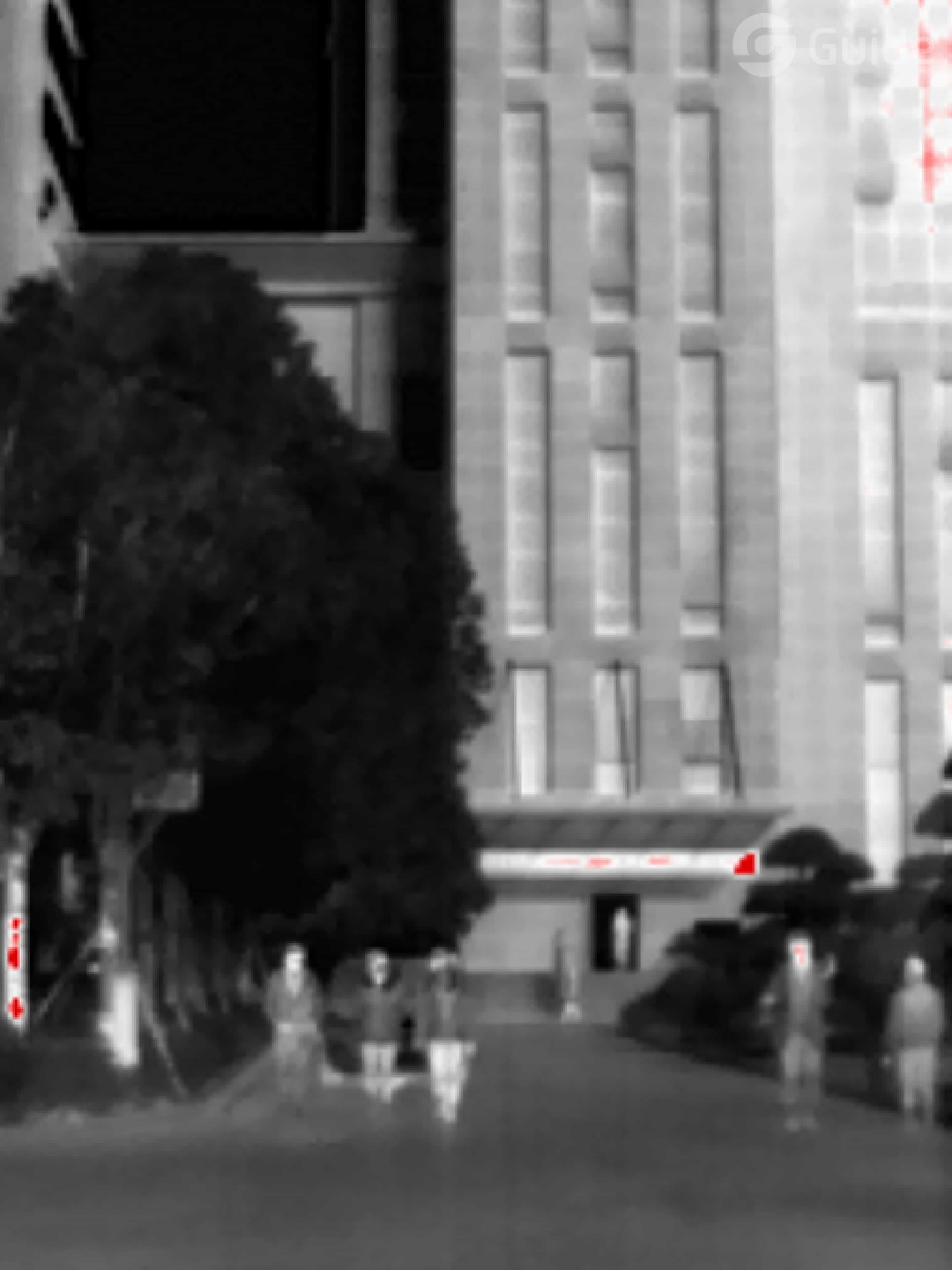

Night vision

Technical Parameters

Model

MobIR 2S

ADD TO COMPARE

Infrared detector
Detector type VOx
Infrared resolution 256×192@12 μm
Wavelength range 7.5 to 14 μm
Frame rate 25 Hz
Lens
Focal length 7 mm
Field of view 25°
Focusing mode Automatic/Electric
Detection range 100m

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
