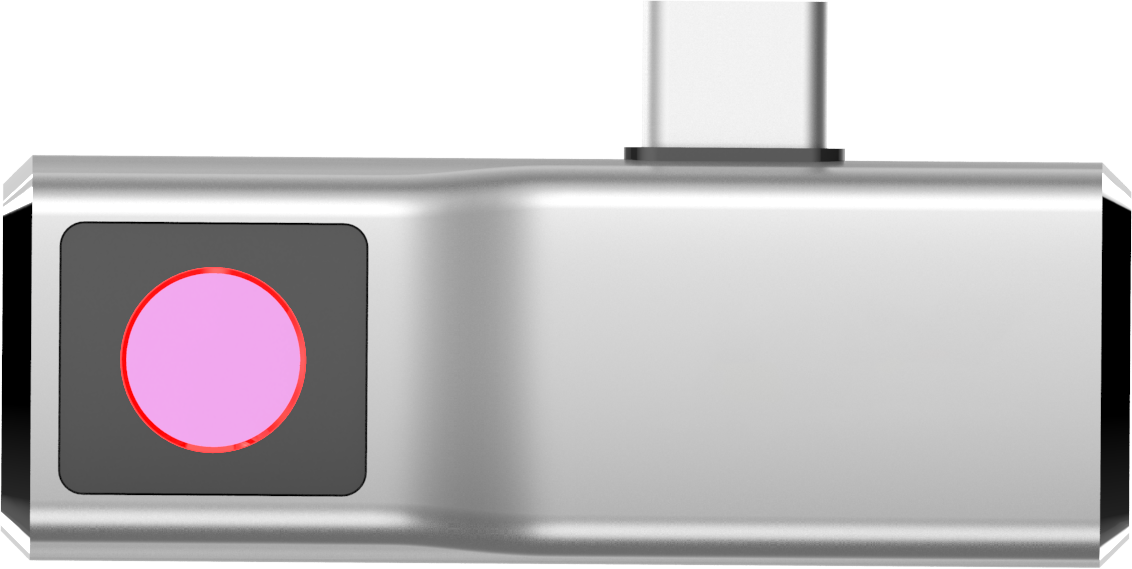

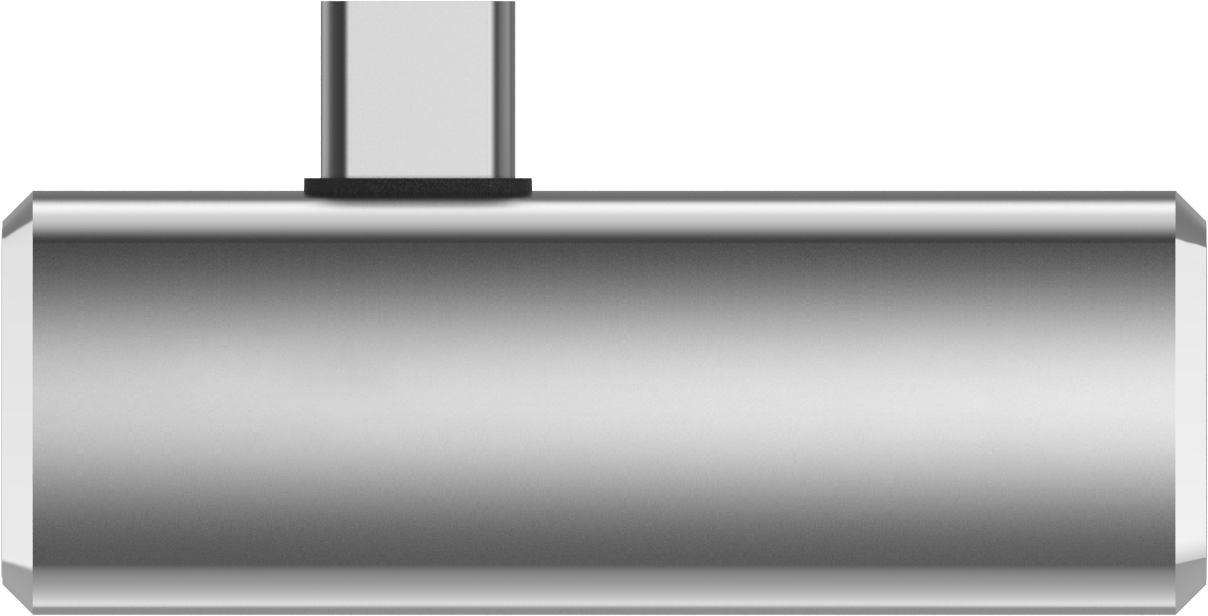

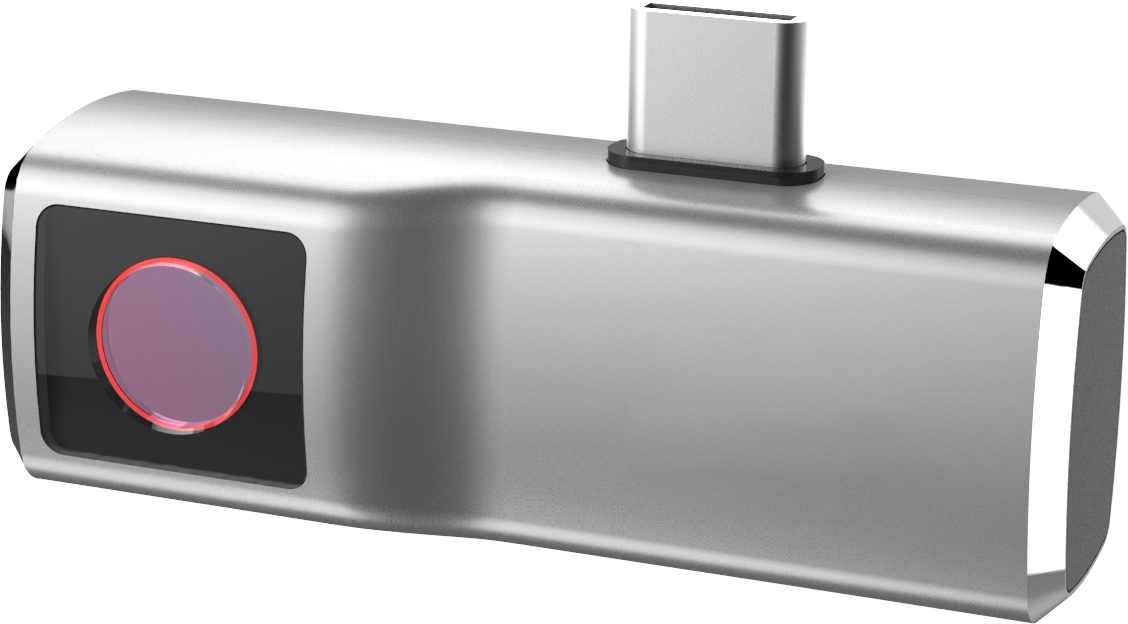

LC130

Mini infrared temperature measurement module

LC130 is an infrared temperature module for industrial terminal equipment, which gives devices the ability to easily capture temperature. It utilizes a wafer-level infrared detector independently developed by Guide which provides excellent thermal imaging performance in small, lightweight, lower power, and turnkey package. LC130 comes in two versions, standard or professional configurations with multiple selective temperature ranges and an SDK that supports development for all platforms, satisfying clients with different integration requirements.


120x90 IR resolution

2.3mm #F1.1Focal length

50°×38°FOV

Focus-free Focus


(1)IR resolution 120×90 Full-frame radiometric info, output temperature value for all 10800 pixels

(2)Industrial-grade product, high performance ±2℃ temperature measurement accuracy, -20℃~400℃ temperature range

(3)Supermini, ultra-light, low power consumption Adopt wafer level packaging, weigh only 20g, power consumption≤150mW

(4)USB Type-C interface Adopt USB Type-C male connector for external connection, strong versatility and easy integration

(5)Provide SDK for all platforms Support Android / Linux / Windows platforms, wide applicability




Technical Parameters

Model

LC130

ADD TO COMPARE

Imaging and optics
Detector type WLP VOx
Infrared resolution 120 × 90
Pixel Pitch 17 μm
Wavelength range 8 to 14 μm
Field angle 50°±1°
NETD ≤60 mK
Infrared frame rate 25 Hz
Focusing mode Focus-free
Measurement and analysis
Measurement range -20°C to 150°C, 100°C to 400°C (automatic switching)
Measurement accuracy ±2°C or ±2%, whichever is greater
