LC160

LC160

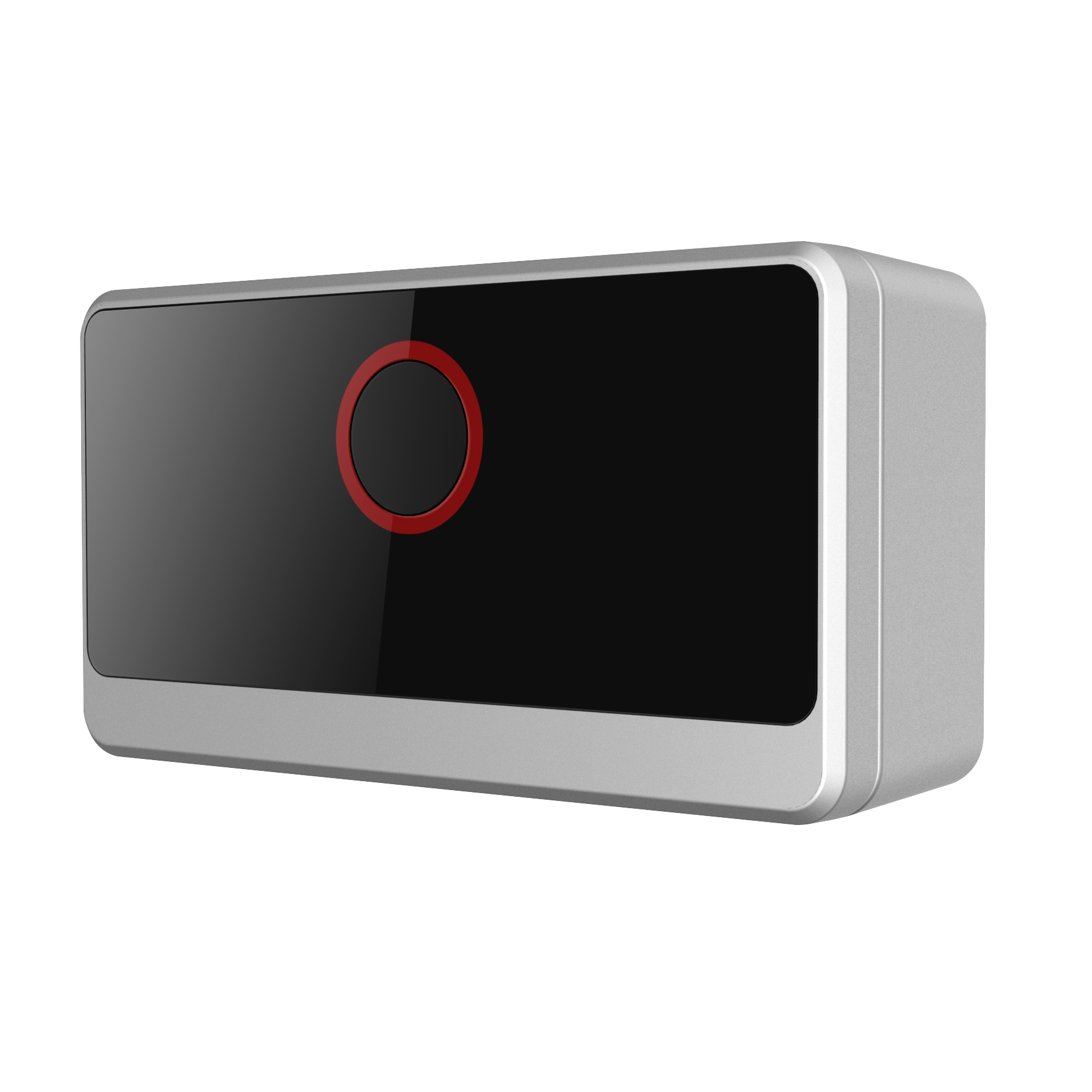

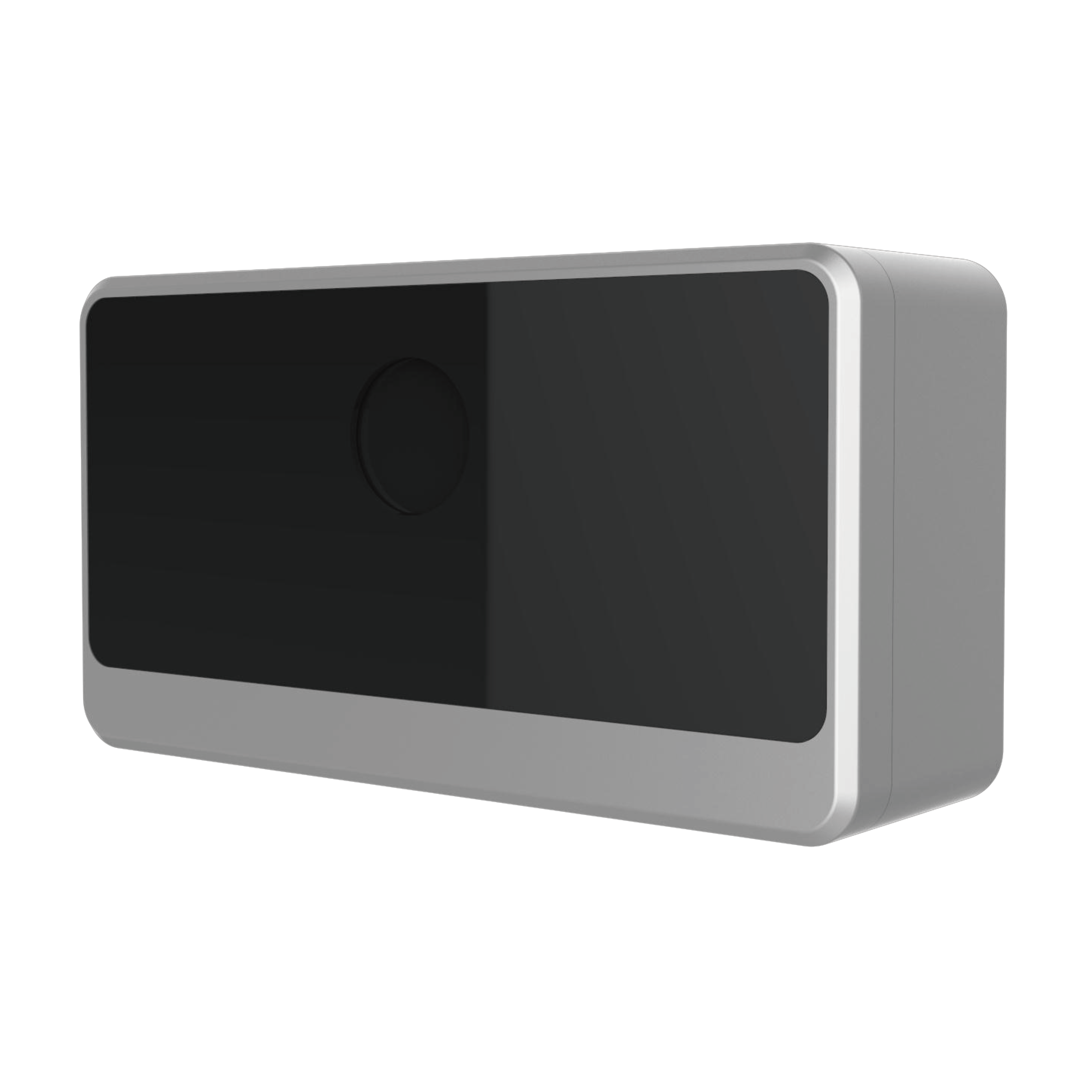

Mini infrared temperature measurement module

LC160 is developed especially for panel machines integration. The preset installation position at the bottom can be directly connected to the panel machine, making the integration easier and faster. This device utilizes a wafer-level infrared detector independently developed by Guide, not only allowing to measure temperature in the full image but capture the temperature data of every pixel in the scene. The non-contact safety measuring distance is 1.2 meters. The device enables a rapid screening to identify persons with abnormal temperatures, ensuring the crowds pass rapidly and orderly.


120x90 IR resolution

2.3mm #F1.1Focal Length

50°×38°FOV

20℃~50℃Temperature range


(1)IR resolution 120×90 Full-frame radiometric info, output temperature value for all 10800 pixels

(2)Special for human body temperature measurement, high performance ±5℃ temperature measurement accuracy, 0.5M-1.2M

(3)IP54 protection level Reinforced design, connected to the panel

(4)Versatile interface, easy to integrate Adopt 4PIN external connector, USB protocol output

(5)Provide SDK for full platforms Support Android / Linux / Windows platforms, wide applicability







Applications

Technical Parameters

Model

LC160

ADD TO COMPARE

Imaging and optics
Detector type WLP VOx
Infrared resolution 120 × 90
Pixel Pitch 17 μm
Wavelength range 8 to 14 μm
Field angle 50°±1°
NETD ≤60 mK
Infrared frame rate 25 Hz
Focusing mode Focus-free
Measurement and analysis
Measurement range 20 °C to 50 °C (accurate temperature measuring range: 28-40°C)
Measurement accuracy ± 0.5 °C

* All specifications are subject to the actual product. Guide sensmart reserves the right to change the technical specifications without notice or liability to you.
