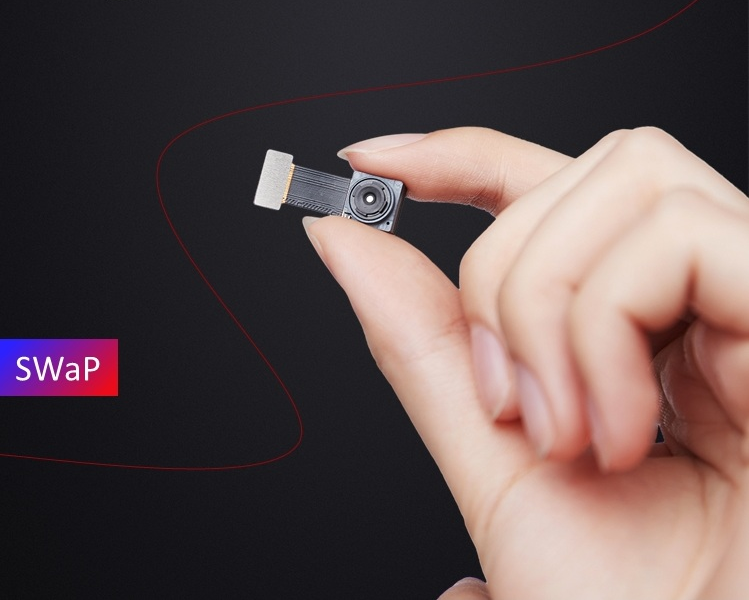

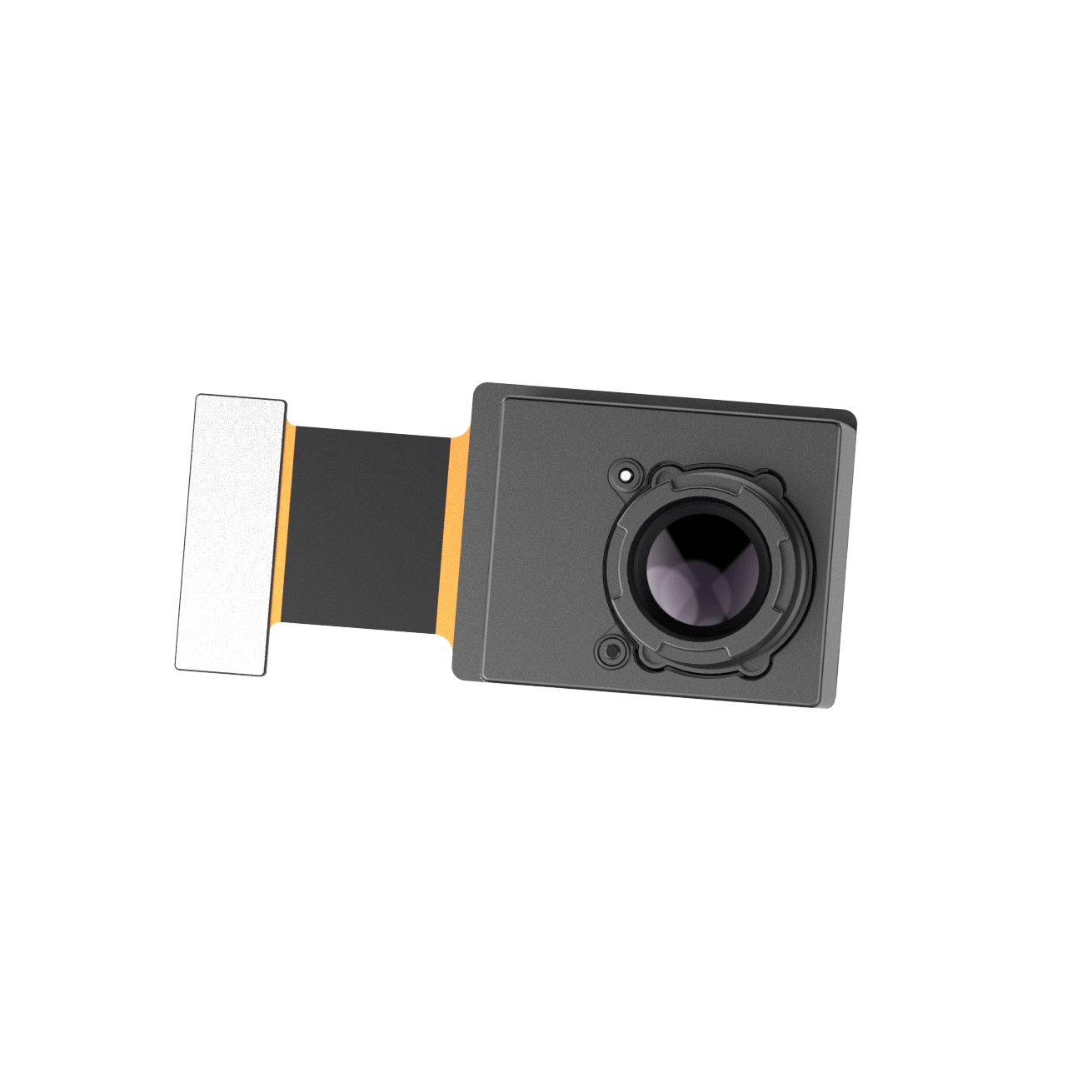

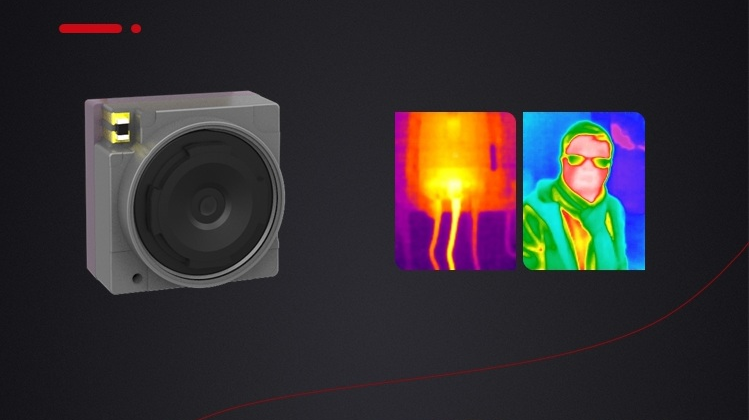

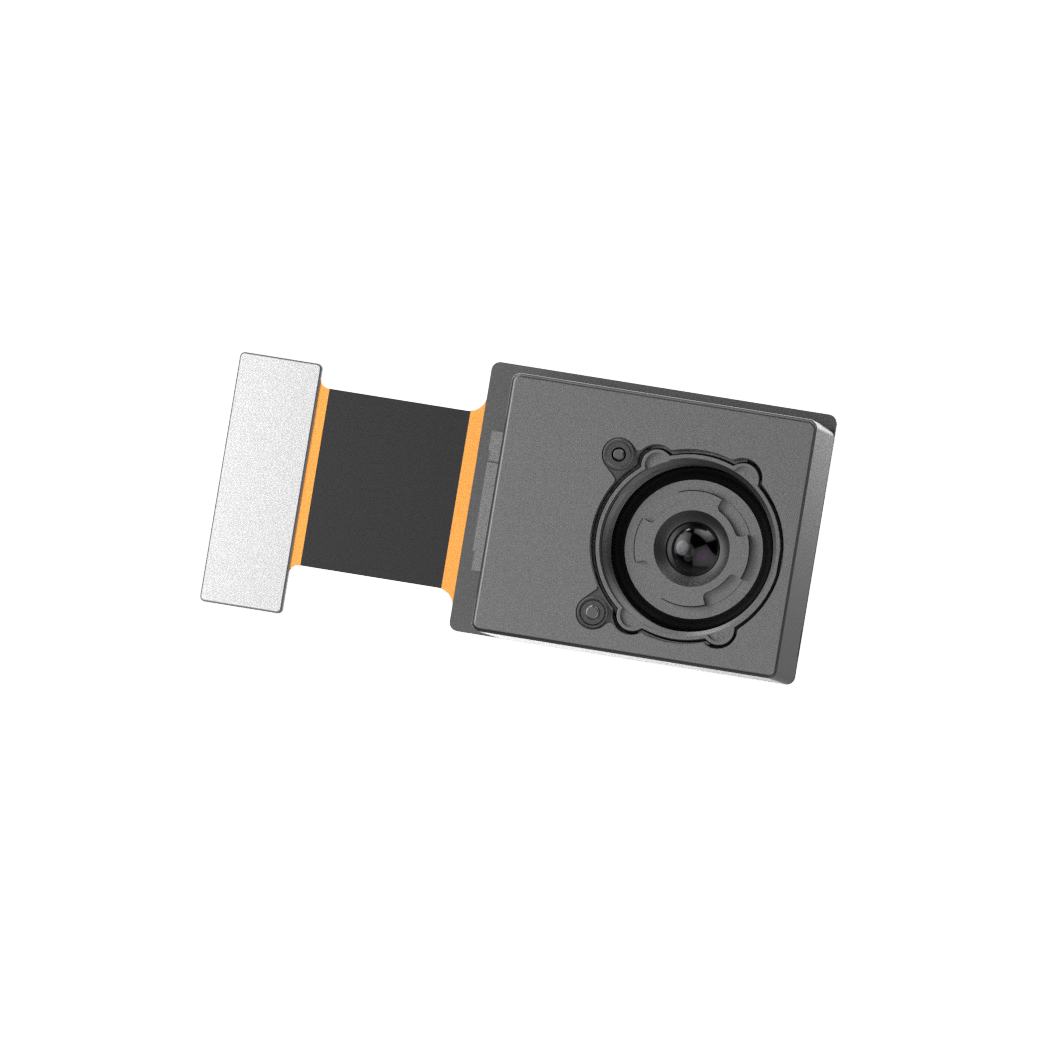

TIMO256AF

Autofocus mini infrared module

TIMO256AF as the world's first Autofocus Mini Infrared Module ,Adopts 256x192 WLP infrared detector, which provides advantages of autofocus , light weight , lower power consumption,low cost,easy to use,integrated shutter motor, etc.Equipped with integrated general control interface and intelligent power management, it is convenient for customers to integrate infrared temperature measurement products, and it has a wide range of applications.


256x192 IR resolution

7.0mm #F1.1Focal Length

25°×19°FOV

20.0×15.5×15 Size(mm)


Boost Infrared Application of Consumer Electronics Market

World's first

Integrate the industry's first High accuracy PM Motor and the industry's thinnest solenoid valve shutter



Focus in one second

Can realize far and near focus adjustment and auto focus temperature measurement function



Multiple models are available

High temperature measurement accuracy, temperature measurement range can be customized according to customer needs



ITA SDK

Special software development kit for infrared module, supports cross-platform and full functions



Technical Parameters

Model

TIMO256AF

ADD TO COMPARE

Imaging and optics
Detector type WLP VOx
Infrared resolution 256 × 192
Pixel Pitch 12 μm
Wavelength range 8 to 14 μm
Field angle 25°±1°/56°±1°
NETD ≤50 mK
Infrared frame rate 25 Hz
Focusing mode Electric
Measurement and analysis
Measurement range Industrial measurement: -20°C to 150°C, 100°C to 550°C (automatic switching) ; Human body :20 ℃ to 50 ℃ (accurate temperature measuring range: 28-40℃)
Measurement accuracy Industrial measurement:±2°C or ±2%, whichever is greater; Human body:±0.5℃
