IPT384
Electric-focus Network Online Thermal Camera
IPT series is a IP themal camera with outstanding performance and high sensivity. Ultilizing uncolled infrared detector,it is compact,lightweight and reliable. IPT series is developed based on a common interface protocol, the powerful software and easy-to-use SDK make it easy to integrate.
384x288IR resolution
≤60mk NETD
17μmPixel size
±2℃Accuracy
vs
ADD TO COMPARE
Electric-focus Network Online Thermal Camera
• Easy communication via Gigabit Ethernet
• Free professional control software and SDK
• Provide SDK for LINUX and WINDOWS system,including rich interface function for integation
• Simple for on-site use, supporting auto focus and motor locating
Media Gallery

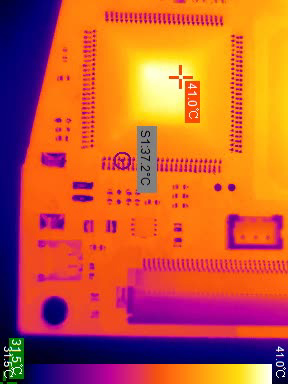

Circuit board

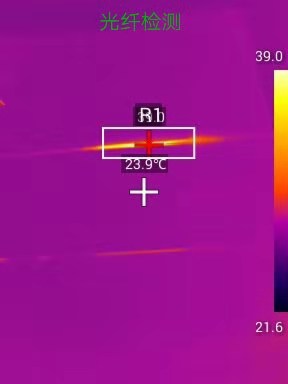

Optical fiber
Technical Parameters
Model
IPT384
ADD TO COMPARE
| Thermographic | ||||
|---|---|---|---|---|
| Detector type | VOx | |||
| Detector resolution | 384 × 288 | |||
| Pixel size | 17μm | |||
| Wavelength range | 8μm to 14μm | |||
| NETD | ≤ 60mK@30°C | |||
| Thermographic camera lenses | 15mm, 25° x 19° | |||
| Focusing mode | Electric / Automatic | |||
| Detail enhancement | Supported | |||
| Noise reduction | 2D/3D noise reduction | |||
| Pseudo colors | 8 pseudo colors | |||
| Temperature measurement | ||||
|---|---|---|---|---|
| Measurement range | -20°C-150°C, -20°C-350°C or -20°C-150°C, 100°C-650°C (Alternative) | |||
| Measurement accuracy | ±2°C or ±2% (whichever is greater) | |||
| Cold/ hot spot tracking | Supported | |||
| Full-screen point temperature measuring | Supported | |||
| Query and export of temperature measuring information | Supported | |||
