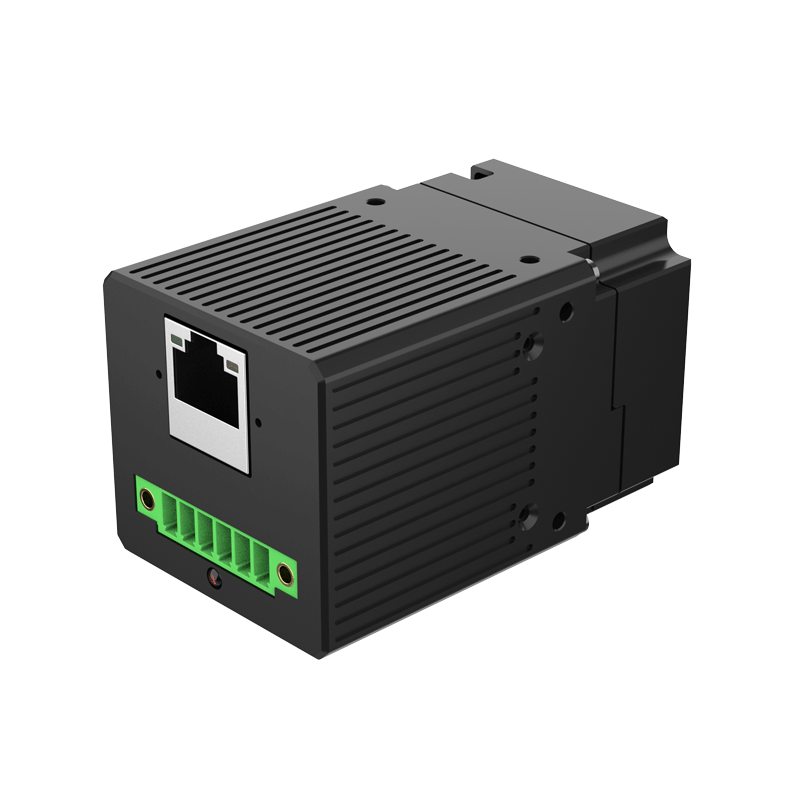

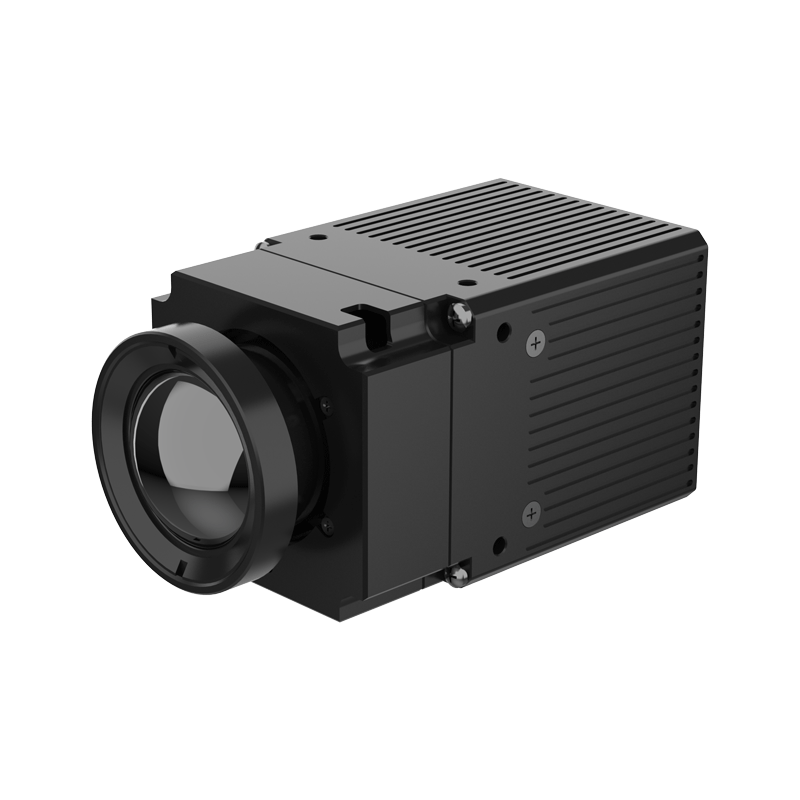

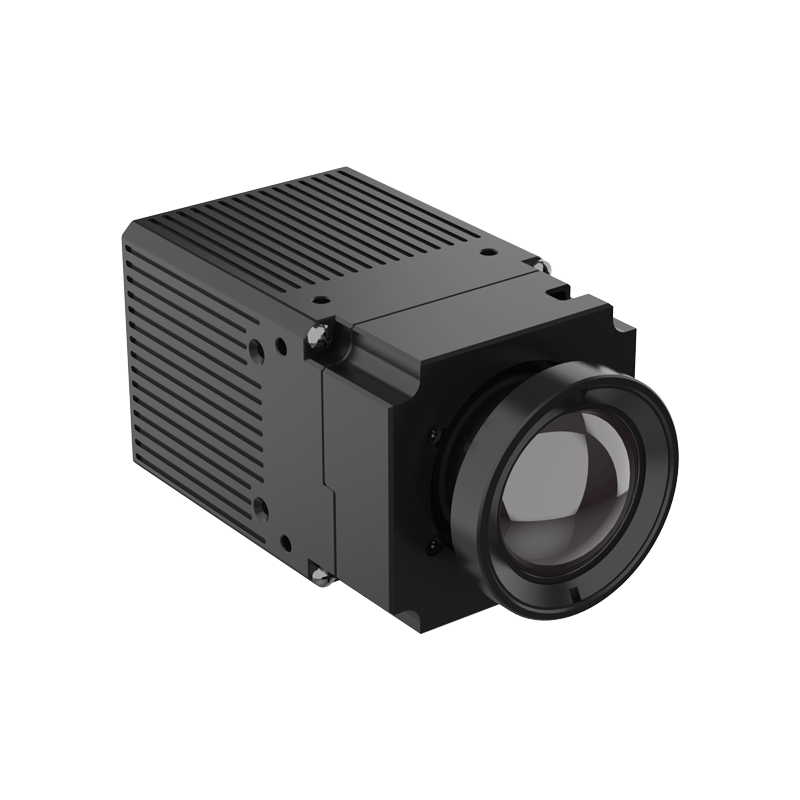

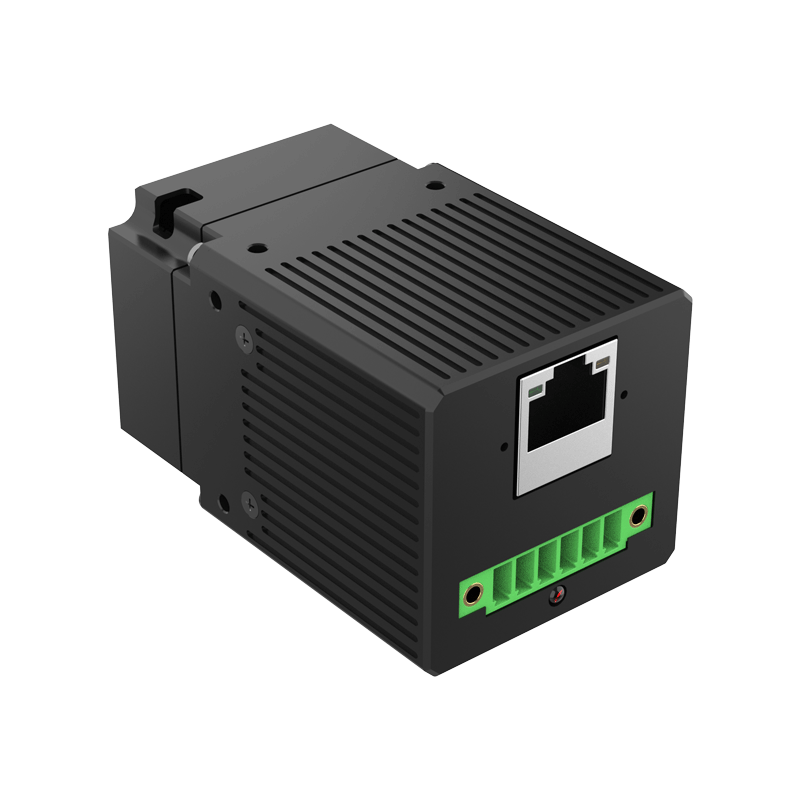

IPT384M

Mini Online Thermal Camera Core

IPT384M is a compact popular IP thermal module utilizing an uncooled infrared detector, with accurate temperature measurement, outstanding and stable performance. It is developed based on powerful terminal software and easy-to-use SDK, multiple configurations to choose from, high flexibility make it easy to integrate.


384x288IR resolution

≤60mkNETD

-20℃~350℃Temperature Range

±2℃Accuracy


Small stature,great energy

• Small size, Lower power consumption to 2.8W

• Auto-focusing in 1 second with success rate 98%

• Support setting multiple temperature measurement objects and alarm modes

• Support RTSP and Onvif standard protocols, verified with CE and ROHS

• Provide professional infrared analysis software, support real-time temperature analysis, images and videos can be played back and analyzed, and reports can be generated, real-time drawing lines can be used to analyze the temperature distribution of objects, and LEVEL and SPAN adjustments



Media Gallery



Technical Parameters

Model

IPT384M

ADD TO COMPARE

Thermographic
Detector type VOx
Detector resolution 384 × 288
Pixel size 17μm
Wavelength range 8μm to 14μm
NETD ≤ 40mK@30°C
Thermographic camera lenses 4mm, 95°x70°; 10mm, 36°x27; 15mm, 25°x19°
Focusing mode Electric / Automatic
Noise reduction 2D/3D noise reduction
Pseudo colors 9 pseudo colors: White Hot, Black Hot, Fulgurite, Rainbow and so on
Temperature measurement
Measurement range Low temperature mode: -20°C to 150°C, high temperature mode: -20°C to 350°C
Measurement accuracy ±2°C or ±2% (whichever is greater)
Target setting Point, linear and area temperature measuring, and the area shape can be circle, square and irregular polygon
Cold/ hot spot tracking Supported
Full-screen point temperature measuring Supported
Query and export of temperature measuring information Supported
