NC200

NC200

Thermographic Cube Camera

NC200 is developed based on 256x192 wafer infrared module, which integrates an infrared thermal imager and a visible light camera. Small size, breaking through installation restrictions in narrow spaces, and flexible in deployment. Provide continuous temperature data collection, analysis and alarm for the uninterrupted state monitoring of key electromechanical equipment.


256x192IR resolution

≤45mK@30℃NETD

-20℃~550℃Temp. Range

IP67Encapsulation


Powerful in narrow space

• Adopts 256x192 Uncooled Vox Infrared Detector.

• HD 1/2.7 Inch CMOS, Resolution 1920x1080

• Web-side control, No need other APP or software to set the parameters

• Unified interface, compatible with Ethernet/IP standard protocol, which is conducive to networking

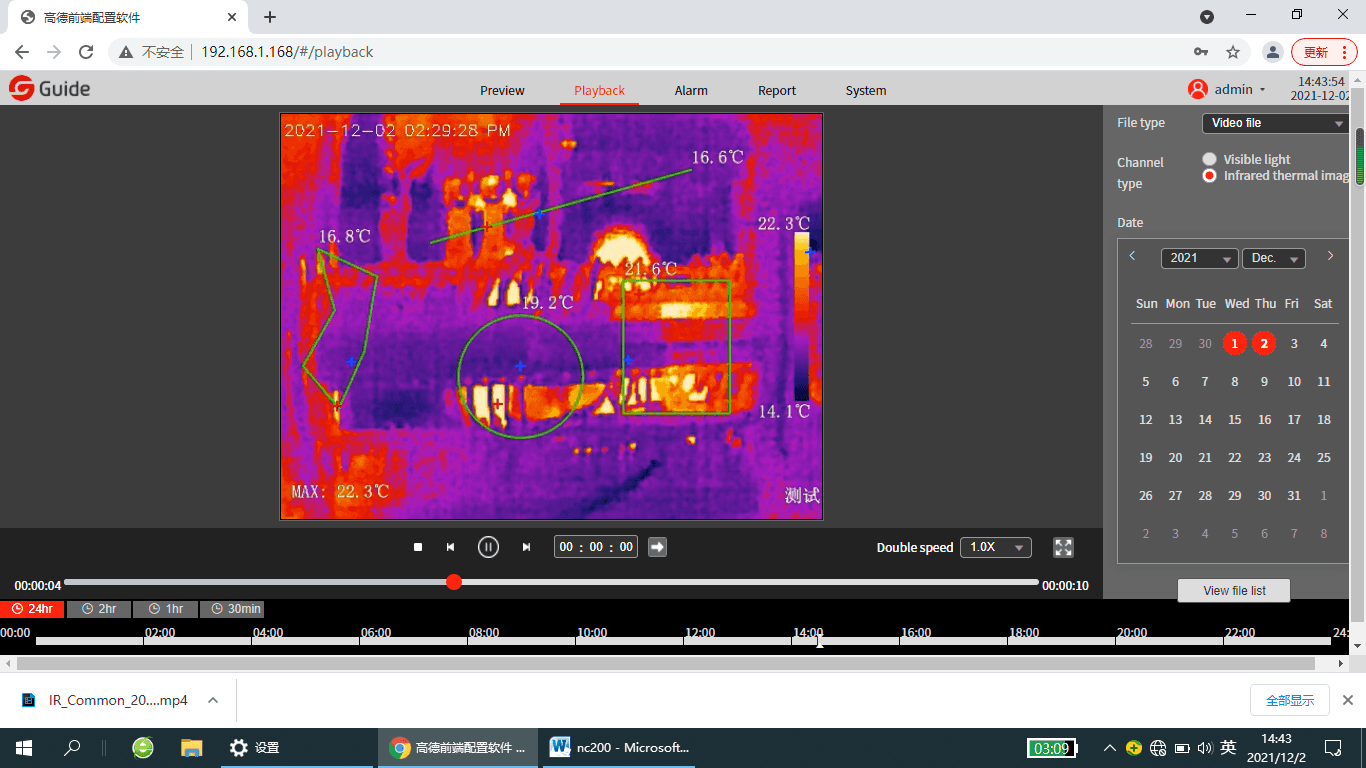

• Support real-time temperature measurement analysis, historical information query and export CSV report

• IP67 encapsulation, Dustproof and waterproof. Durable and stable

• Installation methods: Hoisting/Vertical Mounting/Wall Mounting/Tripod Mounting/Magnetic etc.



Media Gallery





Technical Parameters

Model

NC200

ADD TO COMPARE

Thermographic
Detector type WLP VOx, 8μm to 14μm
IR resolution 256×192, 12μm
NETD ≤45mK@30°C
Lens 3.2mm, 56°×42°
Focusing mode Focus-free
Pseudo colors 26 pseudo colors: White Hot, Black Hot, Rainbow and so on
Featured features Visible light gain control, 2D/ 3D noise reduction, Backlight compensation, Wide dynamic, Strong-light photoinhibition, Image flip, Exposure compensation
Temperature measurement
Measurement range Low: -20°C to 150°C; High: -20°C to 550°C
Measurement accuracy ±2°C or ±2% (whichever is greater)
Target setting Up to 12 targets (spot, line, rectangle, polygon and circle) can be simultaneously measured at the same time
Measurement function Cold/ hot spot tracking, Full-screen point temperature measuring, Query and export of information

* All specifications are subject to the actual product. Guide sensmart reserves the right to change the technical specifications without notice or liability to you.
