TU430

TU430

Thermal Scope

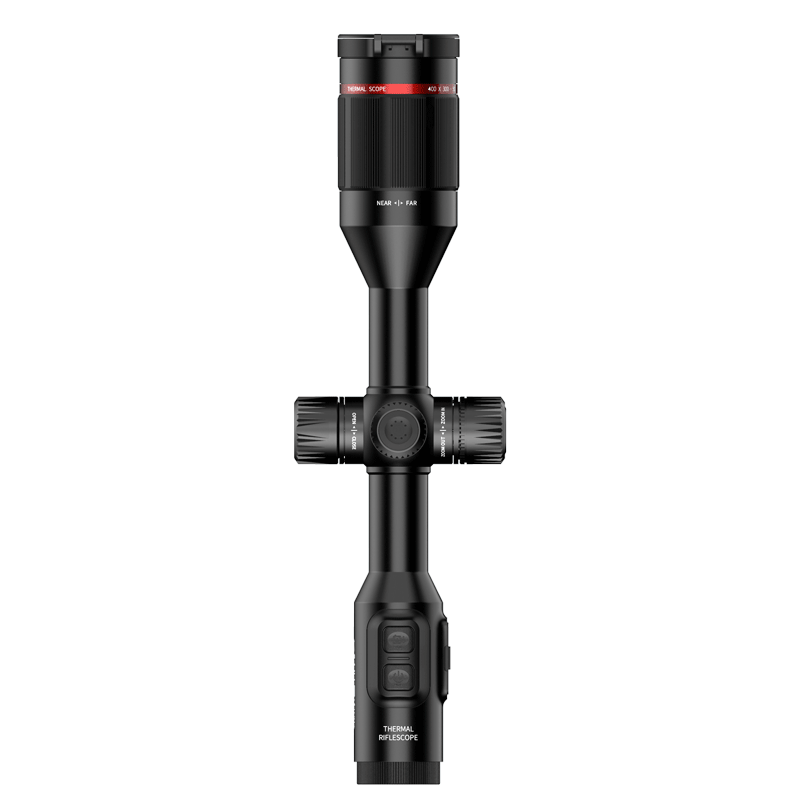

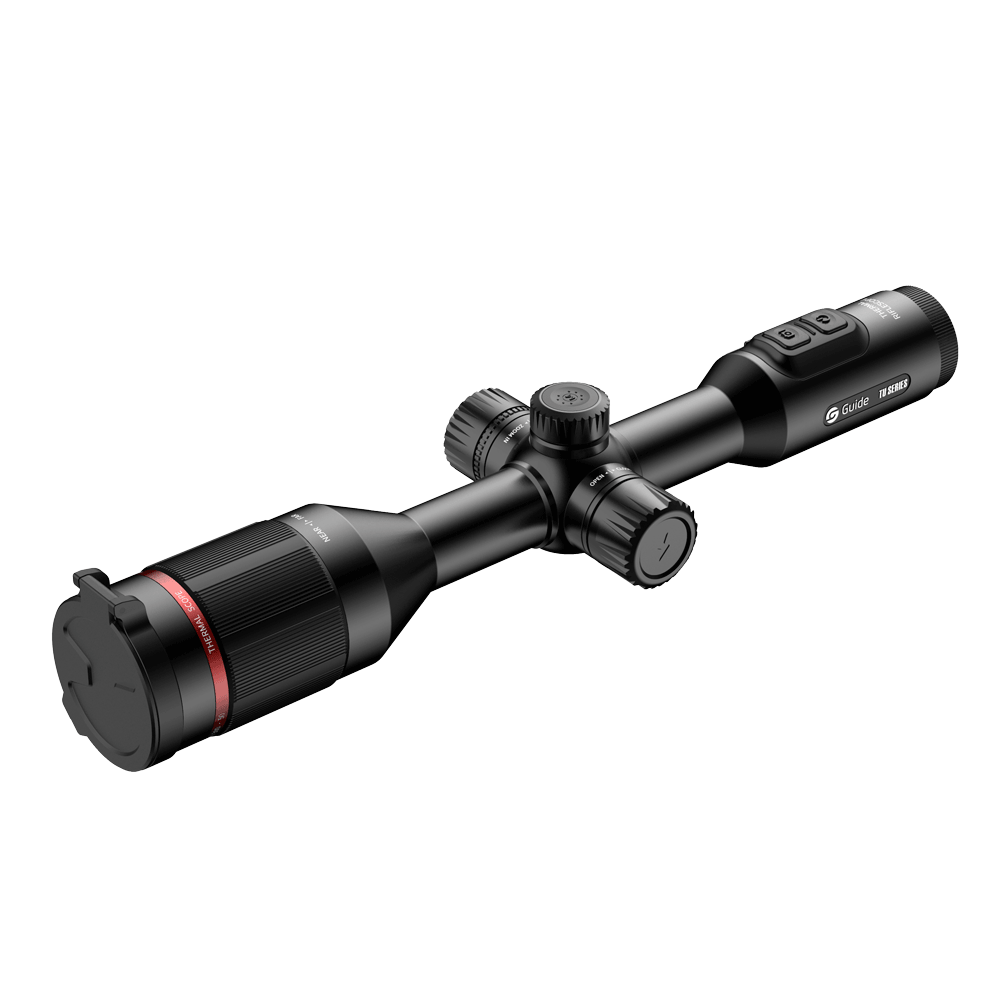

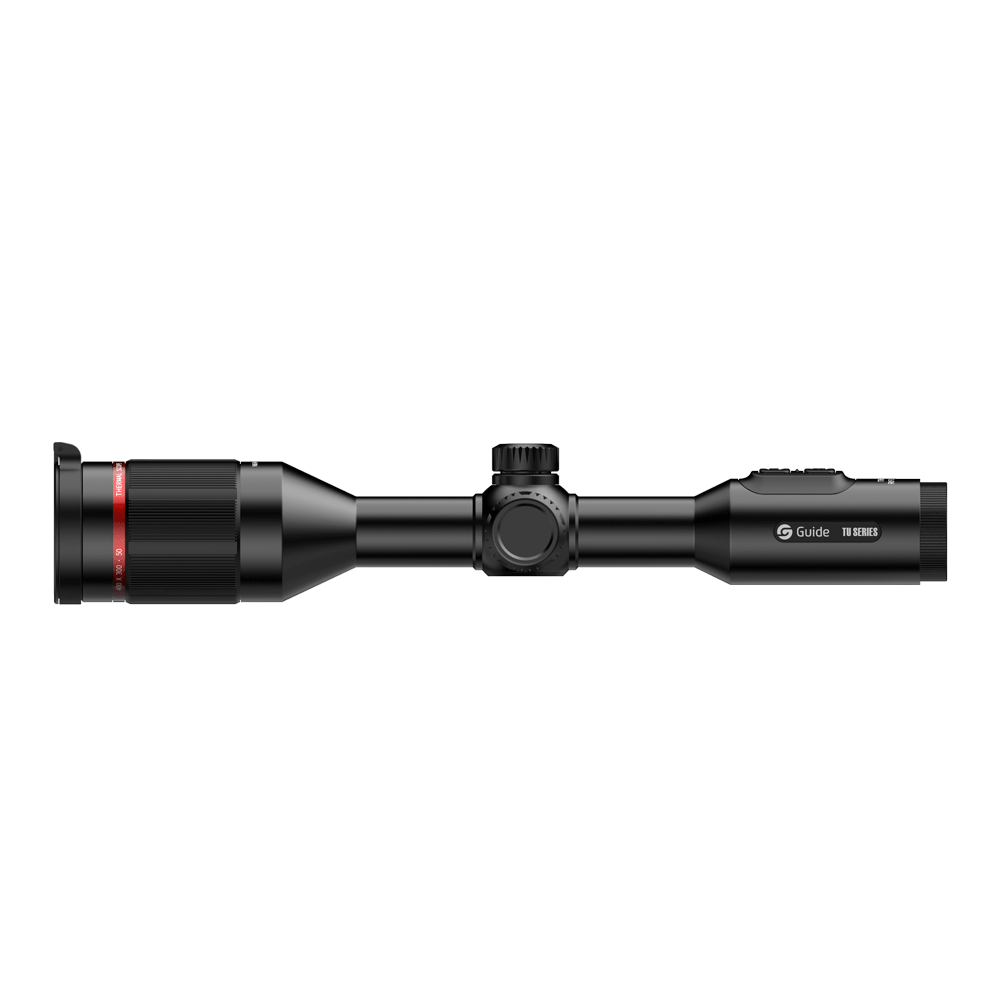

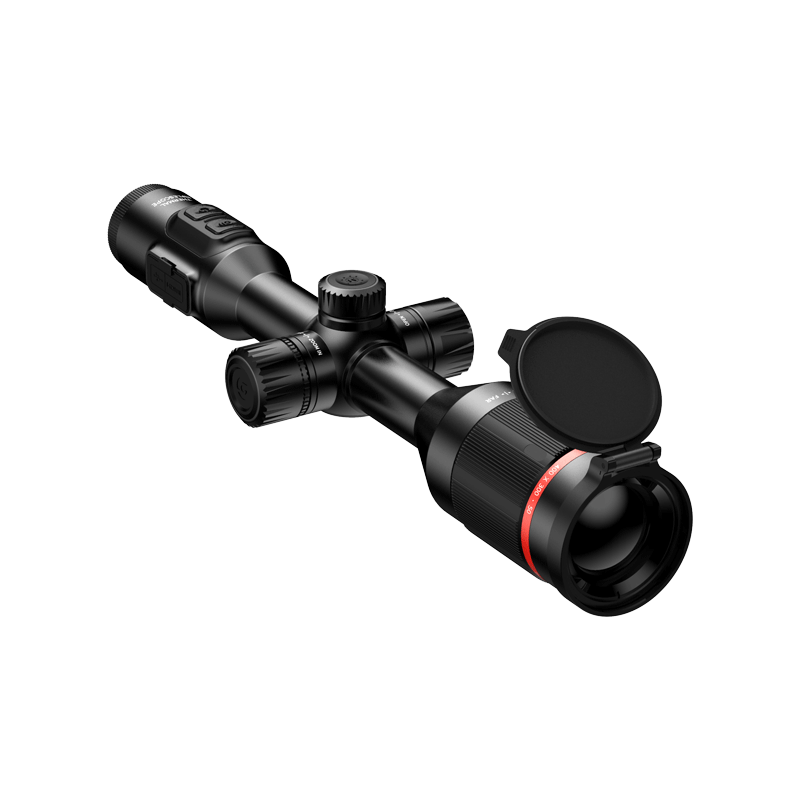

Guide TU Thermal Scope retains the appearance of a traditional daylight scope and perfectly integrates latest premium thermal imaging technology. The design of this scope accommodates long-term operating habits of hunters. TU series adopts 400x300 high- sensitivity thermal detector with three different lens options of 25mm,35mm,50mm, and its 10 sets of zero calibration configuration make it convenient to switch between different instruments.


400*300IR resolution

35mmFocal Length

11.1°×8.33°FOV

2.3×~9.2× Magnification

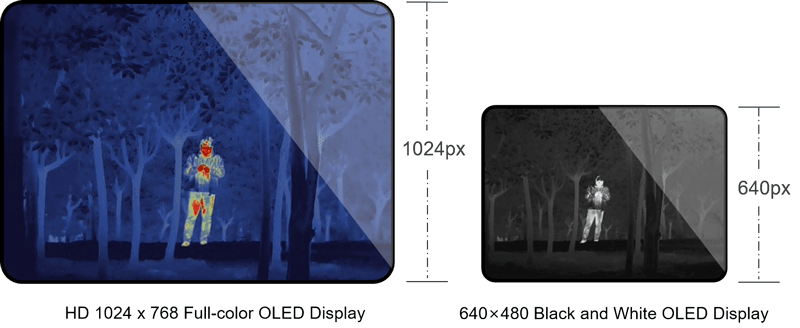

Full-color OLED display.

1024 x 768 Full-color OLED, High contrast , image details boost, Improving viewing comfort.

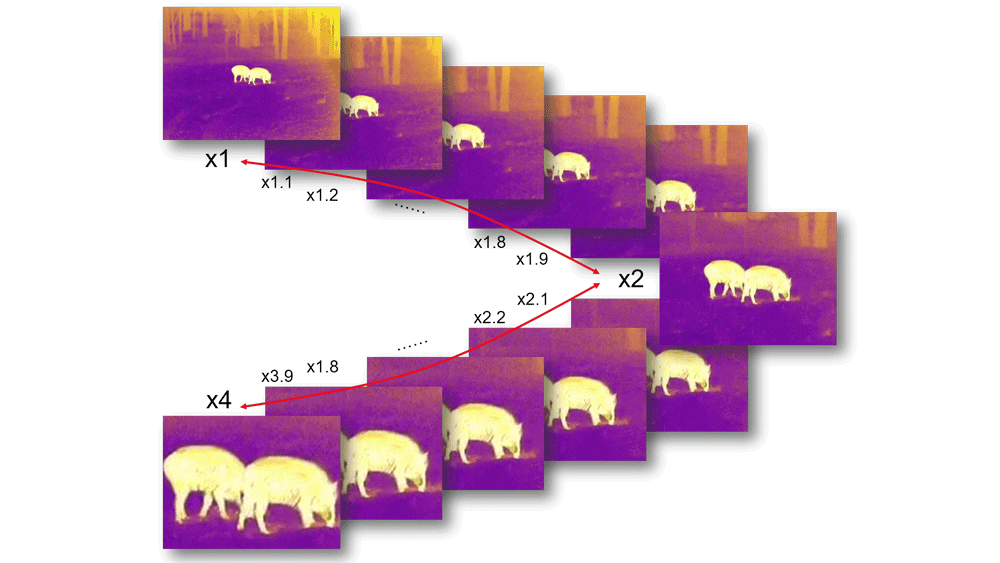

Smooth Zoom For Flexible Searching.

Long press the up/down button to smoothly zoom in and zoom out. Make the search more flexible and pinpoint the target more quickly while hunting.

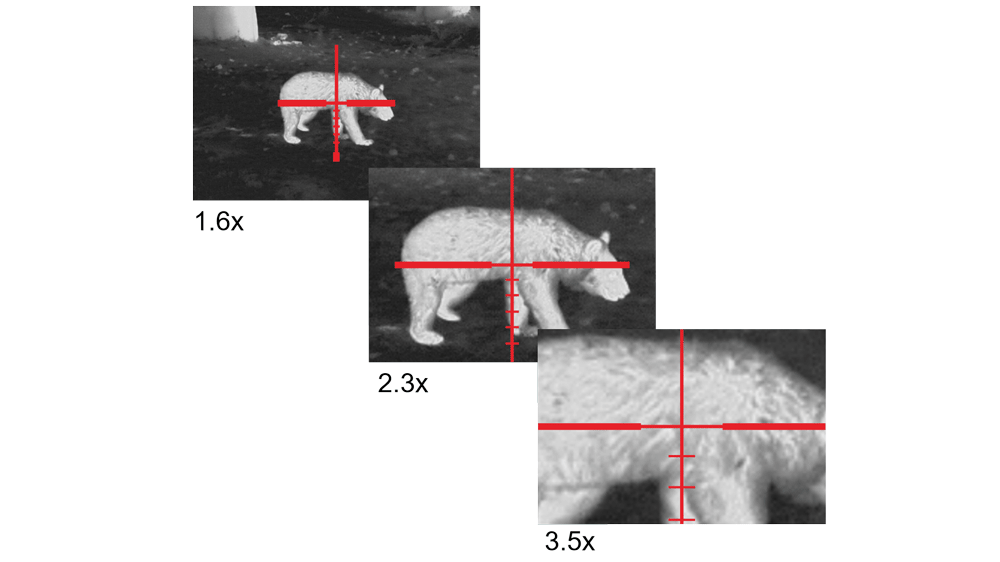

Designed for Professional Hunters

No Need Conversion. Reticle density can be zoomed in synchronously with the image, and the reticle line width can be maintained at any magnification, without conversion, avoiding errors, and helping hunters improve shooting accuracy.

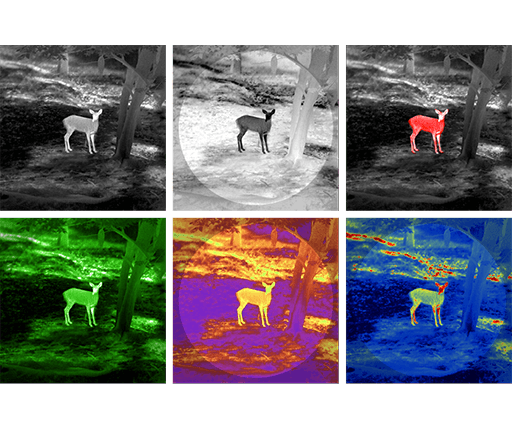

Multiple Color Palettes to Highlight the Target

Six color palettes: white hot, black hot, red hot, green hot, iron red, blue heat,

Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.

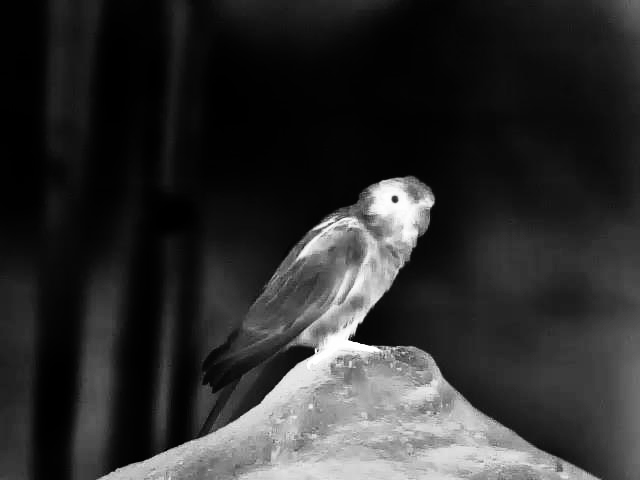

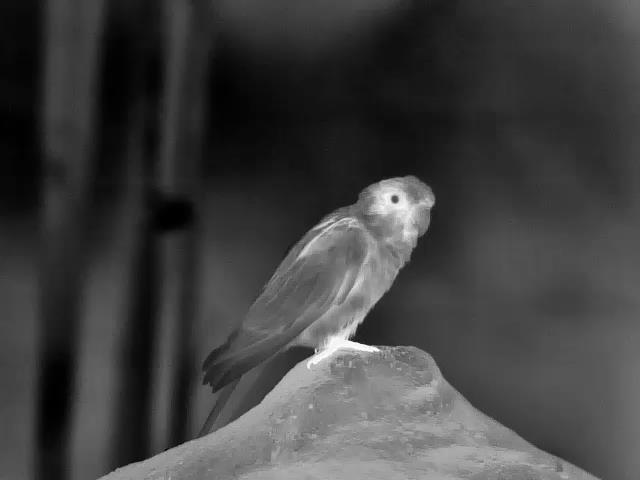

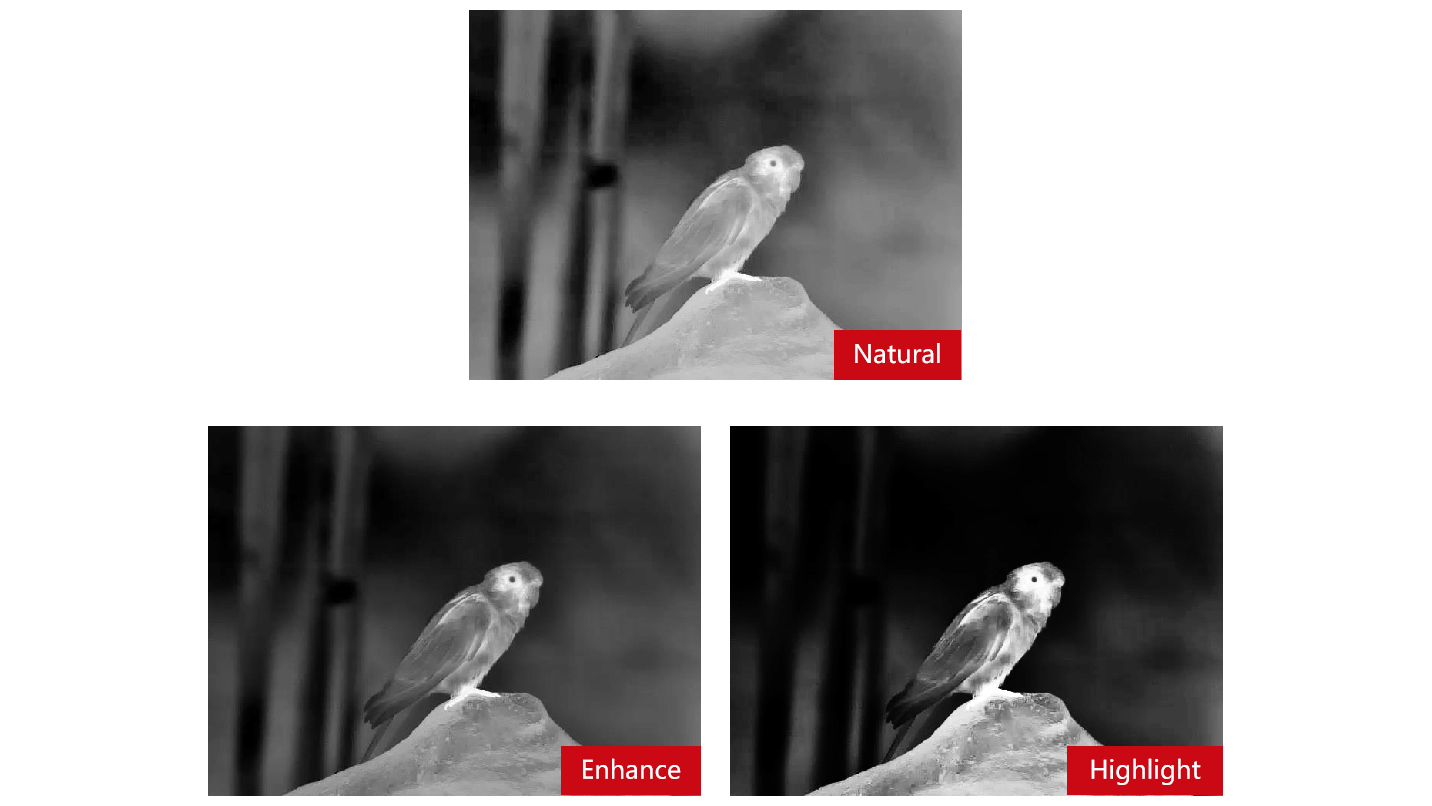

Multiple scene modes, Highlight Target Clearly

“Enhance/Highlight/Natural” can be quickly switched by one button, the image can be adaptively adjusted for different scenes , “Enhance/Highlight” can effectively  reduce image impurities to highlight the target.

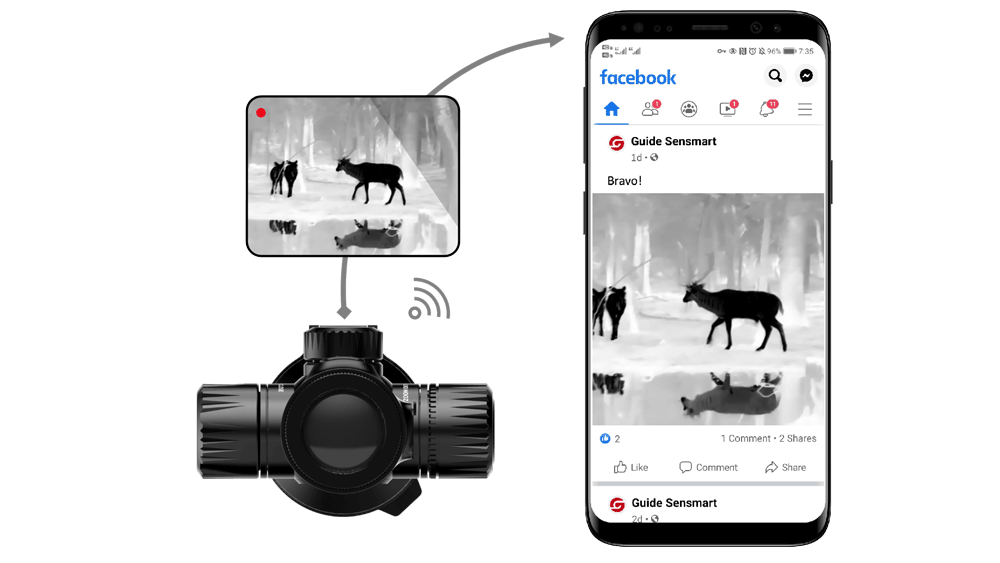

Photo and Video Recording

Support photos and videos, Recording wonderful moments at any time. Can share to your social media by APP.

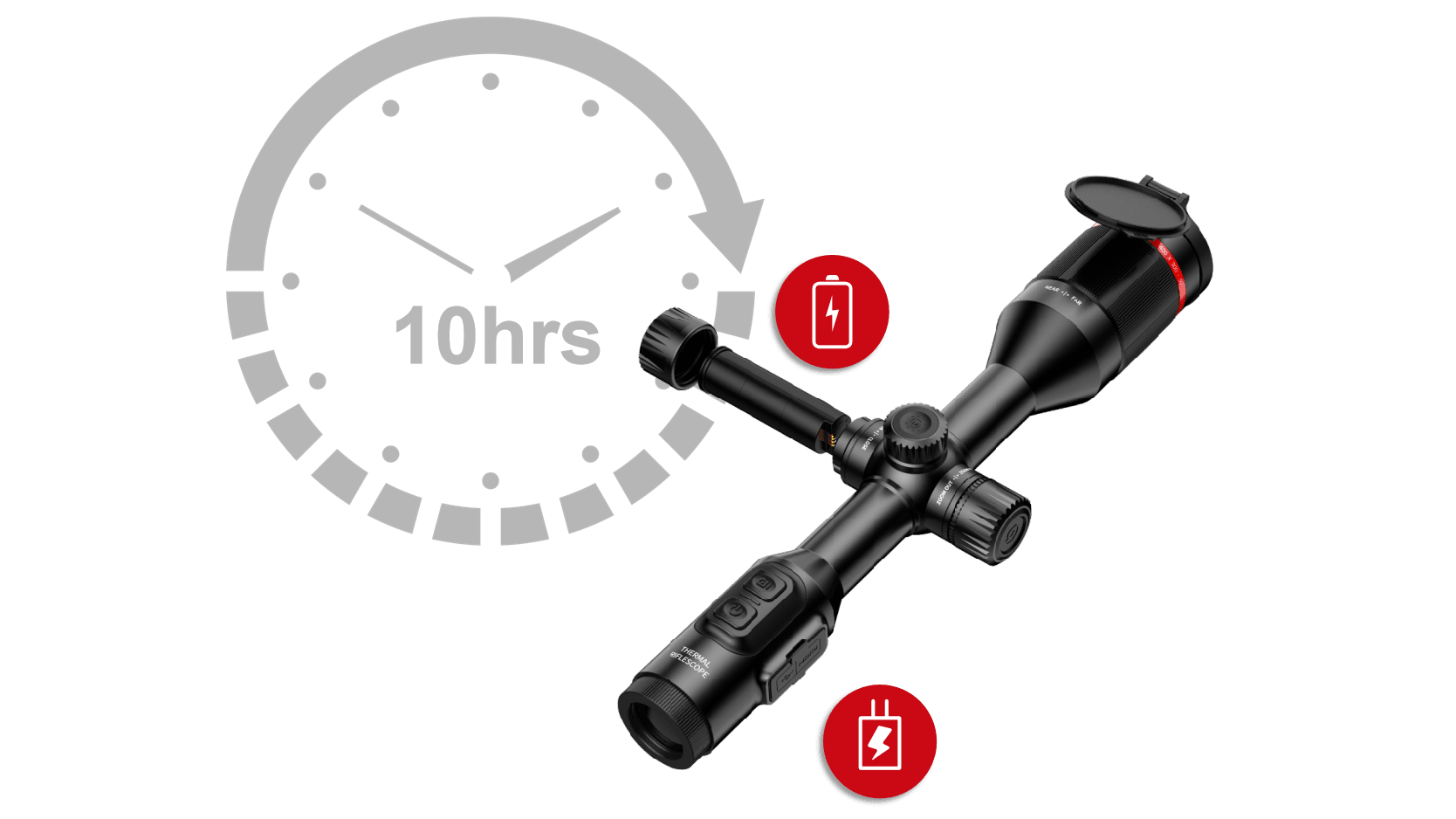

10 hours Super Long Battery Life

Support 10 hours super long operation time. TU Series have dual battery system which consist of internal battery and external battery. External battery can be replaced without power-off , ensuring all-day operations.

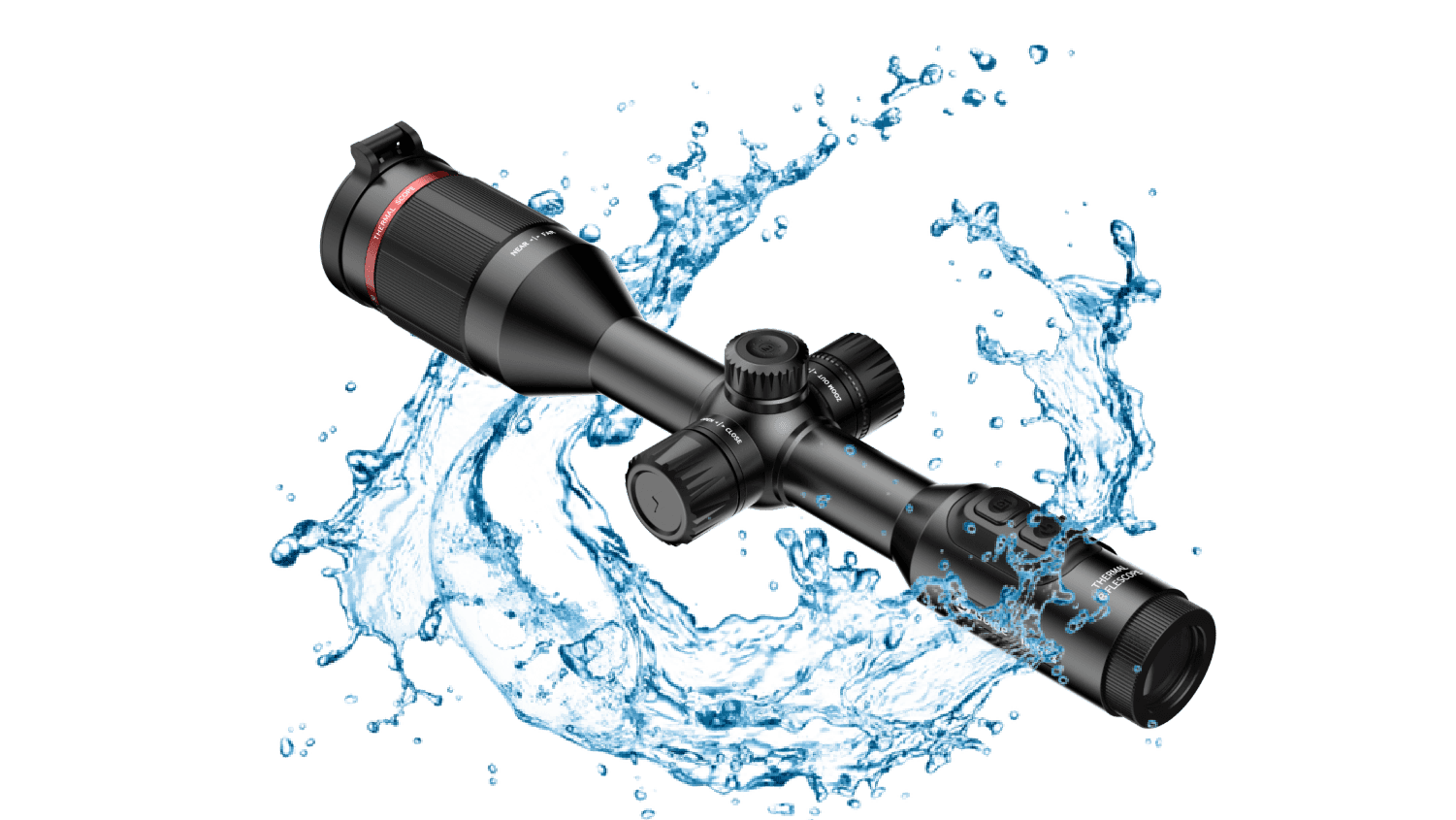

IP67 Protection Rating, Rugged and Durable

With IP67 waterproof-rated for protection from heavy-rainfall, dust, and impact. Working temperature is -30°C~50°C ,suitable for all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed.



Media Gallery


Nature


Higher


Highlight

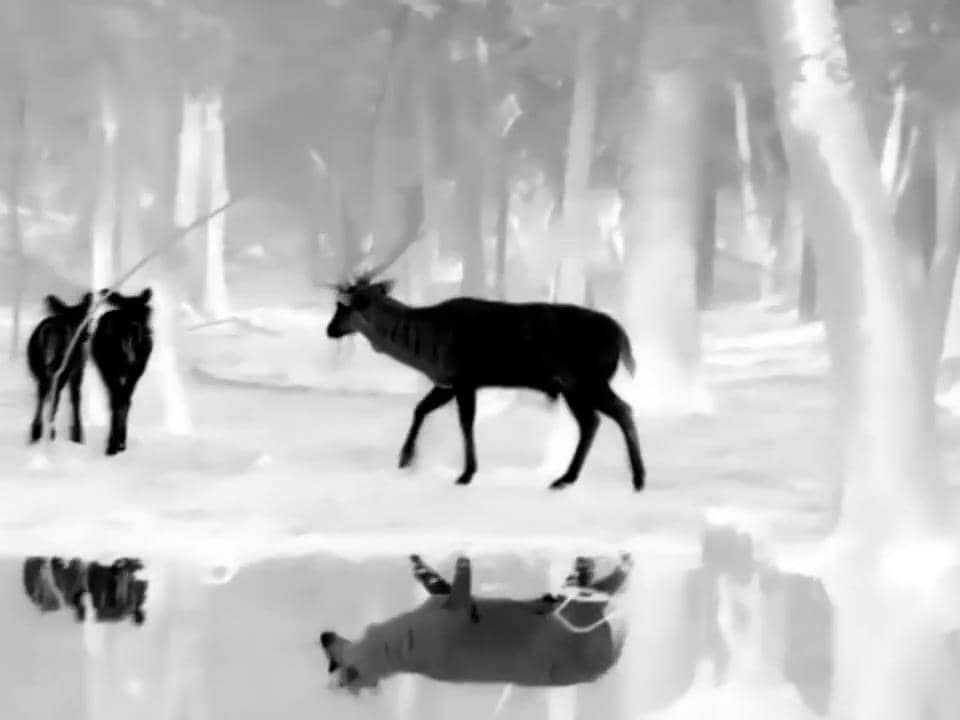

Elk

Technical Parameters

Model

TU430

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14 μm
Resolution 400×300, 17 μm
NETD ≤30mK
Frame rate 50 Hz
Lens
Focal length 35 mm, F1.2
Field of angle 11.1°×8.33°
Optical zoom 2.3x
Digital zoom 1x ~ 4x
Focus Manual

* All specifications are subject to the actual product. Guide sensmart reserves the right to change the technical specifications without notice or liability to you.
