TA631

TA631

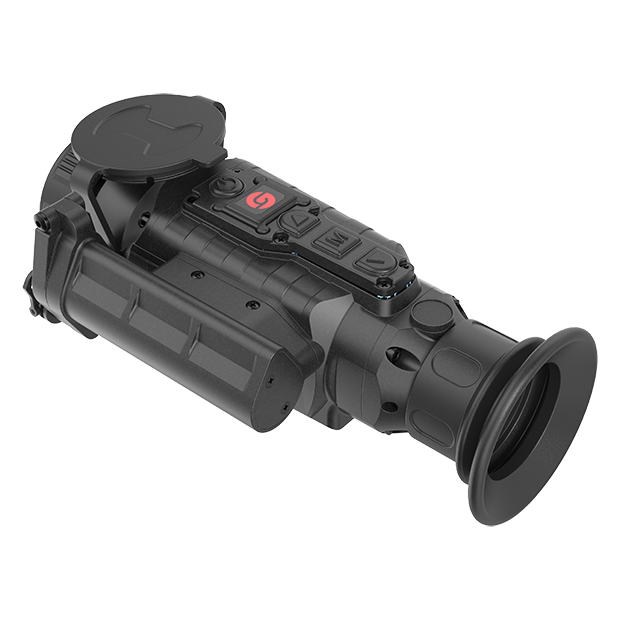

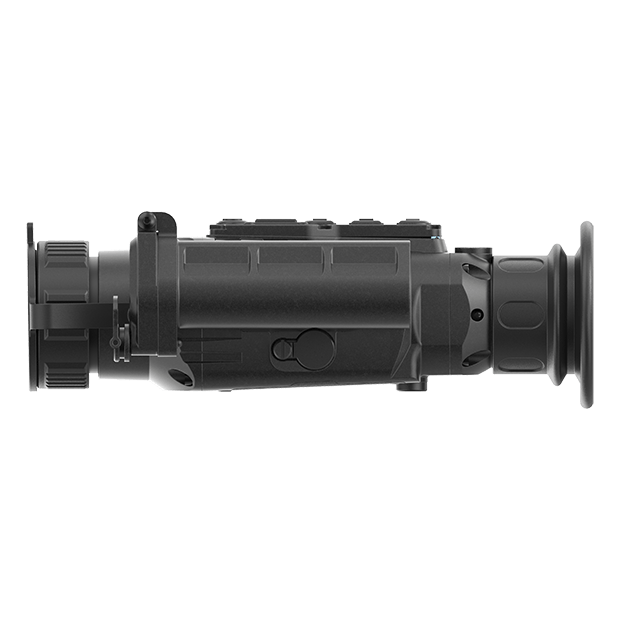

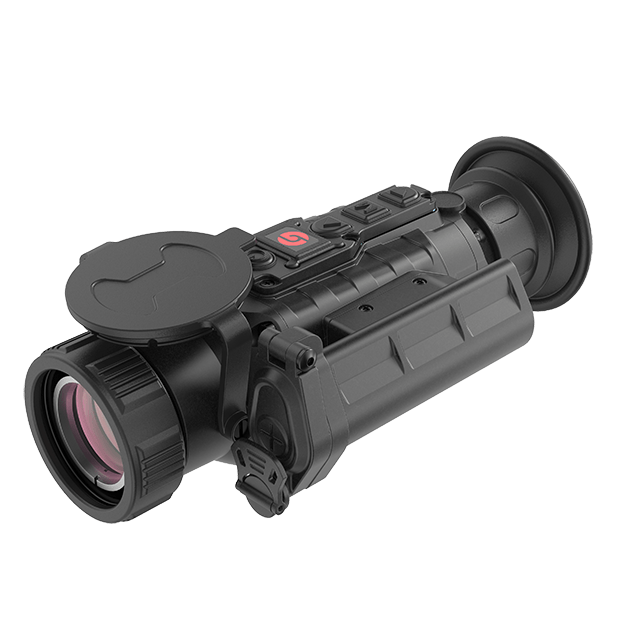

Clip-on Thermal Imaging Attachment

Featuring high-resolution thermal imaging detectors with  with 400×300 and 640x480 pixel resolutions repsectively and HD OLED displays, TA Gen2 offers image of exceptional quality with high contrast and rich detail. While still being lightweight and modest in size, the attachment's revolutionary battery technology enables it to operate for a prolonged period of time. With other numerous useful features, it is a true thermal upgrade turning day scopes into powerful thermal imaging aiming systems.


640 × 480IR Resolution

35 mm; F1.0 Focal Length

12.5°×9.4°FOV

≥ 7 HoursBattery Life

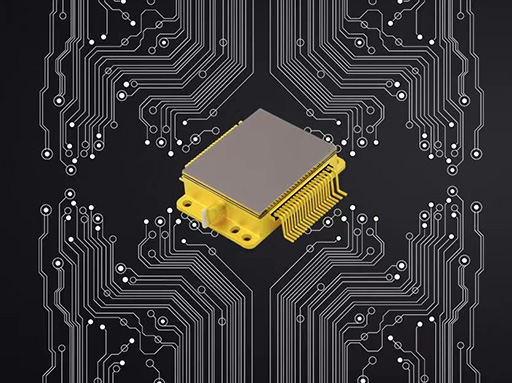

Upgraded Detector

The TA Gen2 uses high quality 17μm and 12 µm thermal imaging detectors with 400×300 and 640x480 pixel resolution respectively to offer an exceptionally sharp image and excellent thermal sensitivity in all weather conditions.



Double algorithm

The TDE-Tech and PureIR bring crisp, richly contrasted thermal imaging for enhanced identification of targets, their extremities and even the smallest details.

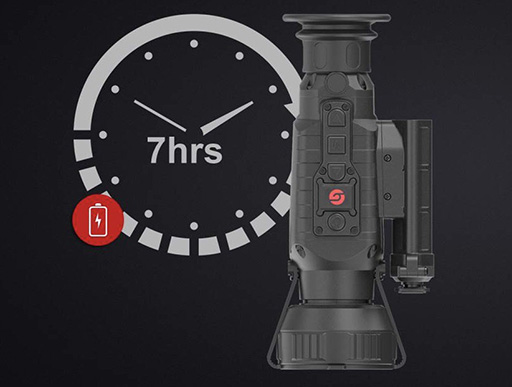

7 hours Super Long Battery Life

The standard 18650 battery provides enough power for up to 7 hours of operation time. Quick and simple battery replacement ensures continuous observation without disruptions.

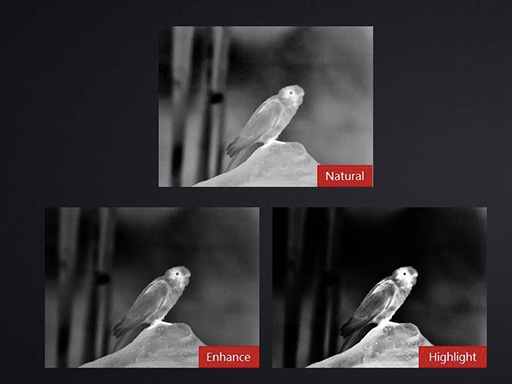

Multiple scene modes, Highlight Target Clearly

"Enhance/Highlight/Natural” can be quickly switched by one button, the image can be adaptively adjusted for different scenes , “Enhance/Highlight” can effectively  reduce image impurities to highlight the target.

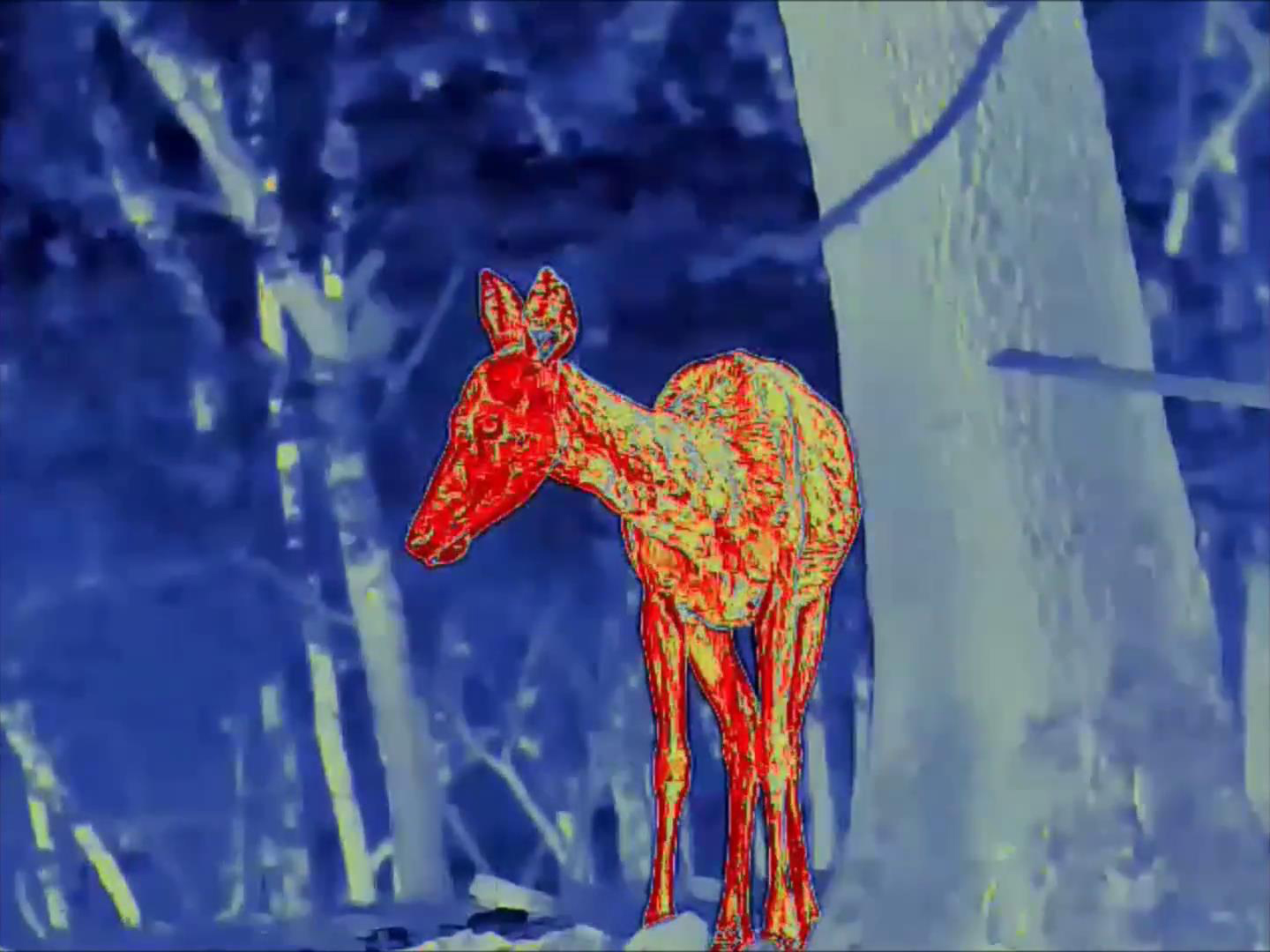

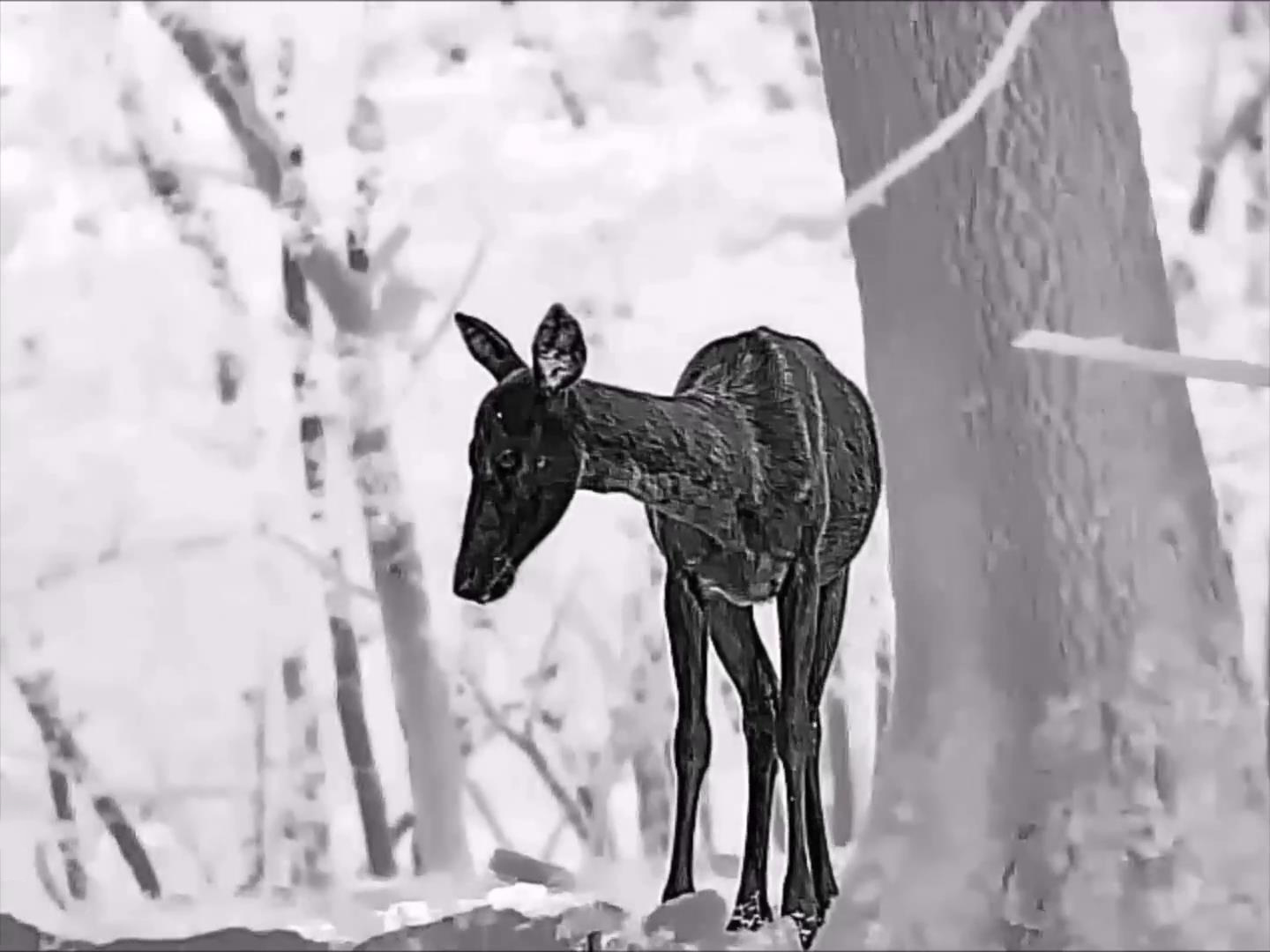

Multiple Color Palettes to Highlight the Target

Six color palettes: white hot, black hot, red hot, green hot, iron red, blue hot. Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.



One-click compensation to make image clearer

Two compensation methods are available to eliminate pepper noise, image jitter, stripe noise, etc., making images clearer.

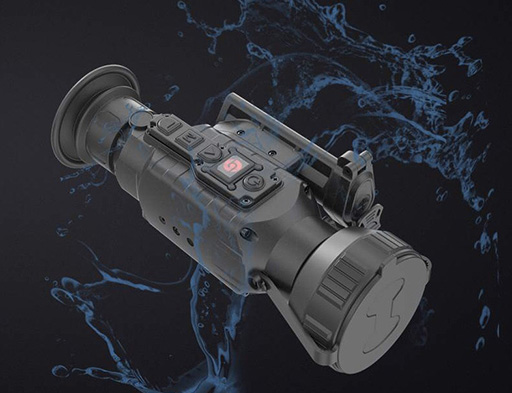

IP67 Rated, Rugged and Durable

With IP67 waterproof-rated for protection from heavy-rainfall, dust, and impact. Working temperature is -30°C to 50°C ,suitable for all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC,ECA certification, etc.

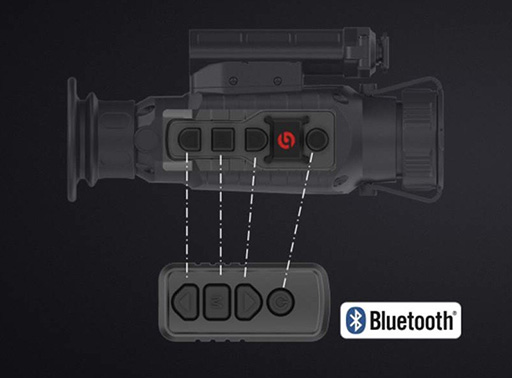

Wireless remote control

An optional Bluetooth Controller supports the remote control of the device. It has buttons same as those of the device.



Media Gallery






Technical Parameters

Model

TA631

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14 μm
Resolution 640×480, 12 μm
NETD ≤40mK
Frame rate 50 Hz
Lens
Focal length 35 mm, F1.0
Field of angle 12.5°×9.4°
Optical zoom 1x
Digital zoom 1x, 2x, 4x and 8x
Focus Manual

* All specifications are subject to the actual product. Guide sensmart reserves the right to change the technical specifications without notice or liability to you.
