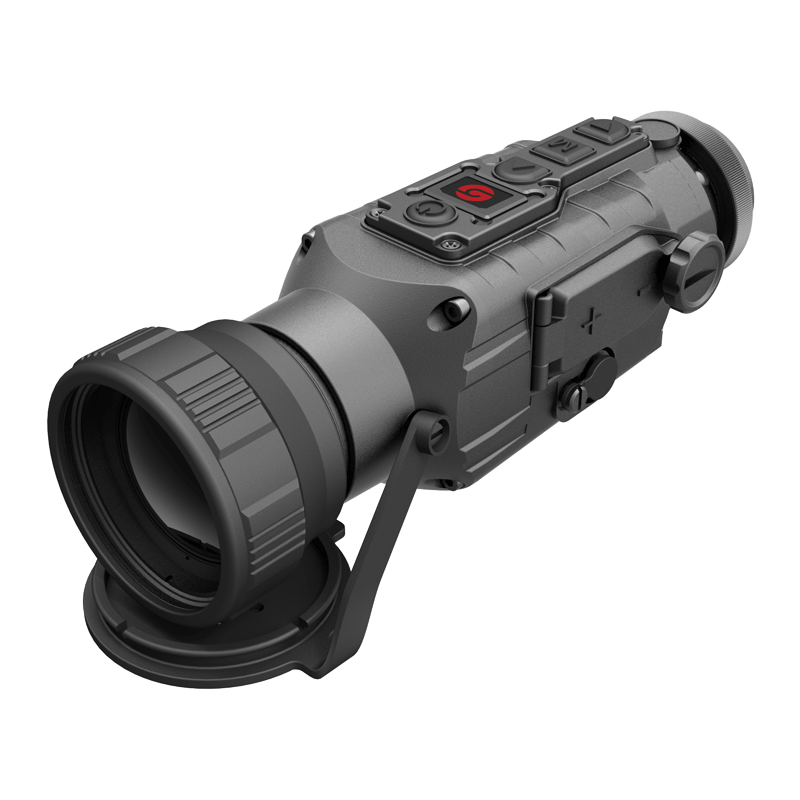

TA450

Clip-on Thermal Imaging Attachment

GUIDE TA450 Series is a versatile clip-on thermal imaging attachment which helps transform the daylight optics into a thermal imager. It can be taken as a thermal imaging attachment adding thermal imaging capability to your scope, or as a portable thermal imaging monocular as well. This compact, lightweight and durable device can be quickly mounted and dismounted without re-zeroing, providing excellent image in various environments.


400*300IR resolution

50mm F1.2Focal Length

7.5°×5.6°FOV

≤50mkNETD

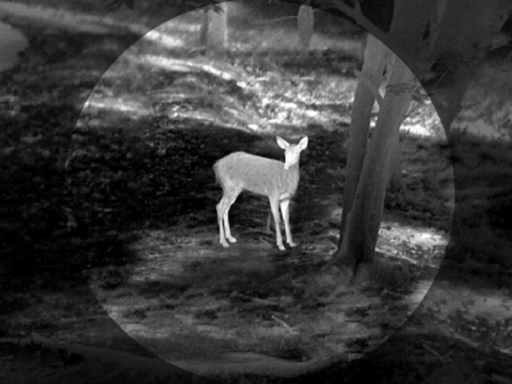

Visible Light Second Thermal Imaging

Mini, rugged and durable

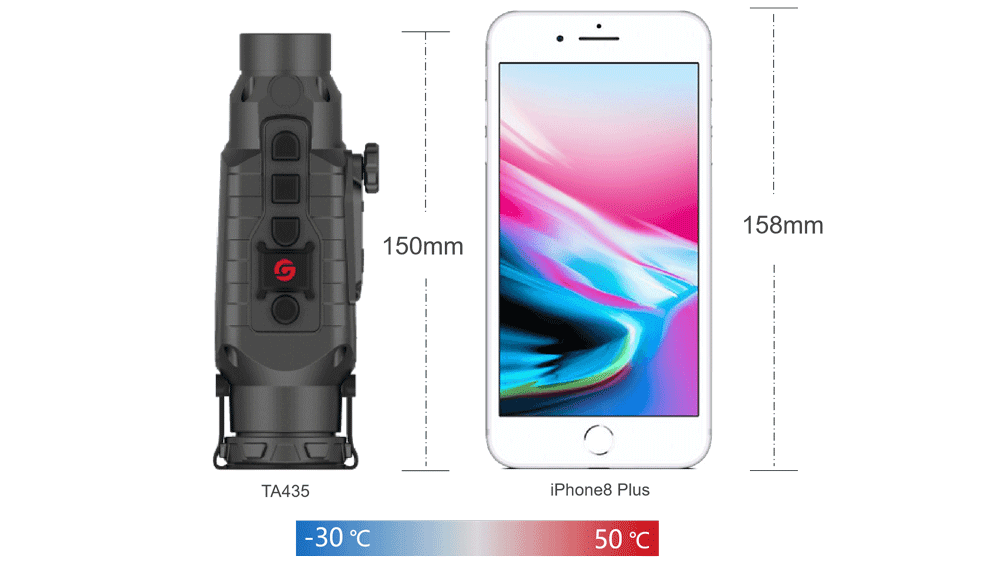

It’s lightweight (less than 400g) , ultra compact (150mm×54mm×53mm)  with IP67 protection. It performances well even at  -30℃.



Unique optical design to ensure aiming accuracy

It features unique stray light analysis and processing technology, reserved window edge and strict assembly standards to ensure aiming accuracy and strong stability.

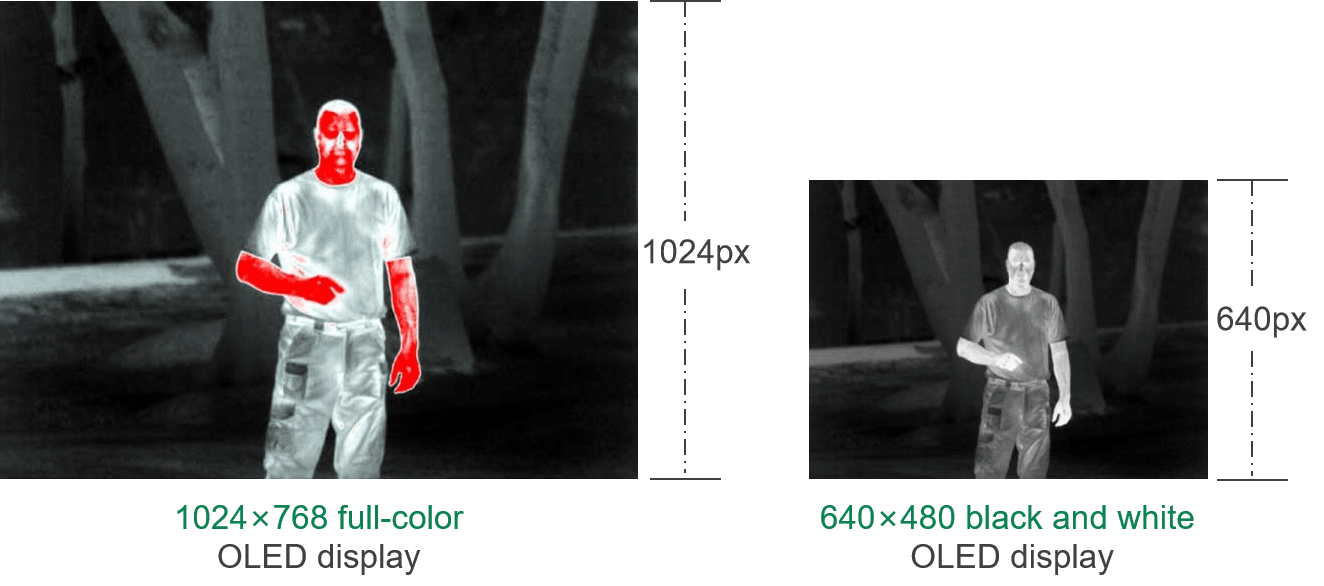

Full-color OLED display

The full-color OLED display enhances image quality, improving viewing comfort.

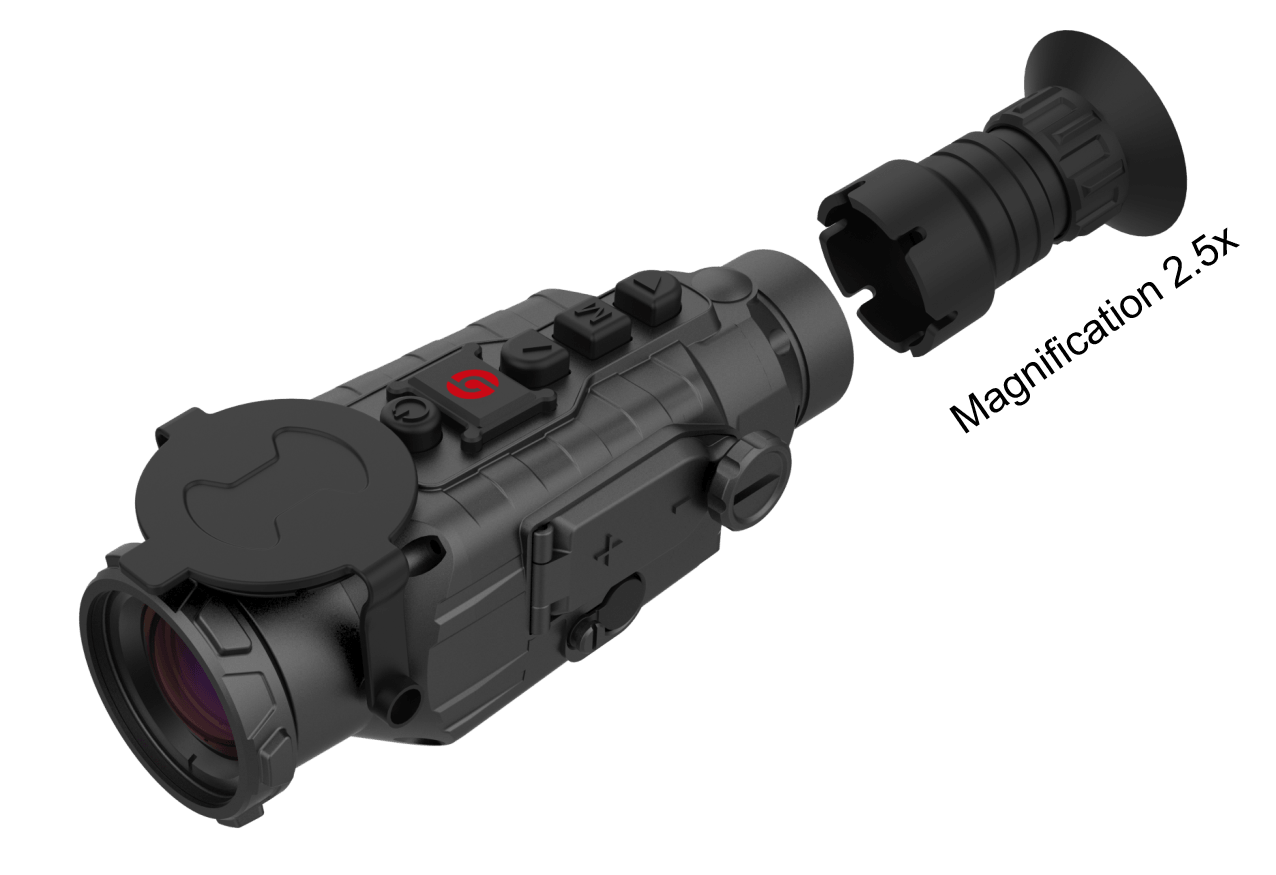

One device for dual use

Turn it into a thermal imaging monocular with an eyepiece. Or add it to a daylight scope, supporting picatinny rail, laser range finder and anemometer.

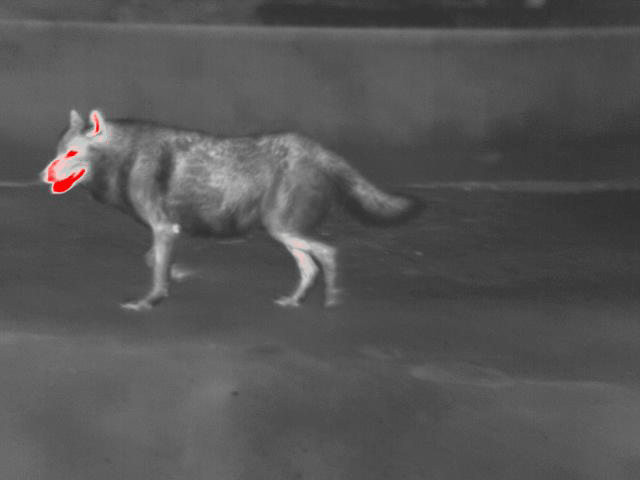

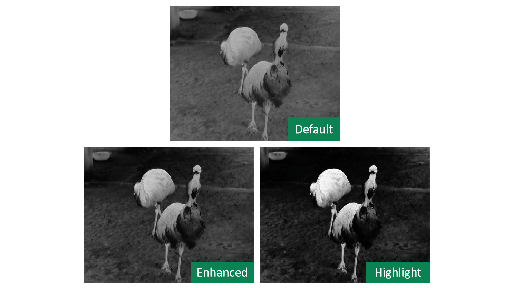

Three scene modes to suit various environments

Quickly switch among three scene modes (Default/Enhanced/Highlight)  with one button, the image will be adjusted according to the application environment to highlight the target.

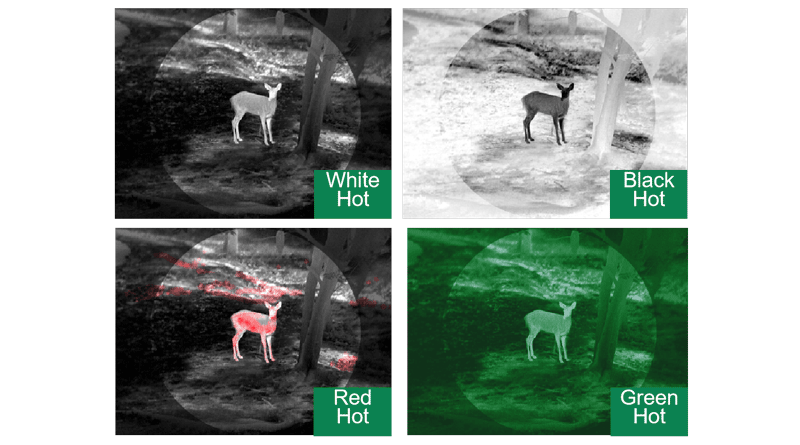

Multiple palettes to highlight the target

Four pseudo-color palettes( white hot, black hot, red hot, green hot) are provided to timely identify its location in the scene. This helps to achieve all-weather observations.

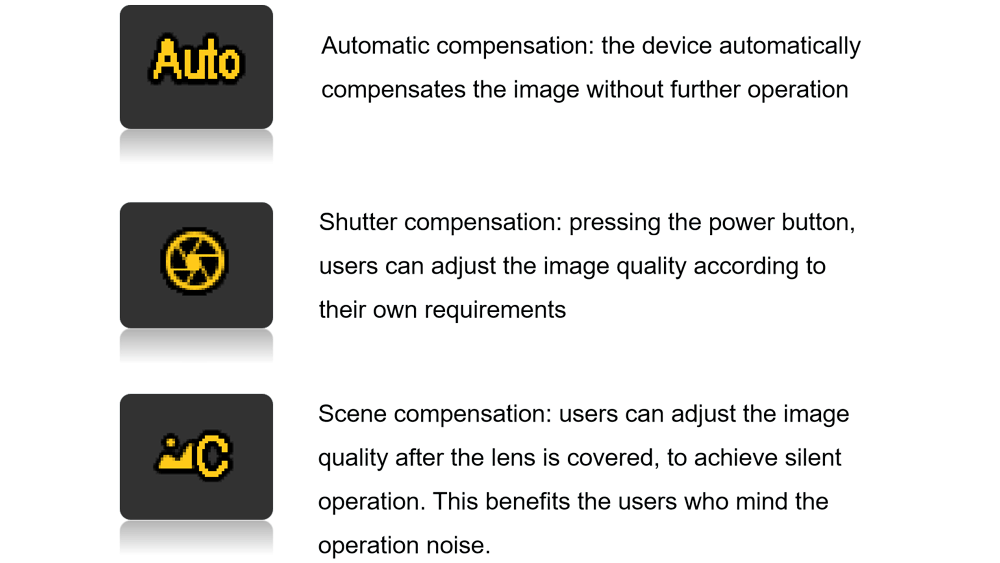

One-click compensation to make image clearer

Several compensation ways are available to eliminate pepper noise, image jitters.

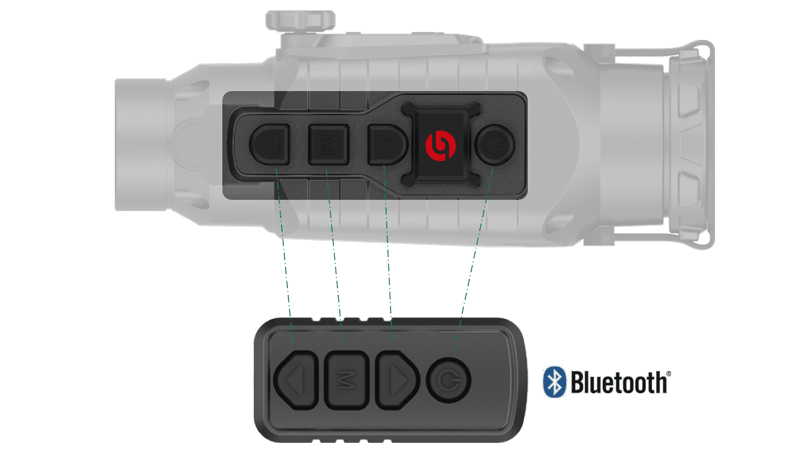

Wireless remote control

Optional Bluetooth remote controller for wireless control. Its button is a copy of the imager’s, improving operation comfort.





Media Gallery





Technical Parameters

Model

TA450

ADD TO COMPARE

Infrared detector
Detector type VOx
Detector resolution and pitch 384 × 288, 17 μm
Spectral range 8 to 14 μm
NETD ≤50 mk
Frame rate 50 Hz
Lens
Focal length 50 mm; F1.2
Focus Manual
Field of angle 7.5° × 5.6°
Optical zoom 1x
Digital zoom 1x, 2x and 4x
