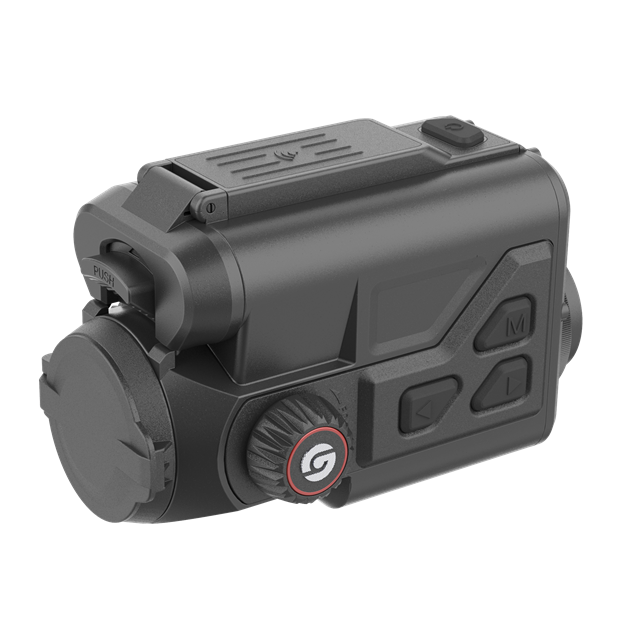

TB630
Clip-on Thermal Imaging Attachment
The TB Series bridges the gap between precision and portability. The magnesium alloy housing decreases weight while increasing precision. The weights are over 20% lighter than those of other similar products. It is also more compact than our previous clip-on. Meanwhile, a Full-HD AMOLED display is capable, a wider viewing angle, and richer color. It is the ideal partner for relax hunting.
EncapsulationIP68
Display1920x1080
High sensitivityNETD<25
Operating time12h
ADD TO COMPARE
-143.jpg)
-318.jpg)
-901.jpg)
-174.jpg)
-258.jpg)
-545.jpg)
Guide TB630 Thermal Rifle Scope
12μm advanced thermal detector, NETD<25mK
Full-HD 1920x1080 AMOLED display
Magnesium alloy housing, compact design, light weight but powerful
Two Standard 18650 batteries provides up to 12 hours of operation
Double Side focus knob for easy operation
Video recording including sound
IP68, Shock resistance up to 1000G/ms
IP68 Conquering Wind and Rain
Superior waterproof performance ensures reliable operation in the harshest conditions. Shock resistance up to 1000G/ms.
Compact design lightweight and portable
Magnesium alloy housing, compact design, light weight but powerful
Full-HD 1920x1080 AMOLED display
The eyepiece features a 1920x1080 high-definition AMOLED screen allowing for a visual experience with vibrant colors and excellent image quality. This significantly enhances the comfort of observation.
12μm advanced thermal detector, NETD<25mK
By utilizing a highly sensitive IR detector with a NETD<25mK, even the slightest temperature differences can be distin-guished, resulting in sharper and clearer imaging.
Blind-mountable universal battery
Utilizing standard 18650 batteries, equipped with a safety circuit protection design. When replacing the batteries, simply ensure that the positive and negative poles of the two cells are oriented oppositely, reducing the burden of identification and memory.
12-hour Battery Life
Experiencing wild adventures with power energy consumption, lightweight design, and enduring performance.
Applications
Media Gallery
Technical Parameters
Model
TB630
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 12.5°×9.4° | |||
| FOV m @100m | 22×16 | |||
| Magnification | 1x | |||
| Detection range | 1800m/ 1950yd | |||
* All specifications are subject to the actual product. Guide sensmart reserves the right to change the technical specifications without notice or liability to you.
