TD631 LRF

TD631 LRF

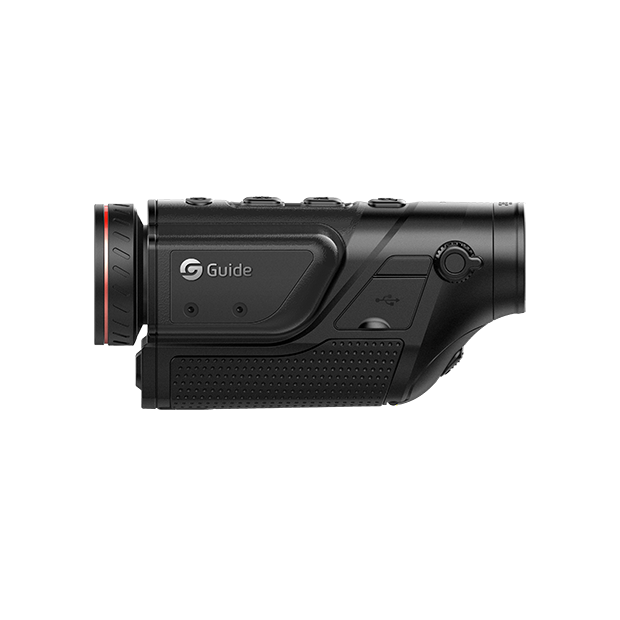

Handheld Thermal Imaging Monocular

The TD Gen2 LRF Series is the industry's first entry-level full-featured handheld thermal imaging monoculars. While inheriting the characteristics of the previous generation, such as being lightweight, portable, easy to operate, and durable, it integrates a high-precision laser rangefinder module to accurately detect targets within 600 meters. It adopts an AMOLED display, providing clear imaging and a comfortable viewing experience, making it the ideal equipment for outdoor night vision.


640x480IR Resolution

35mm/F1.0Focal Length

640x400AMOLED Display

8 HoursBattery Life


High-brightness AMOLED Display

The 12μm high sensitivity infrared detector and a 0.23-inch AMOLED display with 640 x 480 resolution to better depict image edges and details, providing a high-contrast and detailed thermal image for a comfortable viewing experience.



Enhanced Image Processing Algorithms

The TD Gen2 LRF Series uses a new approach to image optimisation depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background.


8 Hours Strong Battery Life

Over 8 hours of active use. Standard 18650 battery, easy to purchase.



New User Interface design

New user interface design to simplify operation; iconized operation without language restrictions.



Real-time Sharing by WIFI

Connect the APP on the phone via WIFI, sharing the wonderful moment in real-time.



OTA Upgrade

Support device firmware updates by connecting to TargetIR APP for high efficiency.



Media Gallery




Technical Parameters

Model

TD631 LRF

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×480@12μm
NETD 35mK
Frame rate 50Hz
Lens
Objective lens 35mm, F1.0
Field of view 12.5°×9.4°
FOV m@100m 22×16
Magnification 1.7x~13.6x
Detection range 1800m/1950yd

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
