D384A

Intelligent Thermal Camera

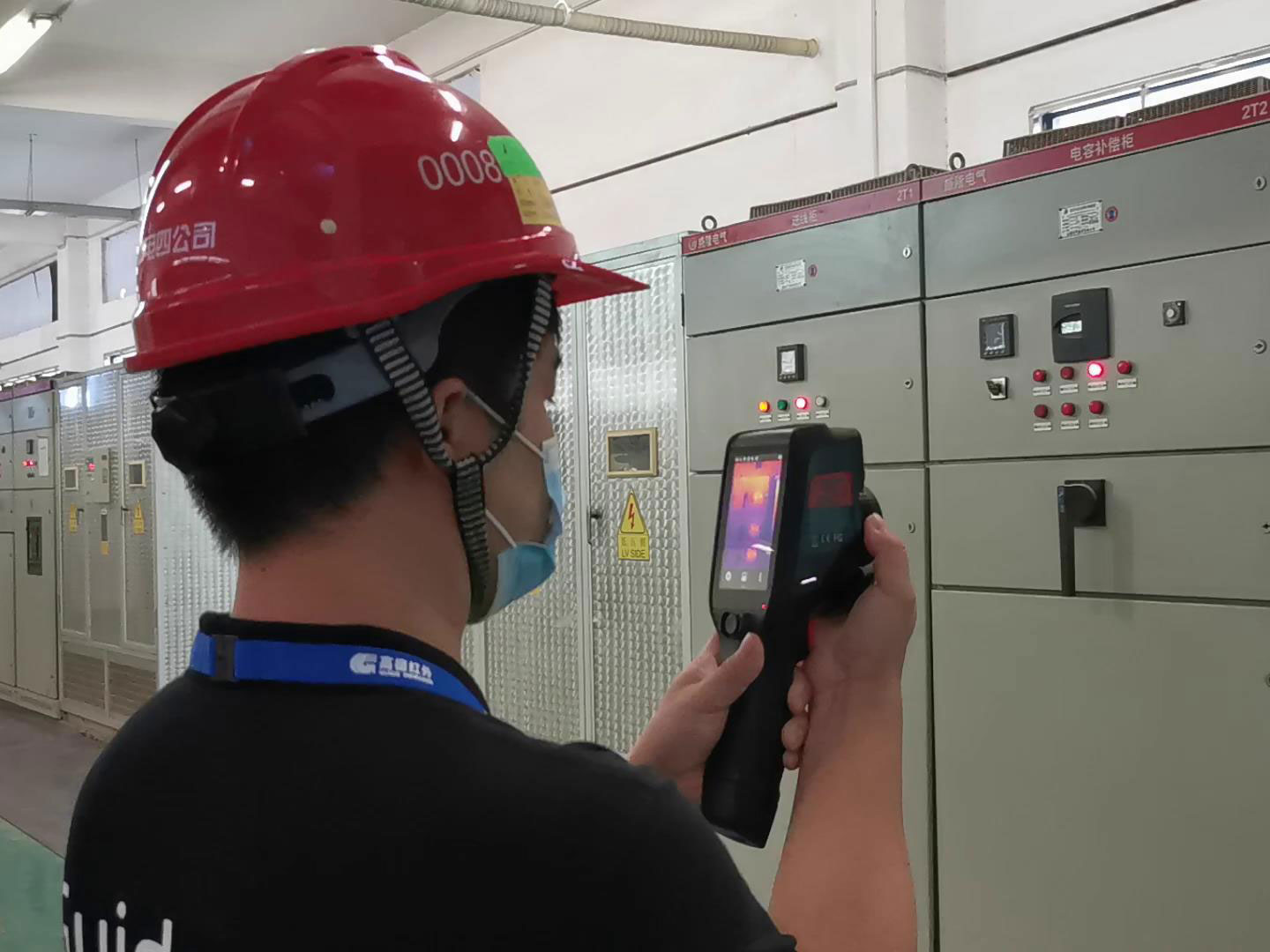

D Series intelligent thermal camera is simple, compact and ergonomic.It equipped with 4-inch high-brightness touchscreen, Android operating system, user-friendly UI for easy operation. And every step has professional tips, so that the first user can become an expert quickly. With high IR resolution and various powerful functions, D series is the ideal thermal inspection tool for power inspection, equipment maintenance and building diagnostic applications.


384x288IR resolution

-20℃~650℃Measurement Range

40mKNETD

IP54Encapsulation


Intelligent Operation Affordable Price

4” high light touch screen, all operation can be completed on the touch screen. You can choose the proper lens for different occasions



Built-in illuminator, take visible photos in the low lighting environment .Removable SD card, Up to 32G storage capacity,Connected with mobile terminal to take IR photo, to achieve multi screen control



Wi-Fi communication, share IR images and findings immediately



Media Gallery





Technical Parameters

Model

D384A

ADD TO COMPARE

Imaging and optics
Detector type VOx
Infrared resolution 384 × 288@25μm
Super resolution technology Yes, Upgrade to 768 × 576
Wavelength range 7.5 to 14μm
Focal length 15 mm
Field of view 35° × 27°
Minimum object distance 0.4 m
D:S 625:1
NETD ≤40 mK
Infrared frame rate 25 Hz / 9 Hz
Focusing mode Electric / Automatic
Digital zoom 1.1x to 4x
Measurement and analysis
Measurement range -20°C to 150°C, 100°C to 650°C
Measurement accuracy ±2°C or ±2%, whichever is greater
Analyzed target Spot × 5, Line × 2, Area × 5
Tracking / Alarm Full screen maximum, minimum and average temperature tracking; The maximum, minimum and average temperature tracking of analyzed target; full screen temperature threshold alarm (image)
Isothermals Available
Temperature measuring parameters Emissivity, reflected temperature, dew point, target distance, humidity
