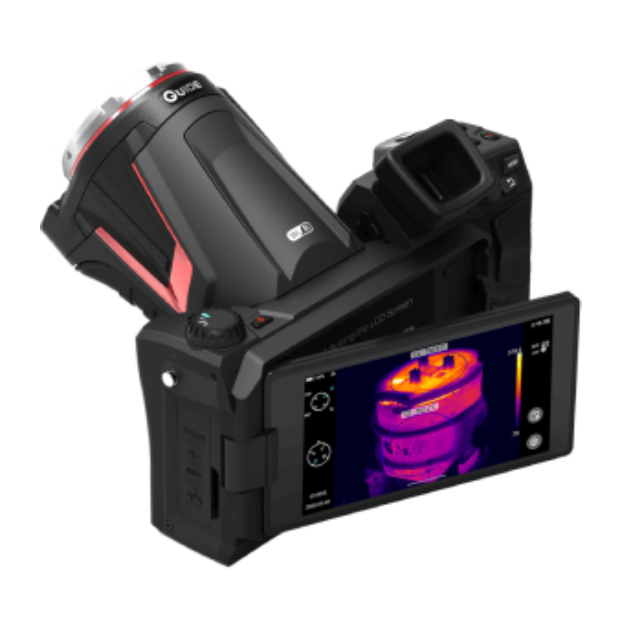

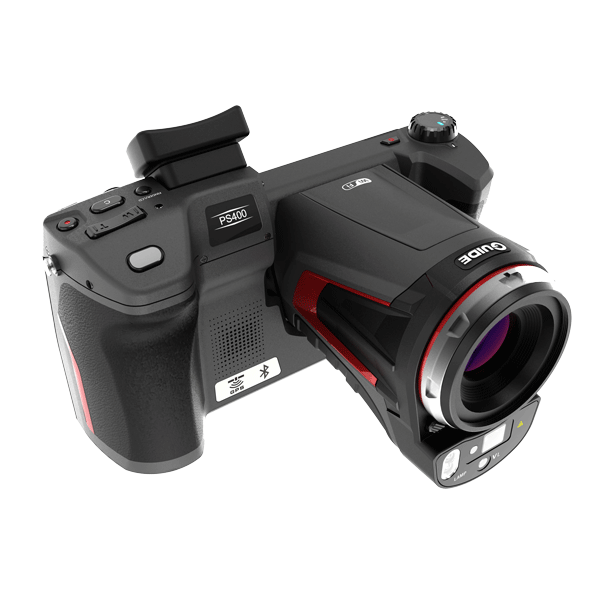

PS400

High Performance Thermal Camera

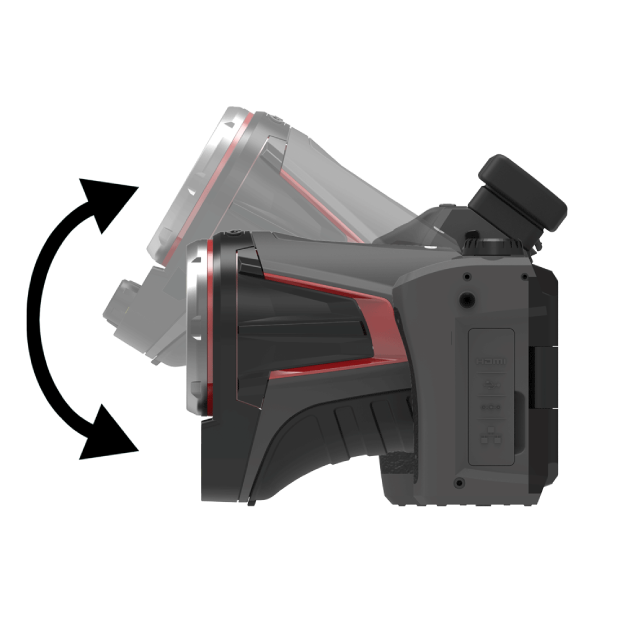

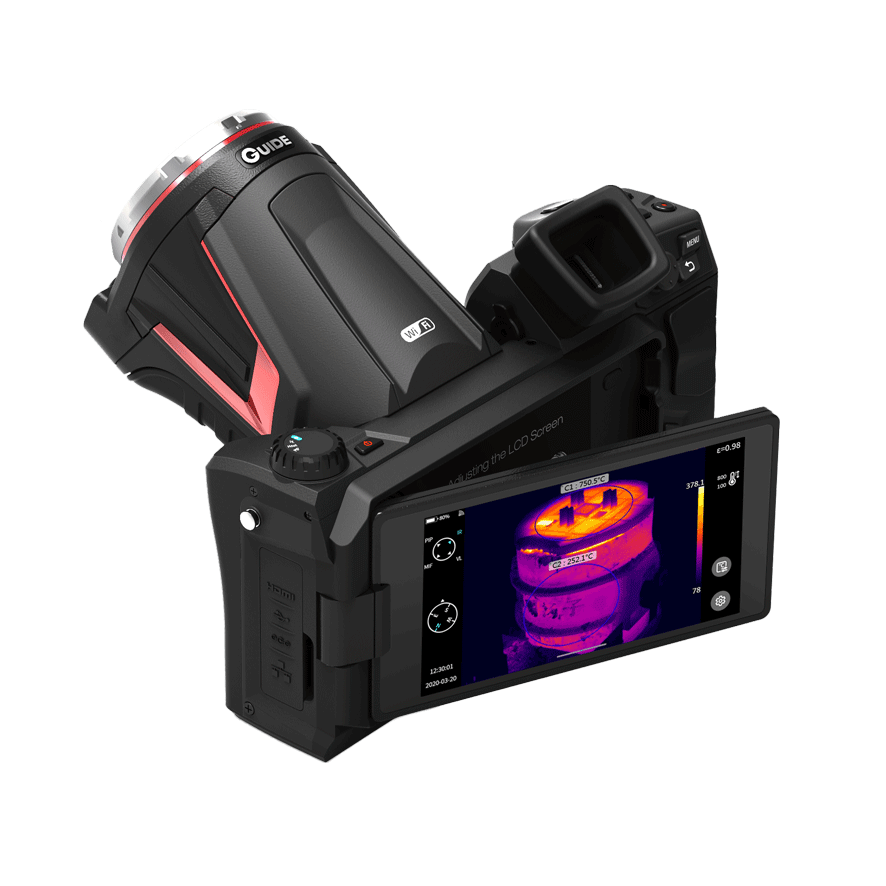

The Guide PS Series high-performance thermal camera is designed to make the inspection, maintenance and troubleshooting work easier, faster and more accurate. It adopts a new generation of uncooled IR focal-plane detectors, which provides sharper thermal images and higher measurement accuracy. With its rotatable lens and screen structure, up to 13 million pixels visible light camera module, high precision rangefinder, and supplemented by some professional functions such as AI recognition naming, intelligent area measurement, flexible emissivity settings by areas, super-resolution reconstruction, strive to meet the needs of every thermography experts.


384x288IR resolution

1×~10× continuously Digital Zoom

45mKNETD

IP54Encapsulation

.png

Built for the Experts

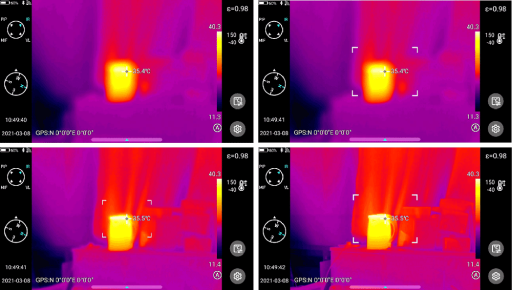

1 Fast Focus

Adopts a new generation of focus motor and professional laser rangefinder to achieve 0.4 second one-touch smart autofocus

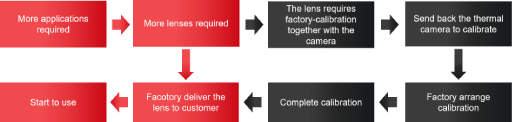

Calibration-free Lenses

Calibration-free extended lenses function, for more application scenarios,No need factory-calibration, time-saving and cost-saving

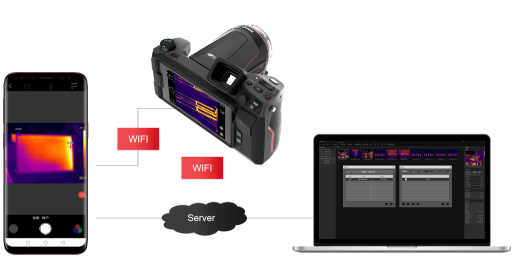

Cloud Service

Share images to the Cloud anytime, anywhere, for remote analysis and problem feedback,WIFI Connect :1、Mobile hotspot ;2、Wireless router;3、4G mobile communication (optional)

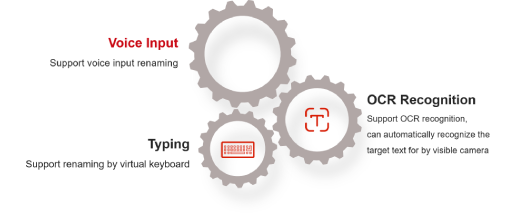

AI Voice Recognition

Support customization of the image naming, three input methods, convenient for memory and file management



MIF Patent Technology of Multi-spectral Image Fusion (Patient No.: CN201510473667.8)

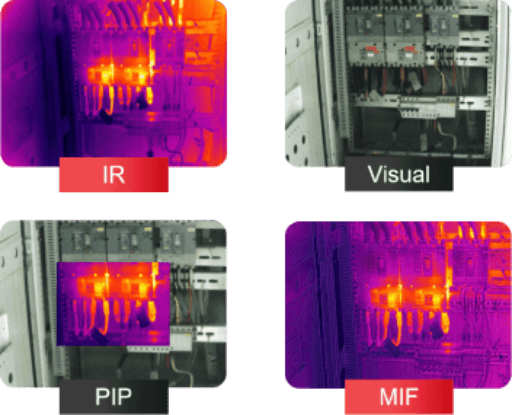

Provides four image modes: IR, visible light, PIP and MIF.  The unique MIF mode supports the fusion of visible light image details on the thermal image, which will comprehensively improve your observation experience and work efficiency

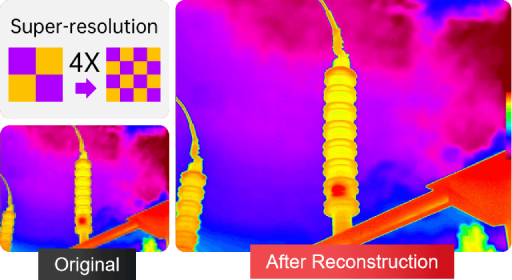

Image Super-resolution Reconstruction

The image details can be increased by specific algorithm. Super-resolution reconstruction can increase the pixel of infrared image to 4 times the original, and obtain high-quality imaging effect



Media Gallery





Technical Parameters

Model

PS400

ADD TO COMPARE

Imaging and optics
Detector type VOx
Infrared resolution 384 × 288@17μm
Super resolution technology Yes, Upgrade to 768 × 576
Wavelength range 7.5 to 14μm
Focal length 15 mm
Field of view 25° × 19°
Minimum object distance 0.15 m
D:S 885:1
NETD ≤45 mK
Infrared frame rate 30 Hz / 9 Hz
Focusing mode Electric / Manual
Digital zoom 1.1x to 10x
Shot recognition Auto / Manual
Measurement and analysis
Measurement range Support auto-switching: -40°C to 150°C, 100°C to 800°C, Optional 700°C to 2000°C (High temperature lens is required)
Measurement accuracy ±2°C or ±2%, whichever is greater
Analyzed target Spot × 12, Line × 12, Area × 12
Tracking / Alarm Full screen maximum, minimum and average temperature tracking; The maximum, minimum and average temperature tracking of analyzed target; full screen temperature threshold alarm (image and voice)
Isothermals Available
Temperature measuring parameters Emissivity, reflected temperature, target distance, humidity, atmospheric transmittance, optical transmittance
