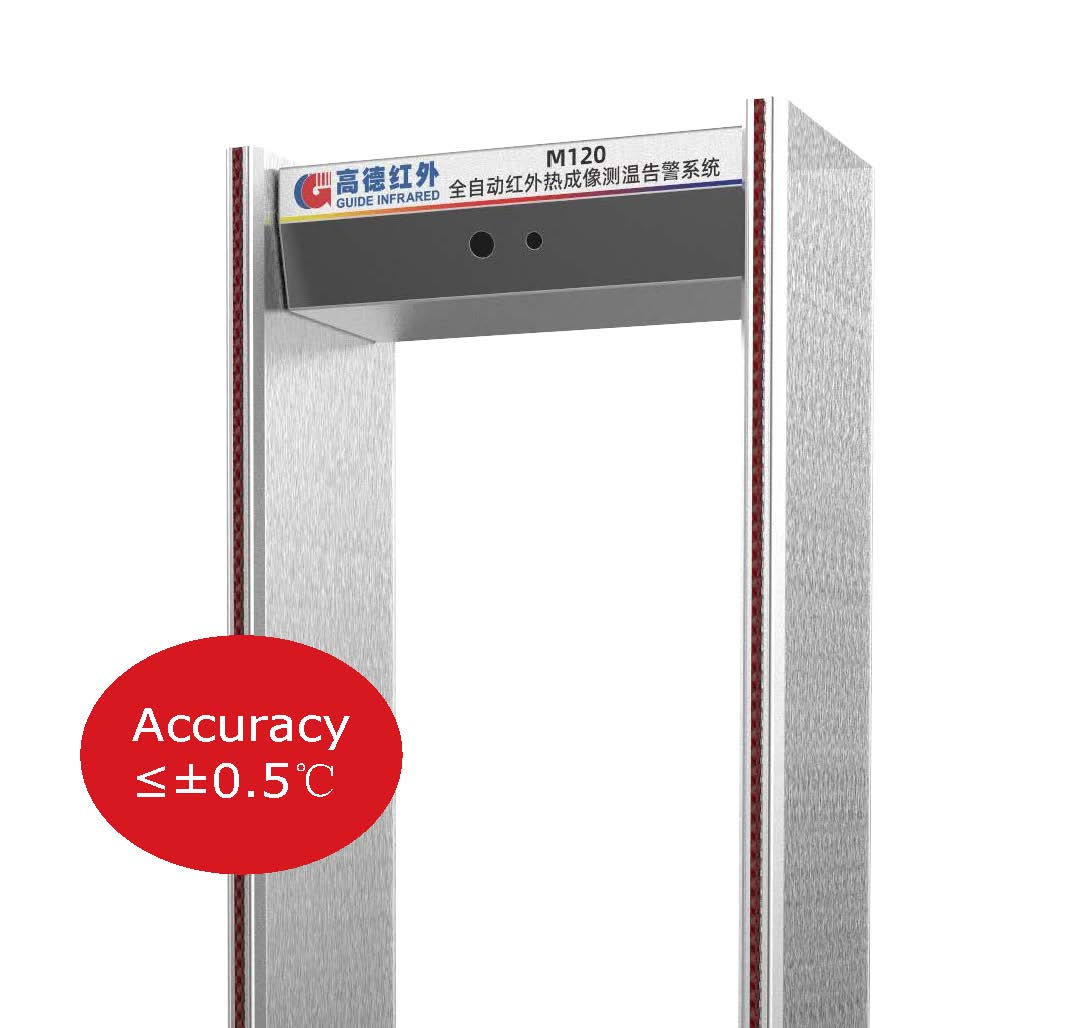

GUIDE M120 Infrared Body Temperature Screening System
GUIDE M120 Infrared Body Temperature Screening System
Application field: ThermographyInspection and quarantine
GUIDE M120 infrared body temperature screening system combines military-grade infrared thermal imaging technology with metal detection technology, which provides an non-contact infrared body temperature screening before passengers go through the metal security gate. It can be used in metro stations, hospitals, factories, schools and other public places to effectively reduce the spread of virus.


Input voltageDC 12V
input power≤12W
Software Functions
Parameter settingsAlarm setting, shielding area setting, etc.
Face recognitionIntelligent face recognition
Temperature measurementTemperature cursor superimposed, high temperature alarm in face   recognition area
AlarmAutomatic alarm capture, with alarm sound
Historical data checkingCheck and manage historical alarm data
Temperature correctionAutomatic smart correction
Working temperature-10~50℃(accurate measurement at 16~32℃)
Storage temperature-20~60℃
Working humidity<90% (Non-condensing)
Shock30g 11ms,IEC60068-2-27
Vibration10HZ~150Hz~10Hz 0.15mm,IEC60068-2-6
Camera size174mm×153mm×81.5mm
Camera package size510mm×440mm×270mm
Height of the security gateAbout 2.2 meters
