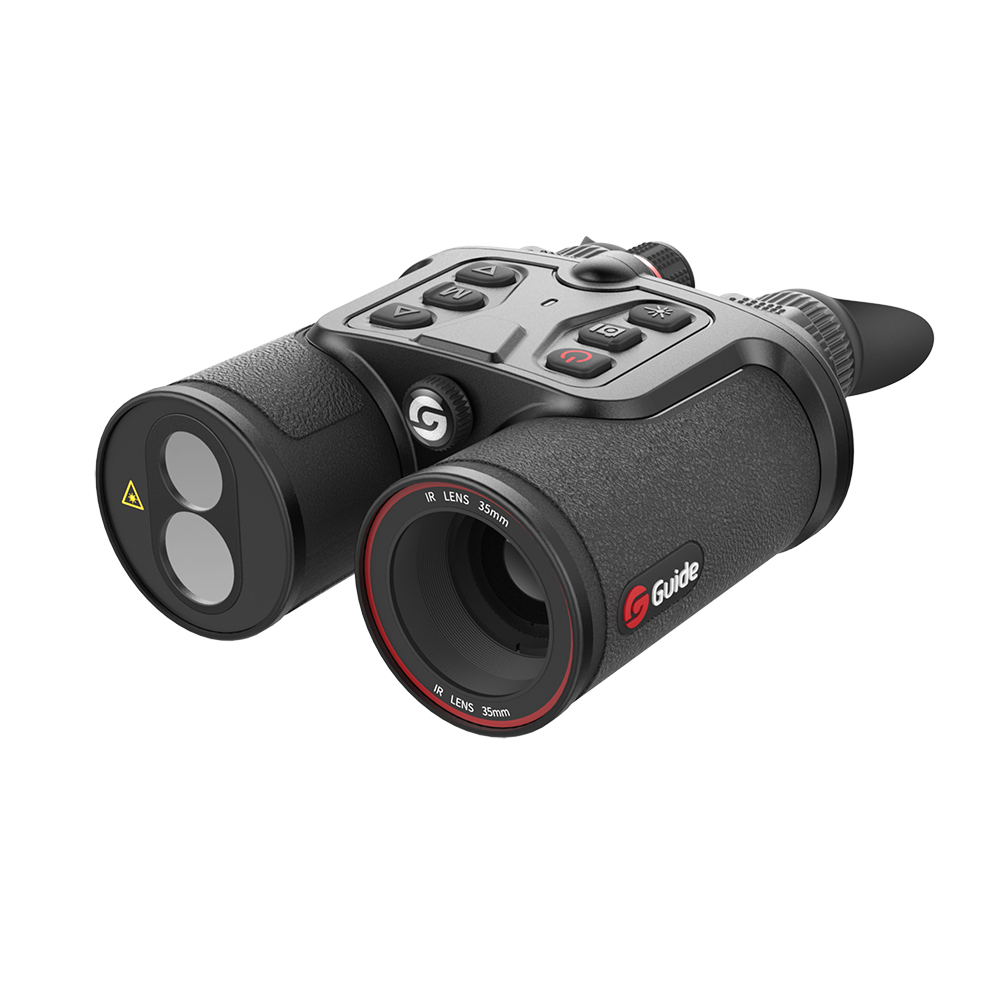

Guide TN Handheld Thermal Imaging Binoculars
Guide TN Handheld Thermal Imaging Binoculars
Professional Thermal Binoculars for hunter
Application field: Personal Vision SystemOutdoor recreation
TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation. It adopts high-sensitivity VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024×768 high-definition display. A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.

海外社媒 (1).png海外社媒 (2).png海外社媒 (3).png海外社媒 (4).png海外社媒 (5).png海外社媒 (6).png海外社媒 (7).png海外社媒 (8).png海外社媒 (9).png

ModelTN430TN450TN630TN650
Detector
Detector Type 400×300   @17μm, VOx640×480@12μm, VOx
Spectral8μm~14μm
NETD≤50mk
Lens
Focal Length35mm/F1.250mm/F1.235mm/F1.250mm/F1.2
FOV11.1°×8.3°7.8°×5.8°12.5°×9.5°8.8°×6.6°
FocusingManual Focus
Display
ScreenFull-color 0.39'OLED Screen ×2,1024×768
EyepieceExit pupil distance 16.4mm, Adjustable diopter   -4~+2, Adjustable interpupillary distance
    between 60mm~70mm
Magnification2.3X~9.2X3.2X~12.8X2.0X~16X2.8X~22.4X
Imaging
Frame Rate50Hz
Digital  Zoom1X~4X (Smooth zoom)1X~8X (Smooth zoom)
Color PalettesWhite Hot, Black Hot, Customized red hot, Blue   Hot, Red Hot, Green hot
Scenes ModesEnhanced, Highlight, Natural
Picture-in-picturePicture-in-picture enlarged image is displayed   on the upper left, upper middle or upper right
Functions
Video
Hotspot Tracking
Laser DesignatingRed Yellow Green
Laser RangingSingle ranging or continuous ranging
Wi-Fi/APPWi-Fi share photo and video, also can   controlled by app(IOS & Android)
Compensation ModesAuto Compensation / Shutter Compensation /   Scene Compensation
OtherSmooth Magnification,Image Enhancement,   Brightness and contrast of image are   adjustable,GPS,Compass,Gyroscope,Bluetooth, etc
Power Supply
Battery TypeRemovable Standard 18650 Li-ion battery x2
Working Time≥6h
Interface
USBTYPE C (USB 2.0 standard )  for charging, Data tranmission
Video OutputMicro HDMI
Tripod InterfaceInch 1/4-20
Memory CardBuilt-in 16GB    SD card,Max. support 128G
Environmental Characteristics
Operating Temperature-10°C~50°C
Storage Temperature-30°C~60°C
EncapsulationIP66,1-meter drop test
CertificateUN38.3 (Battery certificate), RoHS, CE, FCC,   EAC
Weight & Dimensions
Weight860g880g860g880g
Dimensions162mm×146mm×70mm
Package Contents
StandardPower adapter,Type-C USB cable,Micro HDMI   cable,Lens cover,Wrist strap, Removable shading eye blinders x2,Portable   package,Quick Start Guide
Optional Hand shank,Picatinny rail
Detection Range
Human:1.8m×0.5m1000m1000m1400m2000m
Vehicle:2.3m×2.3m2400m2400m3000m3300m
Recognition Range
Human:1.8m×0.5m500m500m700m1000m
Vehicle:2.3m×2.3m1000m1000m1400m2000m


Coming soon
