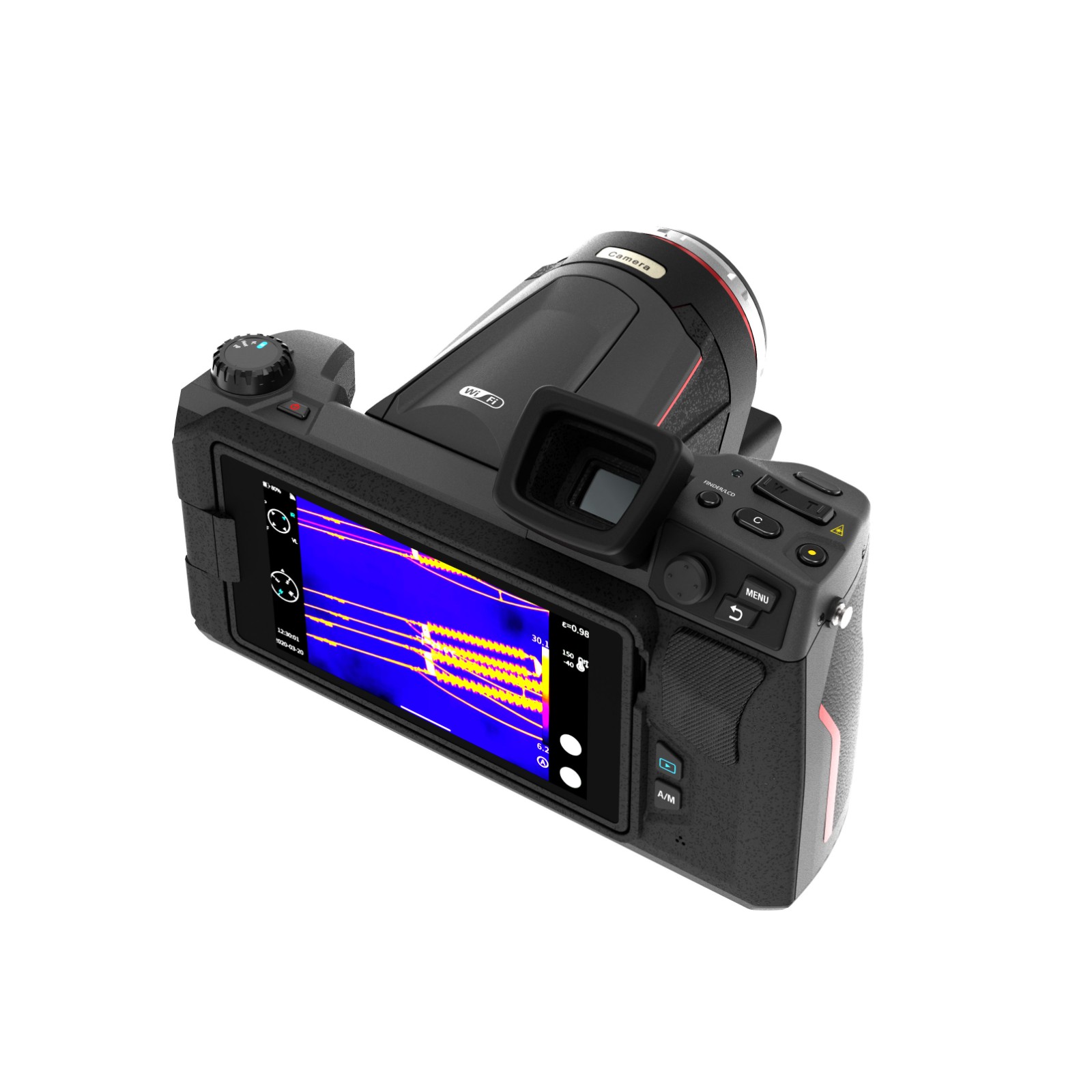

Guide PS800 High Performance Thermal Camera
Guide PS800 High Performance Thermal Camera
The first 1024 resolution handheld thermal camera from Guide sensmart
Application field: Thermography
The Guide PS Series high-performance thermal camera is designed to make the inspection, maintenance and troubleshooting work easier, faster and more accurate. It adopts a new generation of uncooled IR focal-plane detectors, which provides sharper thermal images and higher measurement accuracy. With its rotatable lens and screen structure, up to 13 million pixels visible light camera module, high precision rangefinder, and supplemented by some professional functions such as AI recognition naming, intelligent area measurement, flexible emissivity settings by areas, super-resolution reconstruction, strive to meet the needs of every thermography experts.

PS800详情页---英文_01.jpgPS800详情页---英文_02.jpgPS800详情页---英文_03.jpgPS800详情页---英文_04.jpgPS800详情页---英文_05.jpgPS800详情页---英文_06.jpgPS800详情页---英文_07.jpgPS800详情页---英文_08.jpgPS800详情页---英文_09.jpgPS800详情页---英文_10.jpgPS800详情页---英文_11.jpgPS800详情页---英文_12.jpgPS800详情页---英文_13.jpg

ModelPS400PS600PS610PS800
IR Imaging Performance
Detector type384×288@17μm, VOx640×480@17μm, VOx1024×768@12μm, VOx
Spectral7.5~14μm
Frame rate30Hz/9Hz25Hz/9Hz
NETD 45mk 40mk 30mk 30mk
Lenses Options
 Focal length15mm25mm28mm
FOV25°×19°
IFOV1.13mrad0.68mrad0.43mrad
Min focus distance0.15m0.3m0.3m
 D:S885:11470:12325:1
Focus1-touch fast autofocus, support electric/manual   focus switch
Lens IdentificationAutomatically identify and calibrate the lens   without manual switching
Image Presentation
Visual Image8 million pixels, autofocus13 million pixels, autofocus
LCD Display5",1280×720 High Light Touch Screen
Viewfinder1280×960 LCOS Screen
Image ModeIR image/Visual image/PIP/MIF
Digital Zoom1×~10× continuously1×~35× continuously
Color Palettes8 Color Palettes, and customizable10 Color Palettes, and customizable12 Color Palettes, and customizable
Super-resolution4× Super-resolution, 768x5764× Super-resolution, 1280x9604× Super-resolution, 2048x1536
Functions
AI Voice NamingSupport AI voice naming, AI text recognition   naming (text can be recognized by taking pictures), and typing
Professional Laser RangefinderThe distance between the thermal camera and   target is automatically measured and displayed on the thermal image
Temperature Measurement for AreasAutomatically measure the area of the boxes and   circles
Smart StrokeAutomatically outline the target contour by   setting the area and tolerance (color difference between two pixels)
Measurement CorrectionsSupport emissivity correction, atmospheric   transmittance correction and optical transmittance correction
Level SpanAutomatic, semi-automatic, manual
Panorama Image MosaicN/AYES
Cloud ServiceSupport local and cloud data upload and   download
Measurement
Temp Measurement RangeSupport auto-switching, Filter 1:-40°C~150°C;   2:100°C~800°C; Optional 700°C~2000°C(High temperature lens required)
Accuracy±2°C~±2%, whichever is greater±1°C~±1%, whichever is greater
Temp Measurement Area (IR/PIP)spot×12, line×12, area×12spot×16, line×16, area× 16spot×20, line×20, area×20spot×30, line×30, area×30
Analysis StorageThe analysis object can be saved with the image   (spots, lines, areas)
Auto Max & Min Temp Tracking  (IR / PIP)It can track the highest temperature/lowest   temperature/average temperature of the whole screen and the analysis object   at the same time
IsothermUp and down, centered interval
Temperature AlarmAutomatic alarm (image and sound) when   exceeding the alarm temperature threshold, and supports the area alarm   function
Storage
Image StorageBuilt-in 64G, external SD card supports up to   64G
Image FormatPicture format JPG (with temperature   information)
Video Format MP4 (without temperature information) or IRGD   (with temperature information)
Dual-path Recording Support simultaneous recording of visible light   and infrared video (with temperature data), support manual storage/timing   storage
Other
HardwareFlashlight, laser (laser indication, ranging,   focus), WIFI, microphone (adjustable volume), speaker (adjustable volume),   electronic compass, GPS, light sensor, Bluetooth
InterfaceTYPE-C (used to transmit native image data with   PC), power supply (12V), SD card, Gigabit Ethernet, Micro HDMI, tripod   interface
BatteryRechargeable lithium battery (according to   UN38.3 certification); can work for 4 hours (comprehensive working time);   with sleep mode
Working TemperatureWorking temperature: -20°C~50°C Storage   temperature: ﹣40°C~70°C
EncapsulationIP54
Size206mm×145mm×135mm206mm×169mm×135mm
Weight1350g
CertificatesCE, FCC, ROHS, KC, UN38.3
Standard AccessoriesThermal Camera, Lens Cover, 2 Lithium   Batteries, Power Adapter, Adapter Plug (5), TYPE-C to USB cable, Micro HDMI   to HDMI cable, Network Cable, Quick Start Guide, User Manual, Data Download   Card, SD Card (64GB), Shoulder Strap, Safety box, Calibration Certificate
Optional AccessoriesLithium Battery, Carrying bag, Cradle Charger,   Bluetooth Headset, Extended Lens(Wide-angle/Medium   telephoto/Telephoto/Macro/High temperature), Lens Bag, 4G LTE USB Dongle
