QT200
IR Fever Warning System
Guide QT Series IR Fever Warning System is the simple, affordable and versatile solution that streamlines temperature monitoring for daily epidemic prevention and control. It can be quickly deployed in 5 minutes, convenient and flexible. Guide QT Series adopt high performance Vox thermal detector that realize fast non-contact temperature detection. While detecting the over-temperature person, Guide QT can automatically snap photos, sound an alarm and realize face recognition.
256x192IR resolution
28℃-45℃Temp Range
±0.3℃Accuracy
0.5m-5m Measuring Distance
ADD TO COMPARE
SPECIALLY DEVELOPED FOR IR FEVER SENSING SYSTEM
Multiple

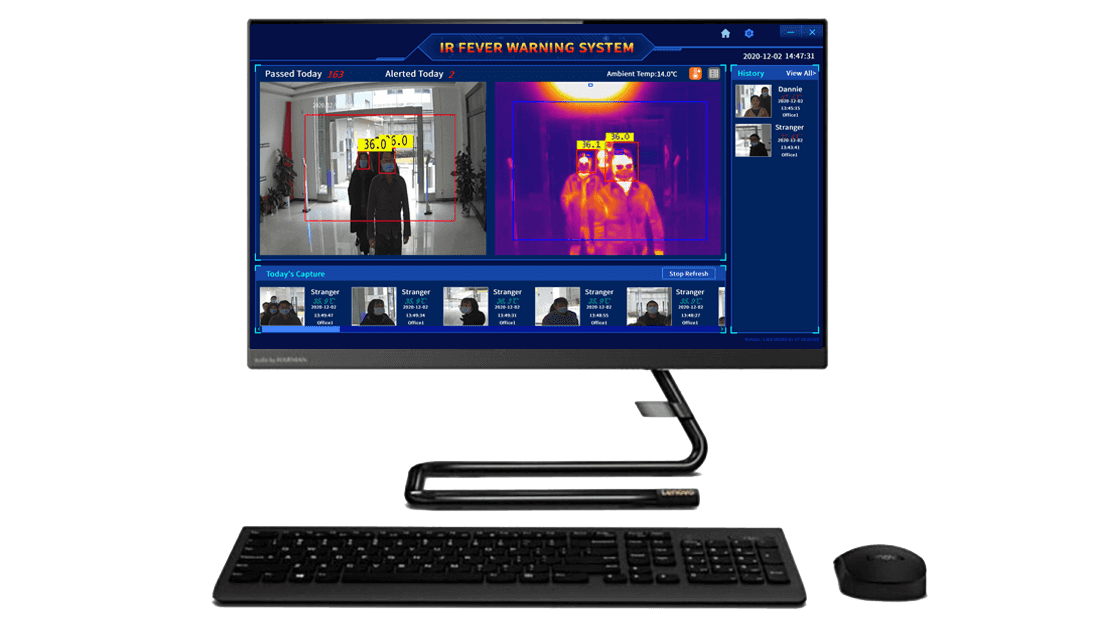

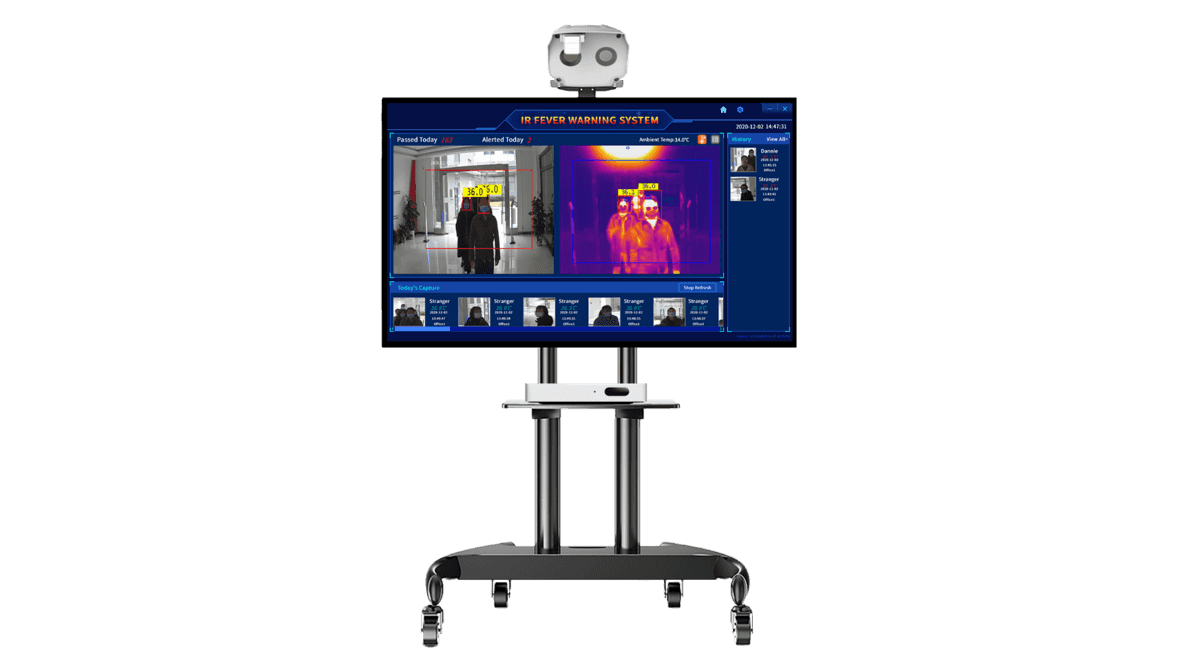

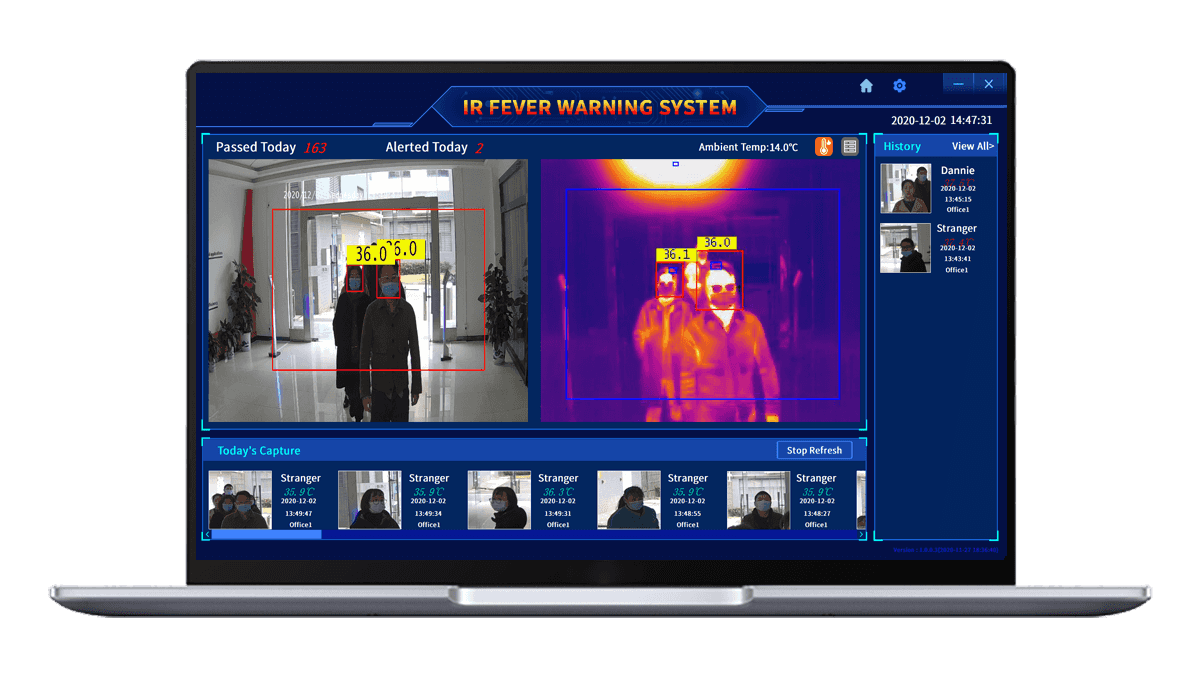

Three new low-cost solutions are available, which can be configured with any display, smart TV, and PC
Fast
Quickly deployment in 5 minutes
Intelligent
Face recognition for counting and statistic, countable and statistics, provide mask recognition switch, temperature measurement accuracy<0.3℃
Saving
No need for high-end computers, old computers can also be reused, integrated blackbody, versatile and affordable
Applications
Media Gallery
Technical Parameters
Model
QT200
ADD TO COMPARE
Thermographic parameters | ||||
---|---|---|---|---|
Detector type | VOx | |||
Detector resolution | 256×192 | |||
Pixel size | 12μm | |||
Spectrum range | 8μm to 14μm | |||
NETD | ≤45mK@30°C | |||
Lense | 3.2mm, 52°×40° | |||
Image flip | Available | |||
Pseudo color | 9 pseudo colors: White Hot, Black Hot, Fulgurite, Rainbow and so on |
Temperature measurement parameters | ||||
---|---|---|---|---|
Measurement range | 28°C to 42°C | |||
Measurement accuracy | ≤±0.3°C | |||
Target setting | A rectangular frame can be set for face detection and temperature measuring of targeted human entering the frame | |||
Full-screen point temperature measuring | Available |
* All specifications are subject to the actual product. Guide sensmart reserves the right to change the technical specifications without notice or liability to you.
