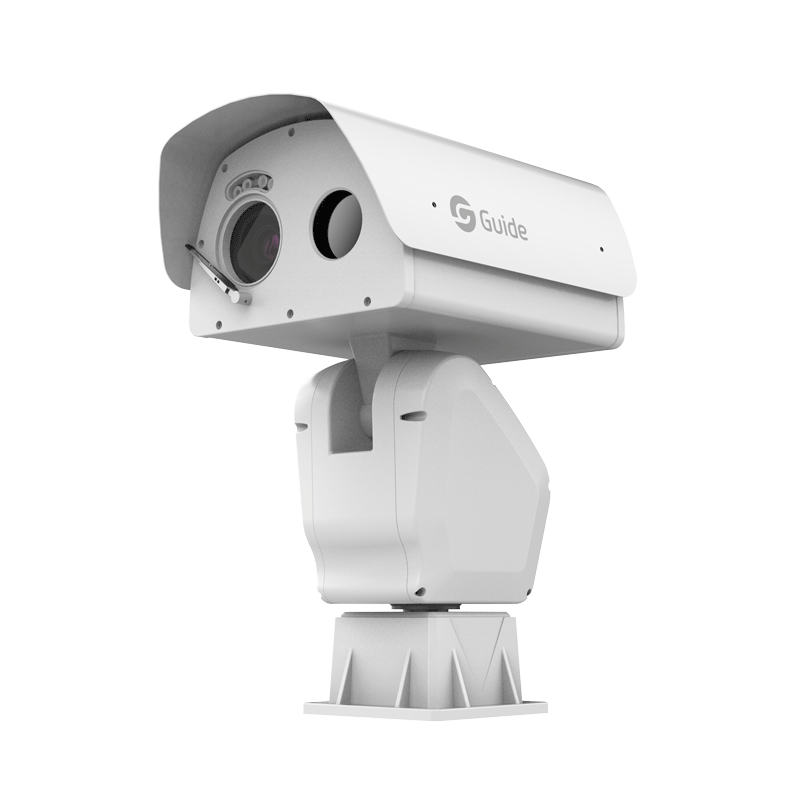

DS6025FT-M
Thermal & Optical Bi-spectrum PTZ
DS60xxFT-M series is designed for medium-range indoor and outdoor monitoring and temperature measurement. The DS60xxFT-M series features 24- hour monitoring, sharp images and highly accurate temperature measurement in harsh weather conditions.
640×512IR Resolution
≤40 mkNETD
25mmFocal Lenth
24.5°×19.7°FOV
ADD TO COMPARE
Long-range Inspection of Multiple Objects with All-day Monitoring
640×512 IR Resolution o 25 mm/50 mm lens
Web access for configuration o Up to 300 presets
Highly accurate temperature measurement, temperature analysis and alarm in real time and tracking of temperature history
Fire detection & alarm and detection of intrusions and tripwire
Worm gear design for highly accurate measurement and durable use
.jpg)

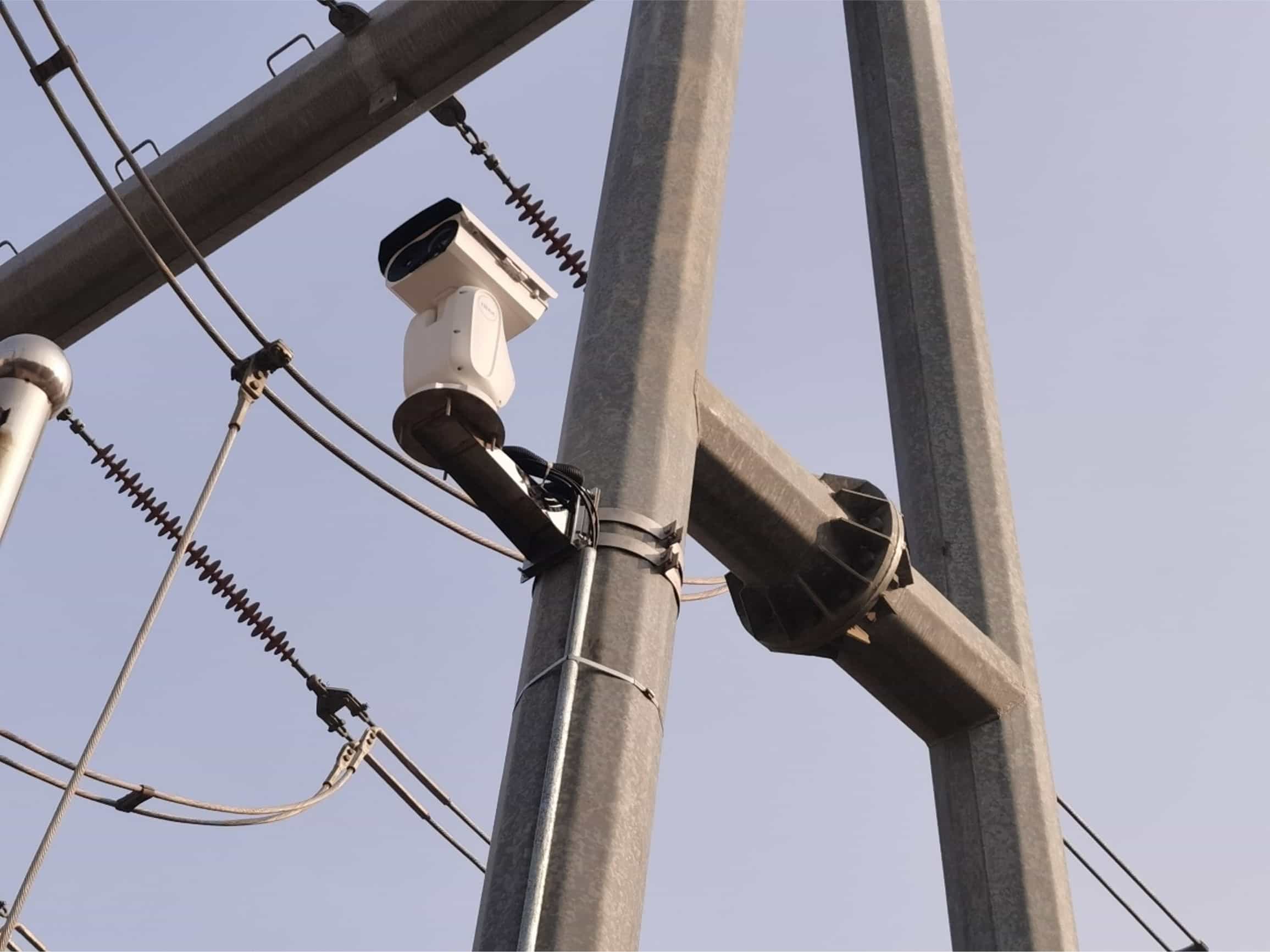

Applications
Technical Parameters
Model
DS6025FT-M
ADD TO COMPARE
| Thermographic | ||||
|---|---|---|---|---|
| Detector type | VOx | |||
| Detector resolution | 640 × 512 | |||
| Pixel size | 17μm | |||
| Wavelength range | 8μm to 14μm | |||
| NETD | ≤ 40mK@30°C | |||
| Thermographic camera lenses | 25mm (25° × 20°) | |||
| Detail enhancement | Supported | |||
| Noise reduction | 2D/ 3D noise reduction | |||
| Image flip | Supported | |||
| Pseudo colors | 9 (White Hot, Black Hot, Fusion, Rainbow, etc) | |||
| Temperature measurement | ||||
|---|---|---|---|---|
| Measurement range | Low: -20°C to 150°C; High: -20°C to 550°C | |||
| Measurement accuracy | ±2°C or ±2% (whichever is greater) | |||
| Target setting | Up to 300 presets; 12 spots/ lines/ areas (circle, square or irregular polygon) for each preset; Measurement for up to 12 simultaneous spot + line + area for each preset | |||
| Cold/ hot spot tracking | Supported | |||
| Full-screen point temperature measuring | Supported | |||
| Query and export of temperature measuring information | Supported | |||
