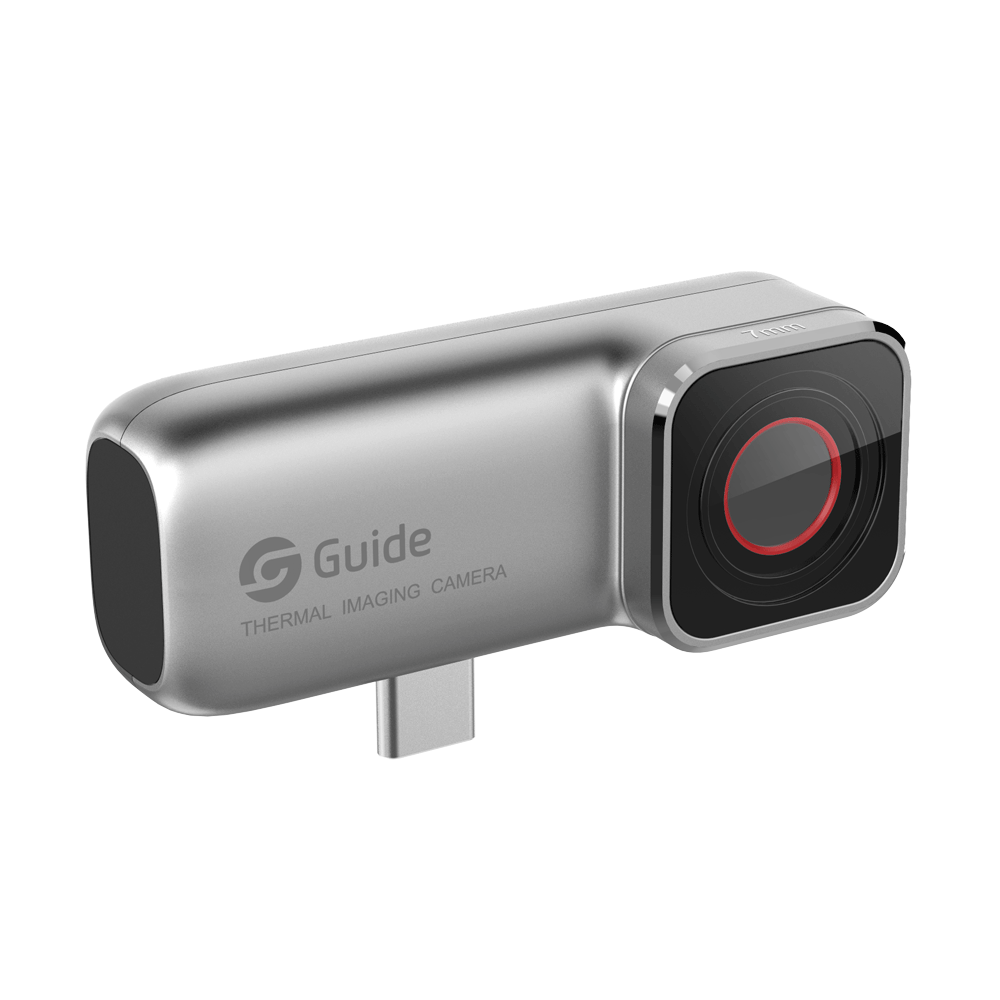

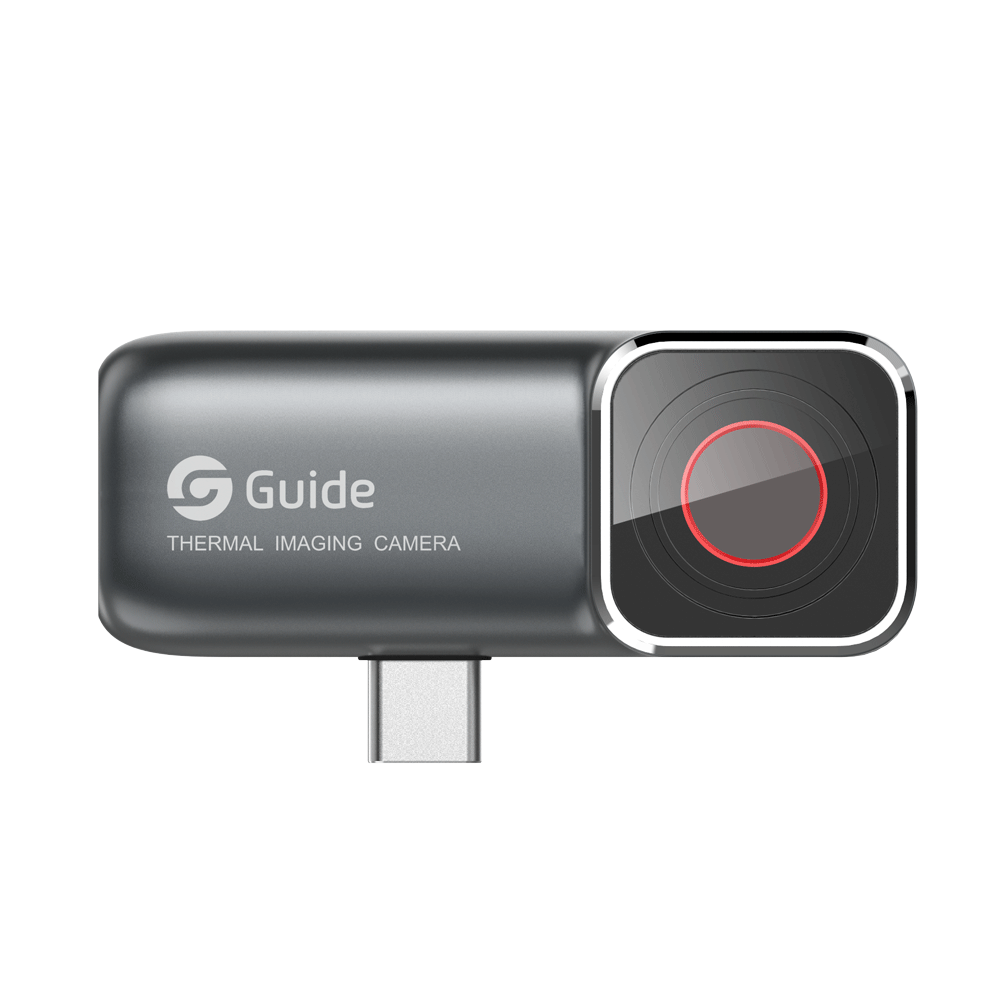

Thermal Camera for Smartphone

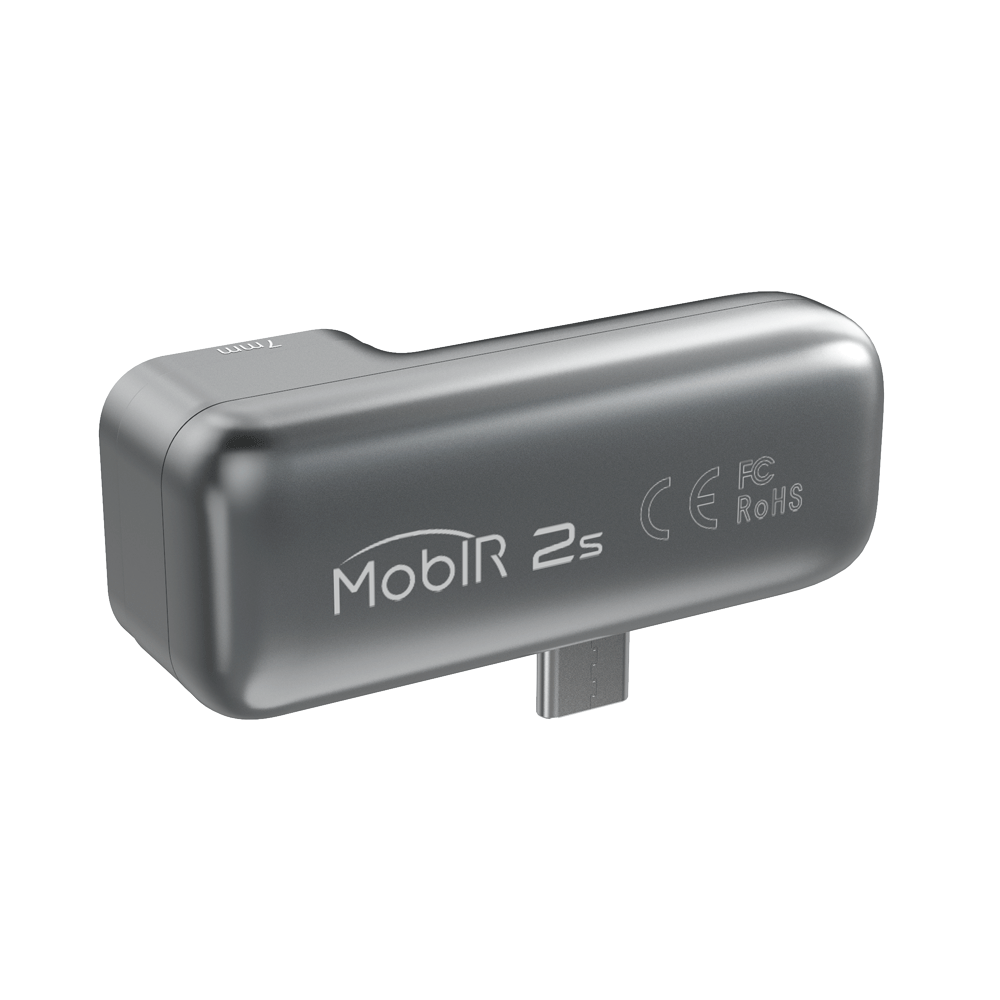

MobIR 2 series is a new generation of infrared thermal imager for smartphone launched by Guide sensmart. Built-in the world's first autofocus WLP infrared module, with higher resolution and performance comparable to professional thermal imaging cameras. This product allows you to see things that you can't see with the naked eye , It can realize real-time temperature measurement, night vision, photography, video and other functions through the mobile phone APP. It is an all-round partner for your daily work, home life and adventure travel.
The World’s First AutoFocus Thermal Imager for Smartphone
Versatile Thermal Camera for Smartphone
•100-meter night vision - It helps you clearly identify people and animals hundreds of meters away in the darkness field
•Autofocus - Clearly no matter near or far
•Plug and play - Battery-free design, Easy to use
•±2℃ Conventional temperature measurement accuracy, comparable to professional testing tools.

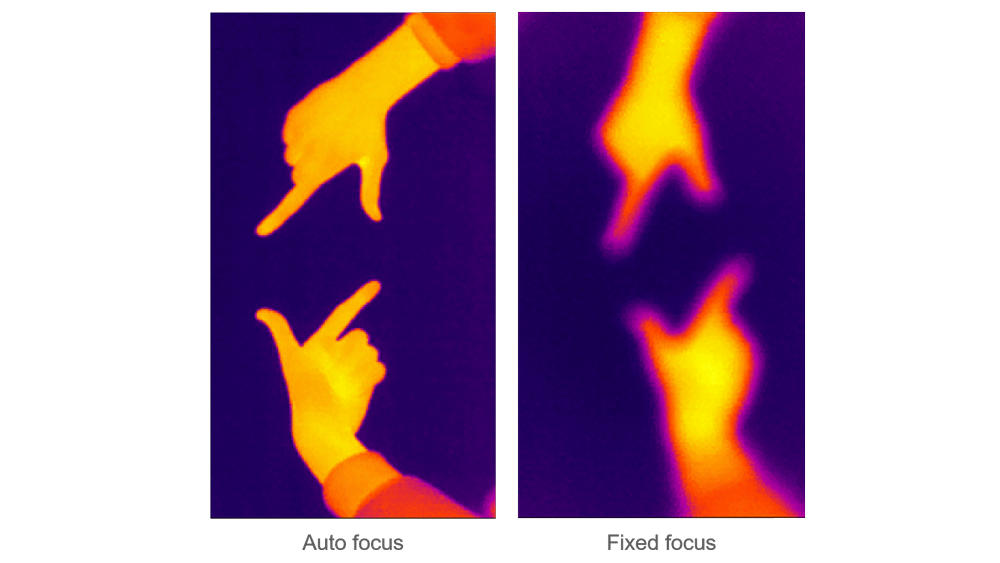

The World's First Autofocus，Infrared Thermal Camera for Smartphone
MobIR 2 built-in world's first autofocus WLP infrared module. Whether the subject is static or moving, you can automatically focus on it by touching the screen to quickly produce clear thermal images.

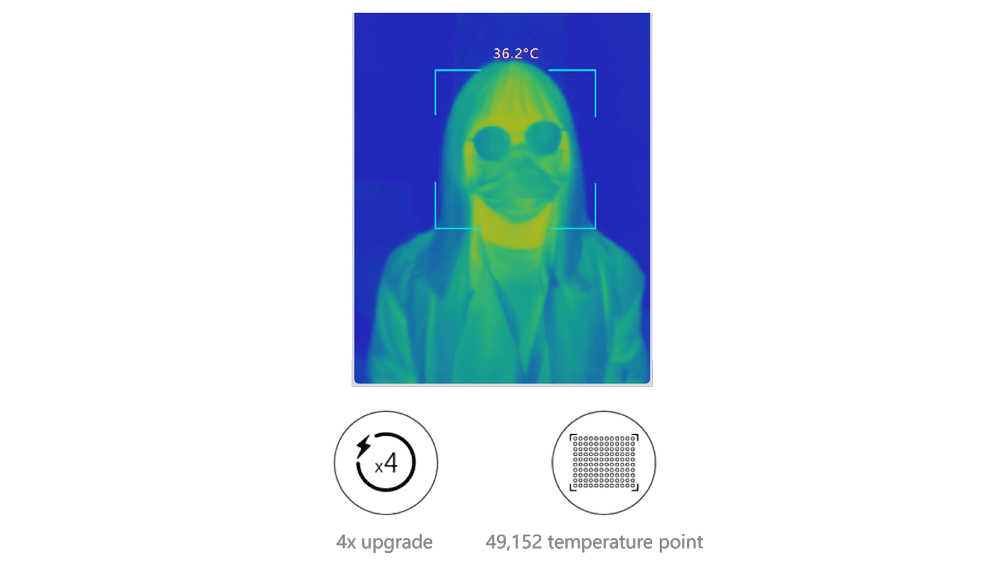

Resolution 256×192，Rich and Clear Details

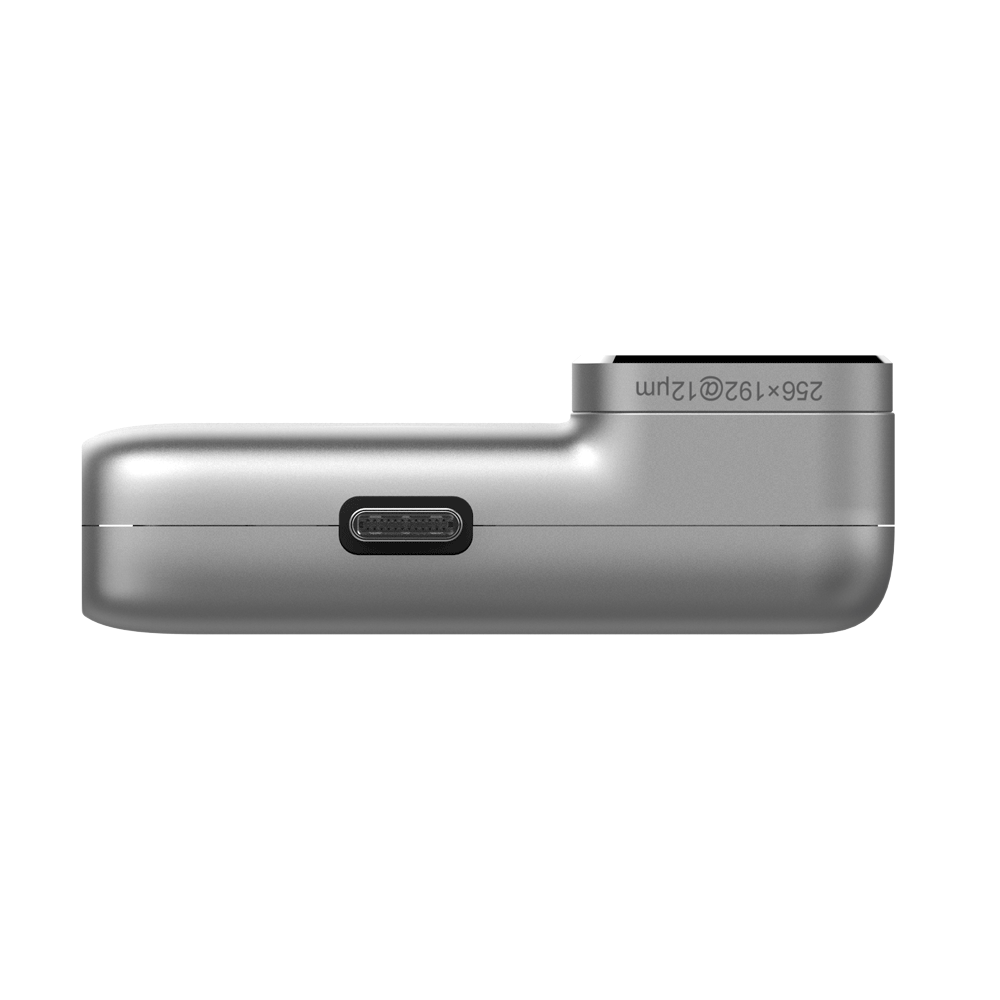

256×192@12μm indigenously developed WLP encapsulated infrared detector, 49,152 temperature points are presented with cutting-edge technology, high-definition thermal imaging, 4x upgrade.

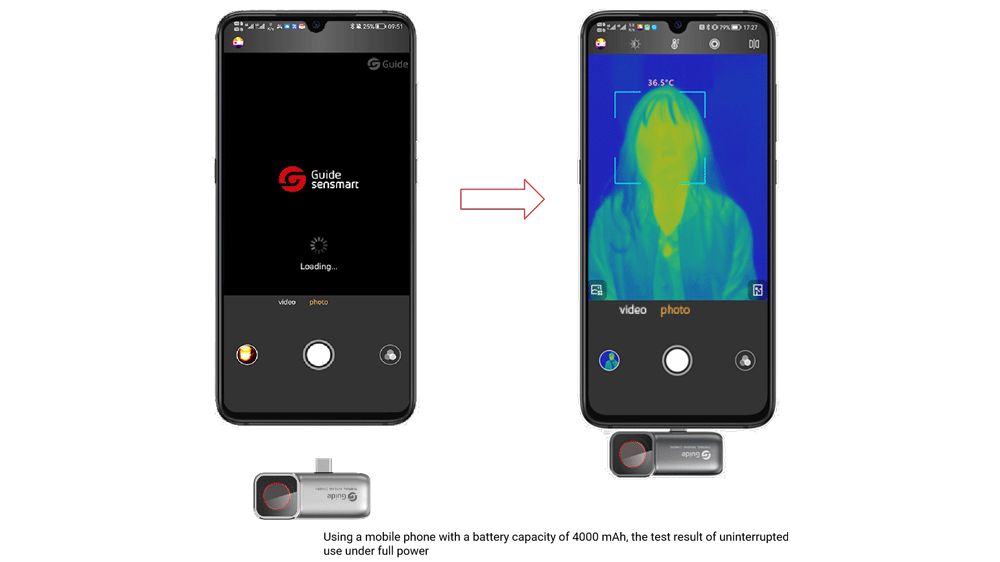

Durable, powered by your smartphone
•Battery-free design, Plug and play,Easy to use
•Low power consumption, Continue working more than 3hrs

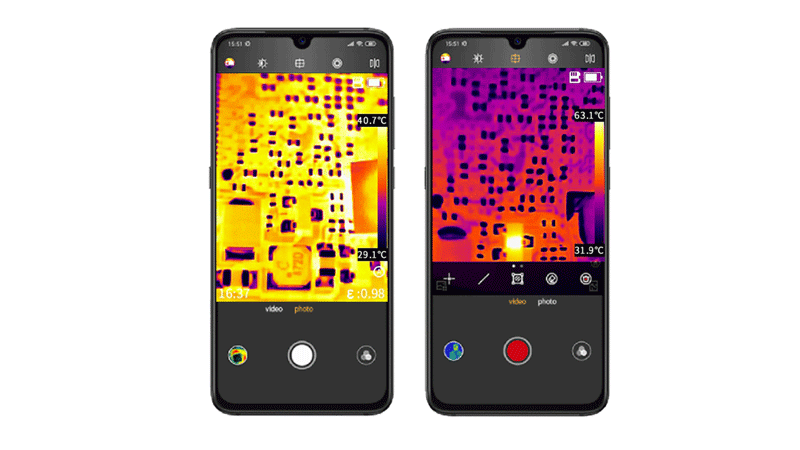

Switching Multiple Scenarios By One Button
MobIR APP supports three modes, which can be easily switched without hassle.
•Conventional temperature measurement——Industrial-class temperature measurement accuracy of ±2°C with a wide range of -20–+ 150°C
•Night vision——Outdoor night vision with recognition distance exceeds 100 meters

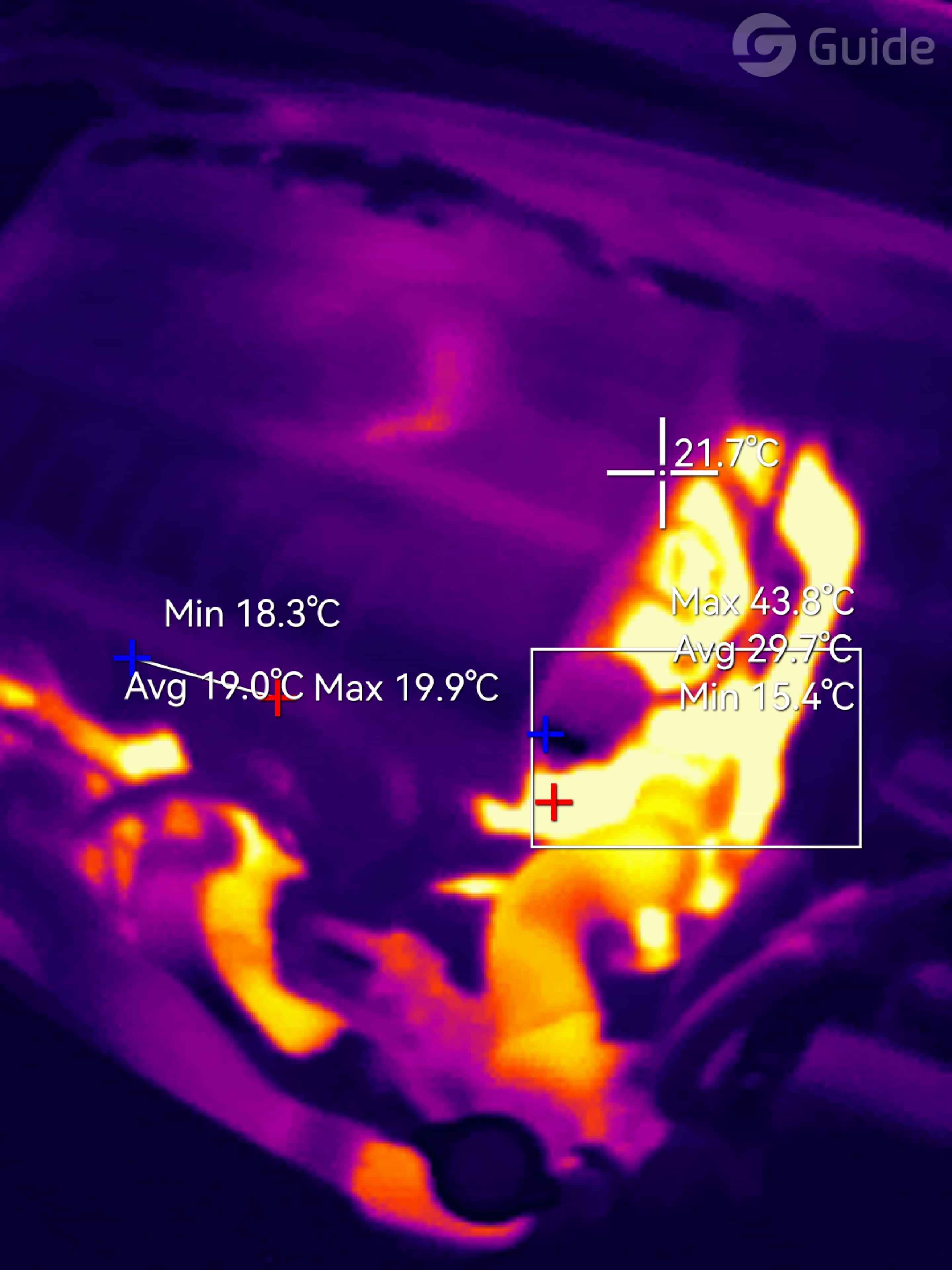

±2°C Accuracy, Comparable to Industrial-Class Testing tools
Industrial-class accuracy of ±2°C for temperature measurement, up to 3 spots, 1 line and 2 areas of subjects to be analyzed simultaneously; newly upgraded APP view for conventional temperature measurement, which shows temperature of subjects more intuitively without interference with each other.

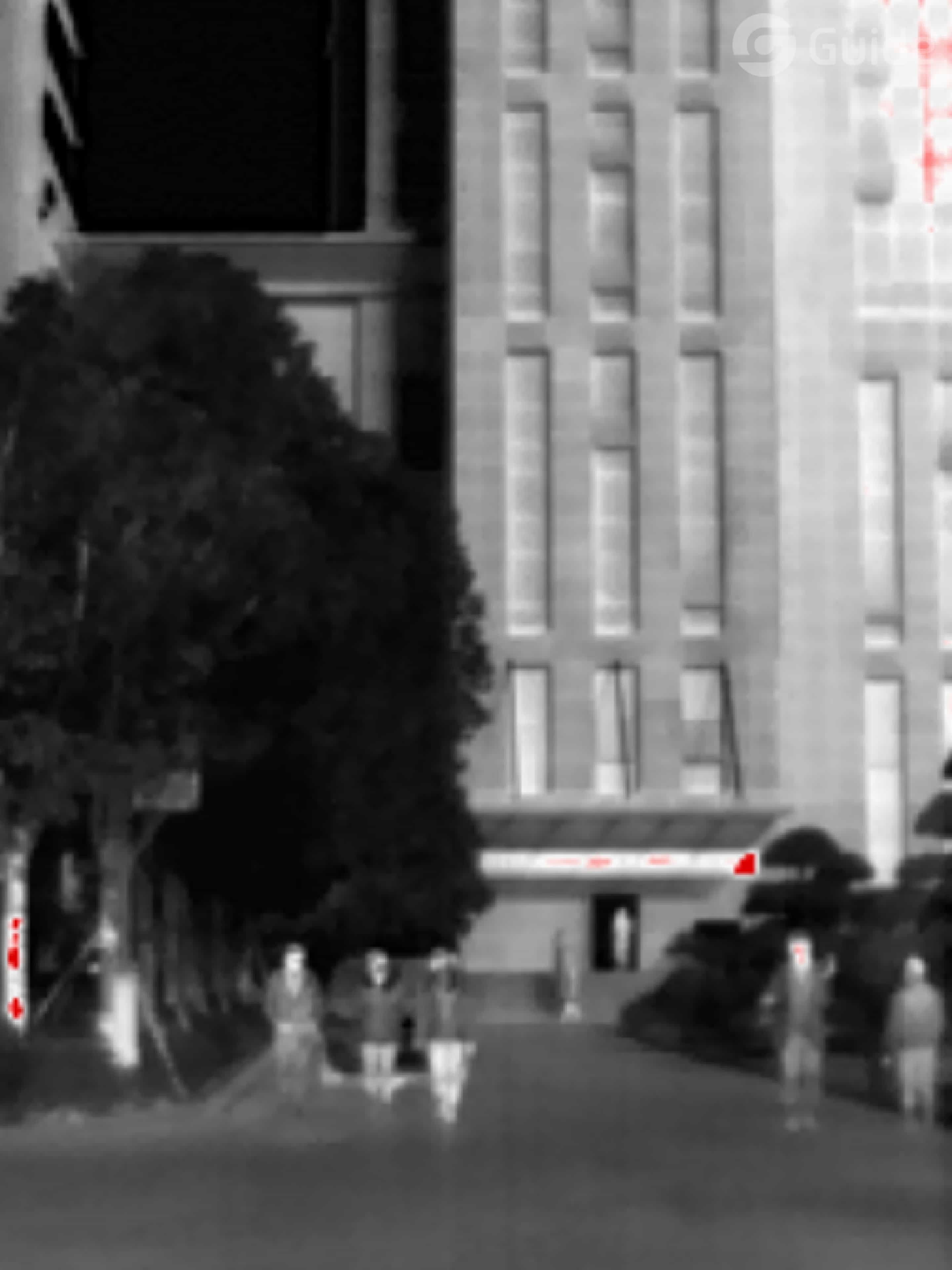

Over 100 Meters of Outdoor Night Vision for Seeing Further and More Clearly
MobIR 2 helps you clearly identify people and animals hundreds of meters away in the darkness field, which is helpful in safe exploration and efficient search and rescue. Long range night vision is more meaningful under seeing clearly.
ADD TO COMPARE
|Imaging and optics|
|Infrared resolution||256 × 192@12μm|
|Wavelength range||7.5 to 14μm|
|Focal length||7 mm|
|Field of view||25°|
|Focusing mode||Automatic / Manual|
|Measurement and analysis|
|Measurement range||-20℃ to 150℃|
|Measurement accuracy||±2°C or ±2%, whichever is greater|
