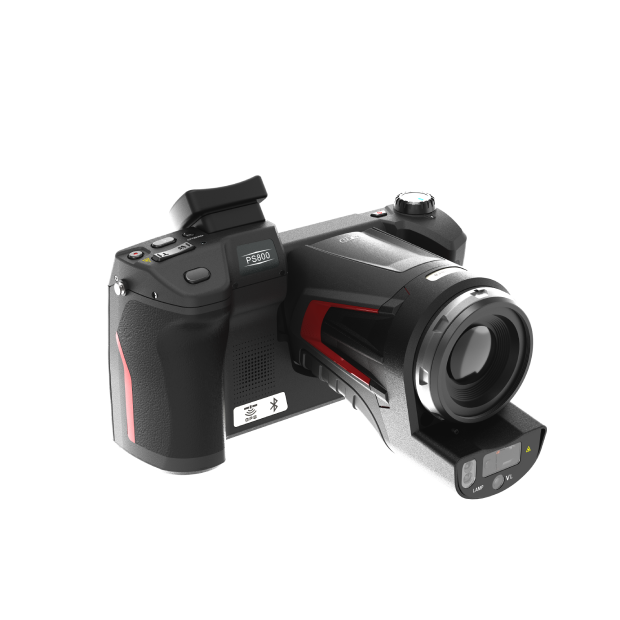

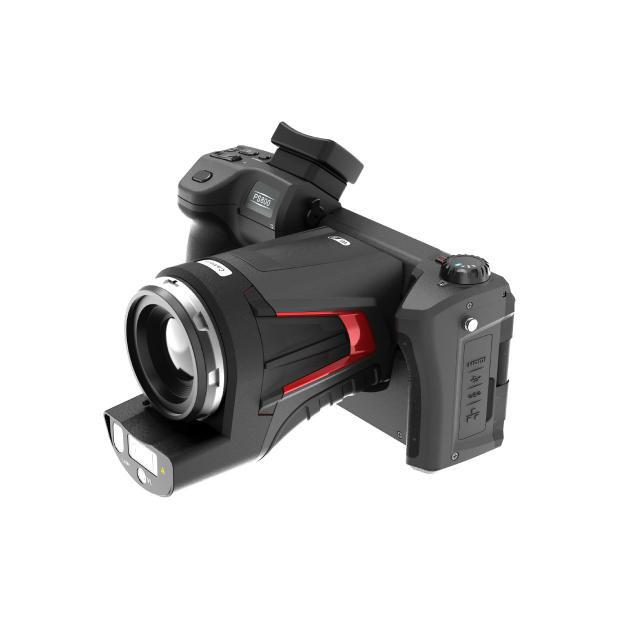

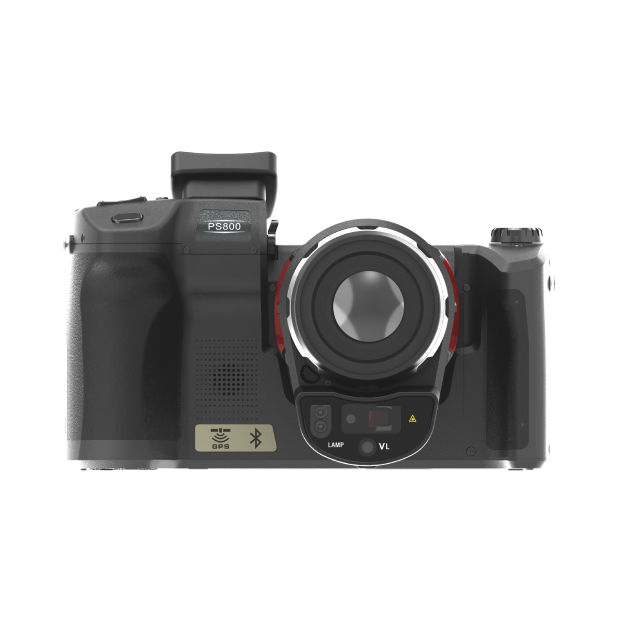

PS800
High Performance Thermal Camera

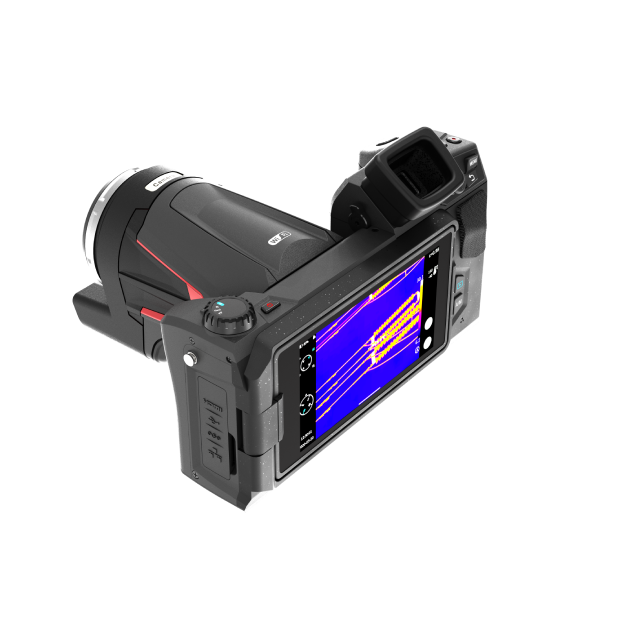

The Guide PS Series high-performance thermal camera is designed to make the inspection, maintenance and troubleshooting work easier, faster and more accurate. It adopts a new generation of uncooled IR focal-plane detectors, which provides sharper thermal images and higher measurement accuracy. With its rotatable lens and screen structure, up to 13 million pixels visible light camera module, high precision rangefinder, and supplemented by some professional functions such as AI recognition naming, intelligent area measurement, flexible emissivity settings by areas, super-resolution reconstruction, strive to meet the needs of every thermography experts.
1024x768Infrared module
13MillionVisible light
30mkNETD
IP54Encapsulation
vs
ADD TO COMPARE
Built For The Experts

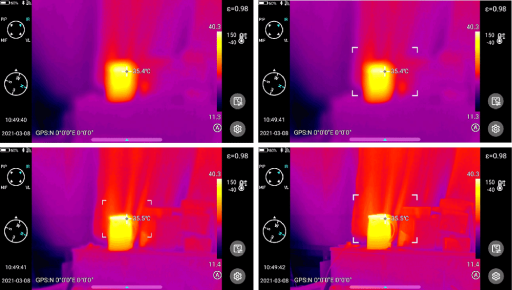

1 Fast Focus
Adopts a new generation of focus motor and professional laser rangefinder to achieve 0.4 second one-touch smart autofocus

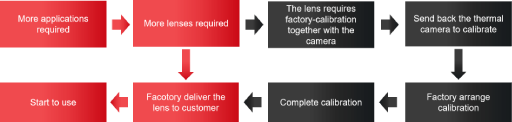

Calibration-free Lenses
Calibration-free extended lenses function, for more application scenarios，No need factory-calibration, time-saving and cost-saving

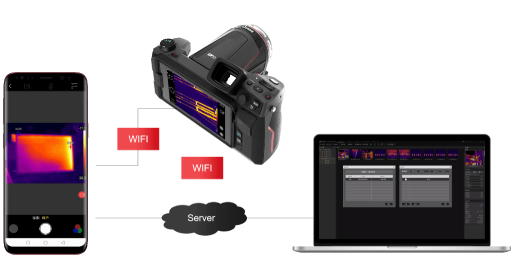

Cloud Service
Share images to the Cloud anytime, anywhere, for remote analysis and problem feedback，WIFI Connect ：1、Mobile hotspot ；2、Wireless router；3、4G mobile communication (optional)

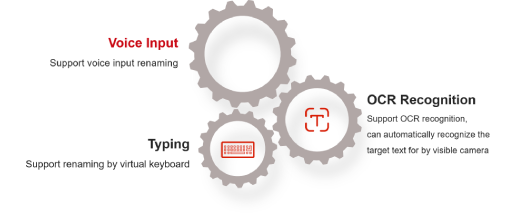

AI Voice Recognition
Support customization of the image naming, three input methods, convenient for memory and file management

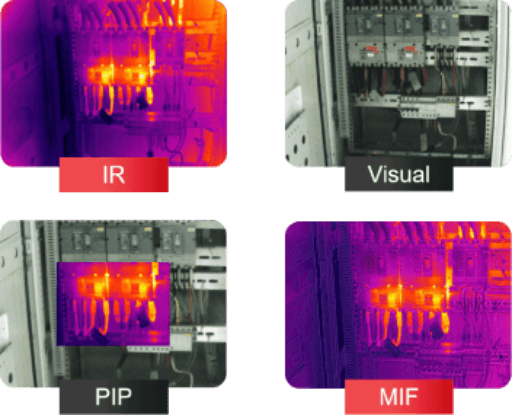

MIF Patent Technology of Multi-spectral Image Fusion

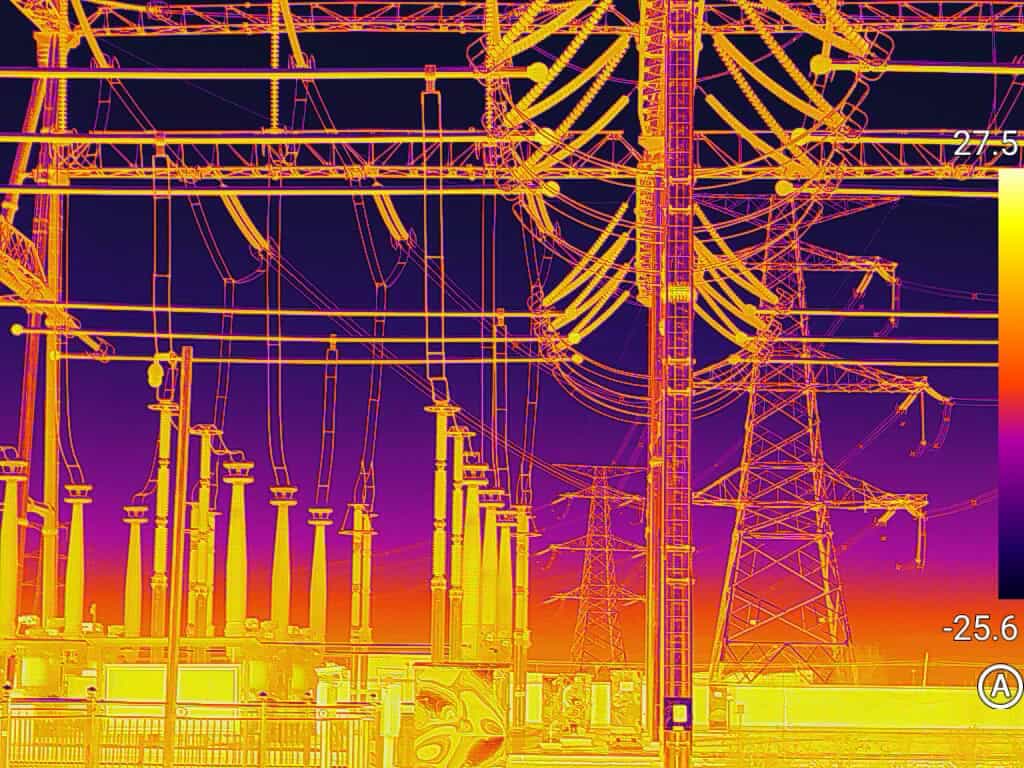

Provides four image modes: IR, visible light, PIP and MIF. The unique MIF mode supports the fusion of visible light image details on the thermal image, which will comprehensively improve your observation experience and work efficiency

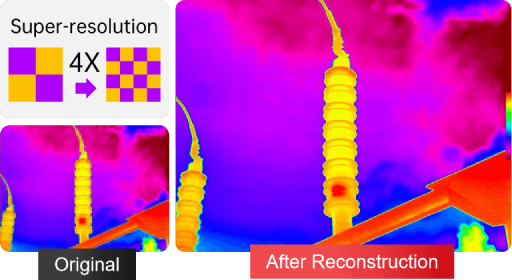

Image Super-resolution Reconstruction
The image details can be increased by specific algorithm. Super-resolution reconstruction can increase the pixel of infrared image to 4 times the original, and obtain high-quality imaging effect
Media Gallery
Technical Parameters
Model
PS800
ADD TO COMPARE
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx | |||
| Infrared resolution | 1024 × 768@12μm | |||
| Super resolution technology | Yes, Upgrade to 2048 × 1536 | |||
| Wavelength range | 7.5 to 14μm | |||
| Focal length | 28 mm | |||
| Field of view | 25° × 19° | |||
| Minimum object distance | 0.3 m | |||
| D:S | 2325:1 | |||
| NETD | ≤30 mK | |||
| Infrared frame rate | 25 Hz / 9 Hz | |||
| Focusing mode | Electric / Manual | |||
| Digital zoom | 1.1x to 35x | |||
| Shot recognition | Auto / Manual | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -40°C to 150°C, 100°C to 800°C, Optional 700°C to 2000°C (High temperature lens is required) | |||
| Measurement accuracy | ±1°C or ±1%, whichever is greater | |||
| Analyzed target | Spot × 30, Line × 30, Area × 30 | |||
| Tracking / Alarm | Full screen maximum, minimum and average temperature tracking; The maximum, minimum and average temperature tracking of analyzed target; full screen temperature threshold alarm (image and voice) | |||
| Isothermals | Available | |||
| Temperature measuring parameters | Emissivity, reflected temperature, target distance, humidity, atmospheric transmittance, optical transmittance | |||
