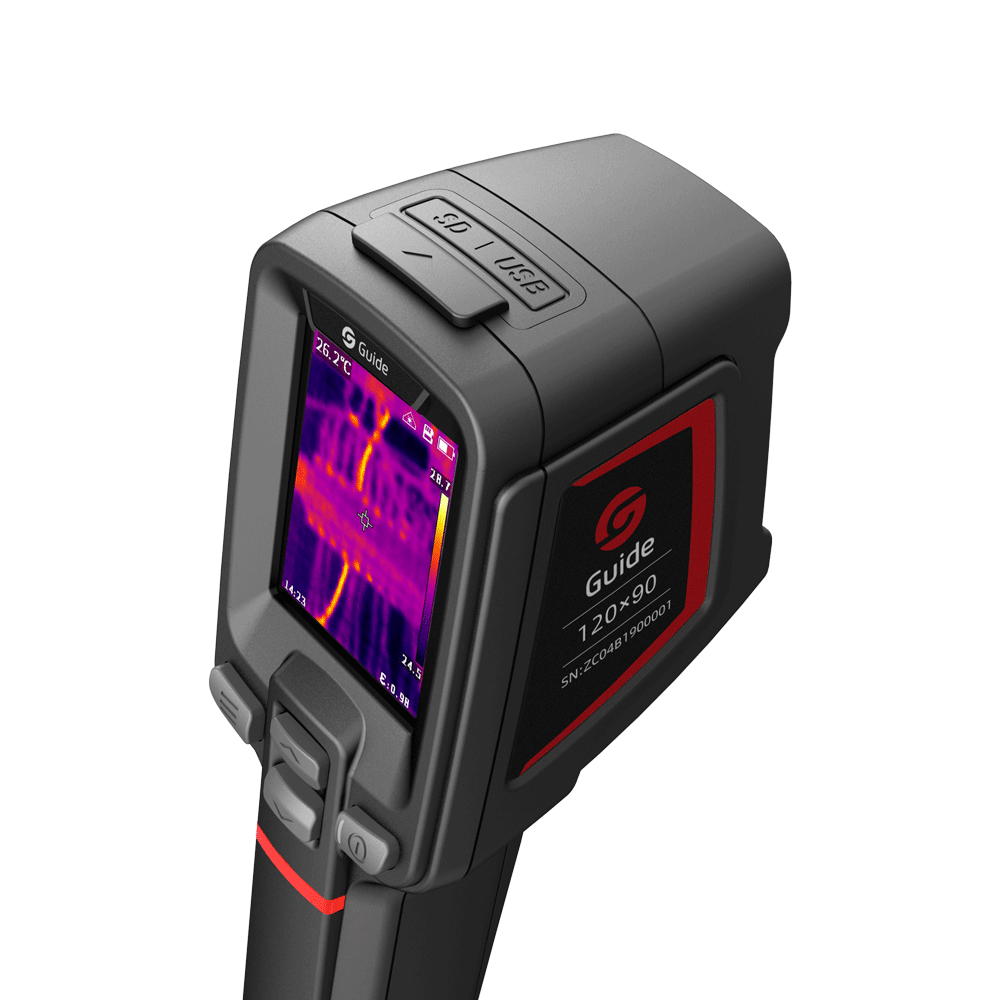

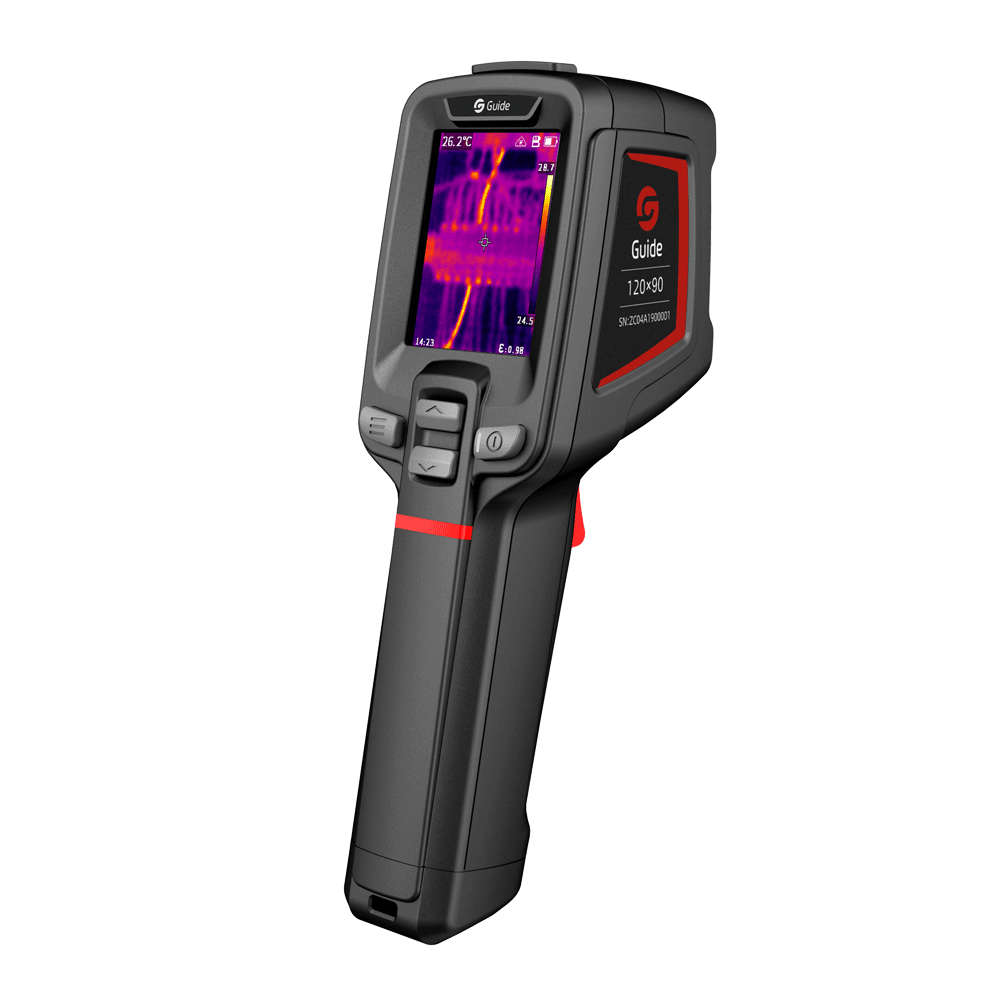

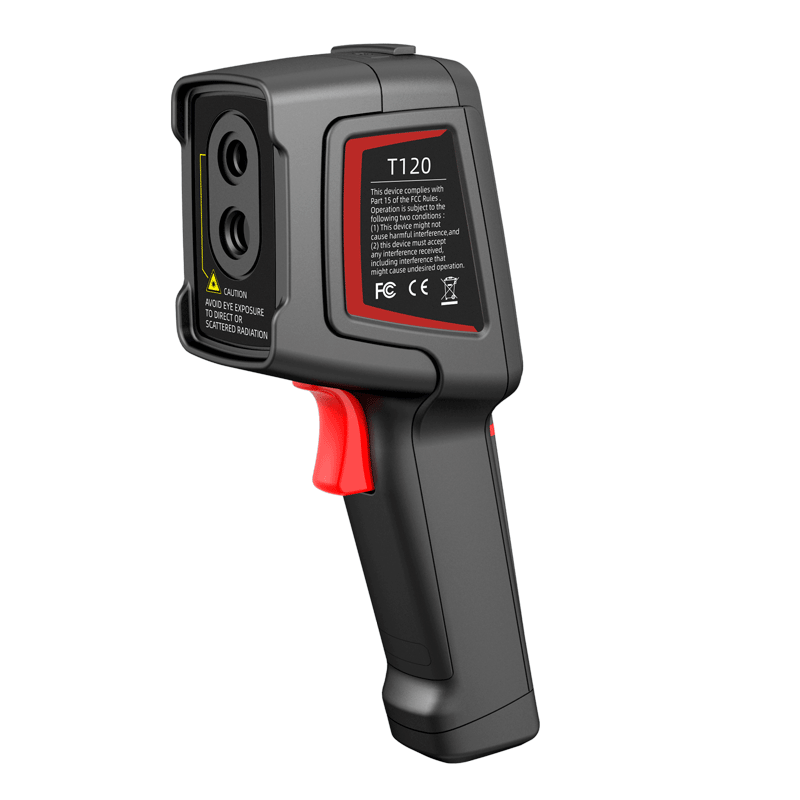

T120

Entry-level Portable Thermal Camera

T120 Entry-level Thermal Image Camera is an affordable temperature measuring tool widely used for building diagnostics, HVAC inspections, electrical system inspections and more. It perfectly overcomes the shortcomings of the single spot infrared thermometers and helps work smarter, safer and faster. Equipped with Guide’s selfdeveloped 120x90 WLP IR modules, T120 series thermal cameras can display radiometric data of 10,800 pixels instantly which helps quickly detect large areas and pinpoint fault spots accurately.


120x90IR resolution

>8HrsOperating time

1 secondTurn on

IP54Encapsulation


See the heat of 10,800 pixels in 1 second

• Boot-up in 1 second

Boot up and display fully radiometric image instantly Full screen max & min temperature alarm. 2.4 inch Large Display , 240x320 pixel Color LCD

• Good-handle Buttons

Ergonomic design Easy to operate even wear the gloves. Trigger button for photo taking



• 8-hour Battery Life

Low power consumption Large capacity battery. 2-hour Quick Charge ,USB Type-C Interface High power quick charge

• IR/Visible/Laser Indicator

Pinpoint targets precisely.  Rugged Design, 2-meter Drop Test, IP54 Encapsulation



Media Gallery

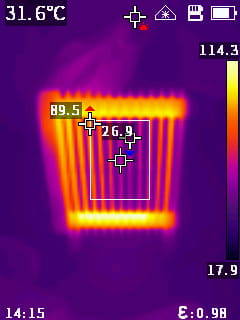

Heater


Floor heating

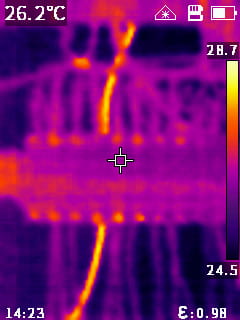

Electrical

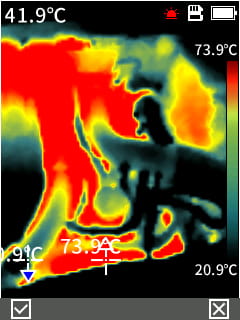

Motor

Technical Parameters

Model

T120

ADD TO COMPARE

Imaging and optics
Detector type VOx
Infrared resolution 120 × 90@17μm
Wavelength range 7.5 to 14μm
Focal length 2.28 mm
Field of view 50° × 38°
Minimum object distance 0.5 m
D:S 130:1
NETD ≤60 mK
Infrared frame rate 25 Hz / 9 Hz
Focusing mode Focus-free
Measurement and analysis
Measurement range Support auto-switching: -20°C to 150°C, 100°C to 400°C
Measurement accuracy ±2°C or ±2%, whichever is greater
Analyzed target Center spot and 3 areas
Tracking / Alarm Full screen maximum/minimum temperature tracking; The maximum or minimum temperature tracking of analyzed target; full screen temperature threshold alarm (image)
Temperature measuring parameters Emissivity, reflected temperature, target distance
