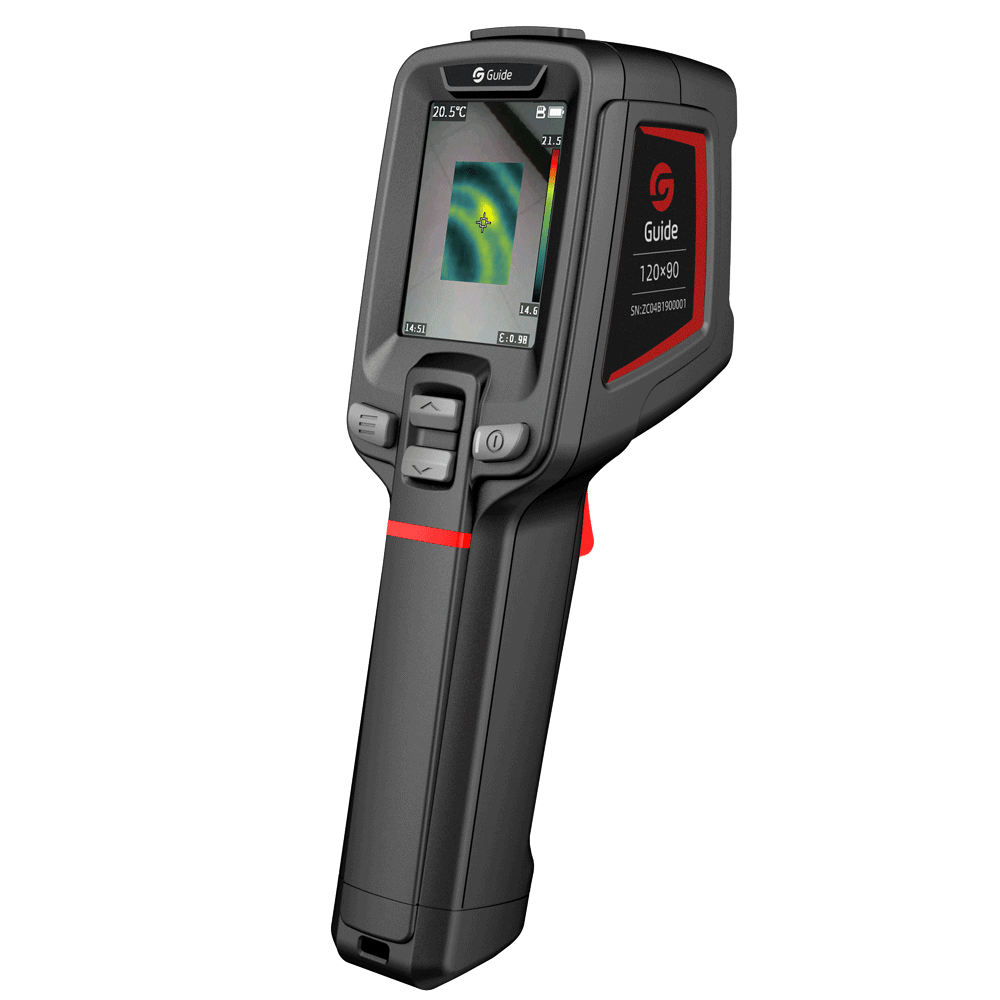

T120V
Entry-level Portable Thermal Camera
T120 Entry-level Thermal Image Camera is an affordable temperature measuring tool widely used for building diagnostics, HVAC inspections, electrical system inspections and more. It perfectly overcomes the shortcomings of the single spot infrared thermometers and helps work smarter, safer and faster. Equipped with Guide’s selfdeveloped 120x90 WLP IR modules, T120 series thermal cameras can display radiometric data of 10,800 pixels instantly which helps quickly detect large areas and pinpoint fault spots accurately.
120x90IR resolution
＞5HrsOperating time
1 secondTurn on
IP54Encapsulation
vs
ADD TO COMPARE
See the heat of 10,800 pixels in 1 second
• Boot-up in 1 second

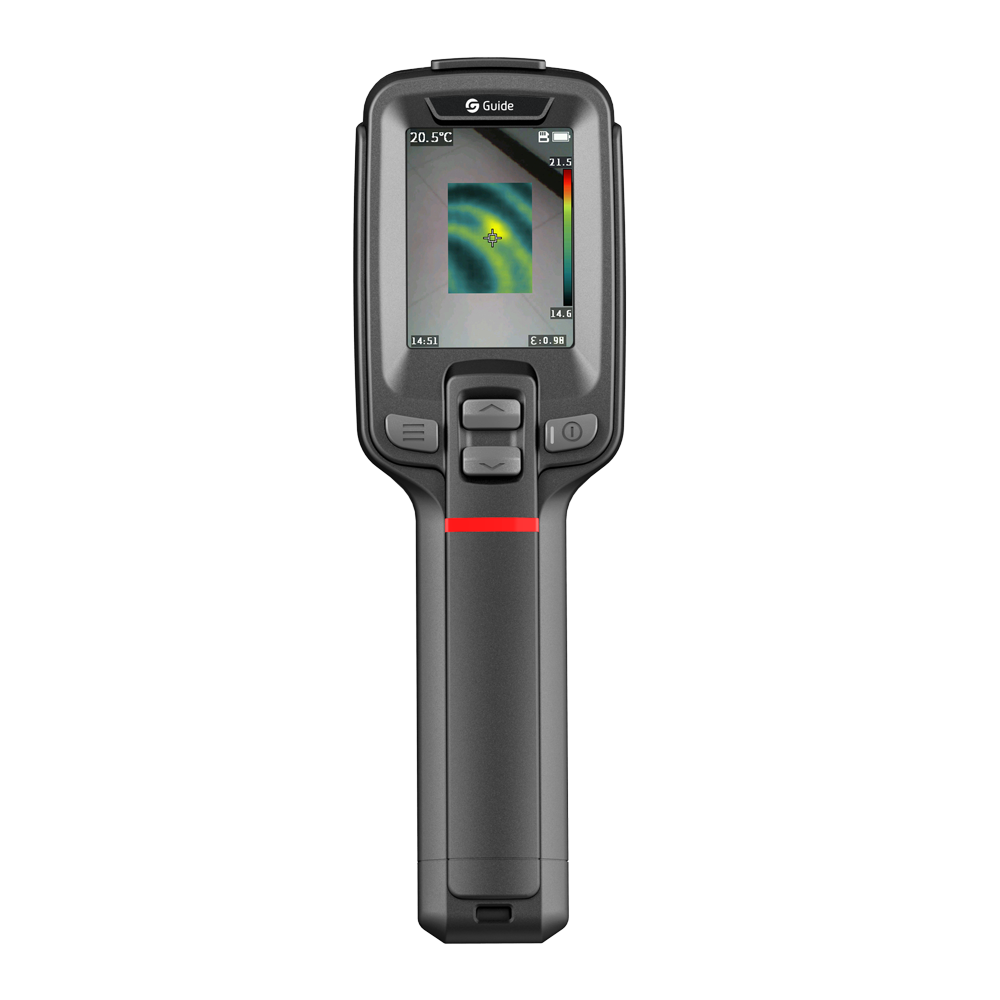

Boot up and display fully radiometric image instantly Full screen max & min temperature alarm. 2.4 inch Large Display , 240x320 pixel Color LCD

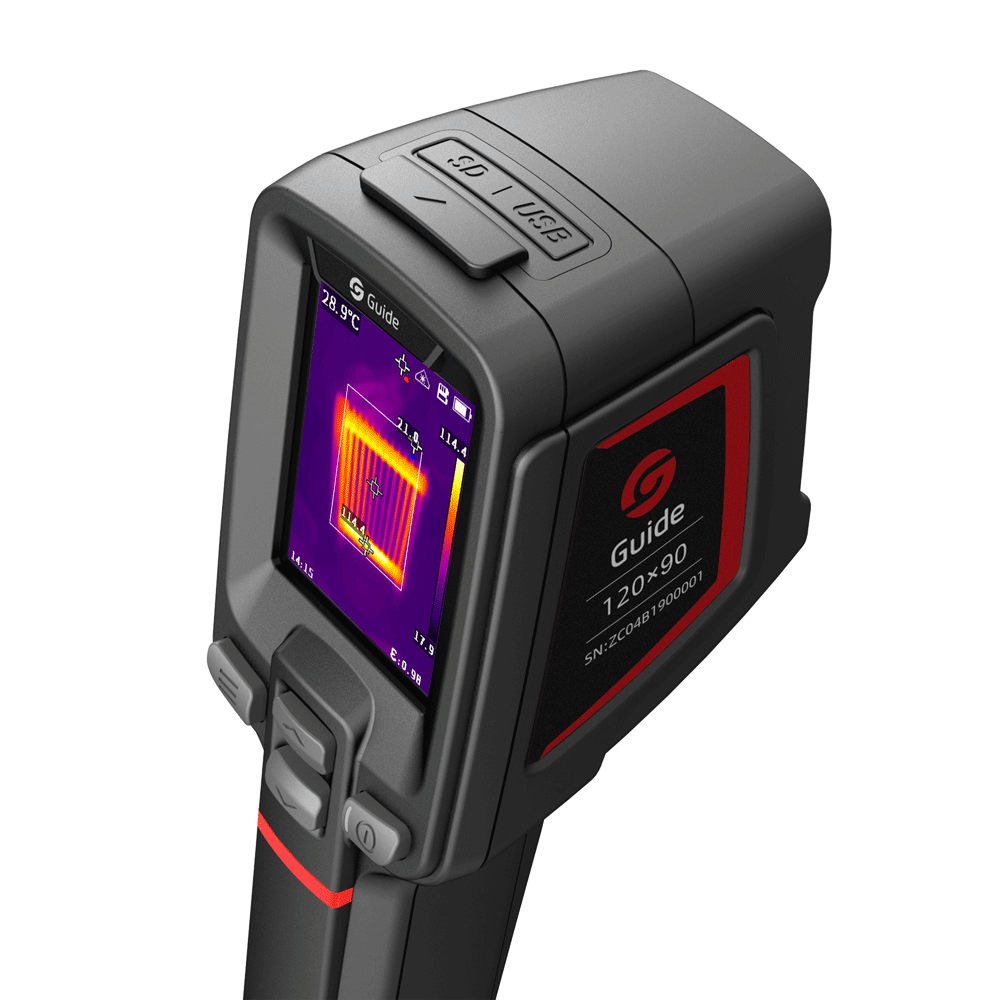

• Good-handle Buttons
Ergonomic design Easy to operate even wear the gloves. Trigger button for photo taking
.jpg)
• 5-hour Battery Life
Low power consumption Large capacity battery. 2-hour Quick Charge ,USB Type-C Interface High power quick charge

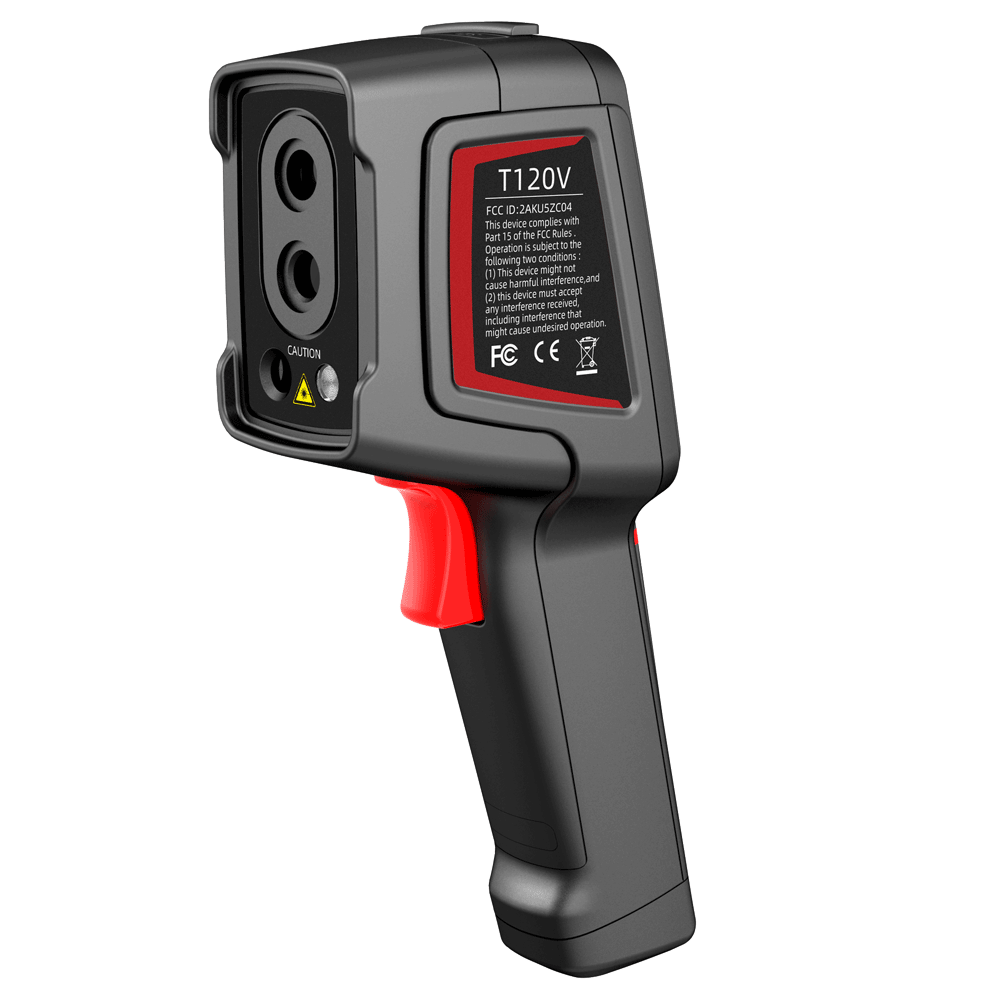

• IR/Visible/Laser Indicator
Pinpoint targets precisely. Rugged Design, 2-meter Drop Test, IP54 Encapsulation
Media Gallery

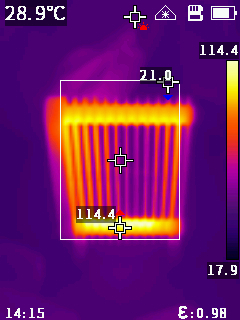

Heating

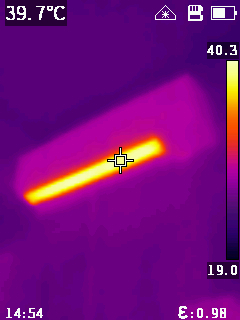

Floor heating

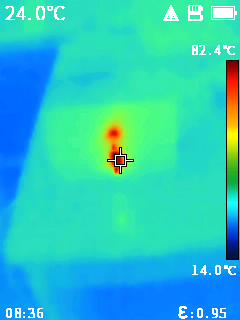

Electrical

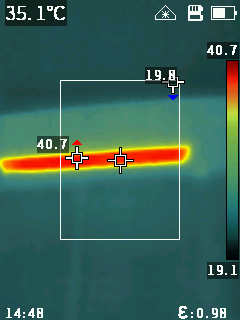

Air conditioner
Technical Parameters
Model
T120V
ADD TO COMPARE
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx | |||
| Infrared resolution | 120 × 90@17μm | |||
| Wavelength range | 7.5 to 14μm | |||
| Focal length | 2.28 mm | |||
| Field of view | 50° × 38° | |||
| Minimum object distance | 0.5 m | |||
| D:S | 130:1 | |||
| NETD | ≤60 mK | |||
| Infrared frame rate | 25 Hz / 9 Hz | |||
| Focusing mode | Focus-free | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -20°C to 150°C, 100°C to 400°C | |||
| Measurement accuracy | ±2°C or ±2%, whichever is greater | |||
| Analyzed target | Center spot and 3 areas | |||
| Tracking / Alarm | Full screen maximum/minimum temperature tracking; The maximum or minimum temperature tracking of analyzed target; full screen temperature threshold alarm (image) | |||
| Temperature measuring parameters | Emissivity, reflected temperature, target distance | |||
