TU650

Thermal Scope

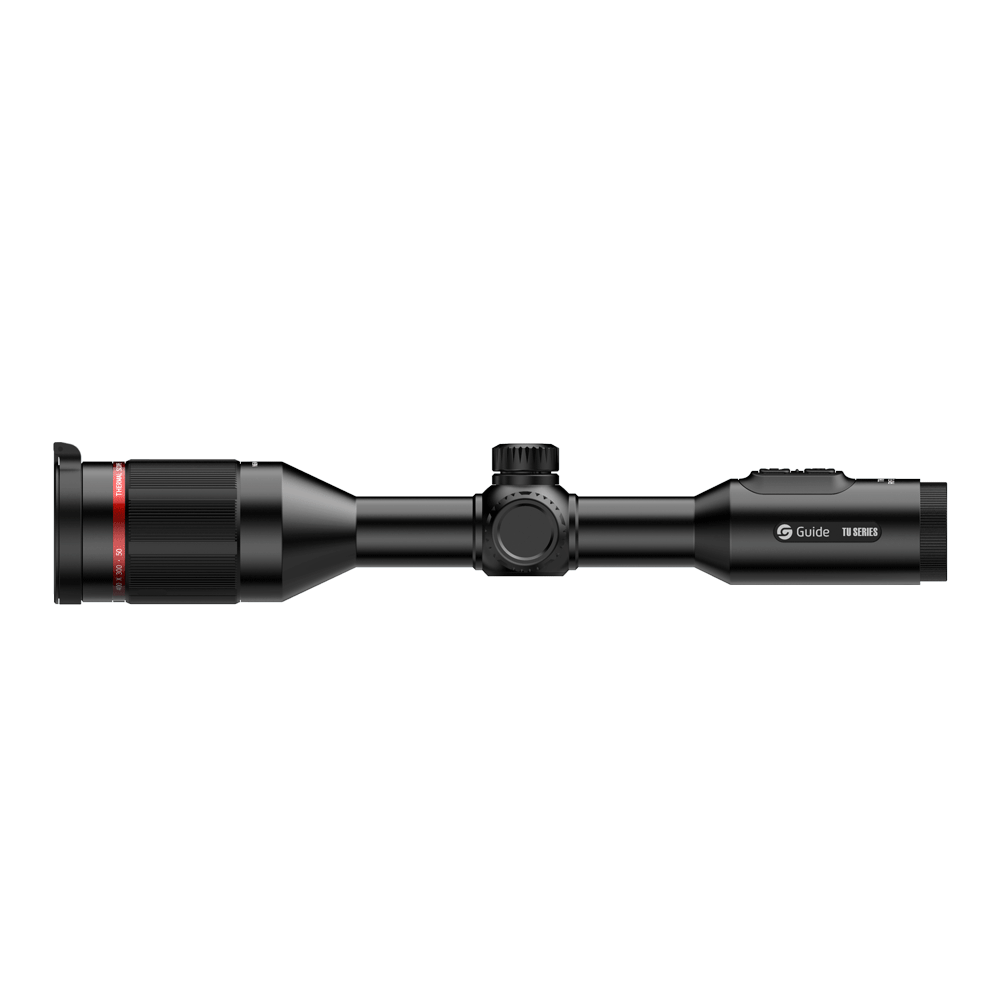

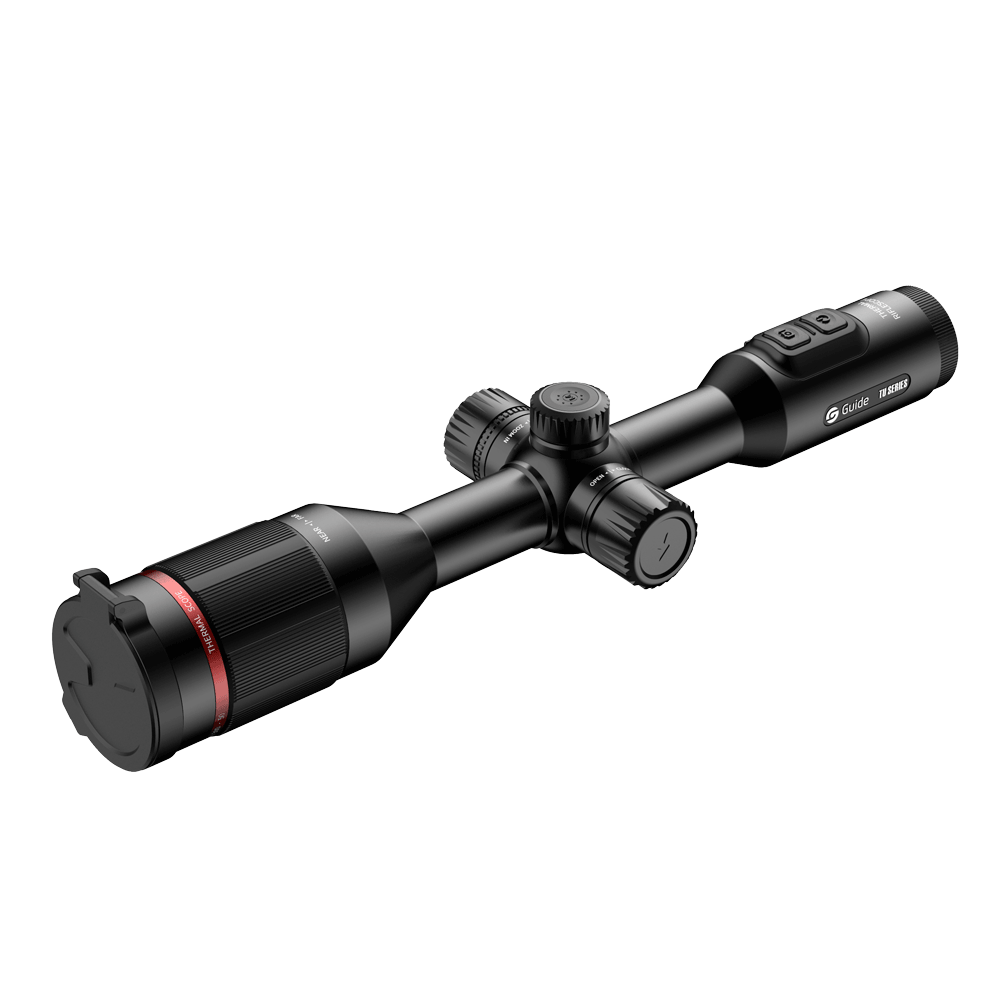

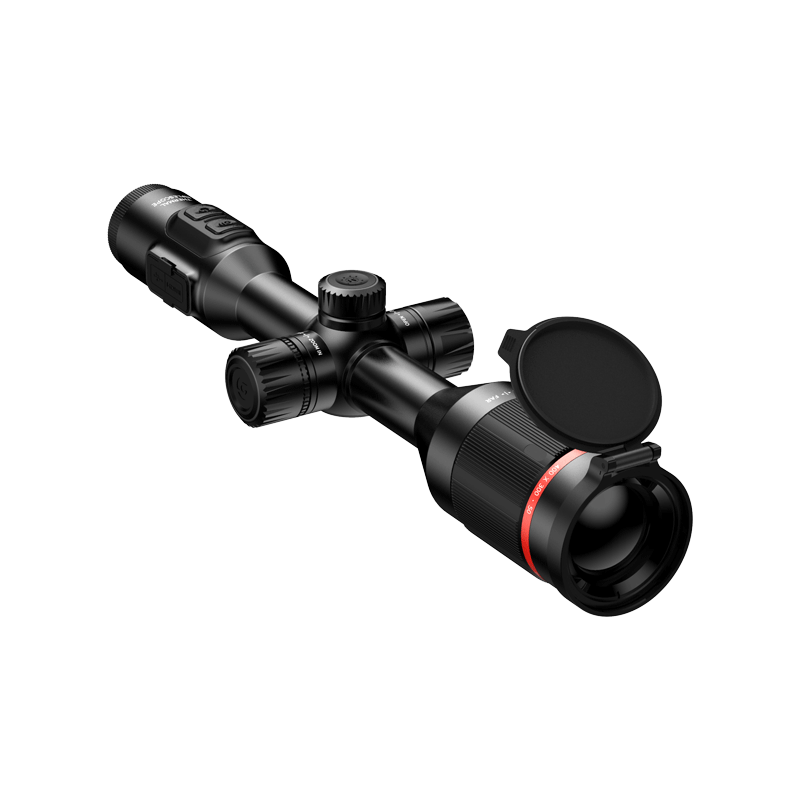

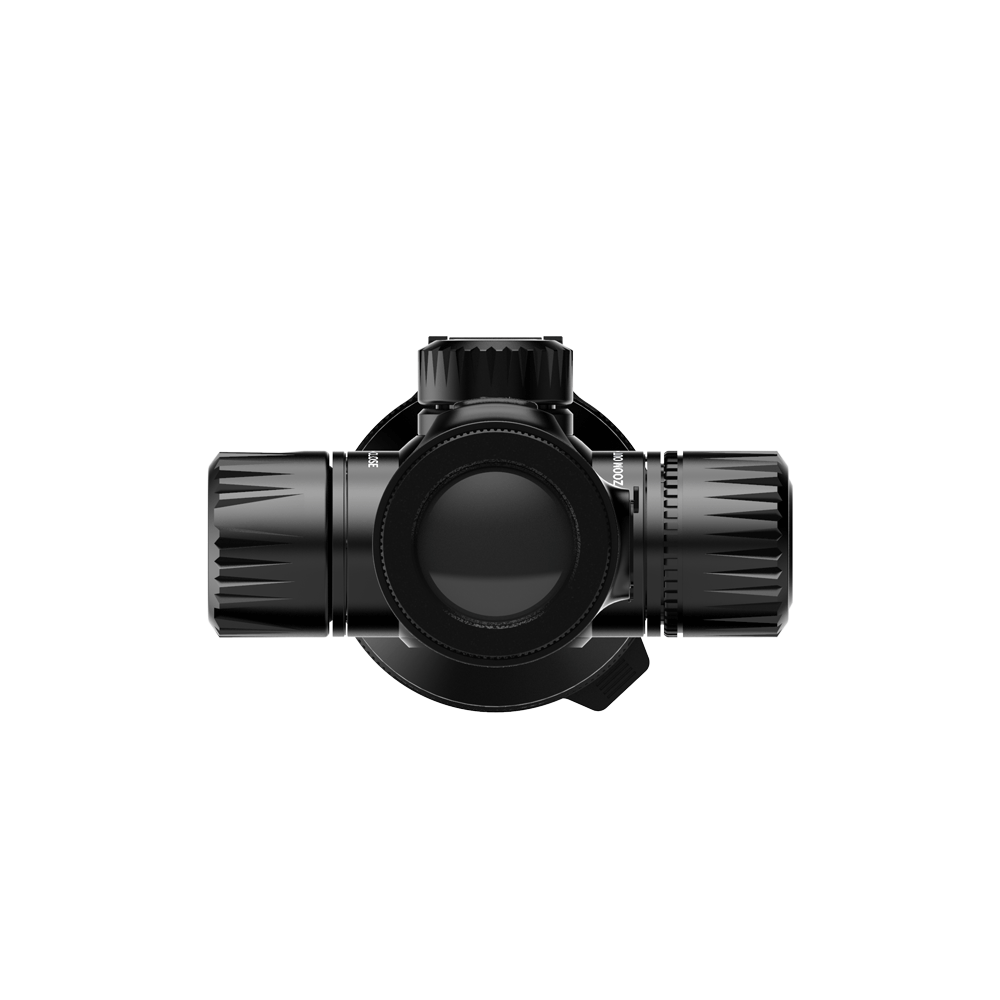

Guide TU Thermal Scope retains the appearance of a traditional daylight scope and perfectly integrates latest premium thermal imaging technology. The design of this scope accommodates long-term operating habits of hunters. TU series adopts 400x300 high- sensitivity thermal detector with three different lens options of 25mm,35mm,50mm, and its 10 sets of zero calibration configuration make it convenient to switch between different instruments.


640×480IR resolution

50mm Focal Length

8.78°×6.59° FOV

2.8X~22.4X Magnification


Classical Design, More Powerful

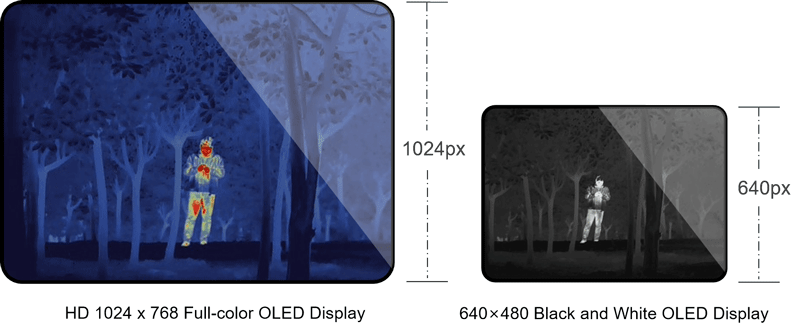

Full-color OLED display

1024 x 768 Full-color OLED, High contrast , image details boost, Improving viewing comfort.

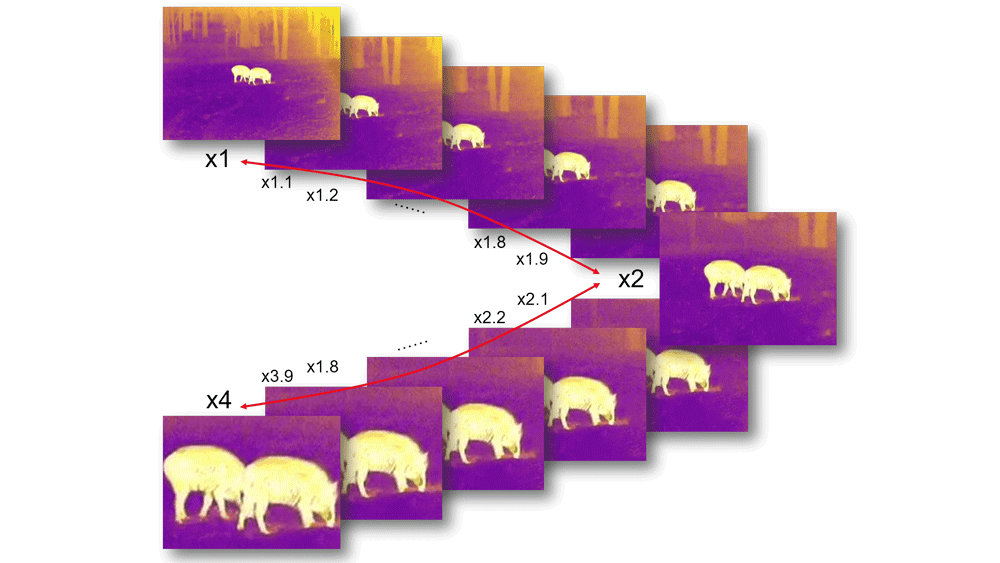

Smooth Zoom For Flexible Searching

Long press the up/down button to smoothly zoom in and zoom out. Make the search more flexible and pinpoint the target more quickly while hunting.

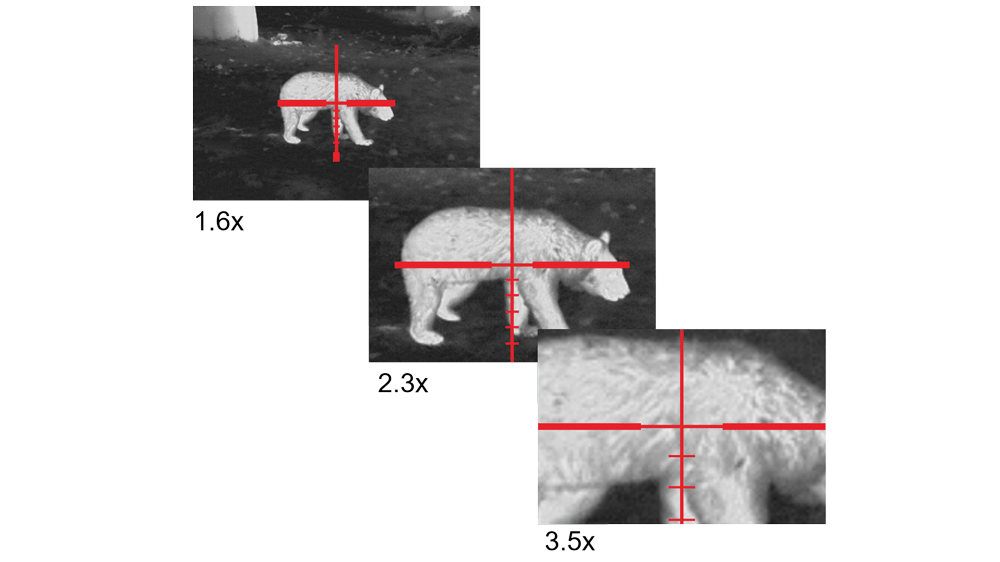

Designed for Professional Hunters

No Need Conversion. Reticle density can be zoomed in synchronously with the image, and the reticle line width can be maintained at any magnification, without conversion, avoiding errors, and helping hunters improve shooting accuracy.

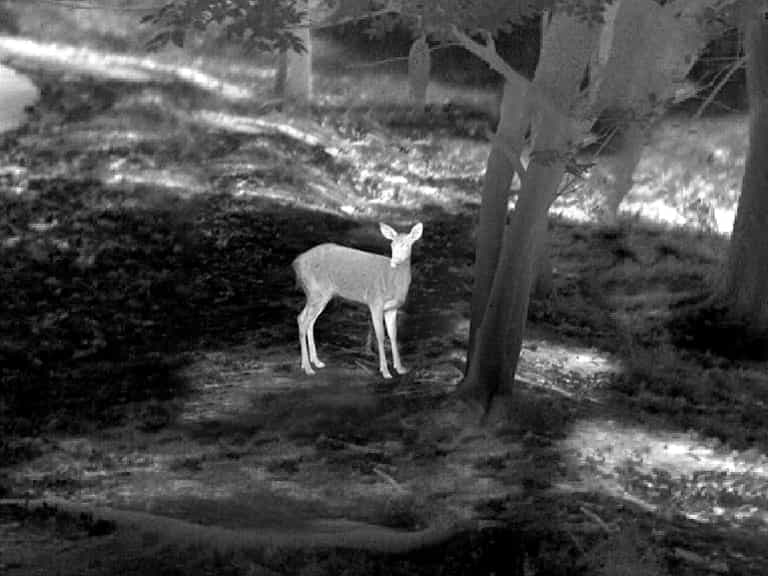

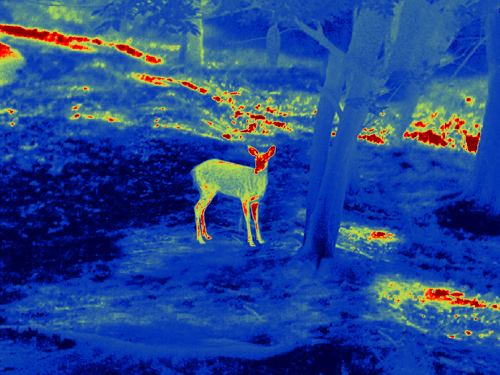

Multiple Color Palettes to Highlight the Target

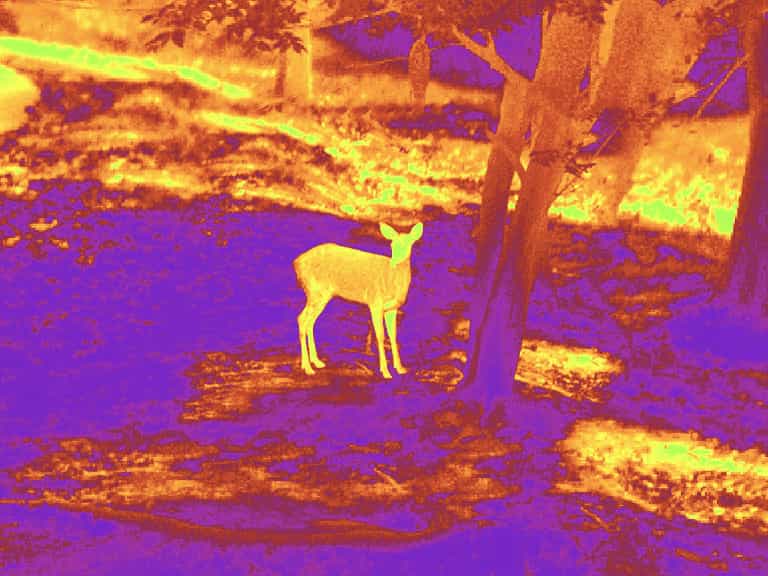

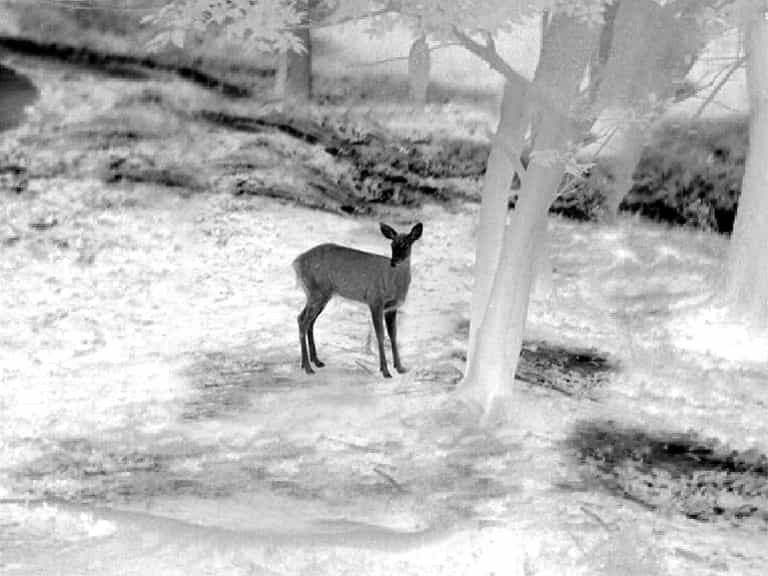

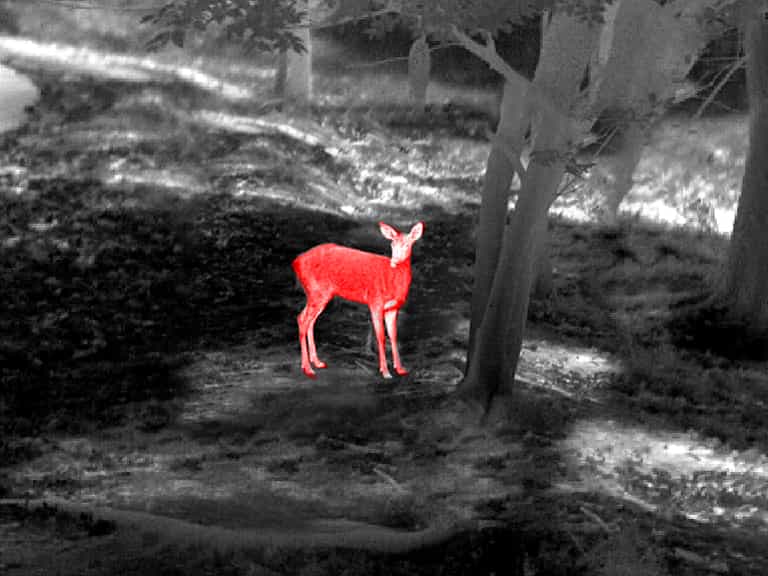

Six color palettes: white hot, black hot, red hot, green hot, iron red, blue heat,

Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.

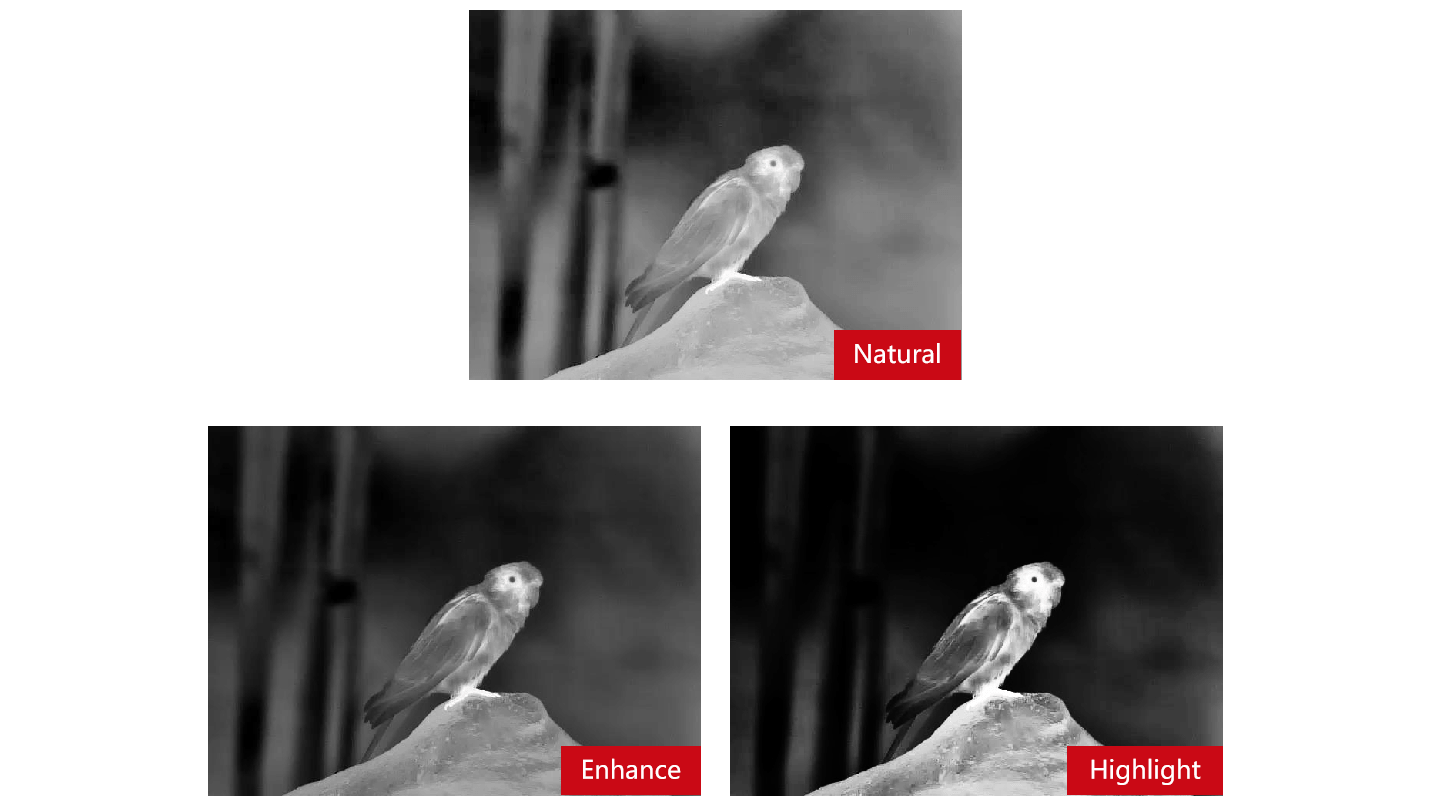

Multiple scene modes, Highlight Target Clearly

“Enhance/Highlight/Natural” can be quickly switched by one button, the image can be adaptively adjusted for different scenes , “Enhance/Highlight” can effectively  reduce image impurities to highlight the target.

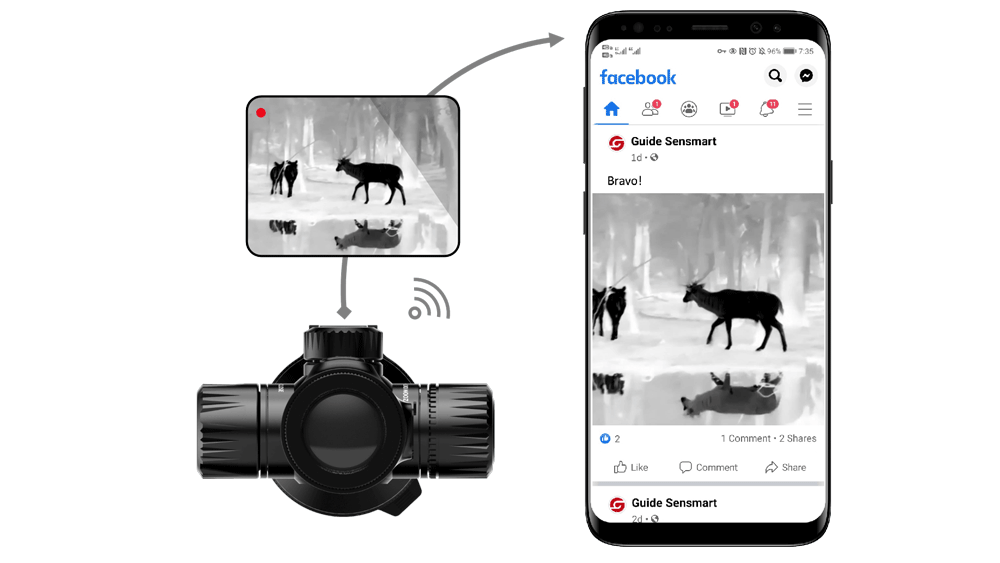

Photo and Video Recording

Support photos and videos, Recording wonderful moments at any time. Can share to your social media by APP.

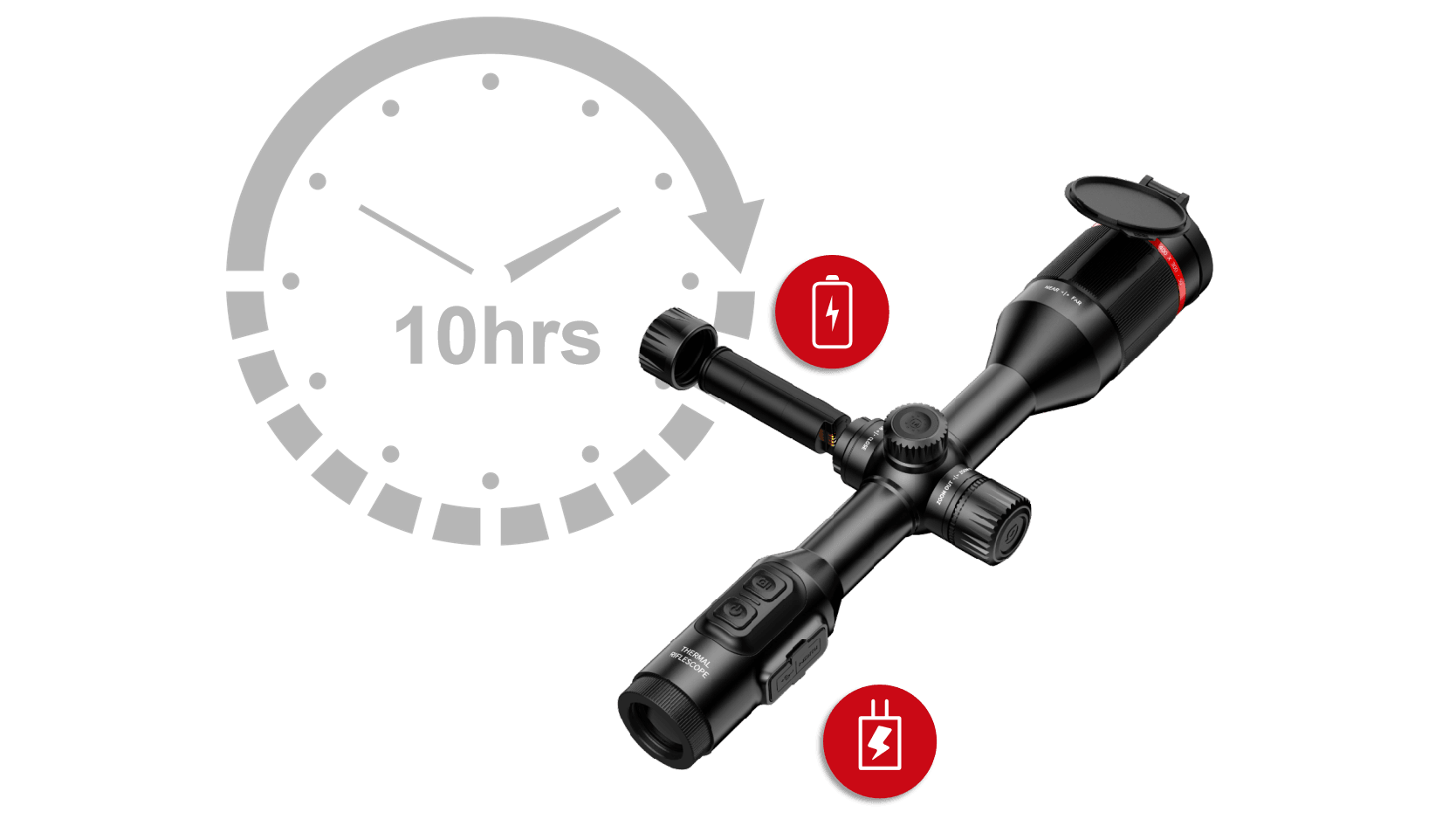

10 hours Super Long Battery Life

Support 10 hours super long operation time. TU Series have dual battery system which consist of internal battery and external battery. External battery can be replaced without power-off , ensuring all-day operations.

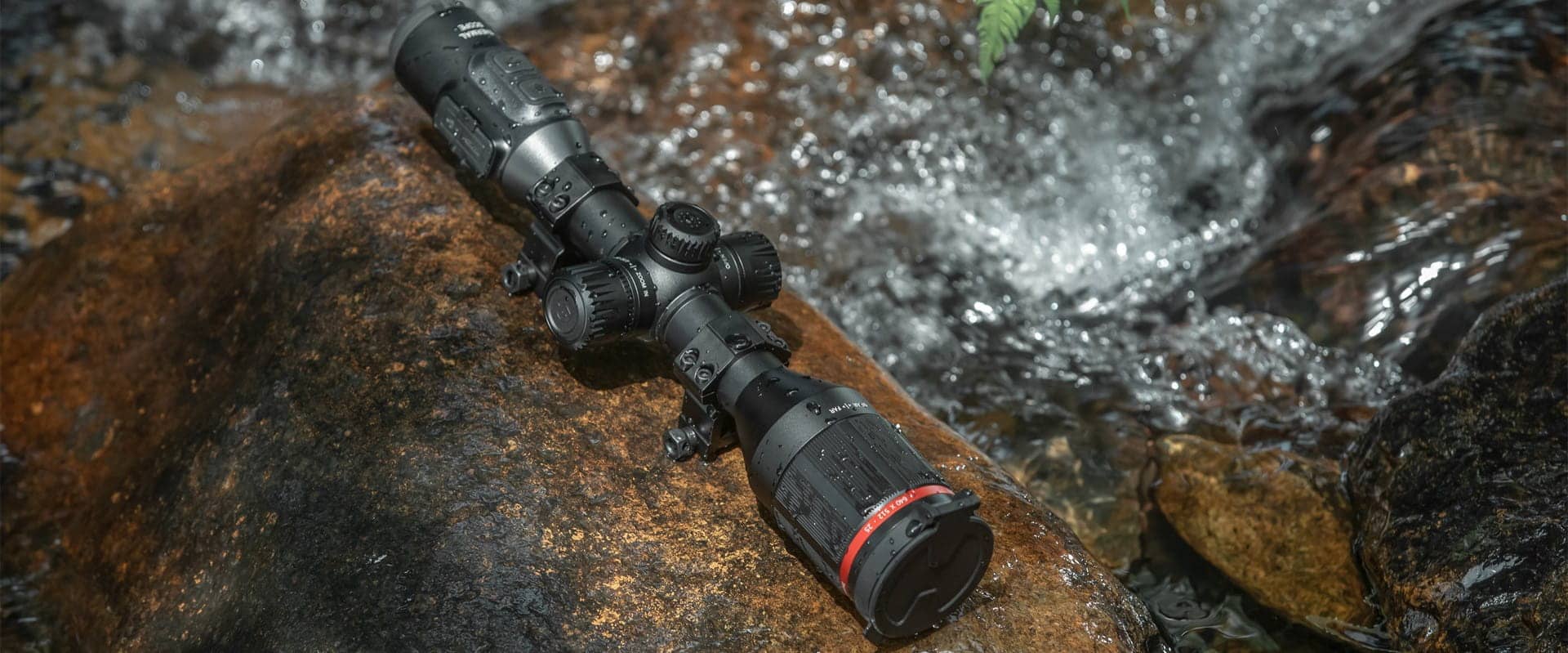

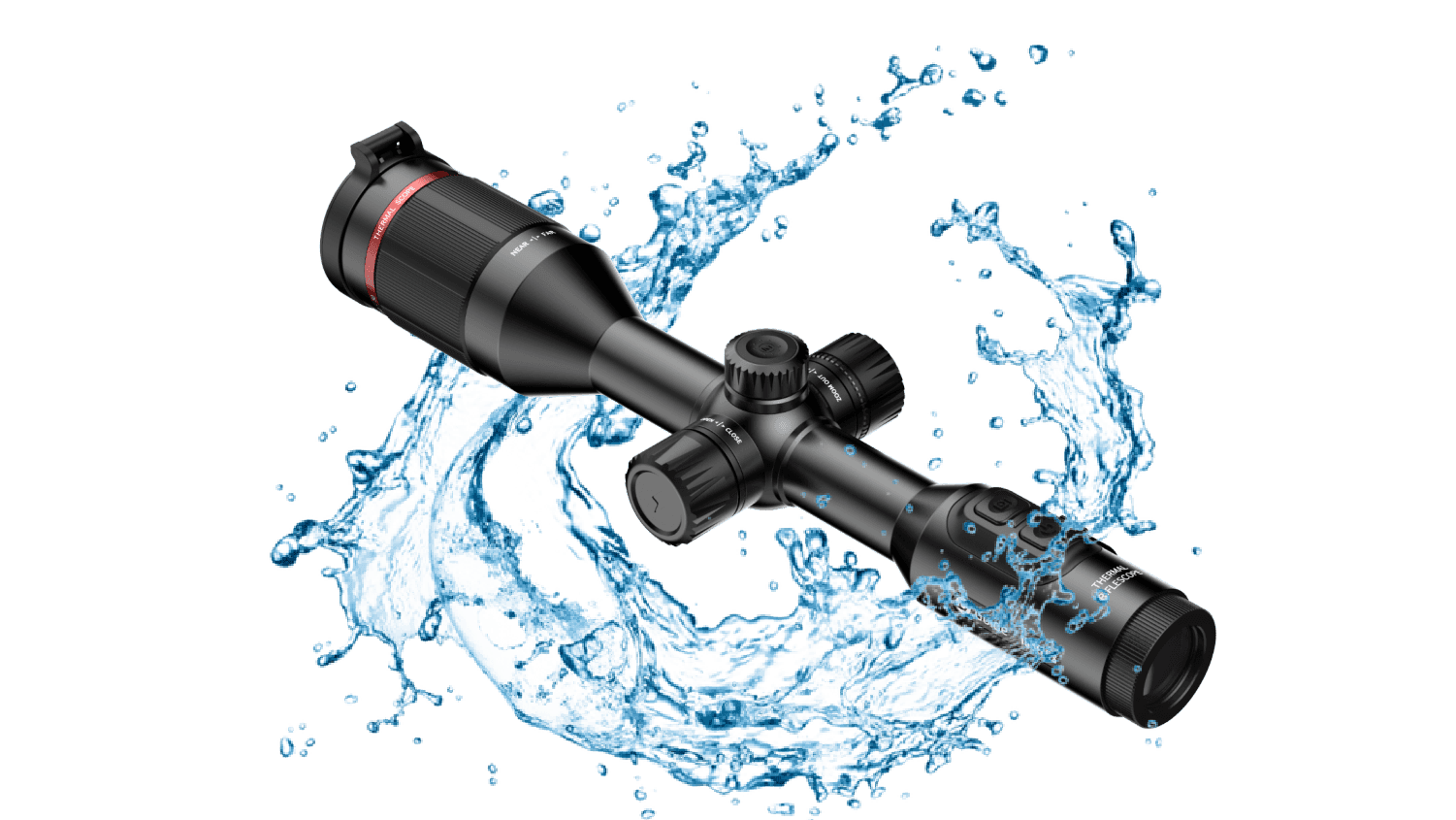

IP67 Protection Rating, Rugged and Durable

With IP67 waterproof-rated for protection from heavy-rainfall, dust, and impact. Working temperature is -30°C~50°C ,suitable for all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed.



Media Gallery






Technical Parameters

Model

TU650

ADD TO COMPARE

Infrared detector
Detector type VOx
Detector resolution and pitch 640 × 480, 12 μm
Spectral range 8 to 14 μm
NETD ≤30mk @ F1 25℃
Lens
Focal length 50 mm; F1.0
Focus Manual
Field of angle 8.78° × 6.59°

READ MORE
