Transform Your Smartphone
Into a Thermal Camera

Thermal Camera for Smartphone

Overview Specs Features Specification Downloads Media What's in the Box

Overview

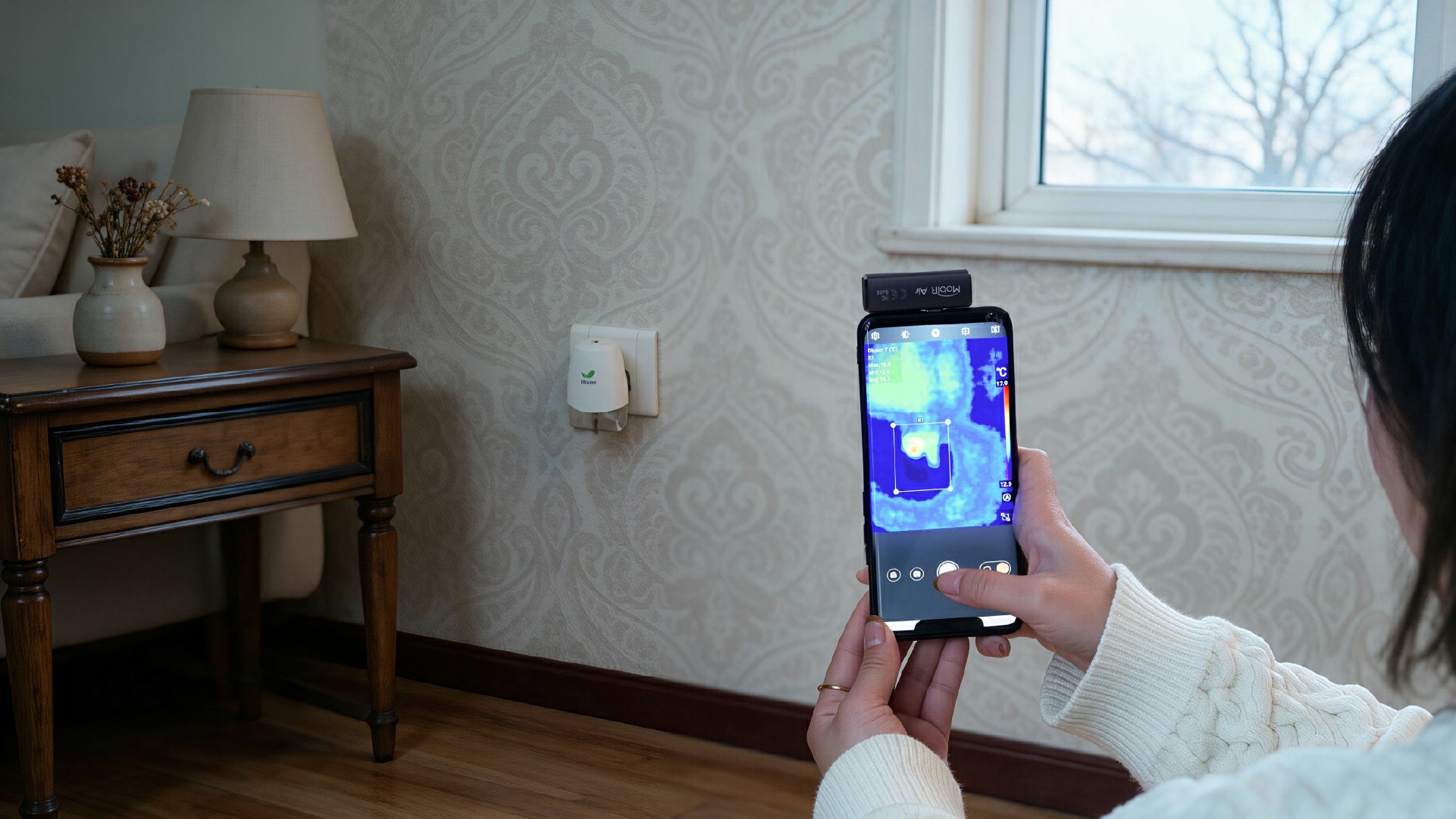

MobIR Air transforms your smartphone into a thermal camera. When connected to your smartphone, MobIR Air allows you to see what is invisible to the naked eye. It helps you quickly and accurately identify HVAC issues, detect building defects, inspect electrical faults, and perform nighttime patrols.

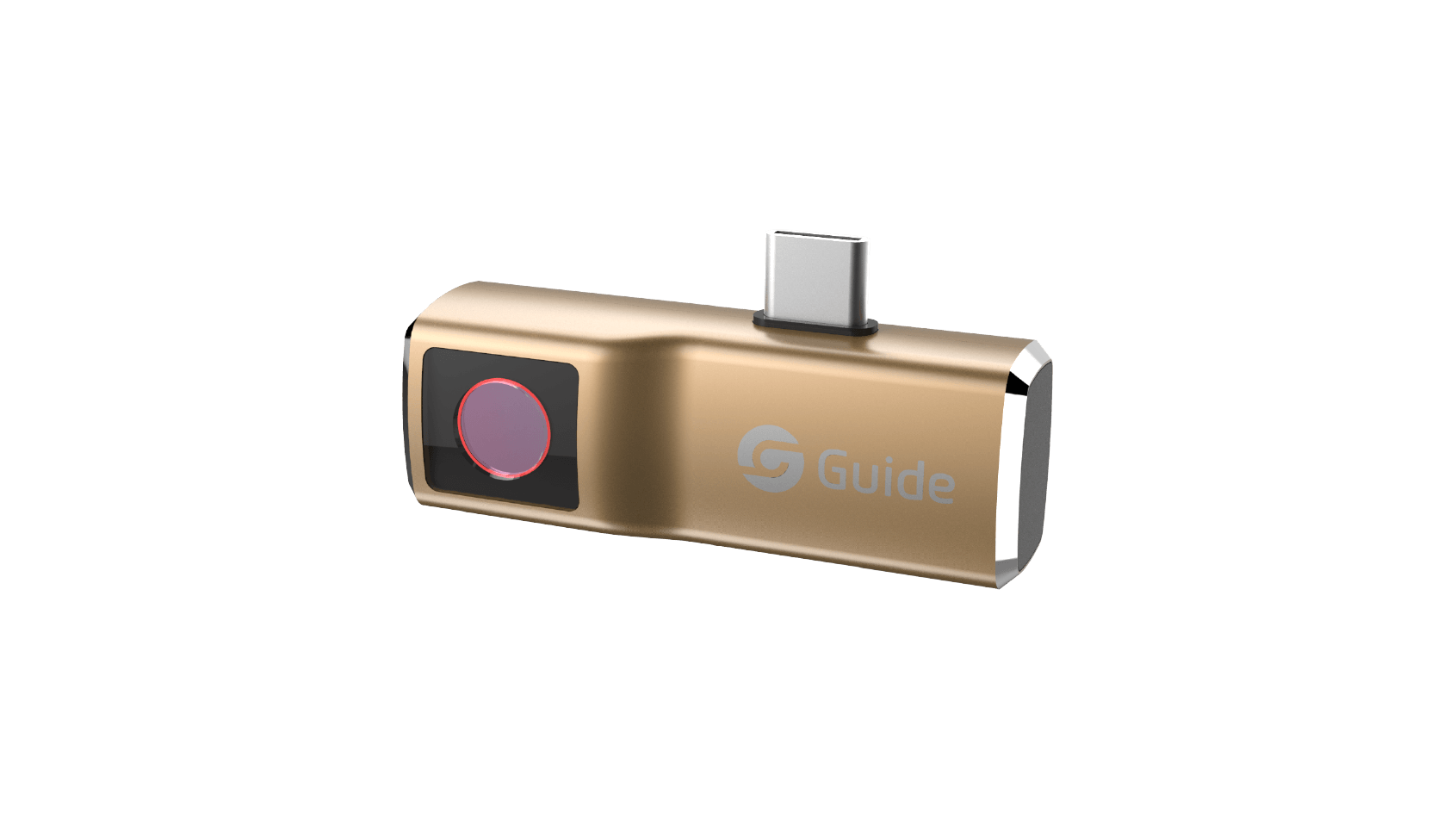

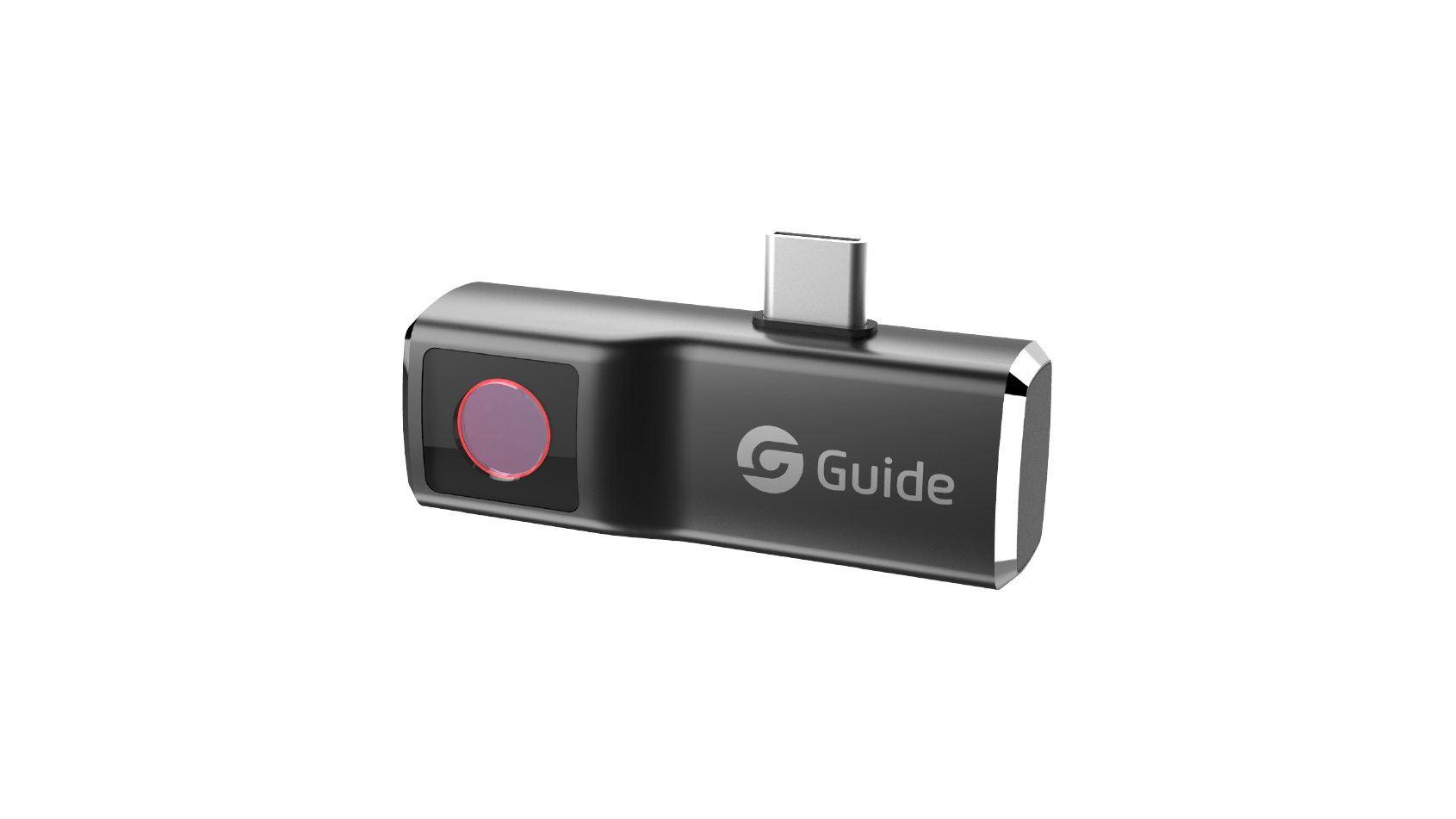

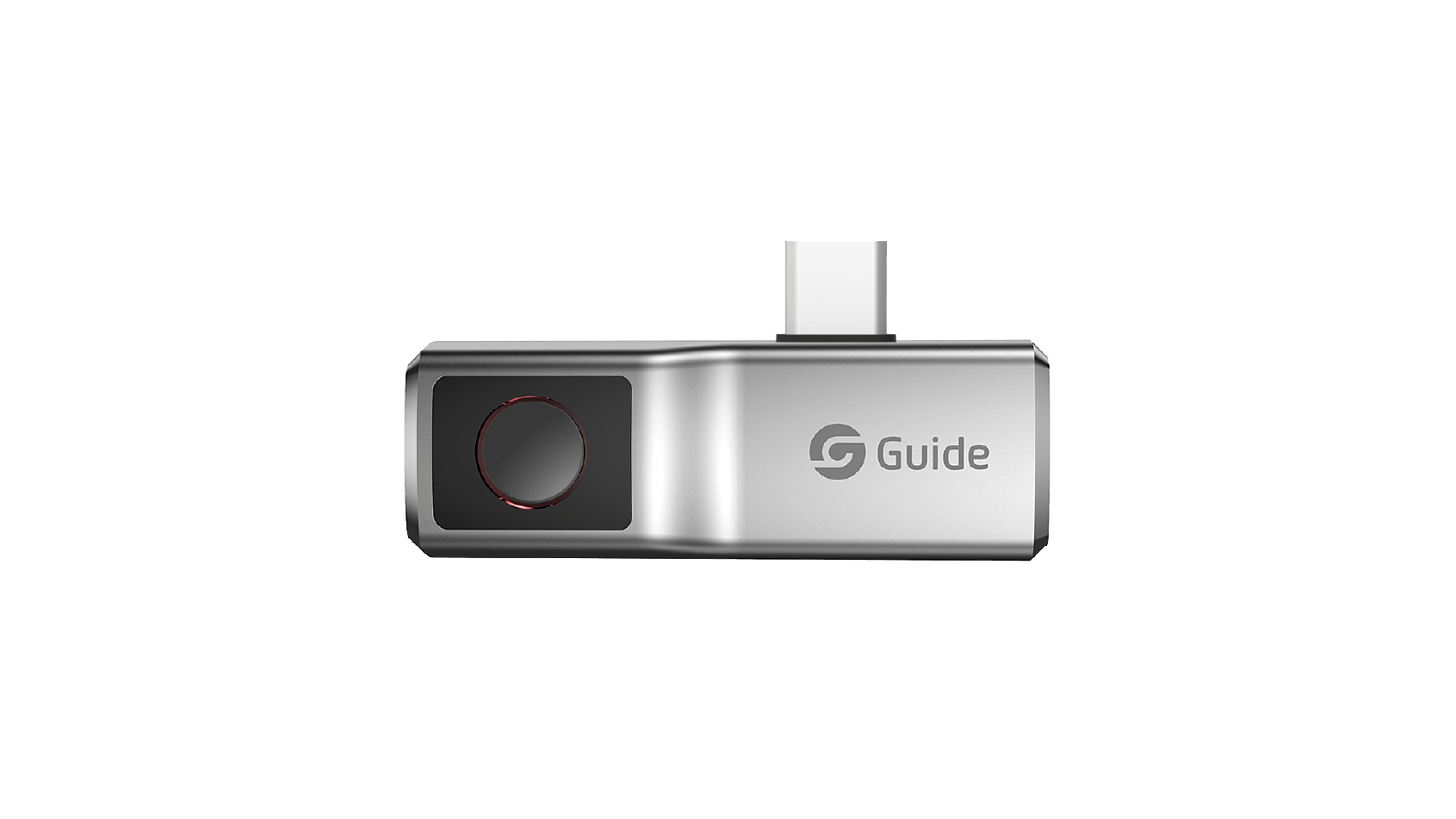

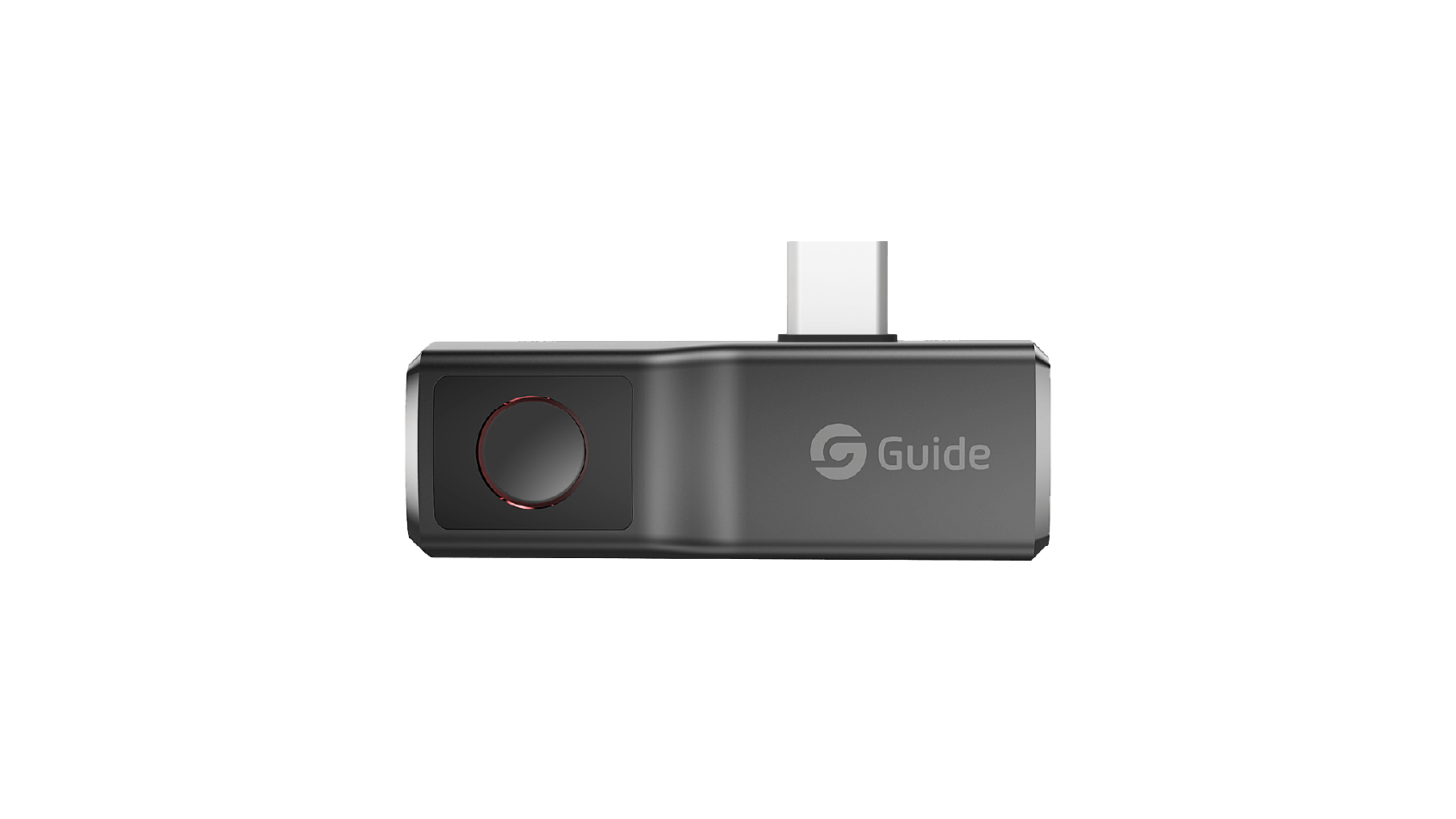

MobIR Air

120x90 IR Resolution
<150mW Power Consumption
-20℃~120℃ Temp. Range
Approx. 20g Weight

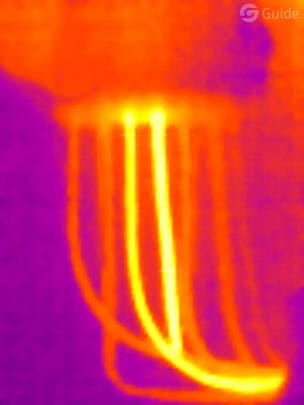

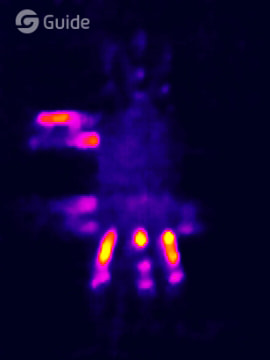

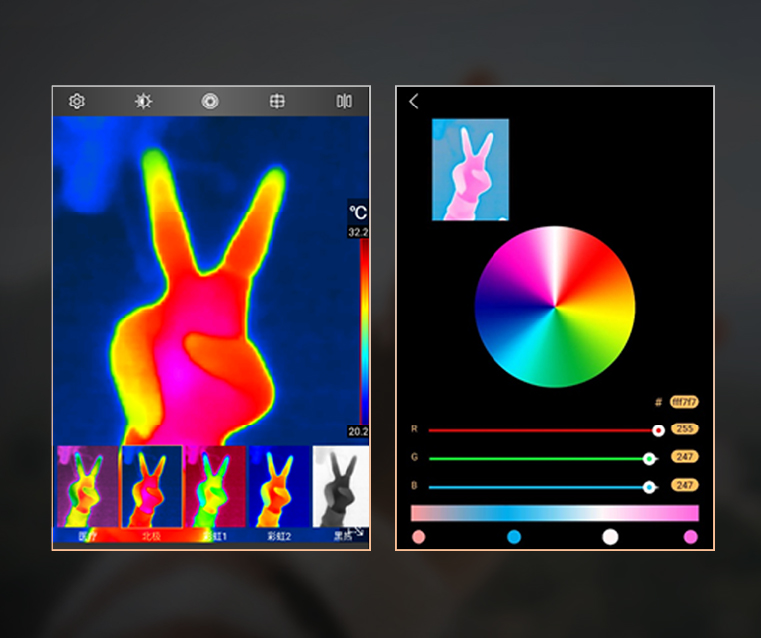

Easy, See the Thermal Imaging Instantly

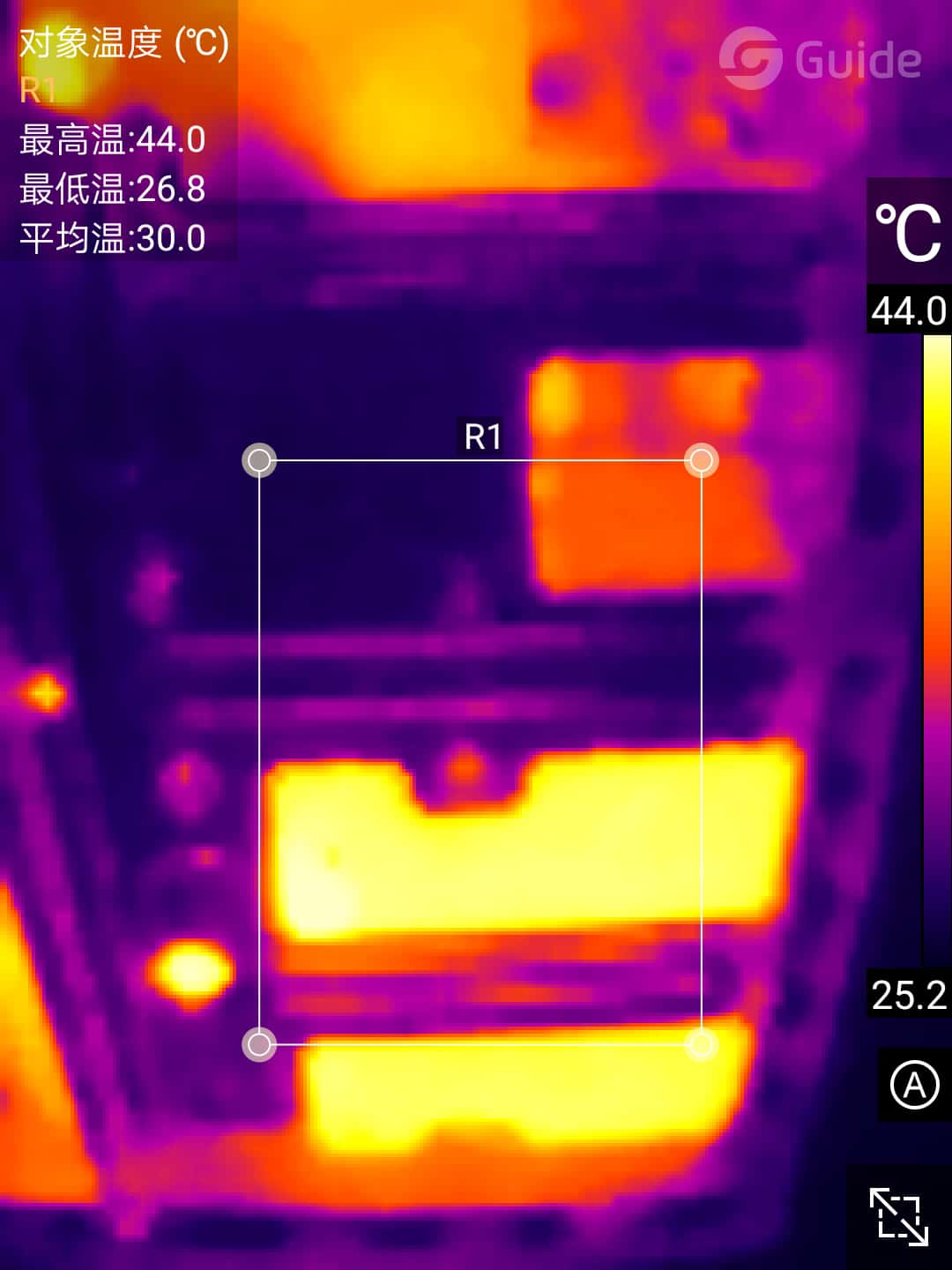

• Fully radiometric temperature measurement
• Detect temperature differences as small as 0.06°C
• Measure temperatures from -20°C to 120°C

Smooth Imaging, 25 Hz Frame Rate

•Capture 25 frames per second for ultra-smooth imaging.

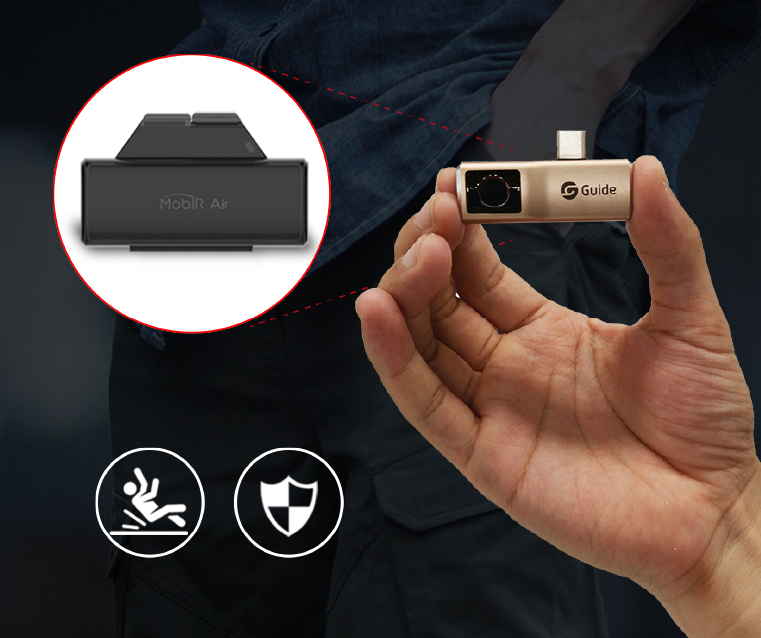

Compact Design for Inspections Anytime, Anywhere

•As small as an AA battery, MobIR Air weighs only 20g and has a protective carrying box.
•Battery-free design with ultra-low power consumption for over 3 hours of continuous use.
