Easy, Efficient, Extraordinary

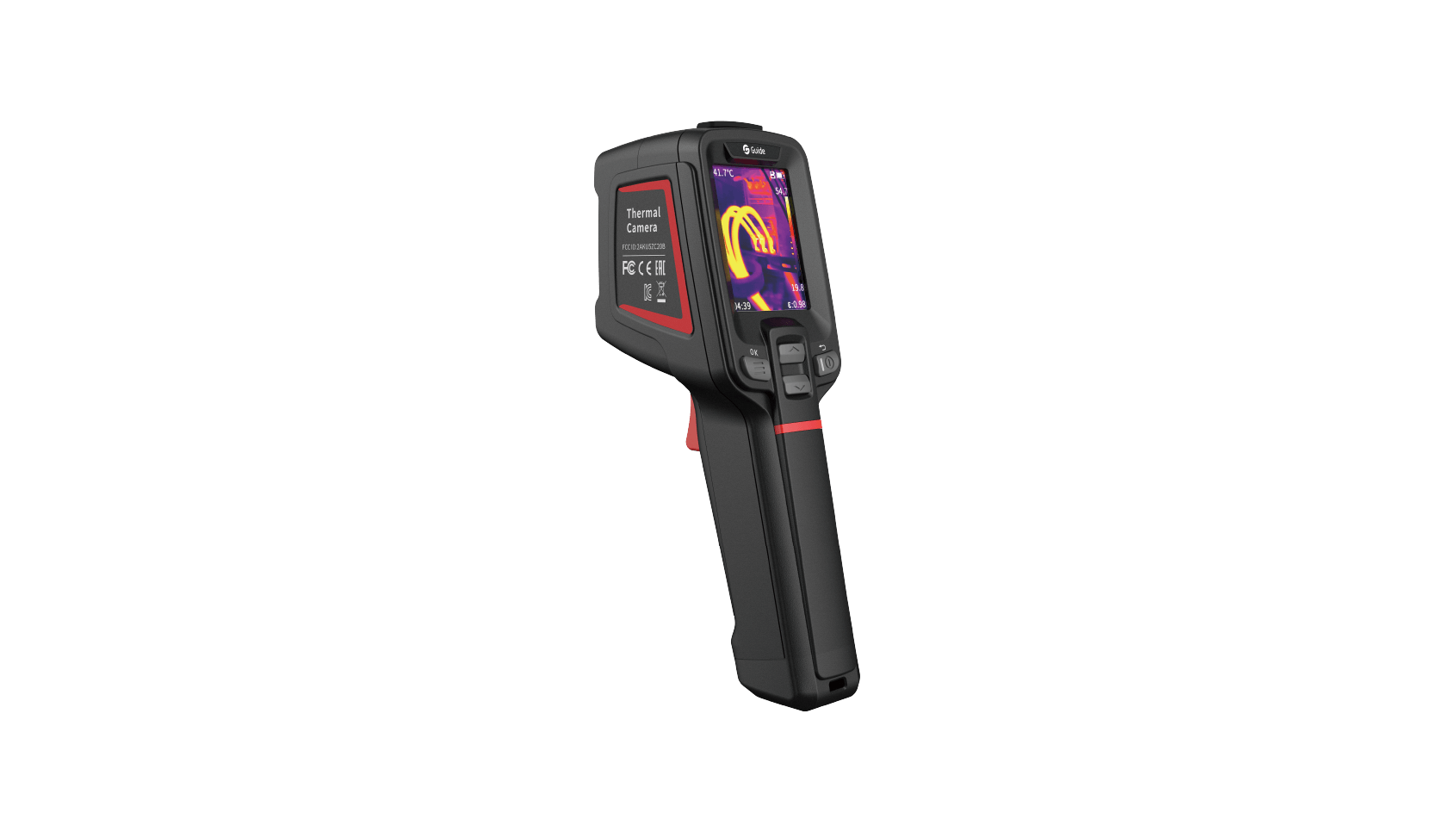

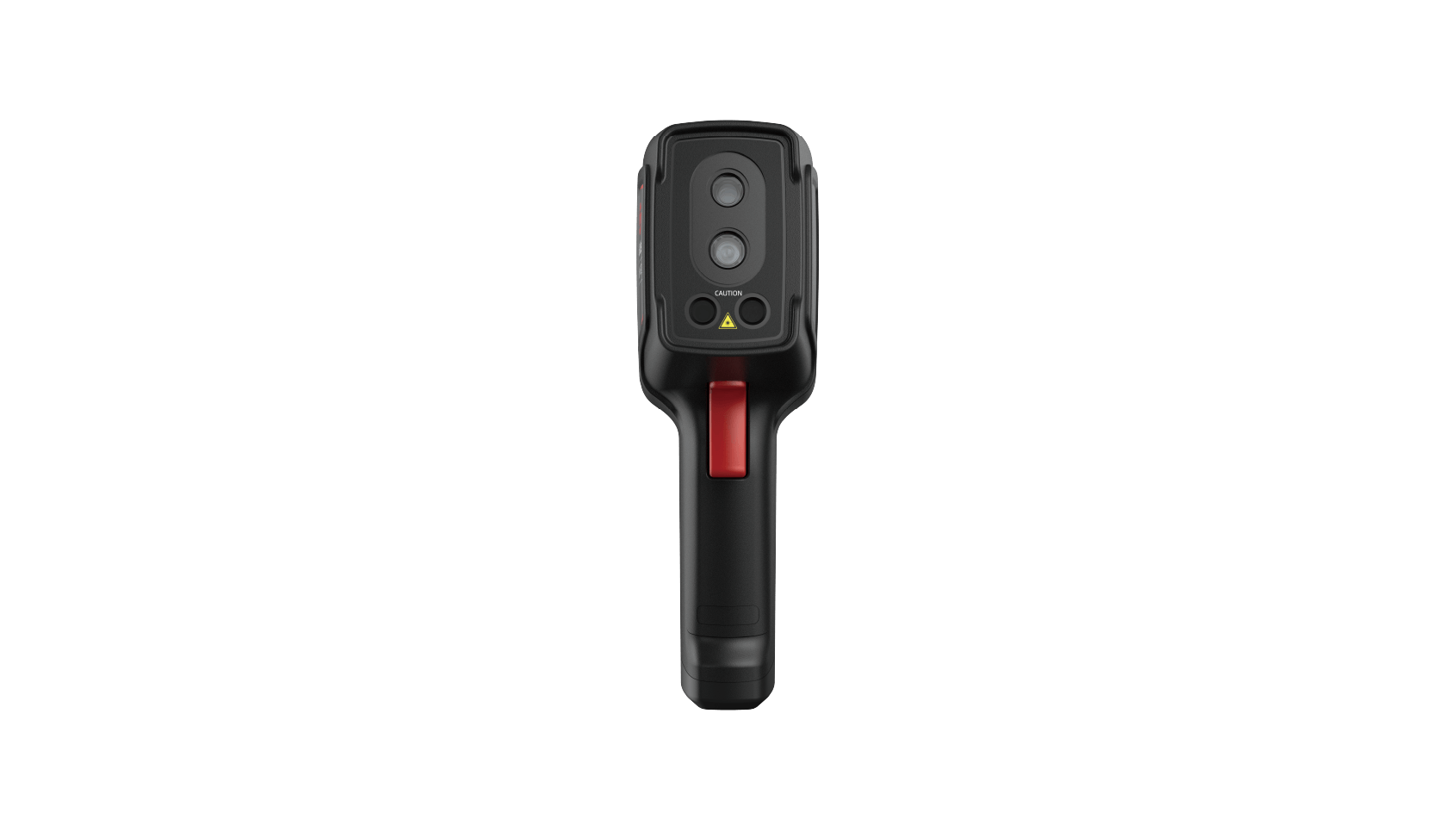

Tool-like Thermal Camera

Overview Specs Features Specification Downloads Media What's in the Box

Overview

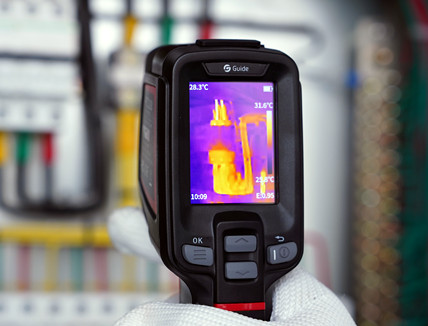

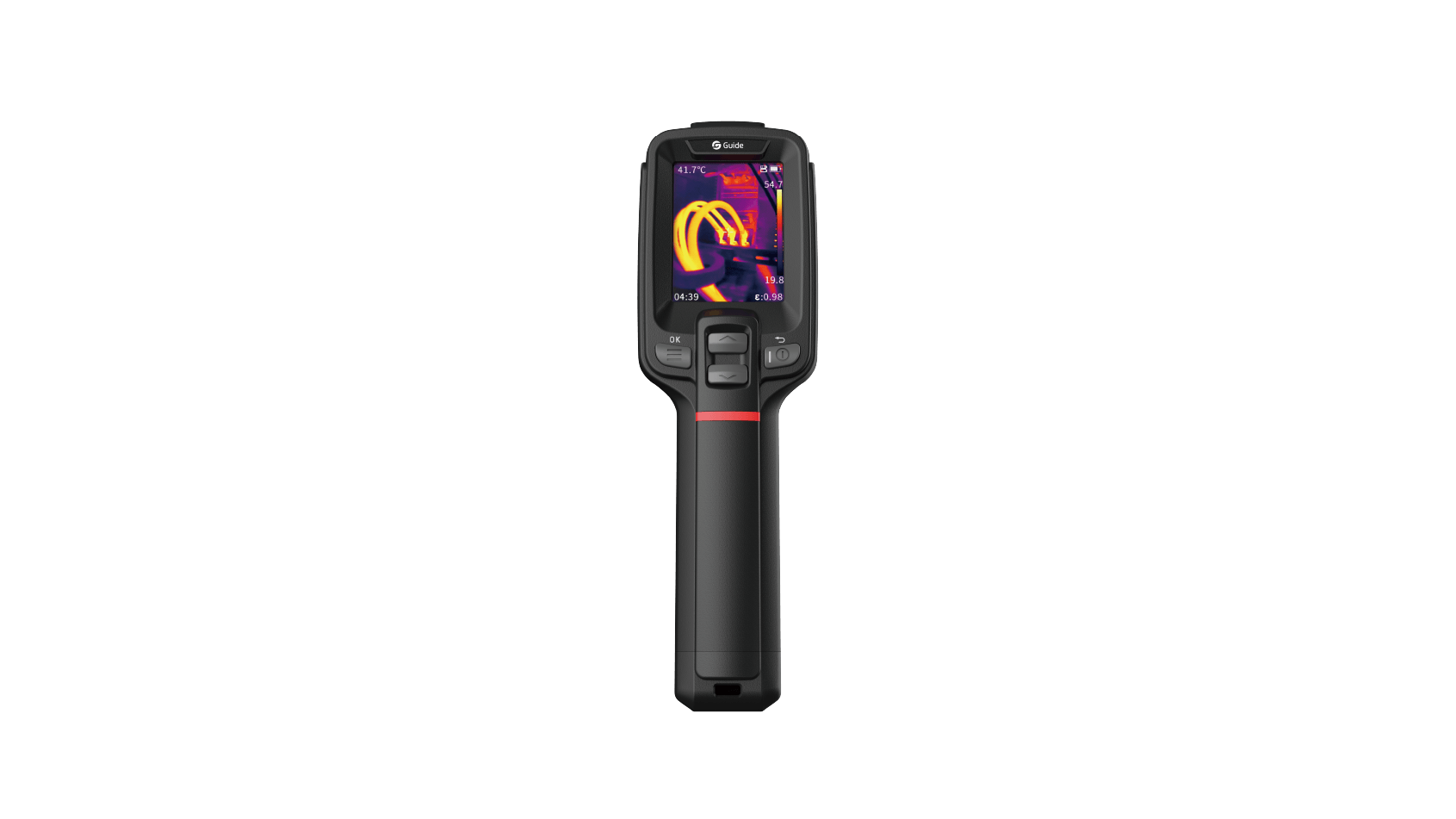

EasIR Series tool-like thermal camera provides two configuration options of 120x90 and 256x192 IR detectors. It adopts the new real-time IR-Perfclear technology to enhance the details and reduce noise of the image and present a clearer image in real time. Equipped with a series of professional functions such as 2MP visible light camera, video streaming and recording, WIFI, and OTA upgrade, EasIR Series brings a clearer, more powerful and smoother work experience for users.

E2+S

256×192@12μm IR Resolution
15mK NETD
-20°C~550°C Measurement Range
25Hz/9Hz Frame Rate

E2S

256×192@12μm IR Resolution
15mK NETD
-20°C~550°C Measurement Range
25Hz/9Hz Frame Rate

E1+S

120×90@12μm IR Resolution
15mK NETD
-20°C~550°C Measurement Range
25Hz/9Hz Frame Rate

E1S

120×90 IR Resolution
15mK NETD
-20°C~550°C Measurement Range
25Hz/9Hz Frame Rate

E2+

256×192@12μm IR Resolution
45mK NETD
-20°C~550°C Measurement range
25Hz/9Hz Frame rate

E1+

120×90@17μm IR Resolution
60mK NETD
-20°C~550°C Measurement range
25Hz/9Hz Frame rate

120×90@17μm IR Resolution
60mK NETD
-20°C~550°C Measurement range
25Hz/9Hz Frame rate

Complete ApexVision S1 System Architecture

Guide next-generation thermal imaging solution is engineered to elevate the infrared imaging performance
of temperature measurement devices at the system level. In any environment, it produces cleaner, finer images and delivers consistently accurate and reliable temperature data and analysis for critical decision-making.

256x192/120x90@12μm Infrared Detector

Based on the self-developed 12μm uncooled infrared detector, EasIR Series provides two configurations of 256×192 and 120×90 infrared resolution, which features a lower consumption with a smaller size.

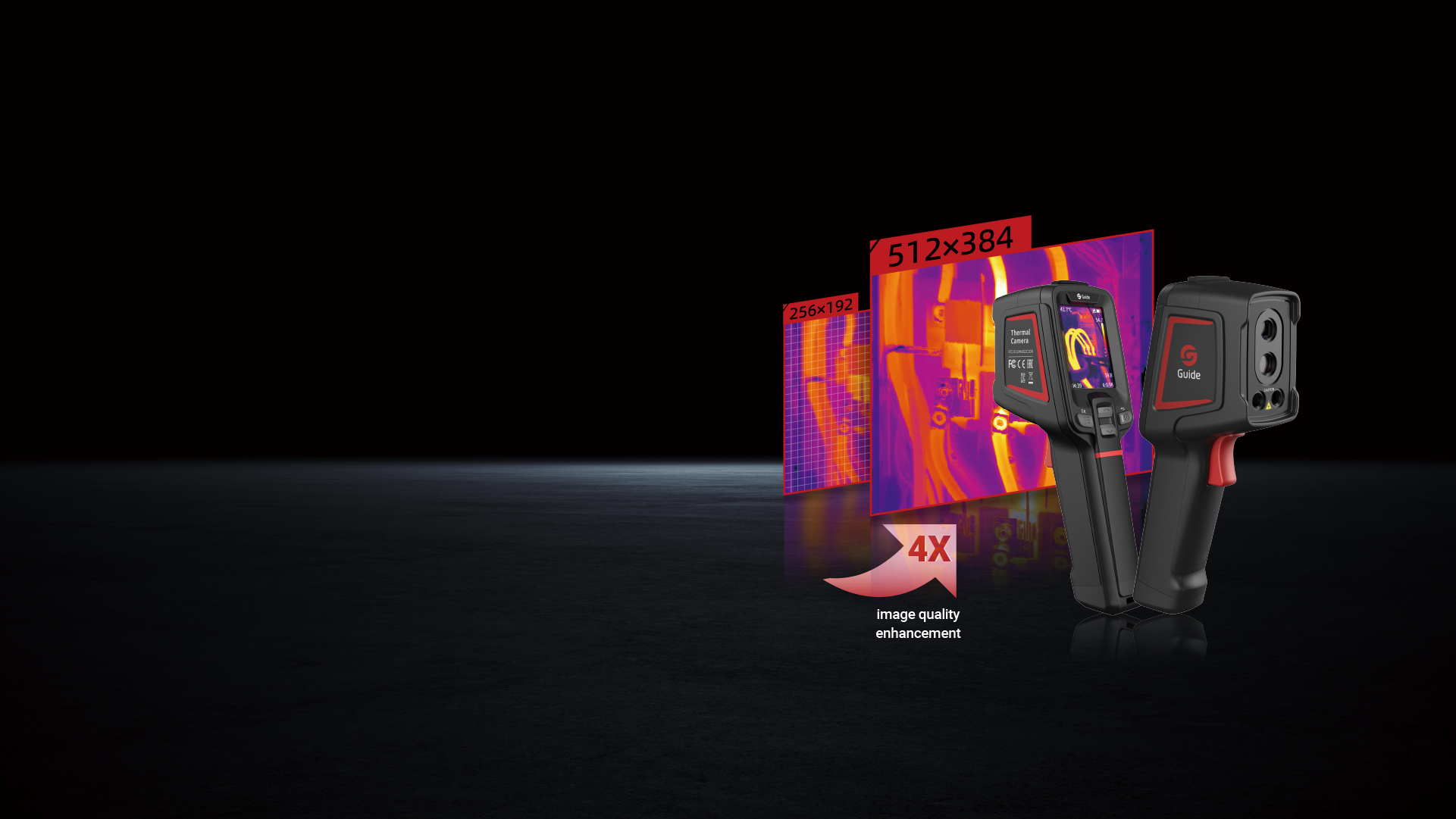

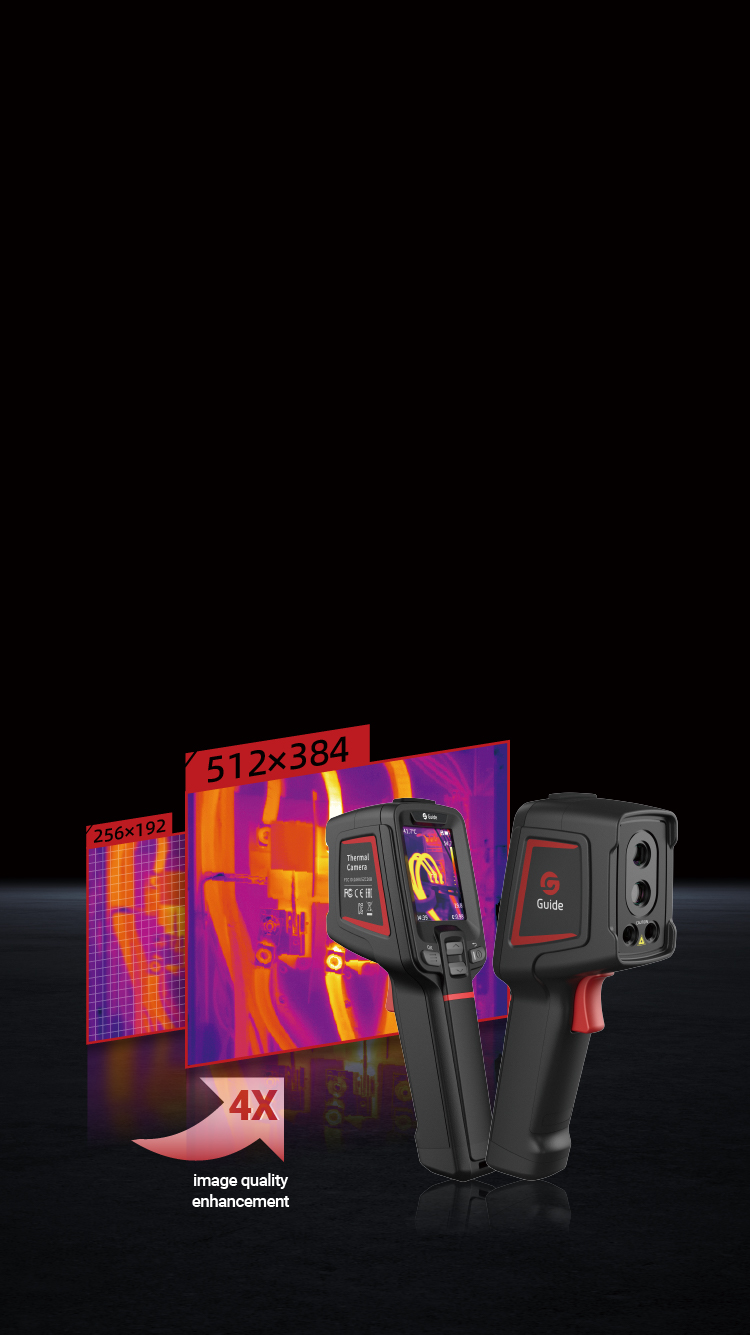

Real-time IR-Perfclear Technology

The real-time IR-Perfclear technology breaks through the size limitations of infrared detector, it achieves a 4x enhancement in image quality through real-time computational optimization. This delivers higher quality images with richer details and crystal-clear clarity.

Wide Measurement Range, Automatic Switching

With a wide measurement range from -20℃ to 550℃ (-20℃-150℃ / 0℃-550℃) and automatic switching, EasIR Series is designed to serve a wide range of industrial applications with improved temperature measurement accuracy.

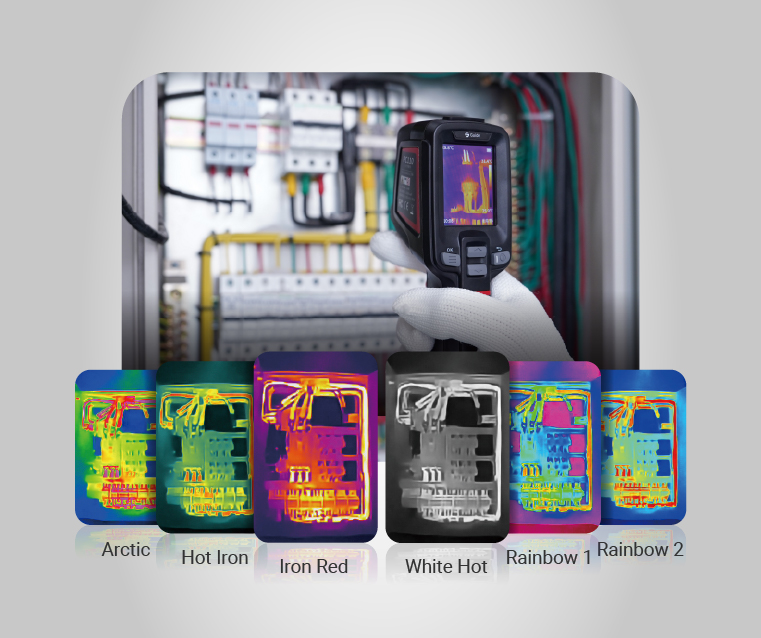

Infrared and Visible Light Fusion Elevates Image Display Quality

Equipped with a thermal sensor and visible light lens, EasIR series supports 4 image modes and 6 color palettes, enabling users to observe and analyze target heat distribution with greater intuitiveness.

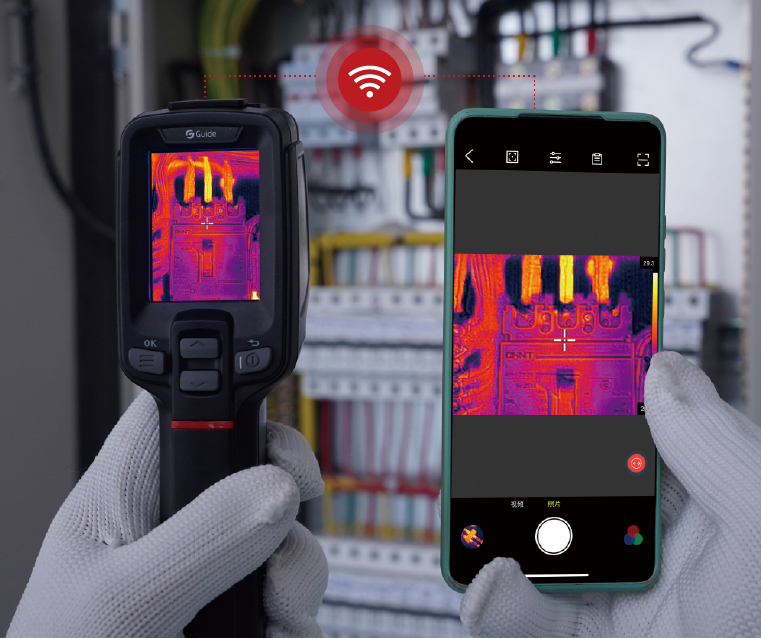

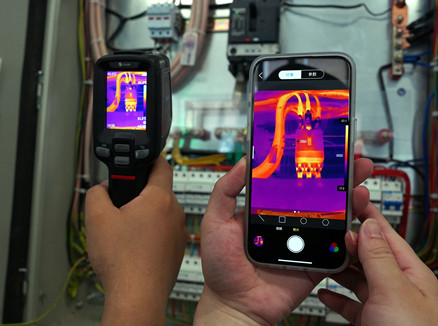

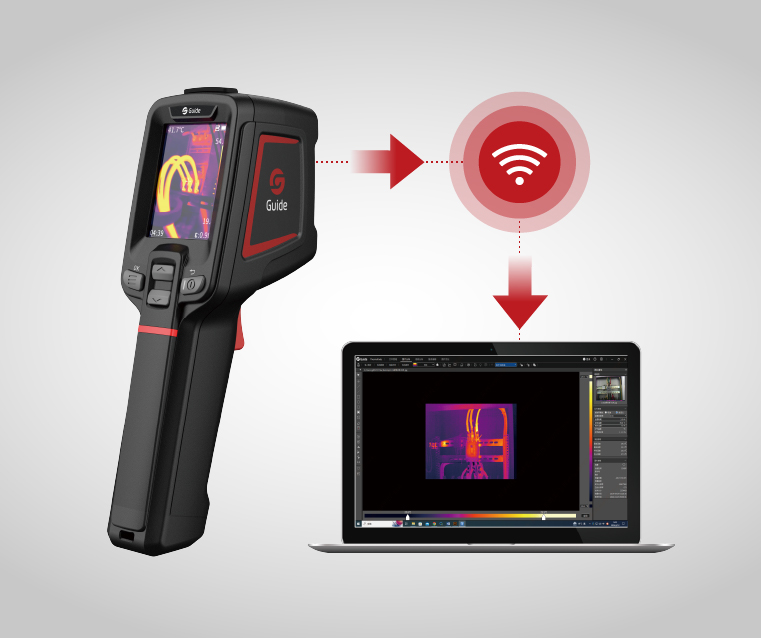

Convenient Sharing via Mobile App Connection

After connecting to Wi-Fi, users can access their phone’s photo album and easily share files through the mobile APP. Furthermore, EasIR series supports real-time remote control via the APP for photo capture and video recording.
Note: *E1 does not support this function.
