Operating With Great Facility

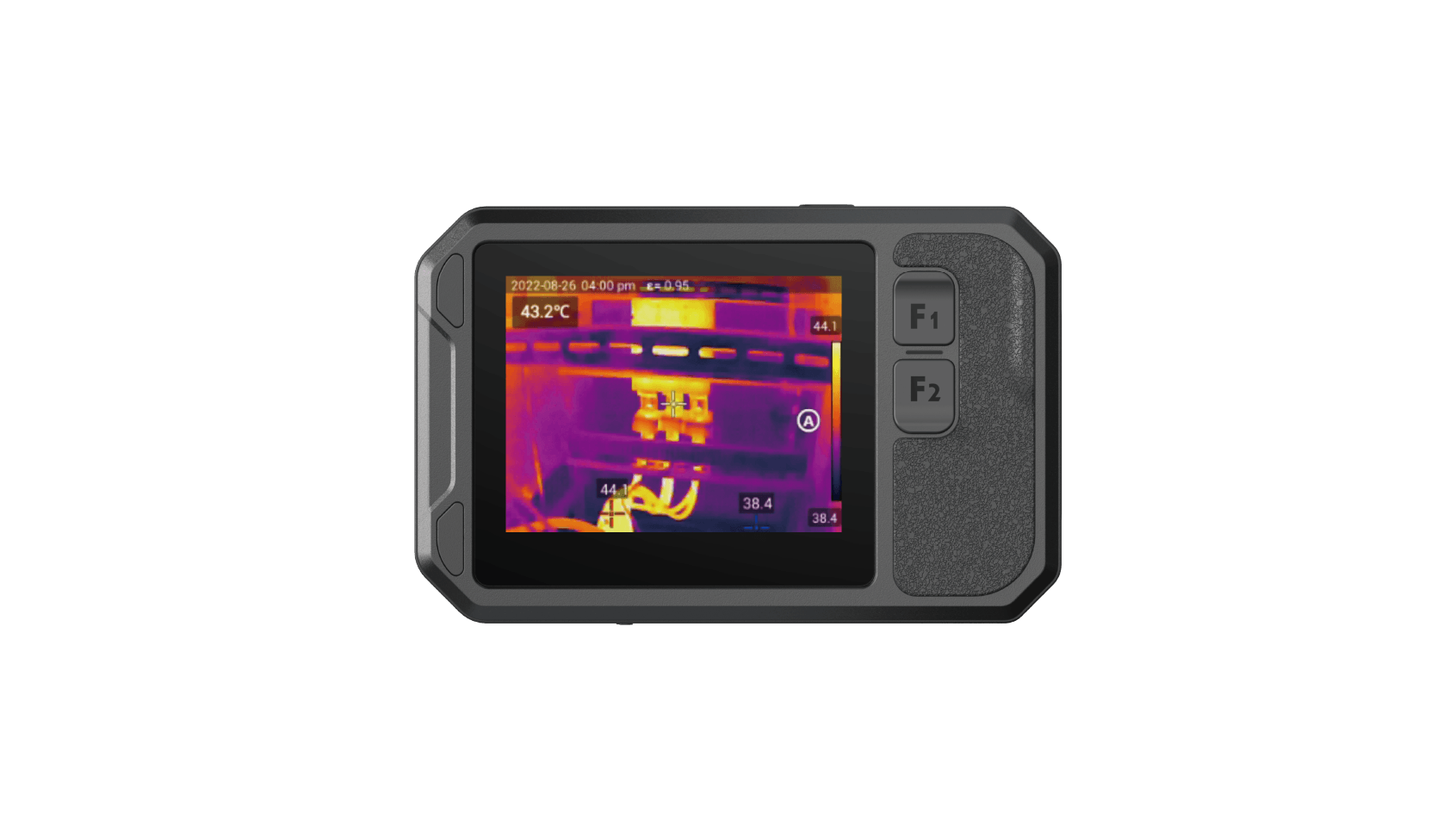

Pocket-sized Thermal Camera

Overview Specs Features Specification Downloads Media What's in the Box Accessories

Overview

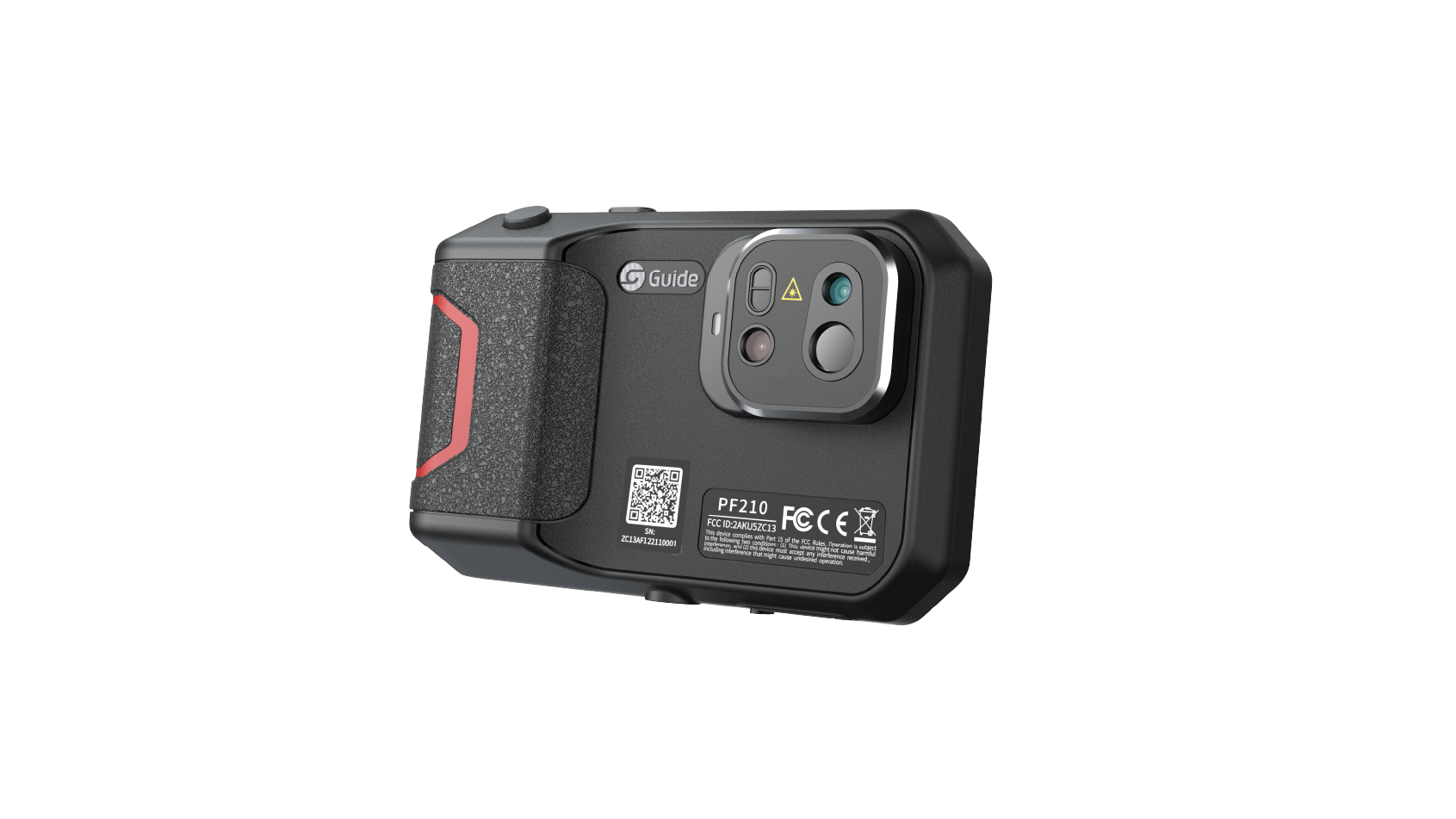

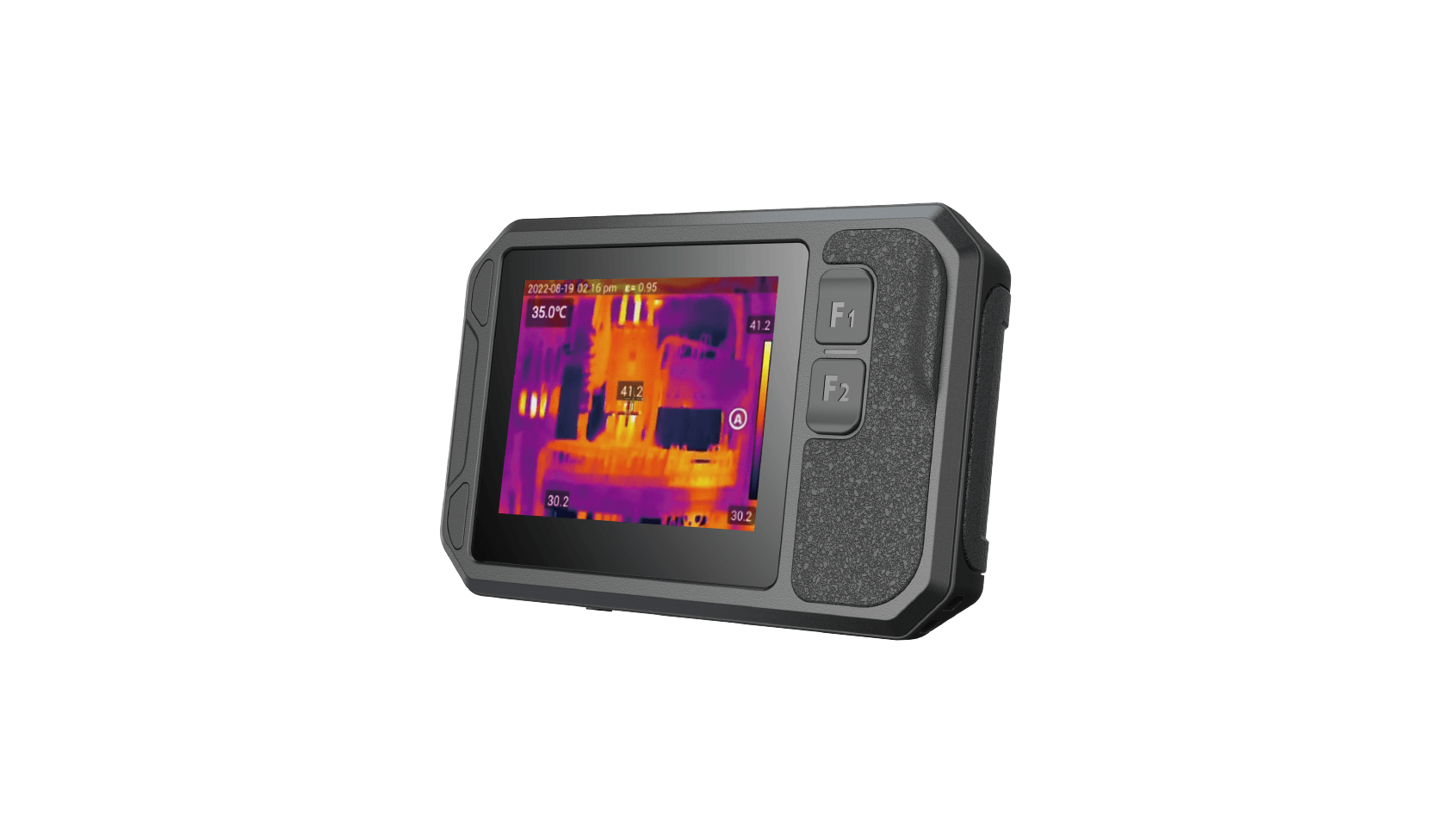

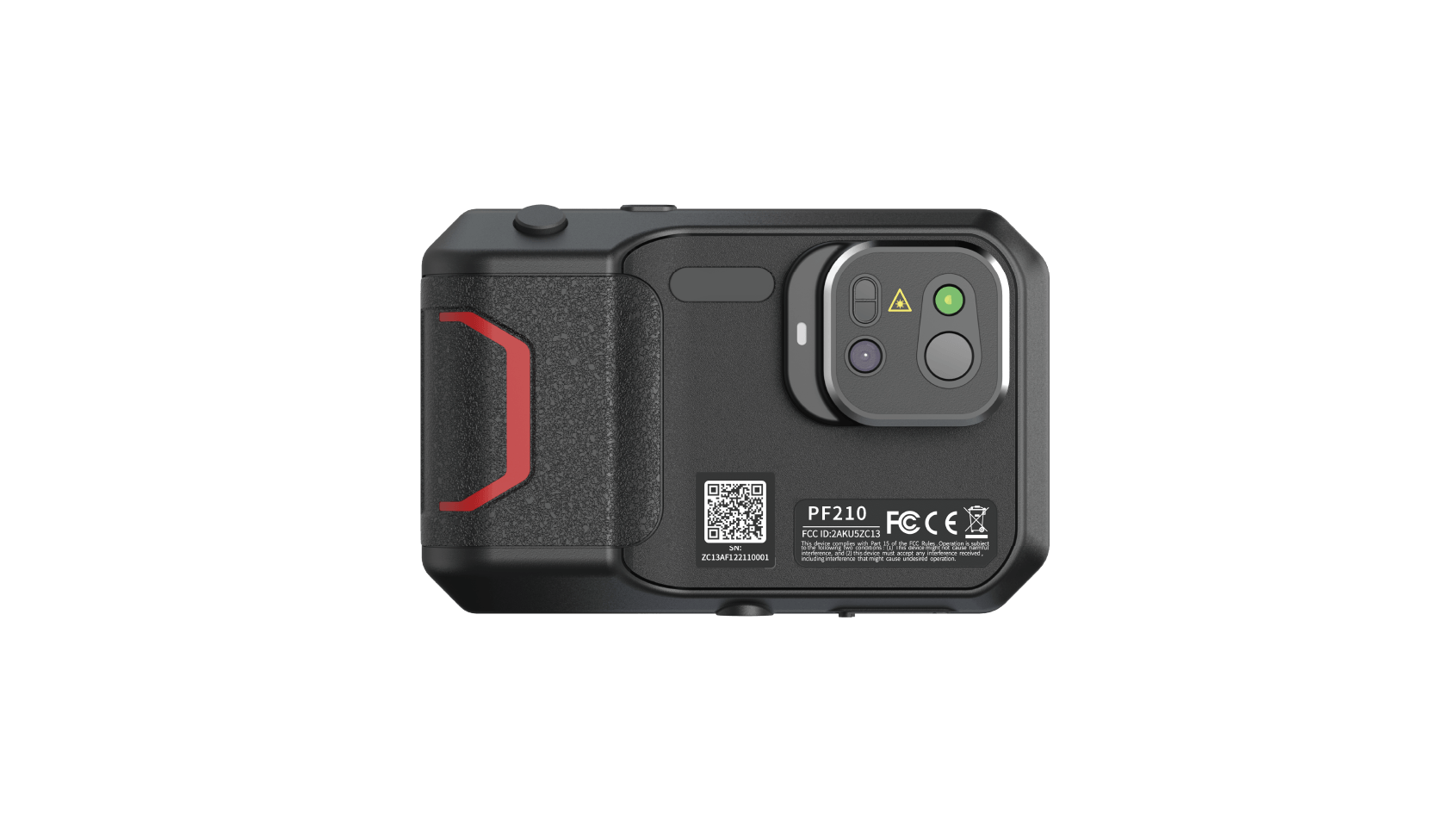

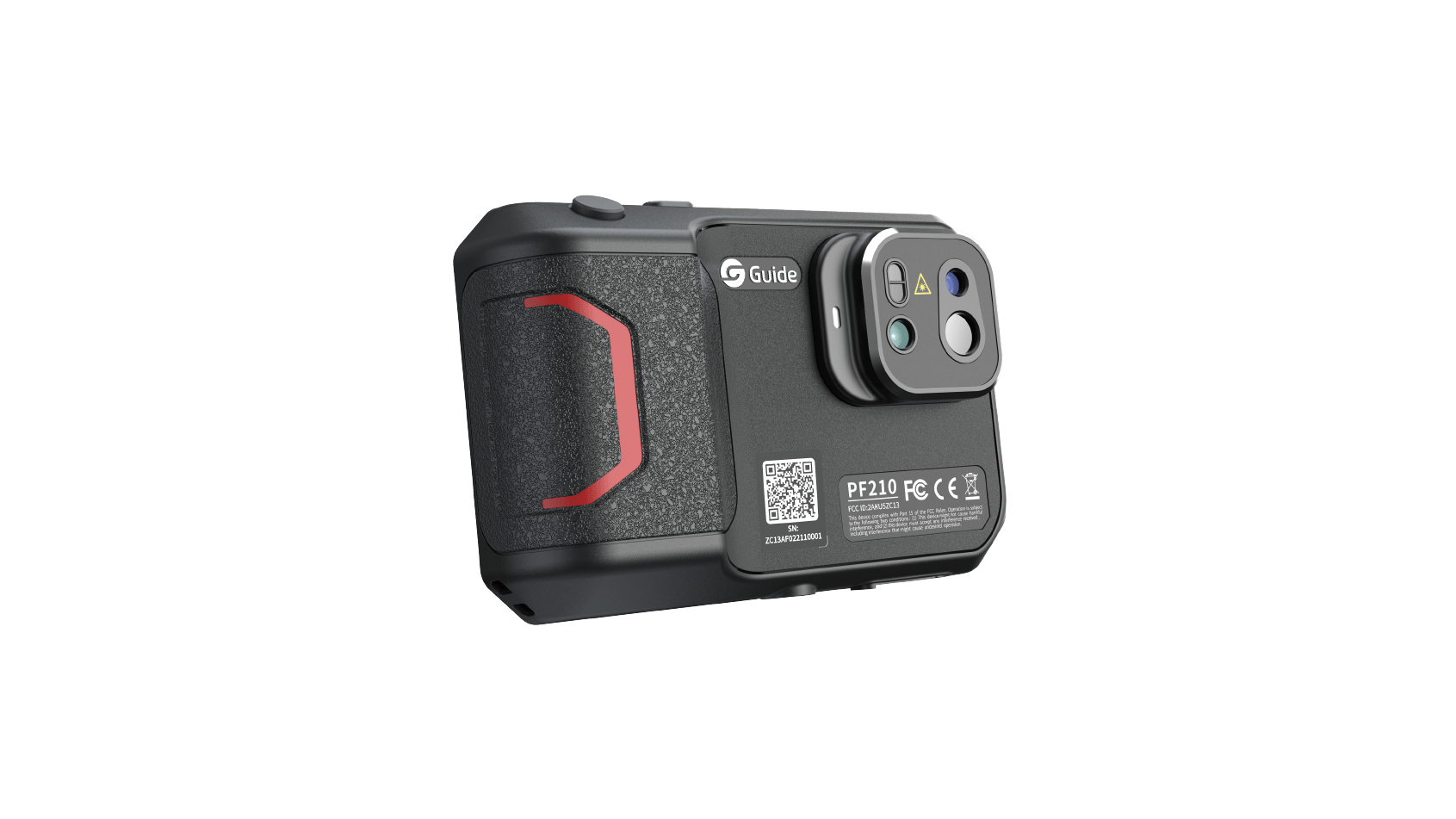

PF Series pocket-sized thermal camera is a non-contact inspection tool for diagnosing problems and finding hidden deficiencies of electrical equipment, thanks to its 256×192 pixel infrared detector, -20°C to 550°C temperature range, 5 MP visible light camera and 3.5-inch LCD touchscreen. The extraordinary thermal imaging detail, easy operation and built-in Wi-Fi allow users to quickly share professional reports that document problem.

PF210S

256x192 IR Resolution
-20℃ to 550℃ Measurement Range
56° × 48° Field of View
0.3m Minimum Object Distance

PF210

256×192 IR Resolution
25°+15°、25°+45°FOV
50Hz Frame Rate
15mK NETD

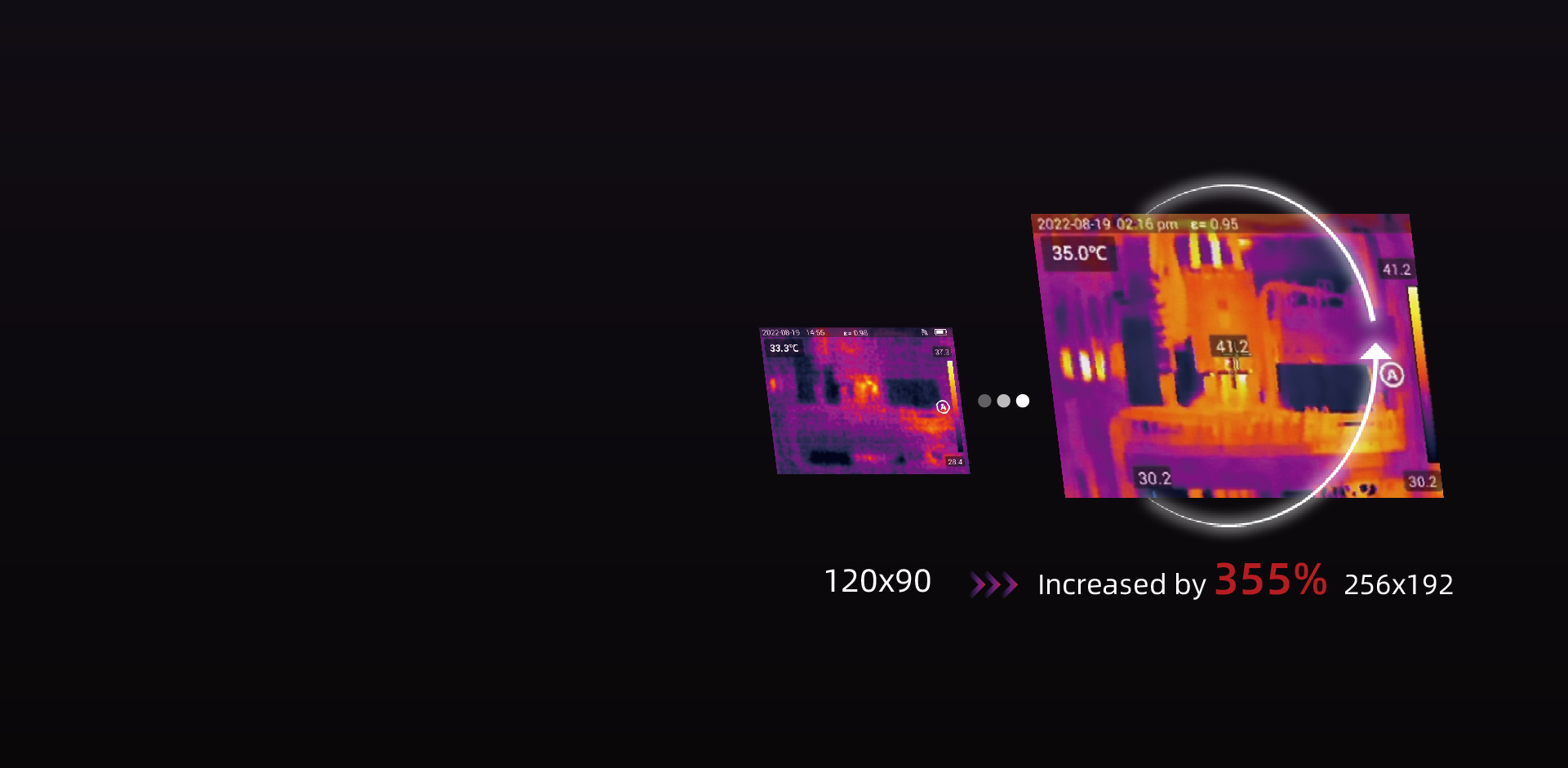

Outstanding Thermal Imagery

The self-developed WLP infrared module with 256×192 resolution and a new noise reduction algorithm ensure PF Series delivers sharper, easier-to-interpret images.

Real-time Temperature Information

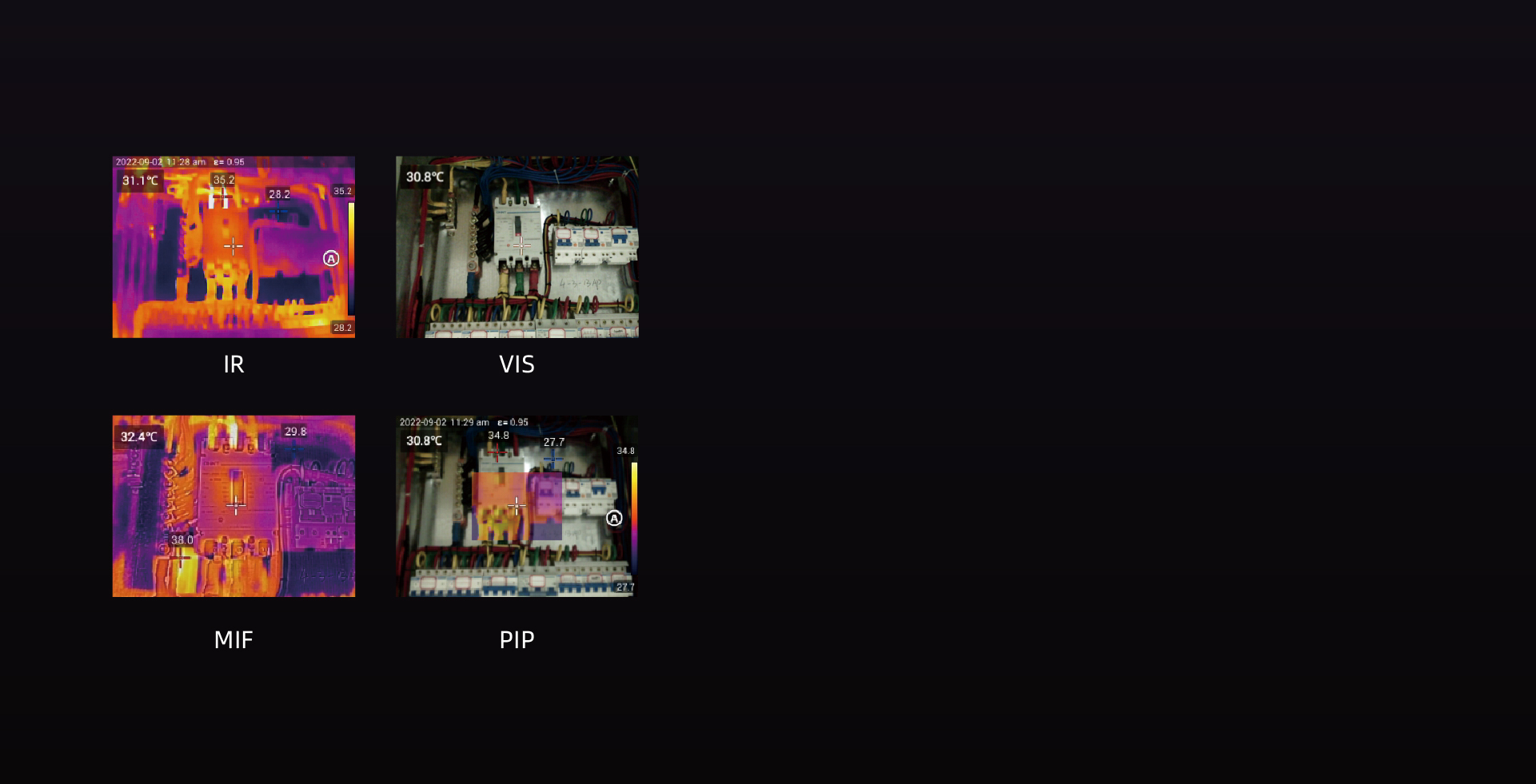

Get accurate maximum, minimum and center-point temperature readings on a full screen display across four modes.

Easy and Fast Search

Enter a keyword, easily find the function setting and perform the function you need quickly.

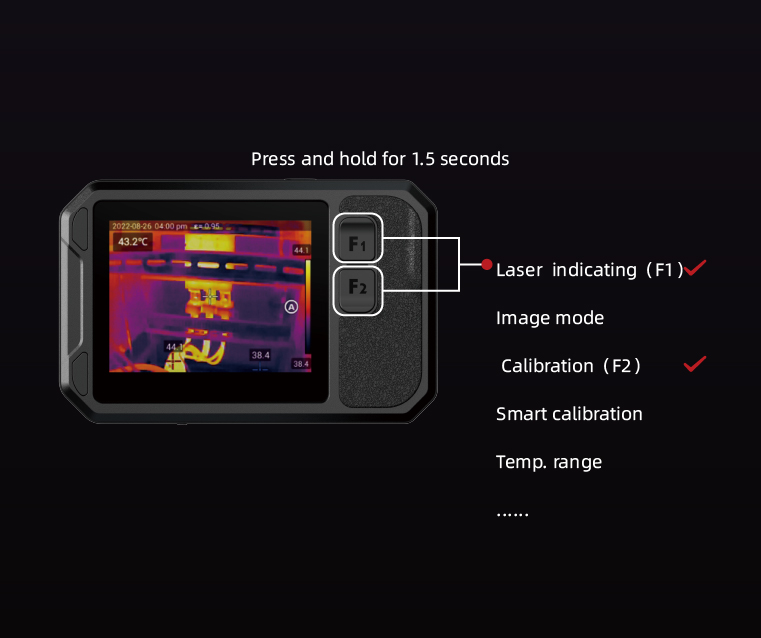

Customized Function Buttons

Two physical buttons save you from searching for frequently used functions, enabling one-button access to the desired function.

Take and View

When images are captured, taping the thumbnails on the upper right corner helps you view the images again and easily identify hidden defects.

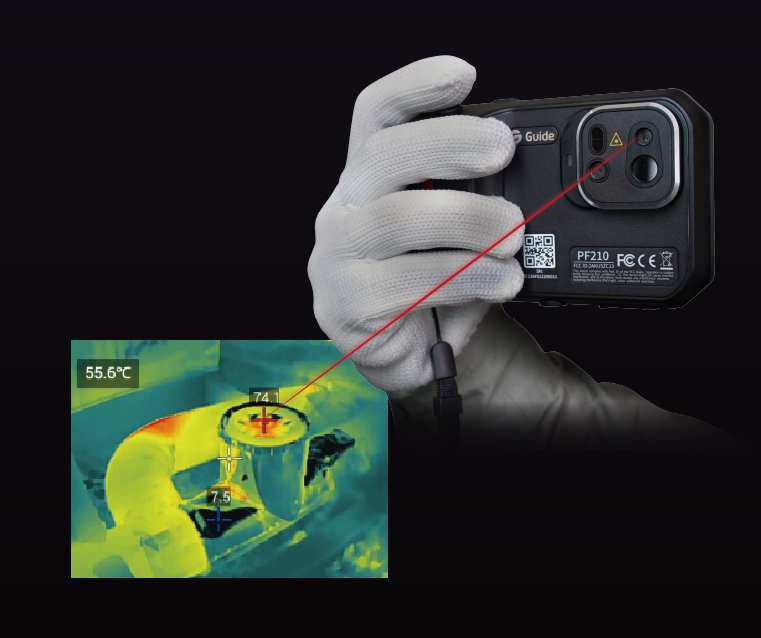

Built-in Lasers for Fast Temperature Tracking

Laser indicator
Provide precise location and accurate target temperature measurement.

Laser rangefinder
Accurate target distance measurement and intelligent area calculation of rectangular objects.

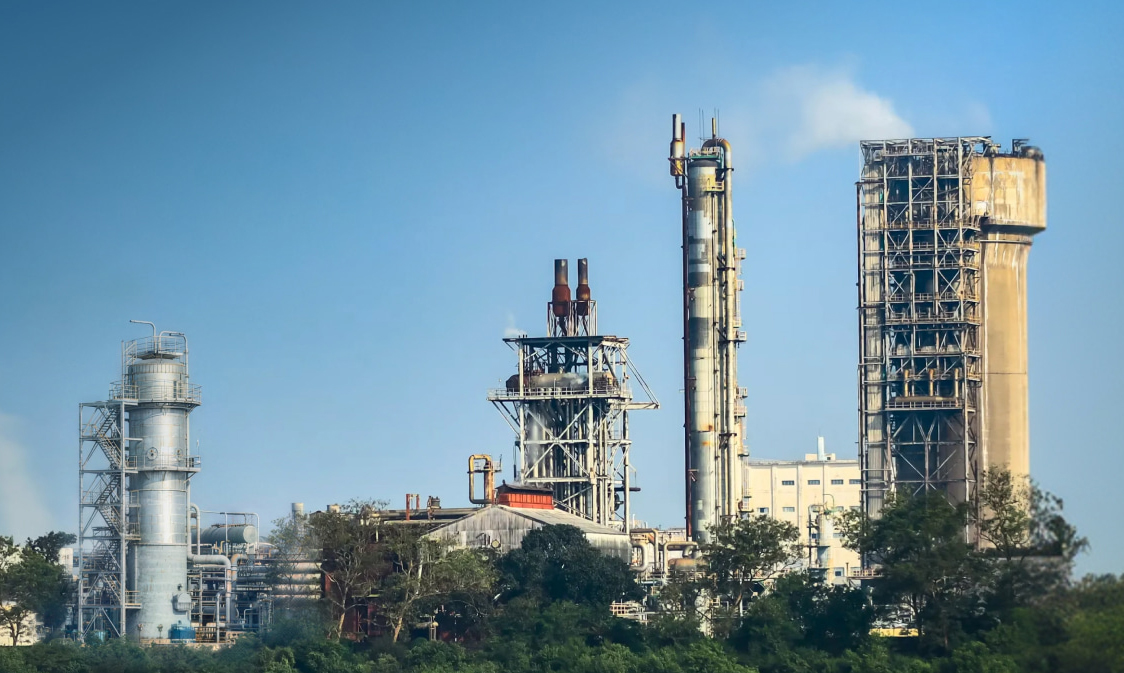

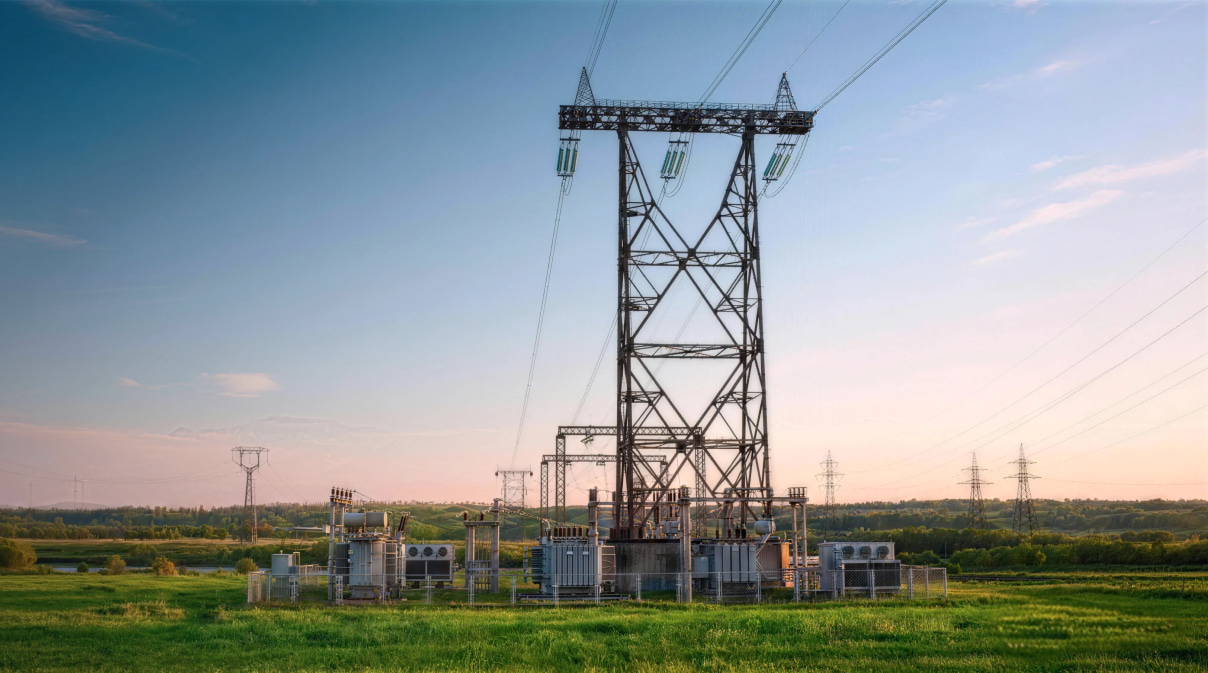

Applications
