IPT640
Electric-focus Network Online Thermal Camera
IPT series is a IP themal camera with outstanding performance and high sensivity. Ultilizing uncolled infrared detector,it is compact,lightweight and reliable. IPT series is developed based on a common interface protocol, the powerful software and easy-to-use SDK make it easy to integrate.
640x480IR resolution
≤60mkNETD
17μmPixel size
±2℃Accuracy
ADD TO COMPARE
Electric-focus Network Online Thermal Camera
• Excellent imaging performance with high resolution of 640×480
• Easy communication via Gigabit Ethernet
• Free professional control software and SD
• Provide SDK for LINUX and WINDOWS system,including rich interface function for integation
• Simple for on-site use, supporting auto focus and motor locating
-998.jpg)
Applications
Media Gallery
.jpg)

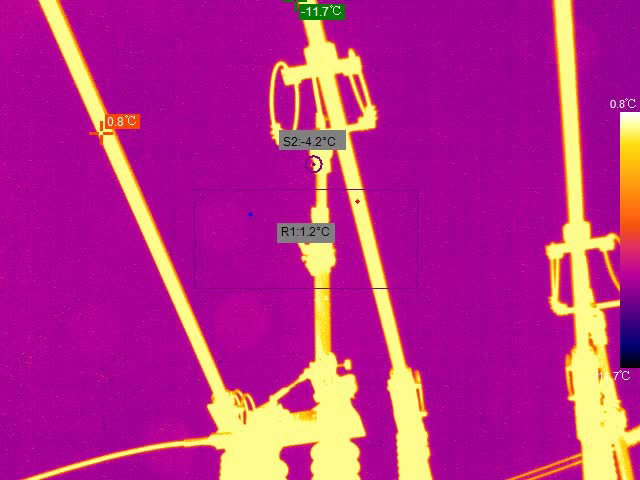

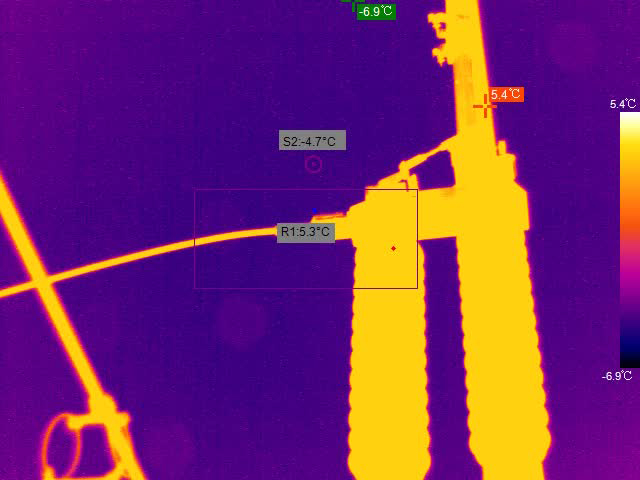

Electric power
.jpg)

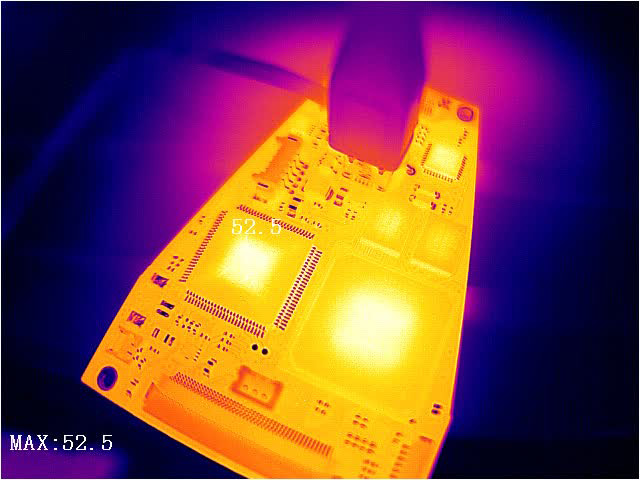

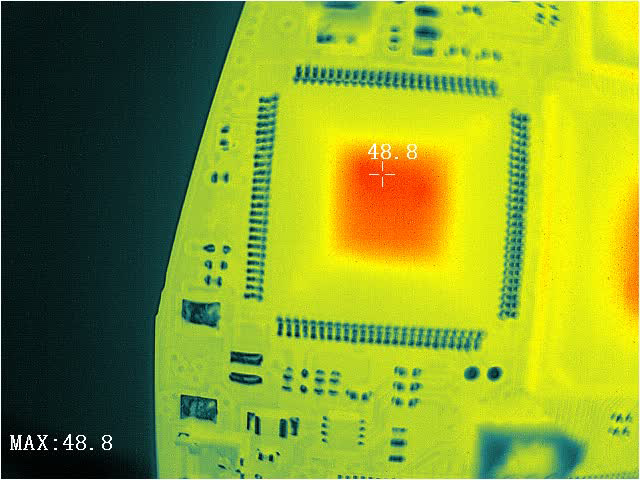

Circuit board
.jpg)
Circuit board
Technical Parameters
Model
IPT640
ADD TO COMPARE
| Thermographic | ||||
|---|---|---|---|---|
| Detector type | VOx | |||
| Detector resolution | 640×480 | |||
| Pixel size | 17μm | |||
| Wavelength range | 8μm to 14μm | |||
| NETD | ≤60mK | |||
| Lens | 20mm, 30°x23° | |||
| Detail enhancement | Supported | |||
| Noise reduction | 2D/3D noise reduction | |||
| Color palettes | 8 | |||
| Temperature measurement parameters | ||||
|---|---|---|---|---|
| Measurement range | -20°C-150°C, -20°C-350°C or -20°C-150°C, 100°C-650°C (Alternative) | |||
| Measurement accuracy | ±2℃ or ±2% (whichever is greater) | |||
| Cold/hot spot tracking | Supported | |||
| Full-screen point temperature measuring | Supported | |||
| Temperature query and export | Supported | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
