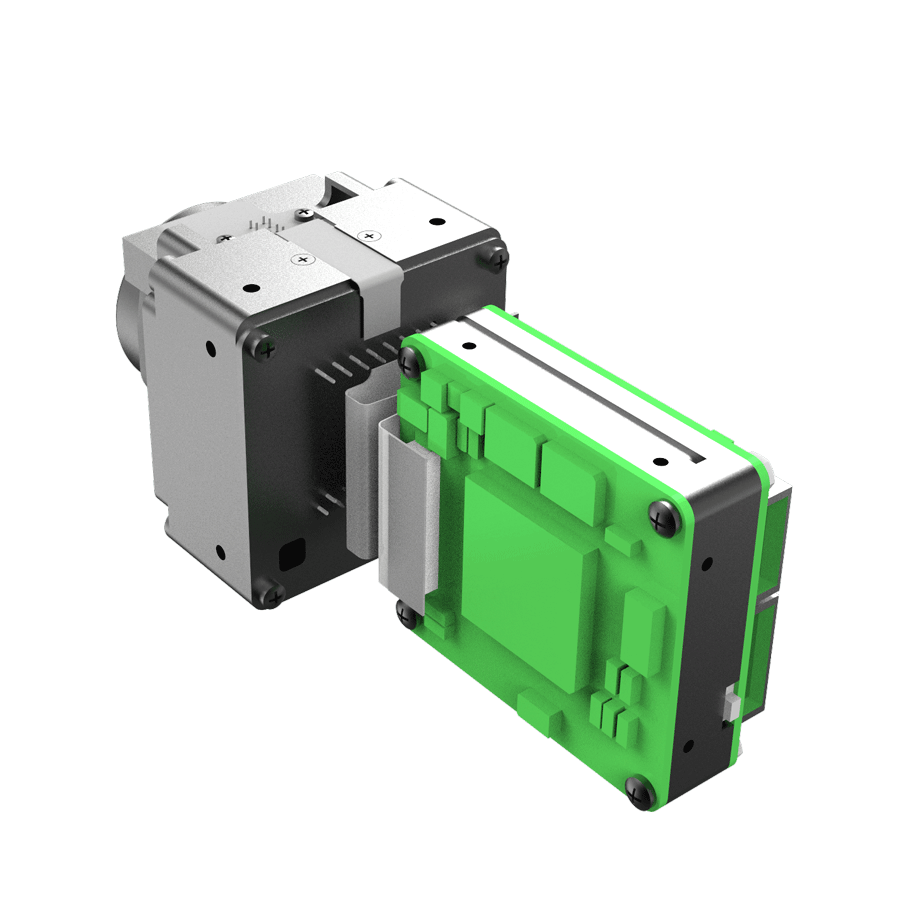

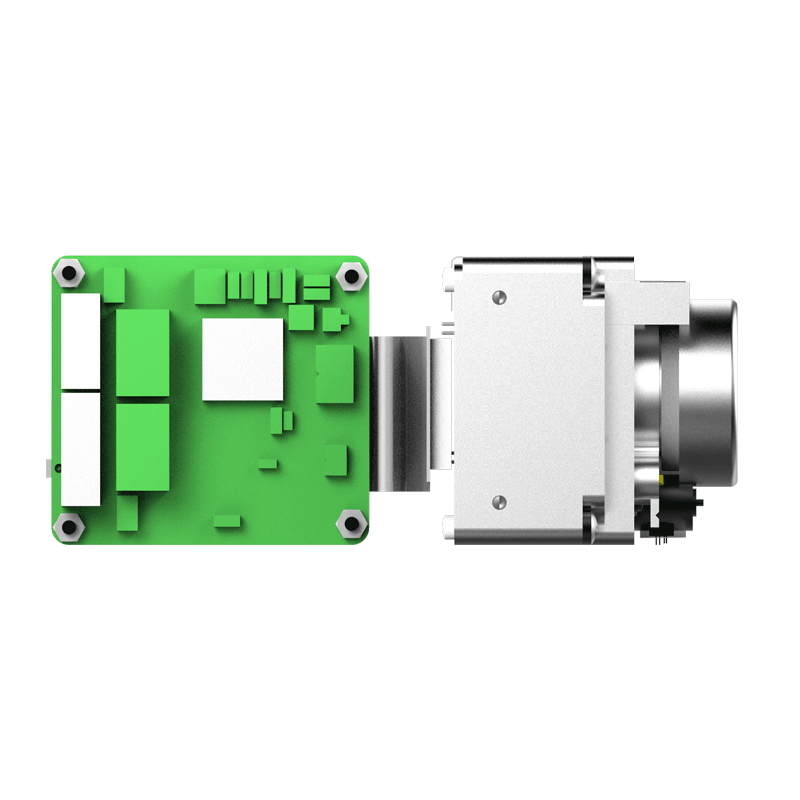

IPT384SP-A
Separate Network Online Thermal Camera
IPT series is a network thermal imaging camera with outstanding performance and high precision. It adopts compact and separate design, easier to integrate. With the uncooled focal plane detector, IPT series works stable and excellently. It is developed based on a general interface protocol, equipped with the powerful software and easy-to-use SDK to meet more application requirements.
384x288IR resolution
≤60mkNETD
-20℃~150℃Temperature Range
±2℃Accuracy
ADD TO COMPARE
Separate Network Online Thermal Camera
• Gigabit Ethernet output, networkable, easy to use and flexible
• Provide free professional display control software and SDK development kit
• Provide SDK development package for LINUX and WINDOWS system, plenty of interface , easy to integrate
• Support auto focus and motor location for more on-site application
Applications
Media Gallery
Technical Parameters
Model
IPT384SP-A
ADD TO COMPARE
| Thermographic parameters | ||||
|---|---|---|---|---|
| Detector type | VOx | |||
| Detector resolution | 384×288 | |||
| Pixel size | 25μm | |||
| Wavelength range | 8~14μm | |||
| NETD | ≤60mk | |||
| Thermographic camera lenses | 15mm,35°×27° | |||
| Detail enhancement | Available | |||
| Noise reduction | 2D/3D noise reduction | |||
| Temperature measurement parameters | ||||
|---|---|---|---|---|
| Measurement range | -20°C~150°C | |||
| Measurement accuracy | ±2℃ or ±2% (whichever is greater) | |||
| Cold/hot spot tracking | Available | |||
| Full-screen point temperature measuring | Available | |||
| Query and export of temperature measuring informati | Available | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
