IPT384M
Mini Online Thermal Camera Core
IPT384M is a compact popular IP thermal module utilizing an uncooled infrared detector, with accurate temperature measurement, outstanding and stable performance. It is developed based on powerful terminal software and easy-to-use SDK, multiple configurations to choose from, high flexibility make it easy to integrate.
384x288IR resolution
≤60mkNETD
-20℃~350℃Temperature Range
±2℃Accuracy
ADD TO COMPARE
Small stature，great energy
• Small size, Lower power consumption to 2.8W
• Auto-focusing in 1 second with success rate 98%
• Support setting multiple temperature measurement objects and alarm modes
• Support RTSP and Onvif standard protocols, verified with CE and ROHS
• Provide professional infrared analysis software, support real-time temperature analysis, images and videos can be played back and analyzed, and reports can be generated, real-time drawing lines can be used to analyze the temperature distribution of objects, and LEVEL and SPAN adjustments
Applications

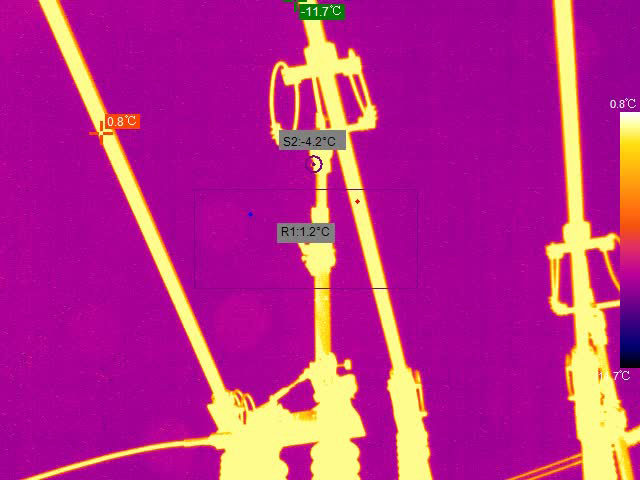

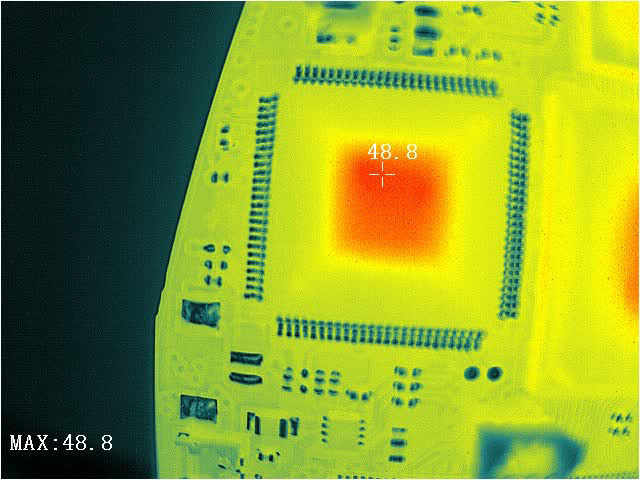

Media Gallery
.jpg)
.jpg)
Technical Parameters
Model
IPT384M
ADD TO COMPARE
| Thermographic | ||||
|---|---|---|---|---|
| Detector type | VOx, 8μm to 14μm | |||
| IR resolution | 384×288, 17μm | |||
| NETD | ≤ 55mK@30°C | |||
| Lens | 4mm, 95°×70°; 10mm, 36°×27; 15mm, 25°×19° | |||
| Focusing mode | Electric / Automatic | |||
| Pseudo colors | 20 pseudo colors | |||
| Featured features | Detail enhancement, 2D noise reduction, Image flip | |||
| Temperature measurement | ||||
|---|---|---|---|---|
| Measurement range | Low temperature mode: -20°C to 150°C, high temperature mode: -20°C to 350°C | |||
| Measurement accuracy | ±2°C or ±2% (whichever is greater) | |||
| Target setting | Point, linear and area temperature measuring, and the area shape can be circle, square and irregular polygon | |||
| Measurement function | Cold/ hot spot tracking, Full-screen point temperature measuring, Query and export of information | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
