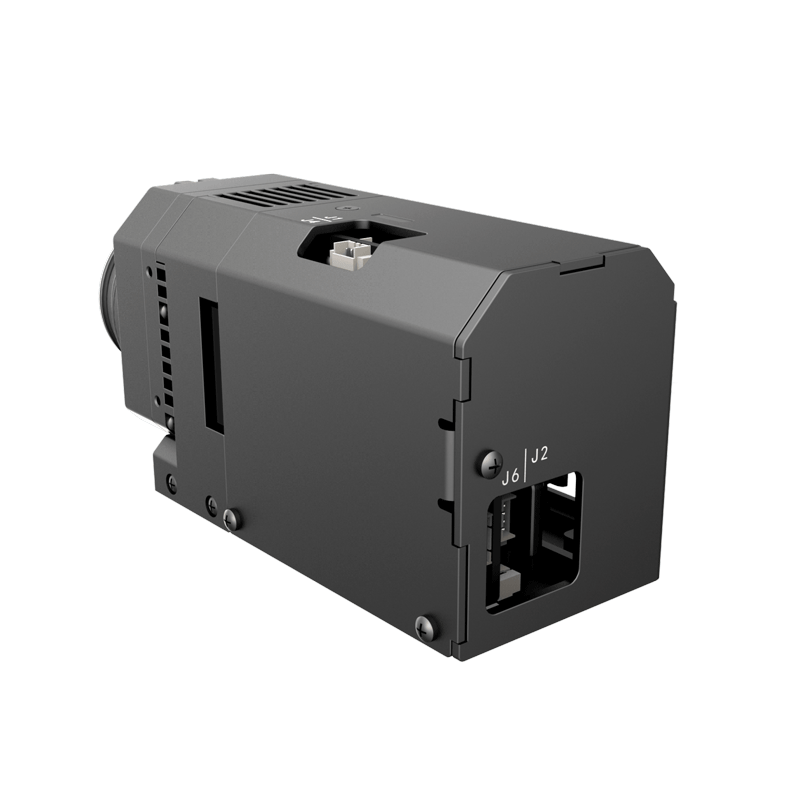

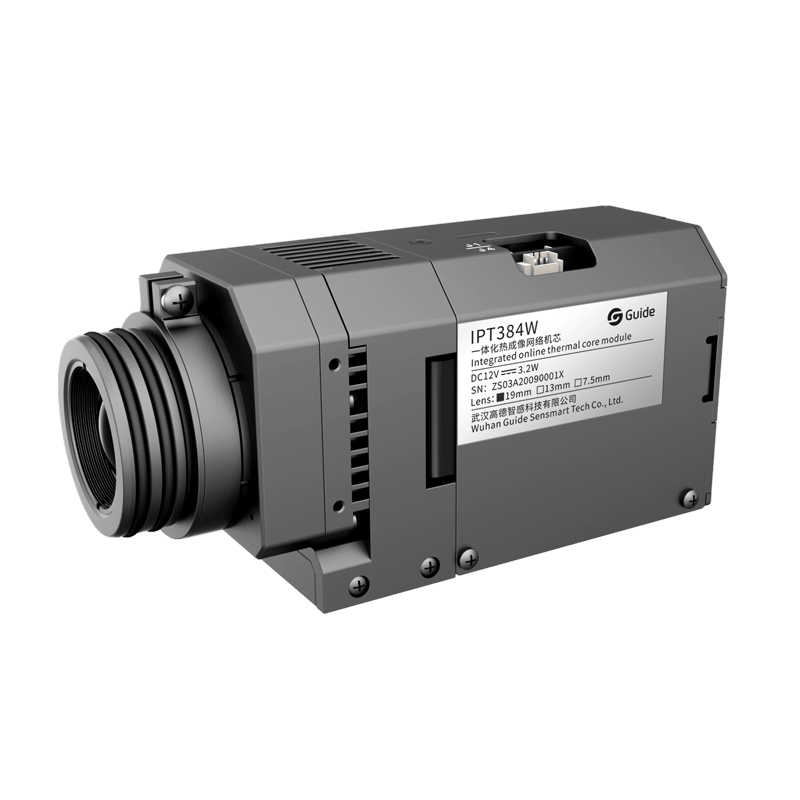

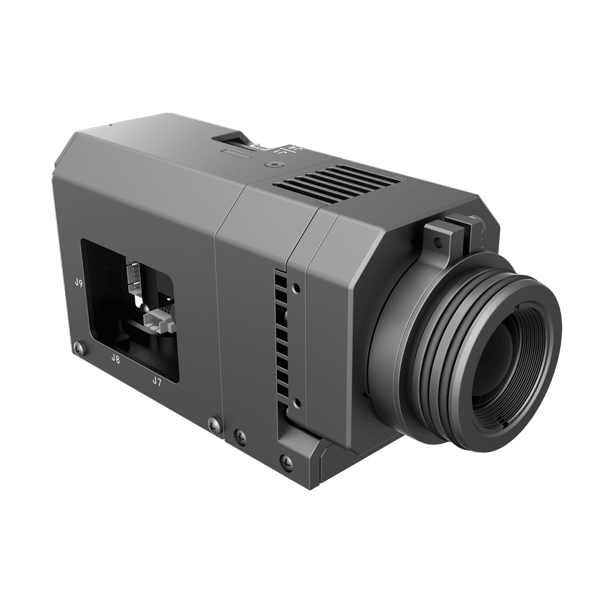

IPT384W
Integrated Online Thermal Camera Core
The IPT384W is an excellent integrated thermal imaging core that adopts an uncooled VOx FPA detector. This device enables accurate temperature measurement and stable working performance, achieving the integration of precision temperature measurement and intelligent security, and the core hardware with the web control software. IPT384W can be easily integrated into the security cover and meet the demand for security monitoring and temperature measurement in small or middle areas.
400x300IR resolution
≤60mkNETD
-20℃~550℃Temperature Range
±2℃Accuracy
ADD TO COMPARE
-564.png)
-433.png)
.png)
Integrated Online Thermal Camera Core
• Web control, No need other software for parameter
configuration
• Support settings for multiple temperature measurement objects and alarm modes simultaneously
• 12 temperature measurement objects (spot, line, rectangle, polygon, circle) can be set at the same time
• Support real-time temperature analysis, historical temperature information query function
• Various behavior analysis functions such as tripwire intrusion, region intrusion etc.
• Support Onvif, GB/T28181 standard protocol
•Support POE power supply

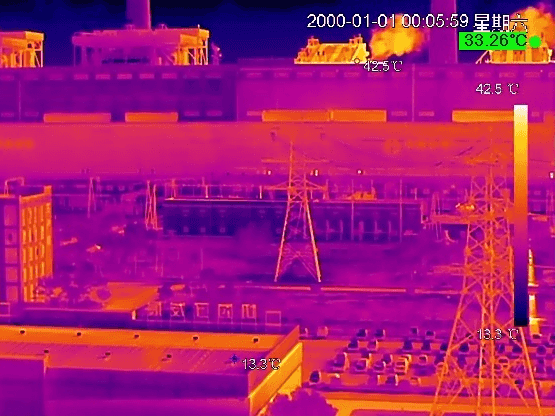

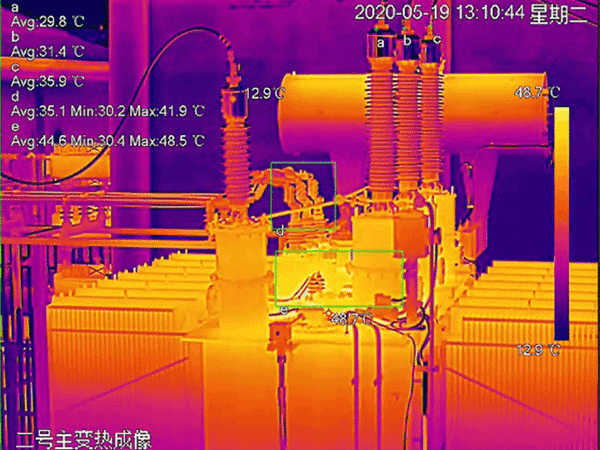

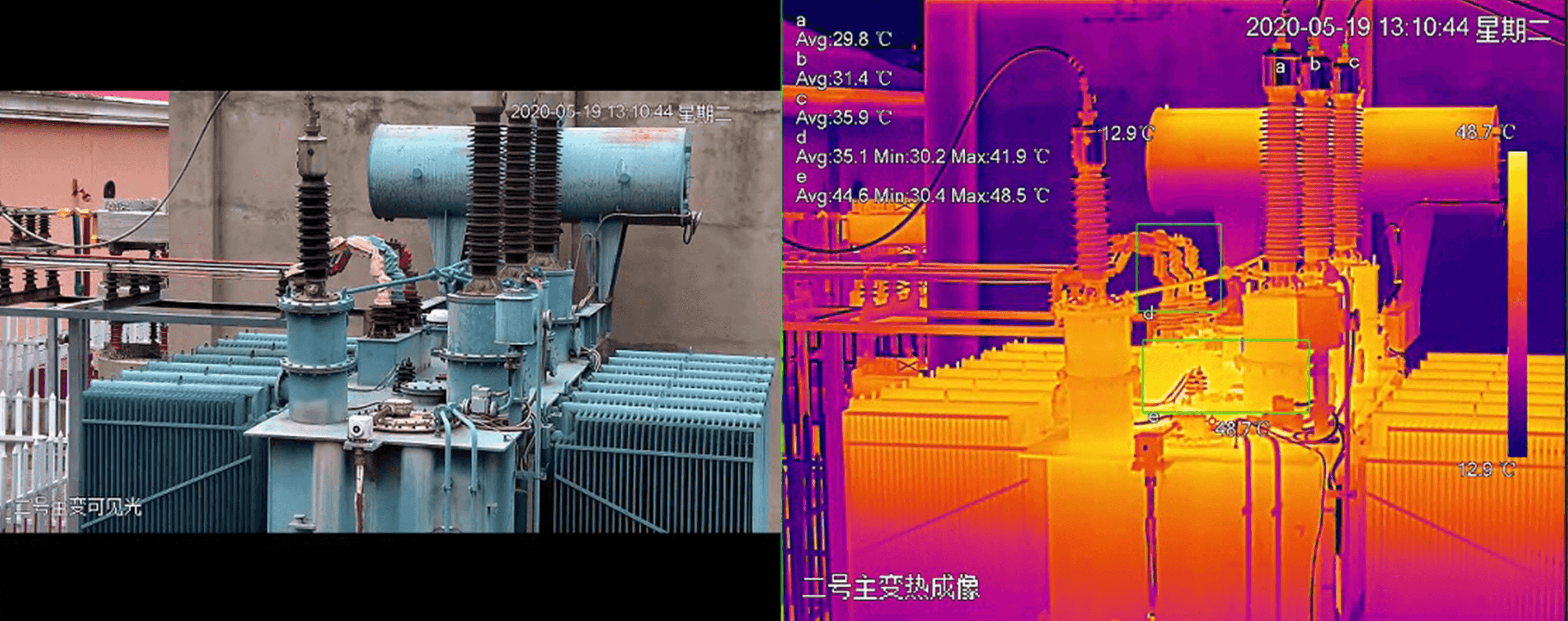

Applications
Media Gallery
Technical Parameters
Model
IPT384W
ADD TO COMPARE
| Thermographic parameters | ||||
|---|---|---|---|---|
| Detector type | VOx | |||
| Detector resolution | 400×300 | |||
| Pixel size | 17μm | |||
| Wavelength range | 8μm~14μm | |||
| NETD | ≤40mK@30℃ | |||
| Thermographic camera lenses | 7.5mm,52°×40°;13mm,29.7°×22.3°;19mm,19.5°x14.7°;Optional | |||
| Detail enhancement | Available | |||
| Noise reduction | 2D/3D noise reduction | |||
| Image flip | Available | |||
| Pseudo color | 9 pseudo colors: White Hot, Black Hot, Fulgurite, Rainbow and so on | |||
| Temperature measurement parameters | ||||
|---|---|---|---|---|
| Measurement range | Low temperature mode: -20 ℃ to 150 ℃, high temperature mode: -20℃ to 550℃ | |||
| Measurement accuracy | ±2℃ or ±2% (whichever is greater) | |||
| Target setting | Multi-preset-point temperature measuring, up to 300 temperature measuring preset points;For each preset point: spot temperature measuring: 12 spots,area temperature measuring: 12 areas,linear temperature measuring: 12 lines;Up to 12 simultaneous temperatu | |||
| Cold/hot spot tracking | Available | |||
| Full-screen point temperature measuring | Available | |||
| Query and export of temperature measuring informati | Available | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
