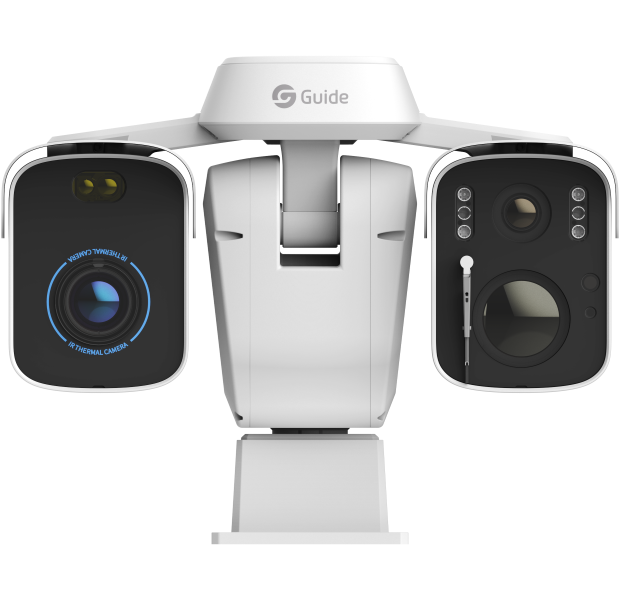

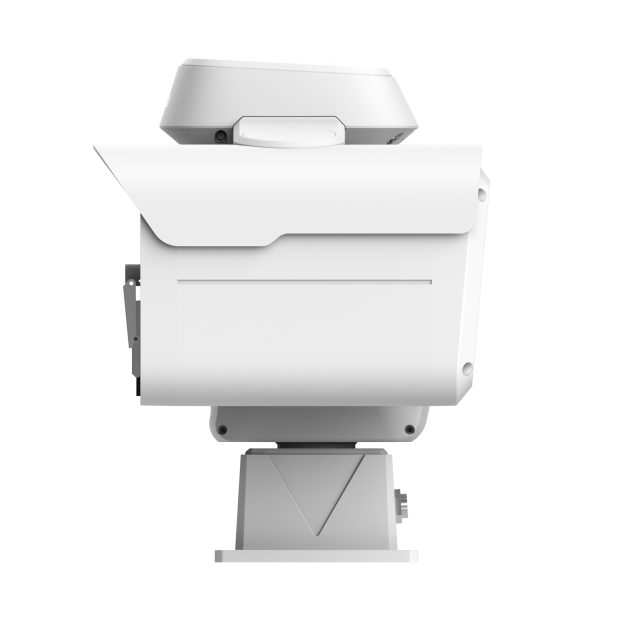

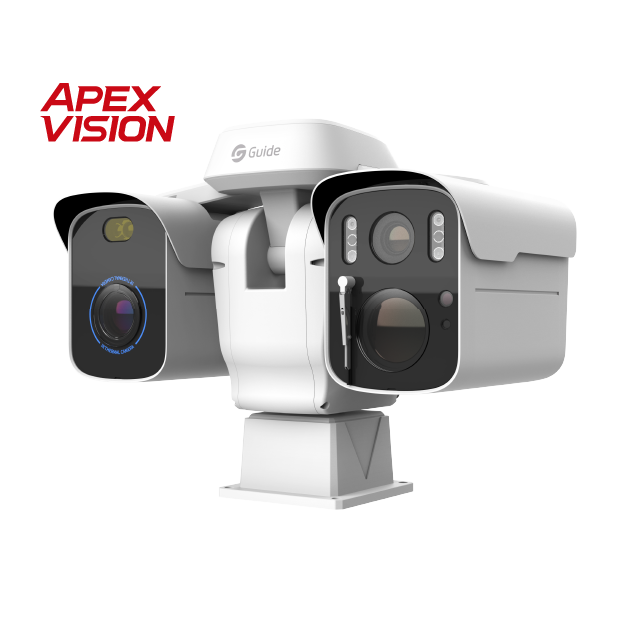

GS-TPC-PTZ26A4C
Multispectral Thermal PTZ Camera

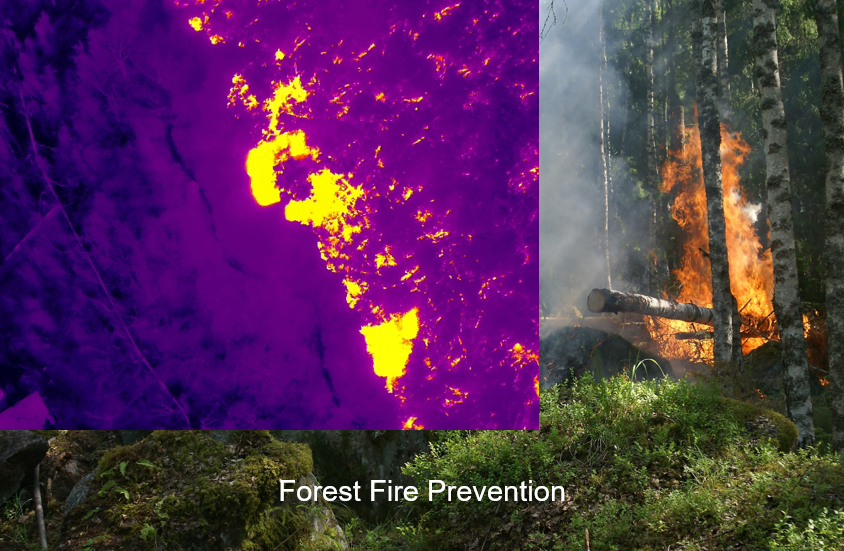

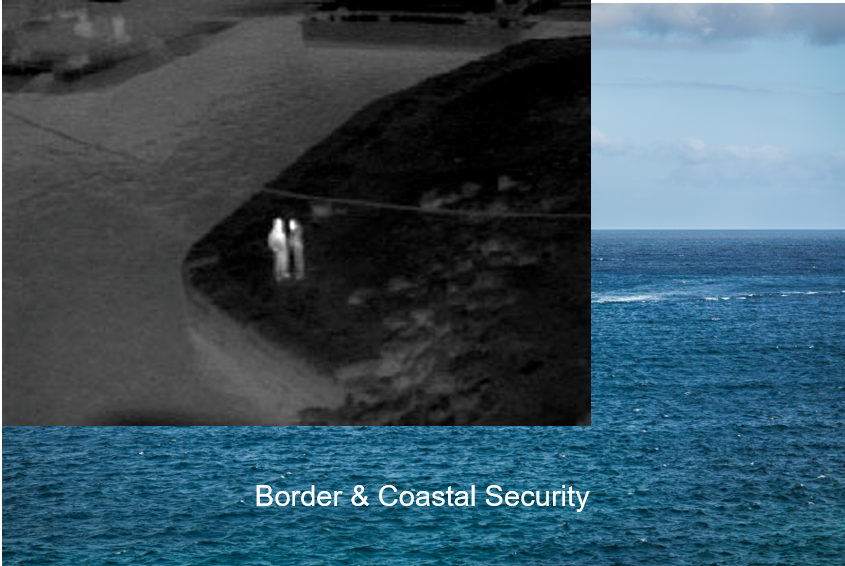

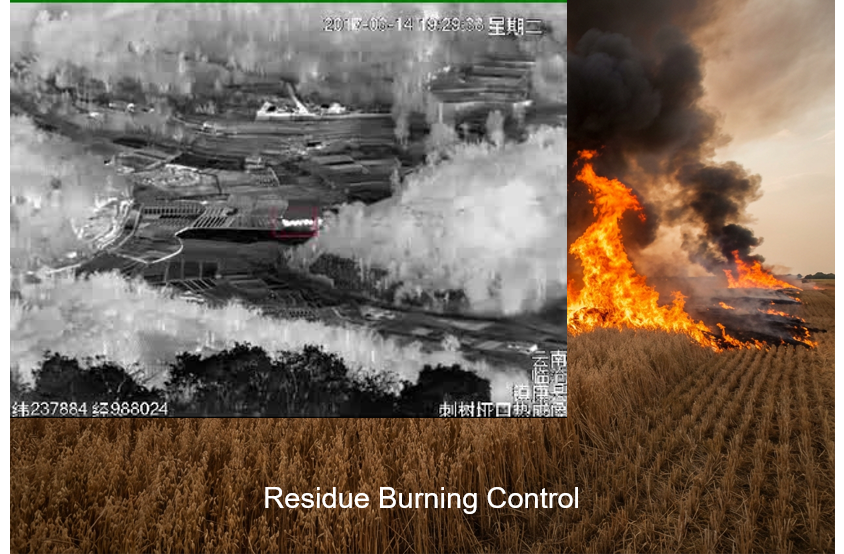

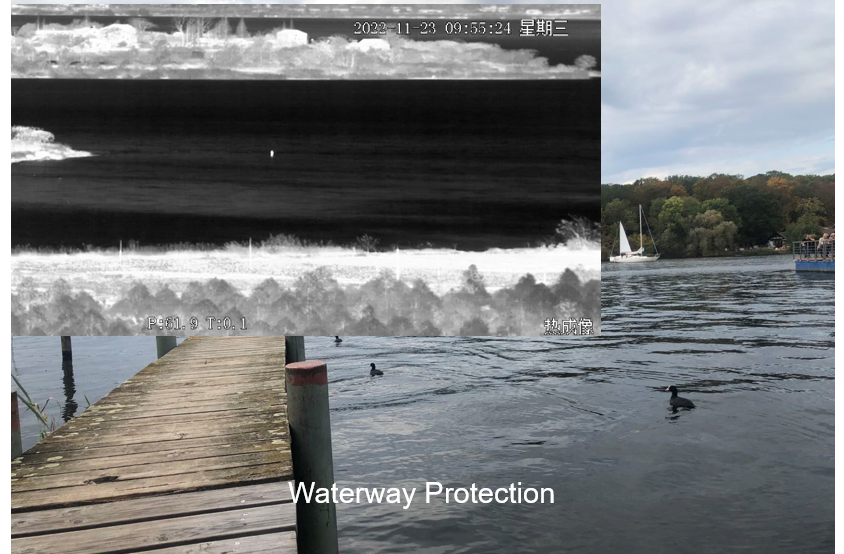

The MS-M Series multispectral thermal PTZ camera is designed for mid-to-long-range surveillance from 3 km to 6 km. Integrating a 12 μm infrared detector with a 4 MP CMOS sensor, it delivers high-definition multispectral imaging and extended fire detection capability. With built-in dual-spectrum smoke and fire detection, tripwire and area intrusion analytics, it enhances situational awareness in forest fire prevention, crop residue burning control, waterway fishing ban enforcement, and border & coastal security. The system supports 24/7 intelligent monitoring, helping reduce manual patrol workload and improve operational efficiency.
640×512@12μmIR Resolution
1/1.8", CMOSSensor
≤15mK@30°CNETD
IP66Encapsulation
ADD TO COMPARE
.png)
.png)
.jpg)
High-Definition Imaging
Powered by the ApexVision infrared imaging system with 4× thermal super-resolution for improved clarity and fine-detail visibility.
Intelligent AI Analytics
Supports dual-spectrum fire alerts and perimeter intrusion detection. Built on a 10 TOPS computing platform for scalable algorithm architecture based on specific application needs.
Long-Range Detection
Equipped with a 6 mm–336 mm motorized zoom visible lens and compatible with multiple thermal lens options, enabling monitoring distances up to 6 km.
.jpg)
Wide-Area PTZ Coverage
360° continuous pan and –90° to +40° tilt provide comprehensive coverage across the monitored area.
Optional Configurations

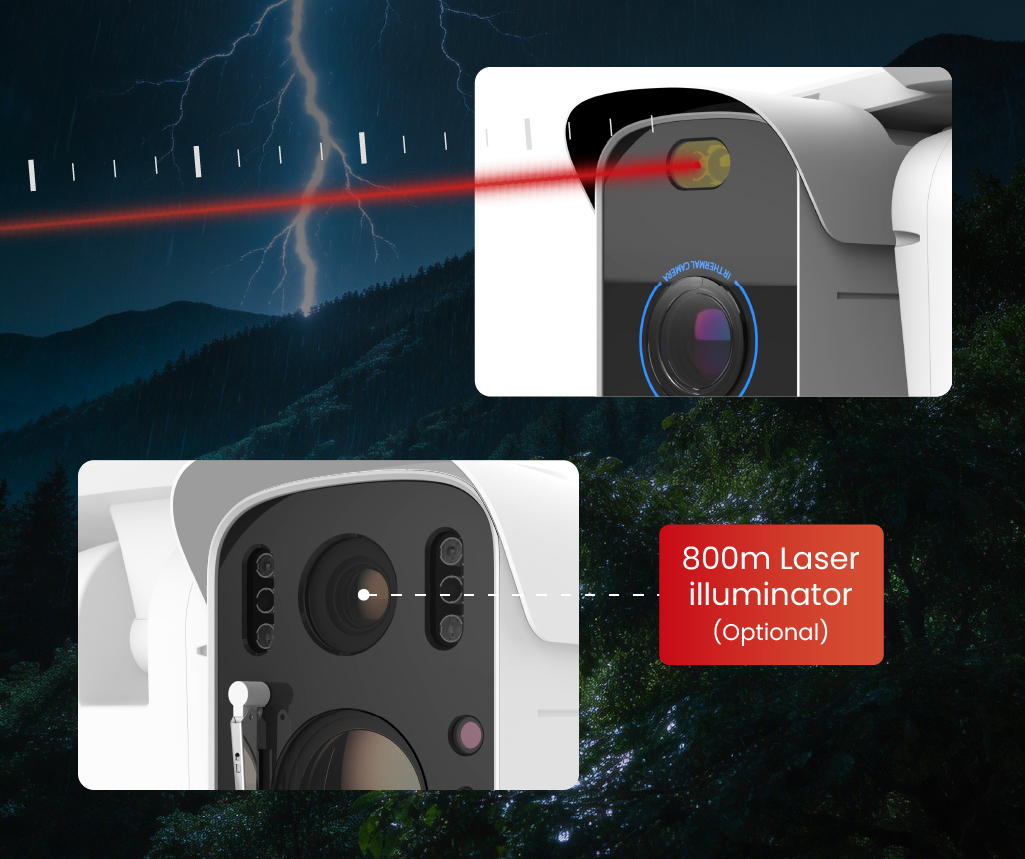

Optional 800m laser illumination improves night and low-light imaging. Optional laser rangefinder enables accurate distance measurement.
.jpg)
Easy Maintenance
Detector strong-light protection and IP66-rated housing enhance system reliability while reducing maintenance requirements.
Applications
Media Gallery
Technical Parameters
Model
GS-TPC-PTZ26A4C
ADD TO COMPARE
| Thermographic | ||||
|---|---|---|---|---|
| Core technology | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm All-Scenario 1.0 | |||
| Detector type | VOx, 8μm to 14μm | |||
| IR resolution | 640×512@12μm | |||
| Super resolution | Support real-time super-resolution reconstruction, upgrade to 1280×1024 | |||
| NETD | ≤15mK@30°C | |||
| IR lens | 50mm (8.8°×7°) / 75mm (5.86°×4.69°) / 100mm (4.4°×3.52°) | |||
| Focusing mode | Focus-free | |||
| Pseudo colors | 9 pseudo colors: White Hot, Black Hot, Rainbow and so on | |||
| Thermal imaging functions | Detail enhancement, 2D/3D noise reduction, Image Flip, Electronic image stabilization (EIS) | |||
| Fire detection distance | 3km / 4.5km / 6km (2m×2m target) | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
