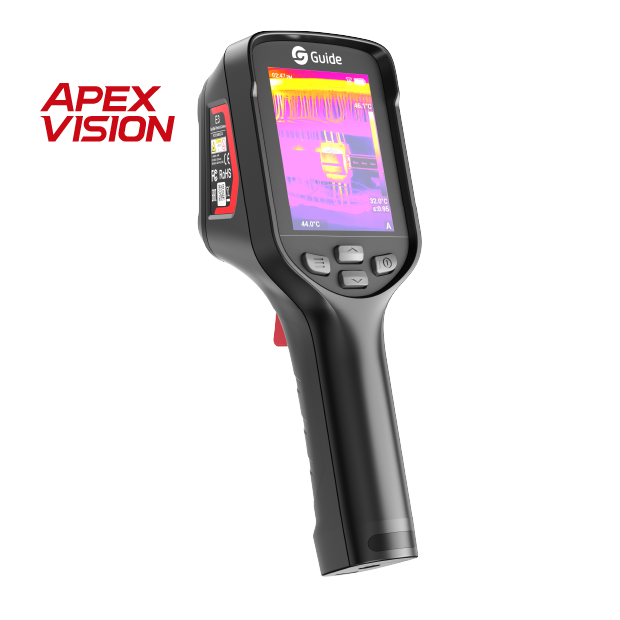

E3S
Tool-like Thermal camera

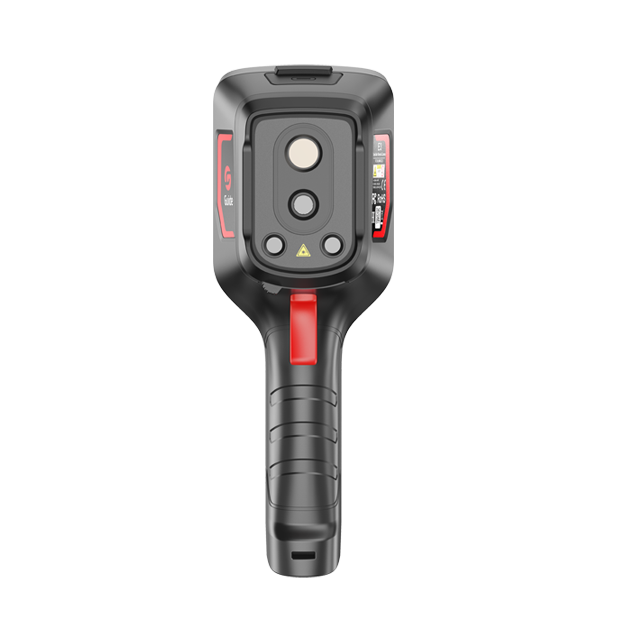

EasIR Series offers high-resolution detectors (256×192 or 384×288) for precise capture of minute temperature variations. Featuring IR-Perfclear technology, it optimizes image details and reduces noise in real time, delivering exceptionally clear thermal imaging. The device is equipped with a 3.5-inch bright HD display and a 2 MP visible-light camera, supporting both synchronous display or image fusion of thermal and visible-light. Enhanced with smart capabilities including live video streaming, recording, Wi-Fi connectivity, and OTA upgrades, it significantly boosts work efficiency.
256×192@12μmIR Resolution
15mKNETD
-20°C~550°CMeasurement range
30Hz/9HzFrame rate
ADD TO COMPARE
Complete ApexVision S1 System Architecture
Guide Sensmart's next-generation thermal imaging solution is engineered to elevate the infrared imaging performance
of temperature measurement devices at the system level. In any environment, it produces cleaner,
finer images and delivers consistently accurate and reliable temperature data and analysis for critical decision-making.

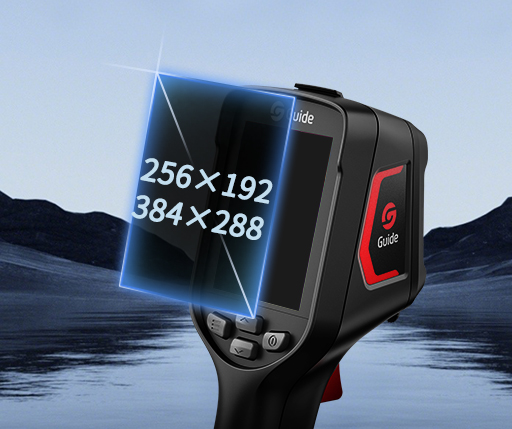

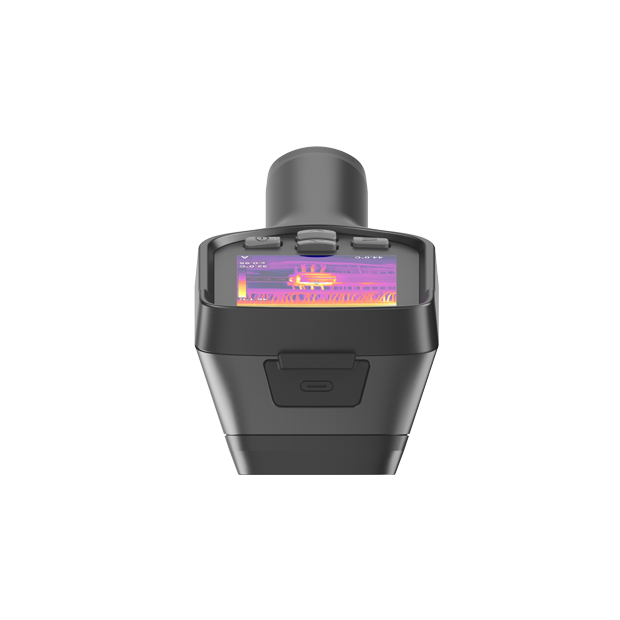

3.5-inch large screen
The expansive 3.5-inch display provides a clear view of details, enabling precise control of critical information.
Real-time IR-Perfclear technology
Features IR-Perfclear real-time super resolution technology for 4x image quality enhancement.
12-Hour Runtime
Extended 12-hour battery life meets all-day operational demands and ensures stable performance in complex working conditions.

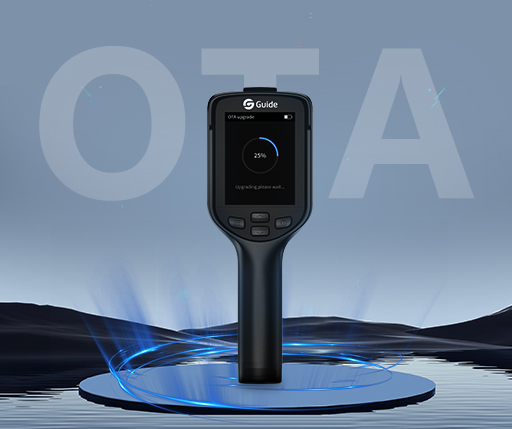

OTA Updates
Featuring encrypted transmission and verification for secure and stable upgrades. Update with a single click, anytime, anywhere.

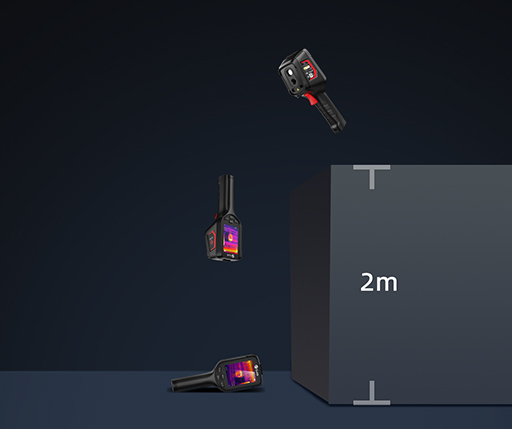

2-Meter Drop Proof
Certified for 2-meter drop resistance. Unfazed by rain, high temperatures, or harsh conditions.

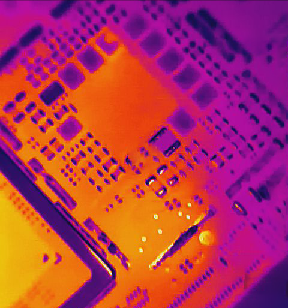

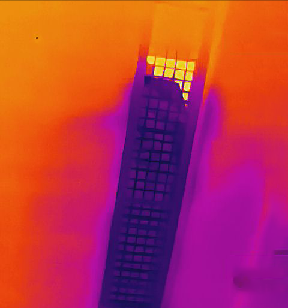

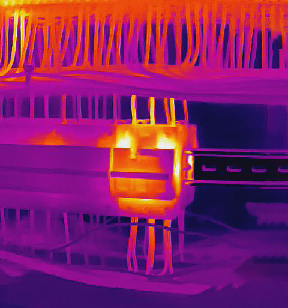

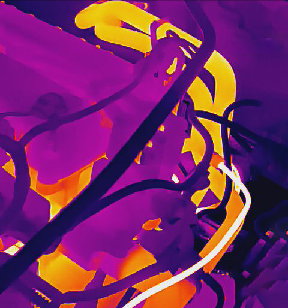

Applications
Media Gallery
Technical Parameters
Model
E3S
ADD TO COMPARE
| Imaging and optics | ||||
|---|---|---|---|---|
| Core Technology Item | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm SharpIR 2.0 | |||
| Detector type | VOx, 7.5 to 14μm | |||
| Infrared resolution | 256×192@12μm | |||
| Super resolution | Support real-time super-resolution reconstruction, Upgrade to 512×384 | |||
| NETD | 15mK | |||
| Frame rate | 30Hz/9Hz | |||
| Focal length | 3.2mm | |||
| Field of view | 56°×42° | |||
| IFOV | 3.82mrad | |||
| Min. object distance | 0.3m | |||
| D:S | 262:1 | |||
| Focusing mode | Focus-free | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -20°C to 150°C, 0°C to 550°C | |||
| Measurement accuracy | ±2°C or ±2%, whichever is greater | |||
| Analyzed target | Center spot; Three Fixed Areas: Small, Medium, Large (Alternative) | |||
| Alarm | Full screen temperature threshold alarm (Image and Flash) | |||
| Others | OTA update | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
