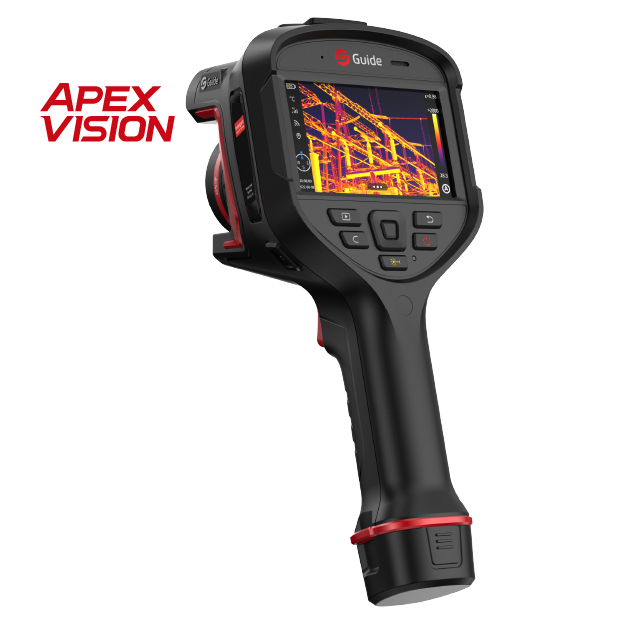

H6S
Intelligent Thermal Camera
GUIDE H Series Enhanced -- High-Precision Hammer-Style Infrared Camera is specifically designed for industrial inspections and electrical grid maintenance. Equipped with a proprietary self-developed high-sensitivity detector (NETD <30mK, 640×480 resolution), its 50Hz high frame rate and wide temperature measurement range ensure precise capture of abnormal heating points. Equipped with a single-lens dual-FOV design, it instantly switches between wide-angle and narrow-angle views without lens changes. This enables seamless adaptation to complex scenarios, efficiently handling both long-distance inspections and close-range temperature measurements.
640x480IR Resolution
25°+15°、25°+45°FOV
50Hz Frame Rate
-40℃~2000℃Measurement Range
ADD TO COMPARE
Complete ApexVision S1 System Architecture
Guide Sensmart's next-generation thermal imaging solution is engineered to elevate the infrared imaging performance
of temperature measurement devices at the system level. In any environment, it produces cleaner,
finer images and delivers consistently accurate and reliable temperature data and analysis for critical decision-making.
TwinView DFoV Lens
Switch seamlessly between long-range scanning and close-range temperature measurement without lens changes-efficiently tackling diverse scenarioswith unmatched versatility.
50Hz High Frame Rate
50Hz frame rate captures thermal dynamics instantly，ensuring zero missed detections in industrial inspections.
90% Charge in 1 Hour
Charge to 90% in 1 hour, minimizing downtime for critical missions.
2000℃ Ultra-High Temp
Covers -40℃ to 2000℃, delivering accuracy from freezing cold to molten furnaces, ensuring error-free measurements in environments like kilns and reactors.
5 Focus Modes
5 focus modes and rapid focus system boost success rates by 90% in complex scenarios.
PerIRVision Panoramic Stitching
AI-powered stitching improves large-area thermal scanning efficiency by 80% for substations, buildings, and more.
Local Dimming
Features 4 LevelSpan modes (A, M, S, L), where mode L enables real-time target framing. Touch to move the region, dynamically enhancing contrast in focused areas while highlighting potential anomalies.
Applications
Media Gallery

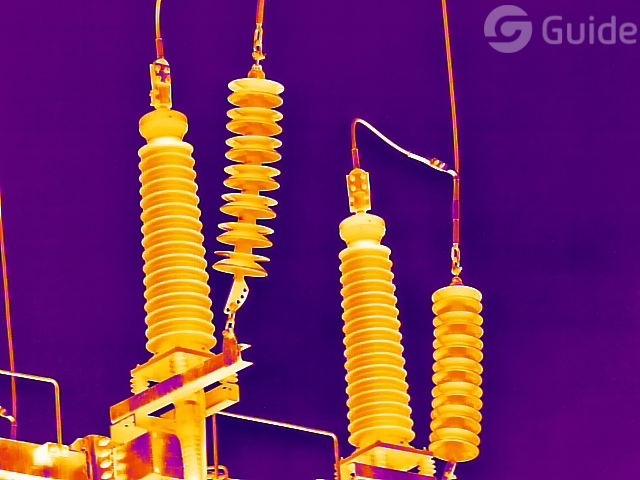

-185.jpg)

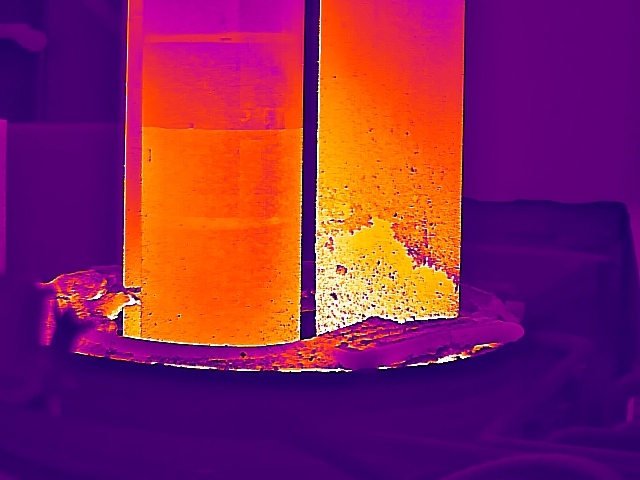

-195.jpg)

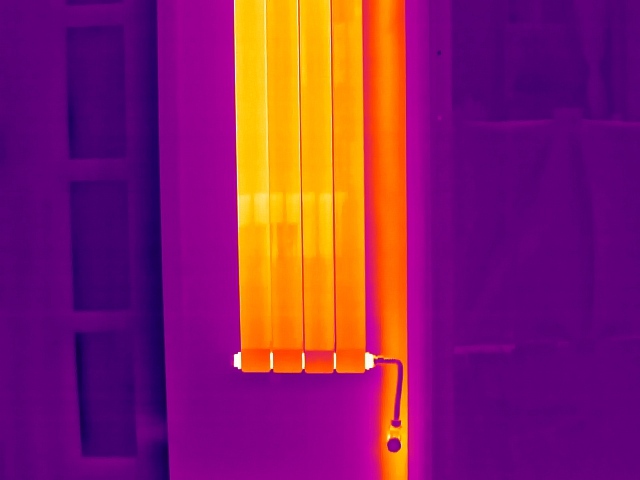

-270.jpg)

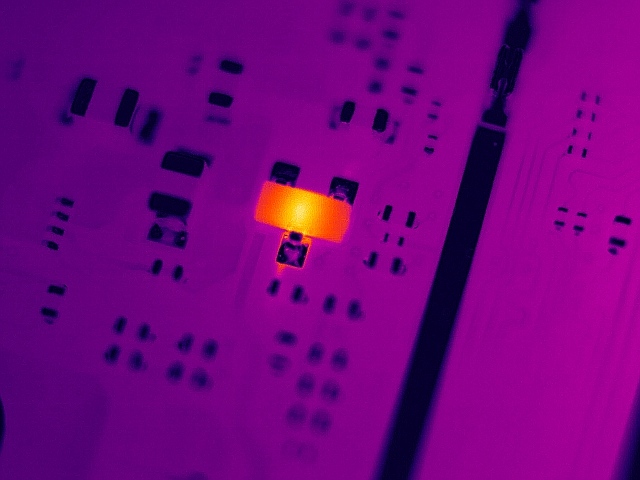

-204.jpg)
Technical Parameters
Model
H6S
ADD TO COMPARE
| Imaging and optics | ||||
|---|---|---|---|---|
| Core Technology Item | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm SharpIR 2.0 | |||
| Detector type | VOx, 7.5 to 14μm | |||
| Infrared resolution | 640×480@12μm | |||
| Super resolution | Yes, Upgrade to 1280×960 | |||
| NETD | 15mK | |||
| Frame rate | 50Hz/9Hz | |||
| Focal length | 17.7mm | |||
| Field of view | 25°×19° | |||
| IFOV | 0.68mrad | |||
| Min. object distance | 0.15m | |||
| D:S | 1471:1 | |||
| Focusing mode | Manual / Automatic / Touch autofocus / Continuous autofocus | |||
| Digital zoom | 1.1x to 20x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -40°C to 150°C, 0°C to 650°C, 500°C to 2000°C (RangeMax Ultra-wide measurement range lens kit is required) | |||
| Measurement accuracy | ±2°C or ±2%, whichever is greater | |||
| Analyzed target | 16 in total (Spot/Line/Area) | |||
| Alarm | Full screen temperature threshold alarm (Image, Voice, Color and Flash) | |||
| Others | Customized physical button, OTA update | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
