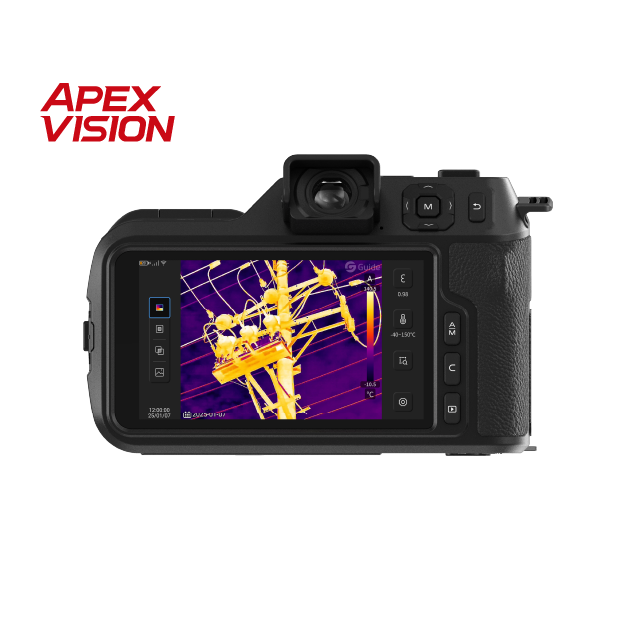

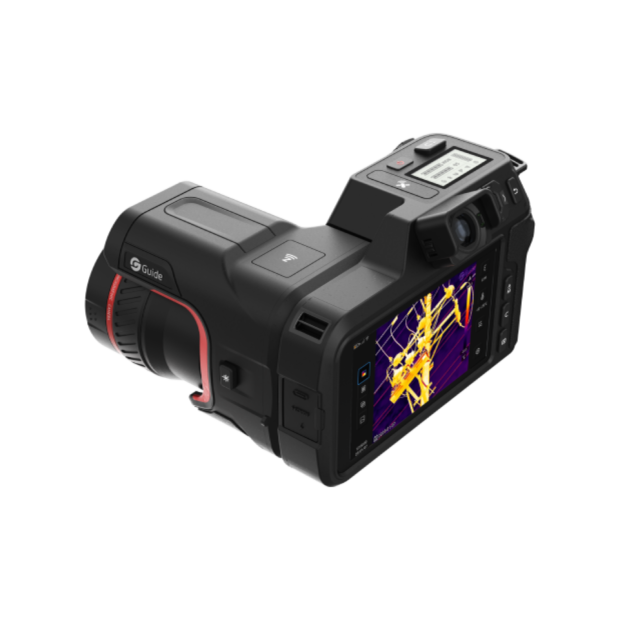

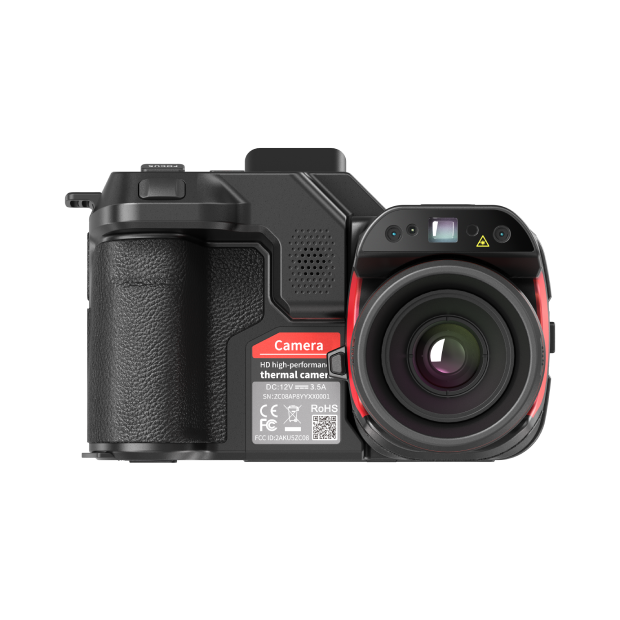

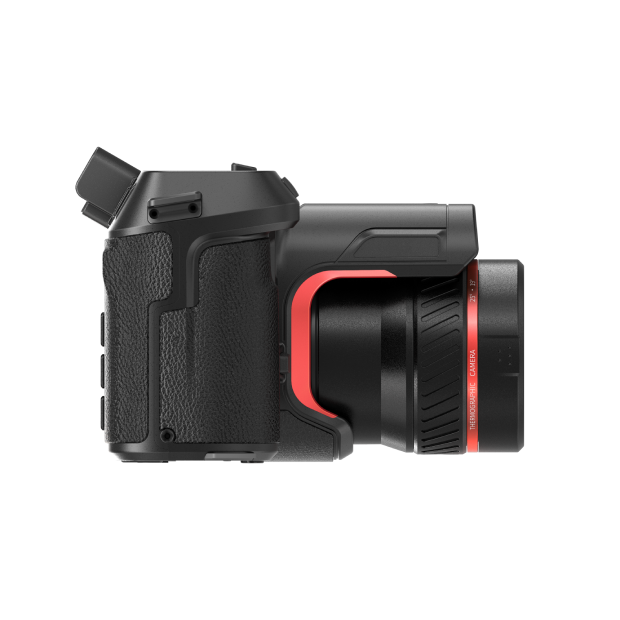

PT870S
HD High-Performance Thermal Camera
PT II series Flagship Edition Megapixel Thermal Imager of Guide Sensmart incorporates a new generation of self-developed uncooled infrared focal plane detector, achieving a resolution of up to 1280×1024. Its exclusive A/M-Focus manual/automatic hybrid focusing system delivers superior image quality and enhanced operational flexibility. The PT Series has undergone comprehensive upgrades in hardware configuration, software systems, and user experience, aiming to establish a new industry benchmark.
1280×1024 IR resolution
1-lens TwinViewDFOV
Charges to 90%in 1 Hour
Up to 2500°CTemperature Range
ADD TO COMPARE
Complete ApexVision S1 System Architecture
Guide Sensmart's next-generation thermal imaging solution is engineered to elevate the infrared imaging performance
of temperature measurement devices at the system level. In any environment, it produces cleaner,
finer images and delivers consistently accurate and reliable temperature data and analysis for critical decision-making.
TwinView DFoV Lens
Switch seamlessly between long-range scanning and close-range temperature measurement without lens changes-efficiently tackling diverse scenarios with unmatched versatility.
50Hz High Frame Rate
50Hz frame rate captures thermal dynamics instantly, ensuring zero missed detections in industrial inspections.

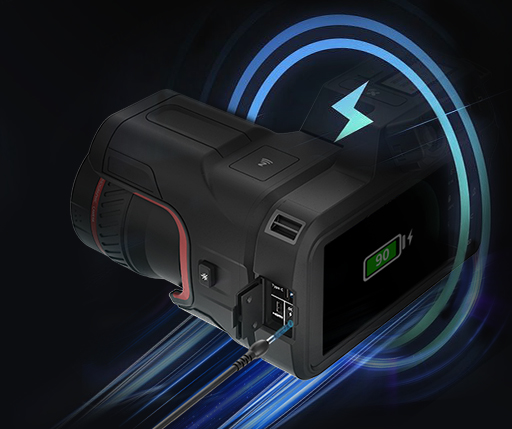

90% Charge in 1 Hour
Charge to 90% in 1 hour, minimizing downtime for critical missions.
2500℃ Ultra-High Temp
Covers -40°℃ to 2500℃, delivering accuracy from freezing cold to molten furnaces, ensuring error-free measurements in environments like kilns and reactors.
5 Focus Modes
5 focus modes and rapid focus system boost success rates by 90% in complex scenarios.
PerIRVision Panoramic Stitching
AI-powered stitching improves large-area thermal scanning efficiency by 80% for substations, buildings, and more.
Media Gallery

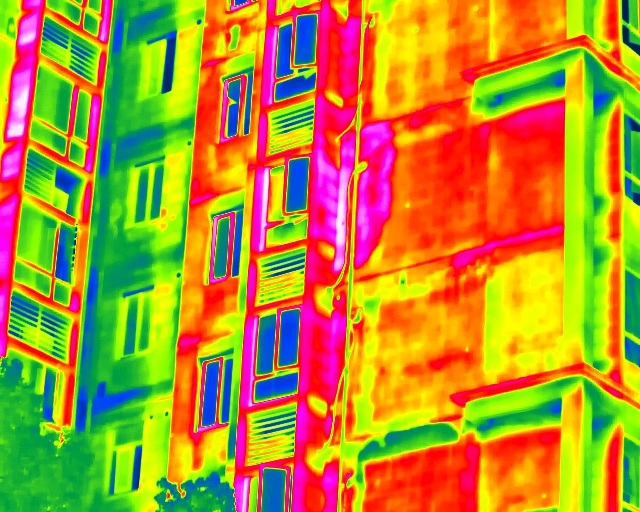

-499.jpg)

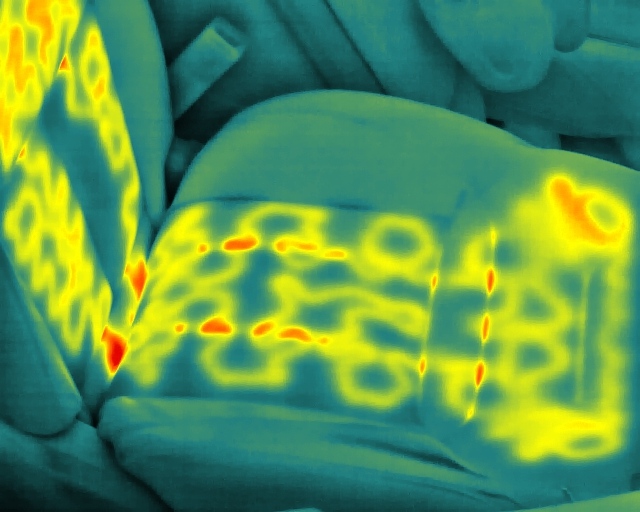

-318.jpg)
Technical Parameters
Model
PT870S
ADD TO COMPARE
| Imaging and optics | ||||
|---|---|---|---|---|
| Core Technology Item | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm SharpIR 2.0 | |||
| Detector type | VOx, 7.5 to 14μm | |||
| Infrared resolution | 1280×1024@12μm | |||
| Super resolution | Yes, Upgrade to 2560×2048 | |||
| NETD | 15mK | |||
| Frame rate | 50Hz/9Hz | |||
| Focal length | 35mm | |||
| Field of view | 25°×20° | |||
| IFOV | 0.34mrad | |||
| Min. object distance | 0.3m | |||
| D:S | 2941:1 | |||
| Focusing mode | Manual / Automatic / Touch autofocus / Continuous autofocus | |||
| Digital zoom | 1x to 50x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -40°C to 150°C, 0°C to 800°C, Optional 400°C to 2500°C (High temperature lens is required) | |||
| Measurement accuracy | ±1°C or ±1%, whichever is greater | |||
| Analyzed target | 35 in total (Spot/Line/Area) | |||
| Alarm | Full screen temperature threshold alarm (Image, Voice, Color and Flash) | |||
| Others | Customized physical button, NFC connection, OTA update | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
