N-Driver384
Vehicle-mounted Infrared Module
Automotive night vision products are effective to eliminate the interference of high beams from oncoming vehicles, increasing drivers' perception towards the surrounding environment and seeing distance in darkness or bad weather, such as rain, snow, haze and dust, so that the safety of drivers, passengers, pedestrians and vehicles can be guaranteed.
384x288IR resolution
9.7mmFocal Length
37°×28°FOV
＜50mKNETD
ADD TO COMPARE
.png)

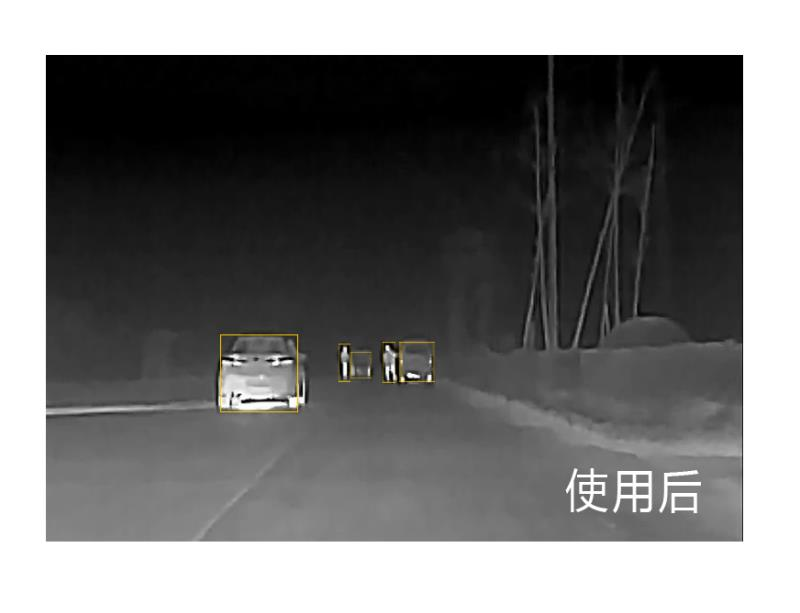

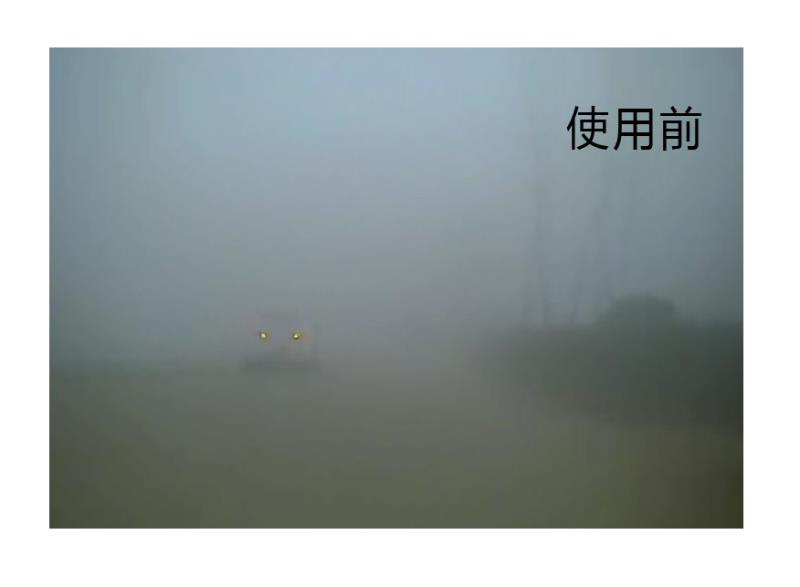

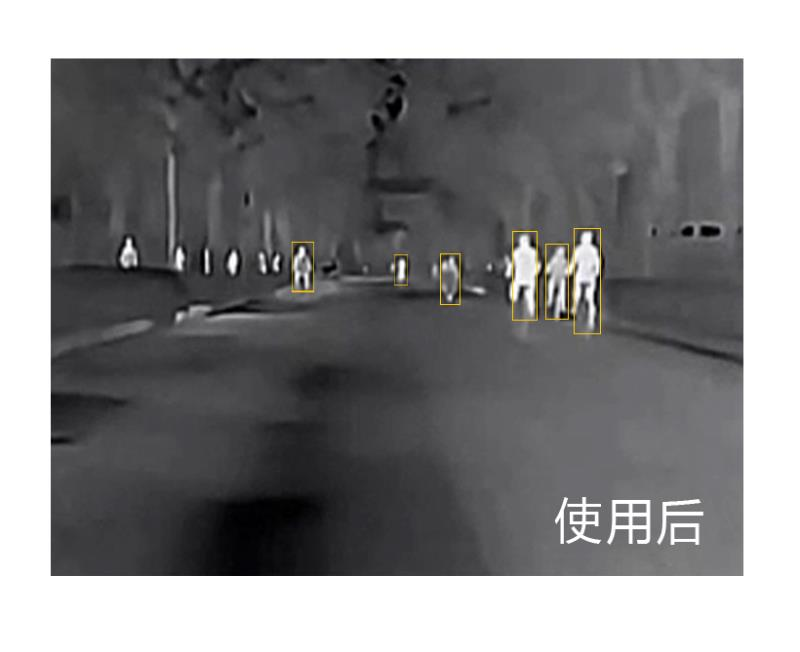

（1）Total Darkness Headlight Glare Foggy Weather ，A Great Distance of View
• See clear image 300 meters away beyond the reach of vehicles' headlights
• Enhance drivers' field of view so as to better avoid obstacles and identify targets

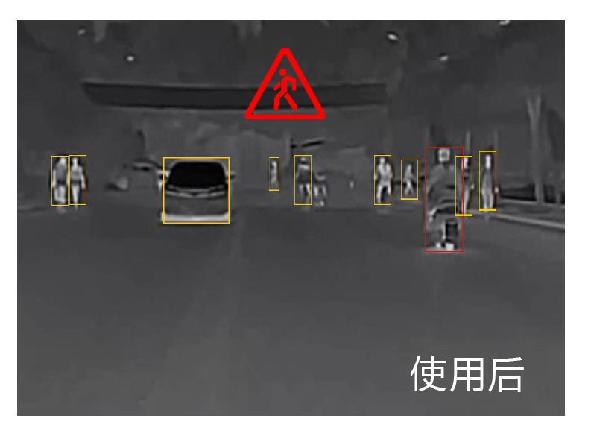

（2）Intelligent Alarm
• Base on a lot of model trainings and own a set of mature AI algorithms
• Identify pedestrians, cyclists, vehicles and give warning in advance
（3）All-weather Application
• Anti-glare interference from oncoming vehicles in dark night
• Get clear image in harsh environment such as rain, snow, fog and dust
（4）High Speed Data Transmission
• Support FPD-Link Ⅲ LVDS interface.
• Top speed up to 1.4Gbps.
（5）High Reliability & Stability
• Meet IP67 protection level
Applications
Media Gallery
Technical Parameters
Model
N-Driver384
ADD TO COMPARE
| IR Detector Performance | ||||
|---|---|---|---|---|
| Resolution | 384×288@17μm | |||
| Spectral response | 8~14μm | |||
| NETD | ＜50mk | |||
| Image Processing | ||||
|---|---|---|---|---|
| Frame rate | 25Hz | |||
| Start-up time | ≤8s (Room Temperature） | |||
| Image algorithm | Automatic Brightness Contrast / Image Enhancement | |||
* All specifications are subject to the actual product. Guide sensmart reserves the right to change the technical specifications without notice or liability to you.
