PLUG617
Uncooled Thermal Modules(Imaging Only)
GUIDE metal package infrared detector + professional hardware platform + unique image processing algorithm = PLUG Series Uncooled Thermal Modules. High performance IR detector captures more target information. Professional hardware platform and image algorithm ensure image clarity and details. The Plug series come with various common industrial interface and IR lens options, which caters for all specific integration requirements.
640x512IR resolution
17μmPixel Pitch
＜30mKNETD
＜1.2W Typical Power Consumption
ADD TO COMPARE

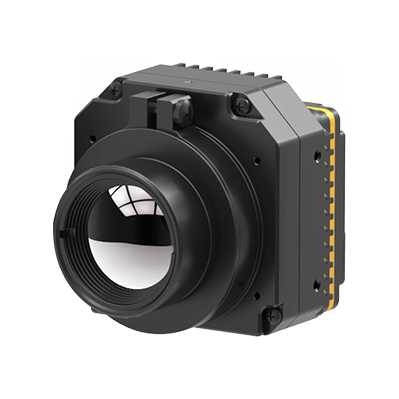

PLUG617 consisted of 640x512@17µm uncooled thermal camera sensor, full series of optical components, signal processing circuit and unique image processing algorithm, the PLUG617 LWIR camera module provides clear image and superior performance.
PLUG series uncooled infrared modules are specially developed for various personalized observation requirements, which provide various standard industrial interfaces and infrared lens options to meet specific integration requirements. Some professional thermal imaging solutions have been applied to many applications.
Applications
Media Gallery
Technical Parameters
Model
PLUG617
ADD TO COMPARE
| IR Detector Performance | ||||
|---|---|---|---|---|
| Resolution | 640X512@17μm | |||
| Spectral response | 8~14μm | |||
| NETD | ＜30mk | |||
| Image Processing | ||||
|---|---|---|---|---|
| Frame rate | 9Hz/25Hz/30Hz/50Hz/60Hz | |||
| Start-up time | ＜10s | |||
| Analog video | PAL/NTSC | |||
| Digital video | RAW/YUV/BT656/LVDS | |||
| Extension component | USB/Camerlink | |||
| Dimming | Linear/Histogram/Mixed three modes | |||
| Digital zoom | 1~8X continual zoom，step size 1/8 | |||
| Image display | Black hot/White hot/Pseudo color | |||
| Image direction | Horizontally/Vertically/Diagonally Flip | |||
| Image algorithm | NUC, AGC, IDE | |||
* All specifications are subject to the actual product. Guide sensmart reserves the right to change the technical specifications without notice or liability to you.
