PLUG417R
Uncooled Thermal Modules
The PLUG-R series uncooled standard module Based on GST self-produced metal-package uncooled infrared detector with a full range of optical components, Through professional signal processing circuit and image processing platform, completely transform the target infrared radiation to temperature data，presented with a clear thermal image. We will rely on years of technical accumulation and practical experience in thermography field , providing a full range of thermal imaging solutions, committed to open a new vision of industrial
400x300IR resolution
17μmPixel Pitch
＜90gWeight
＜30mKNETD
ADD TO COMPARE

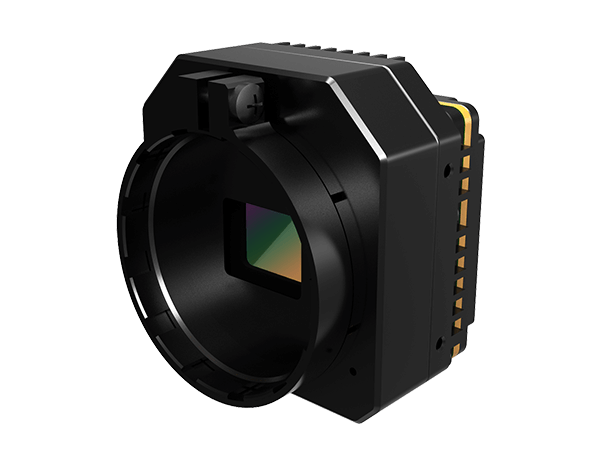

PLUG417R consists of 400x300@17μm uncooled infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.
PLUG417R is a kind of uncooled infrared thermal imaging module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear thermal image
We are committed to opening a new vision for industrial temperature measurement. After years of technical accumulation and practical experience in the field of infrared temperature measurement, we have provided our customers a full range of machine thermal imaging vision solutions.

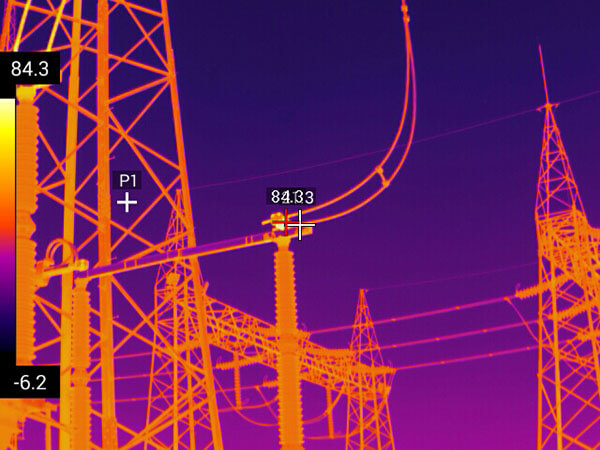

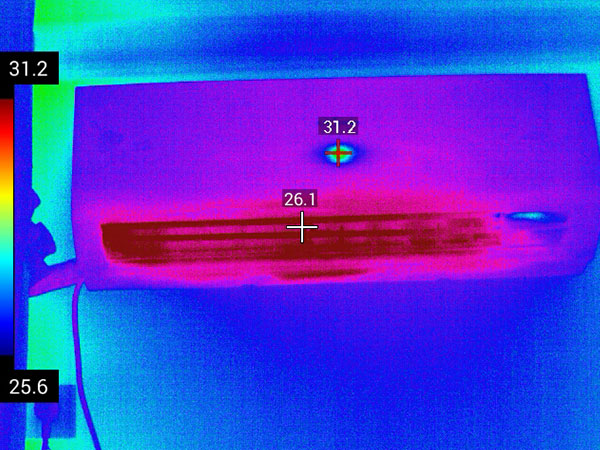

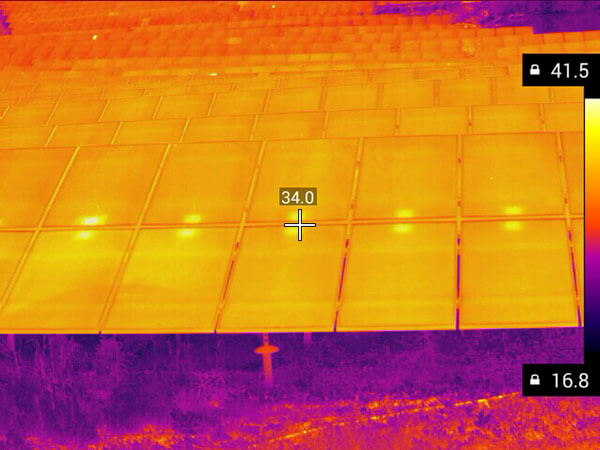

Media Gallery
Technical Parameters
Model
PLUG417R
ADD TO COMPARE
| IR Detector Performance | ||||
|---|---|---|---|---|
| Resolution | 400X300@17μm | |||
| Spectral response | 8~14μm | |||
| NETD | ＜30mk | |||
| Image Processing | ||||
|---|---|---|---|---|
| Frame rate | 25Hz/30Hz/50Hz/60Hz | |||
| Start-up time | ＜15s | |||
| Analog video | PAL/NTSC | |||
| Digital video | RAW/YUV/BT656/LVDS | |||
| Extension component | USB/Camerlink | |||
| Dimming | Linear/Histogram/Mixed three modes | |||
| Digital zoom | 1~8X continual zoom，step size 1/8 | |||
| Image display | Black hot/White hot/Pseudo color | |||
| Image direction | Horizontally/Vertically/Diagonally Flip | |||
| Image algorithm | NUC, AGC, IDE | |||
* All specifications are subject to the actual product. Guide sensmart reserves the right to change the technical specifications without notice or liability to you.
