PLUG617R
Uncooled Thermal Modules
The PLUG-R series uncooled standard module Based on GST self-produced metal-package uncooled infrared detector with a full range of optical components, Through professional signal processing circuit and image processing platform, completely transform the target infrared radiation to temperature data，presented with a clear thermal image. We will rely on years of technical accumulation and practical experience in thermography field , providing a full range of thermal imaging solutions, committed to open a new vision of industrial
640x512IR resolution
17μmPixel size
＜30mKNETD
＜90gWeight
ADD TO COMPARE

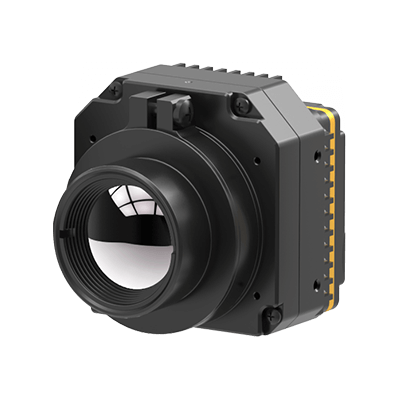

PLUG617R consists of 640x512@17μm uncooled FPA infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.
PLUG617R infrared thermal sensor module is a kind of uncooled camera module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear thermal image.
As a leading thermal camera module manufacturer, Global Sensor technology is committed to opening a new vision for industrial temperature measurement. After years of technical accumulation and practical experience in the field of infrared temperature measurement, we have provided our customers a full range of machine thermal imaging vision solutions.

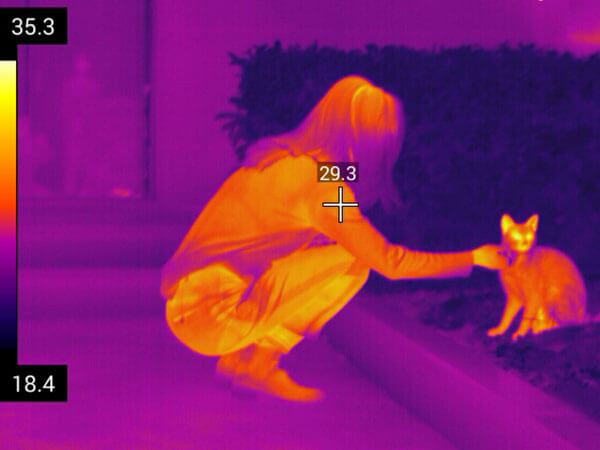

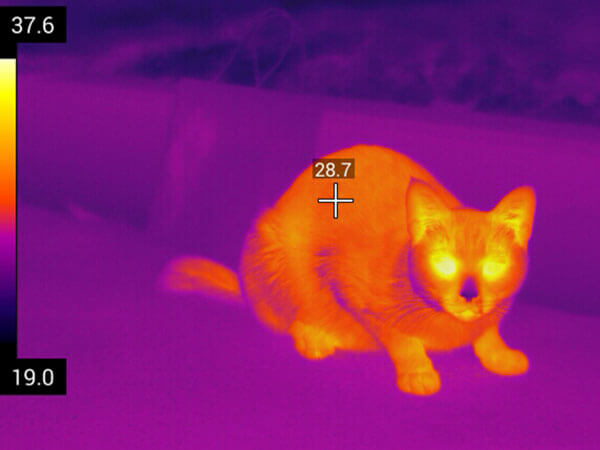

Media Gallery
Model
PLUG617R
ADD TO COMPARE
| IR Detector Performance | ||||
|---|---|---|---|---|
| Resolution | 640X512@17μm | |||
| Spectral response | 8~14μm | |||
| NETD | ＜30mk | |||
| Image Processing | ||||
|---|---|---|---|---|
| Frame rate | 25Hz/30Hz | |||
| Start-up time | ＜15s | |||
| Analog video | PAL/NTSC | |||
| Digital video | RAW/YUV/BT656/LVDS | |||
| Extension component | USB/Camerlink | |||
| Dimming | Linear/Histogram/Mixed three modes | |||
| Digital zoom | 1~8X continual zoom，step size 1/8 | |||
| Image display | Black hot/White hot/Pseudo color | |||
| Image direction | Horizontally/Vertically/Diagonally Flip | |||
| Image algorithm | NUC, AGC, IDE | |||
* All specifications are subject to the actual product. Guide sensmart reserves the right to change the technical specifications without notice or liability to you.
