LC260

LC260

Infrared human body temperature measurement module

LC260 is a high-end infrared human body temperature module, combined with high-quality infrared imaging and accurate temperature measurement, perfect for the integrated development of panel machines and intelligent safeguard systems. This device utilizes a waferlevel infrared detector with a resolution of 256X192, independently developed by Guide. The farthest measurement distance of LC260 is up to 2.5 meters. It can simultaneously make non-touch screening for the crowds to avoid superinfection caused by close contact.


256x192IR resolution

3.2mm #F1.1 Focal Length

56°×42°FOV

20℃~50℃ Temperature range


• IR resolution 256x192

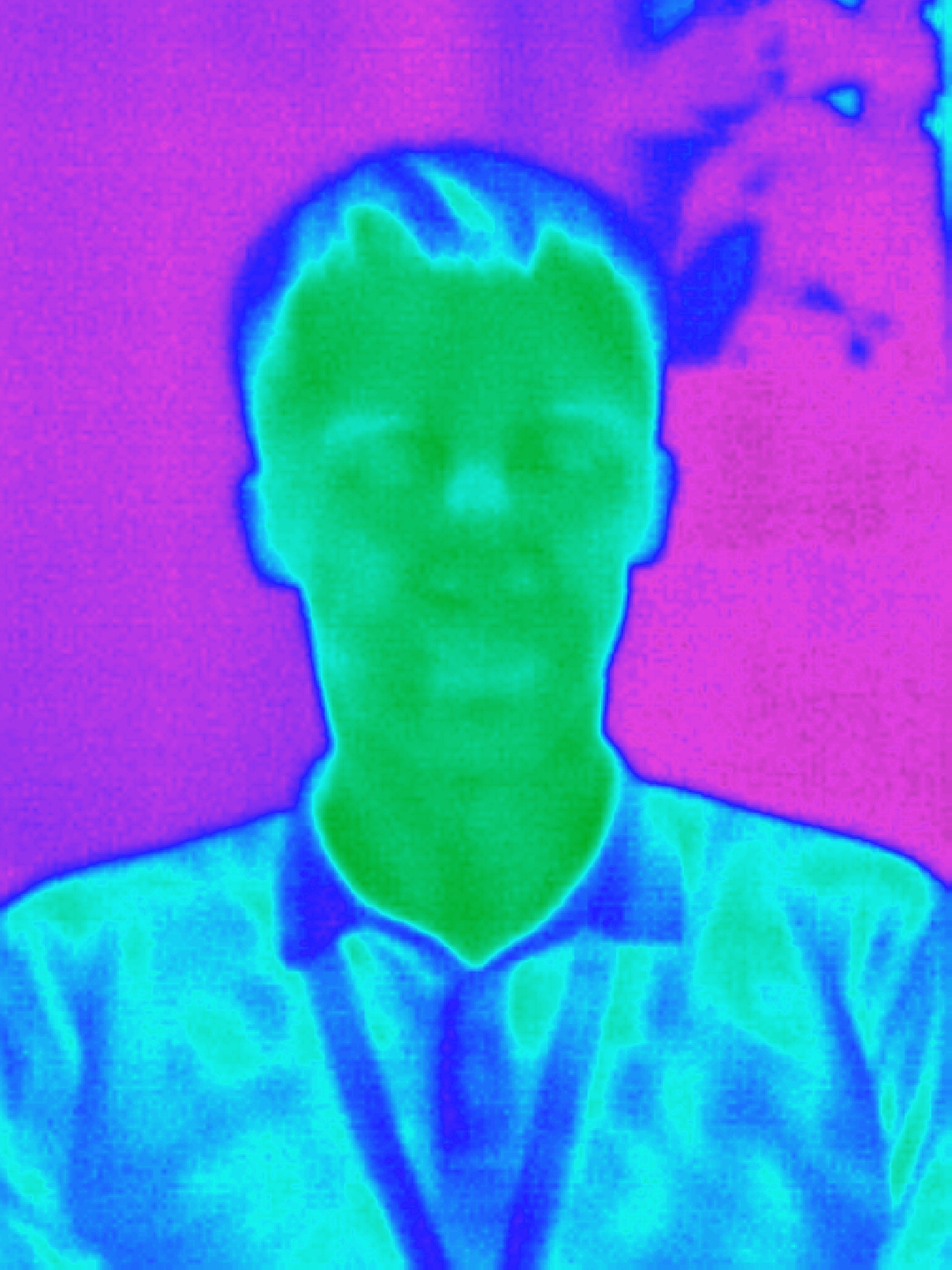

Guide’s self-developed infrared detector, measuring temperature in the full image, superb imaging performance

• Supporting multi-person temperature screening within 2.5 meters ranges

Greater temperature measuring distance, enabling many people

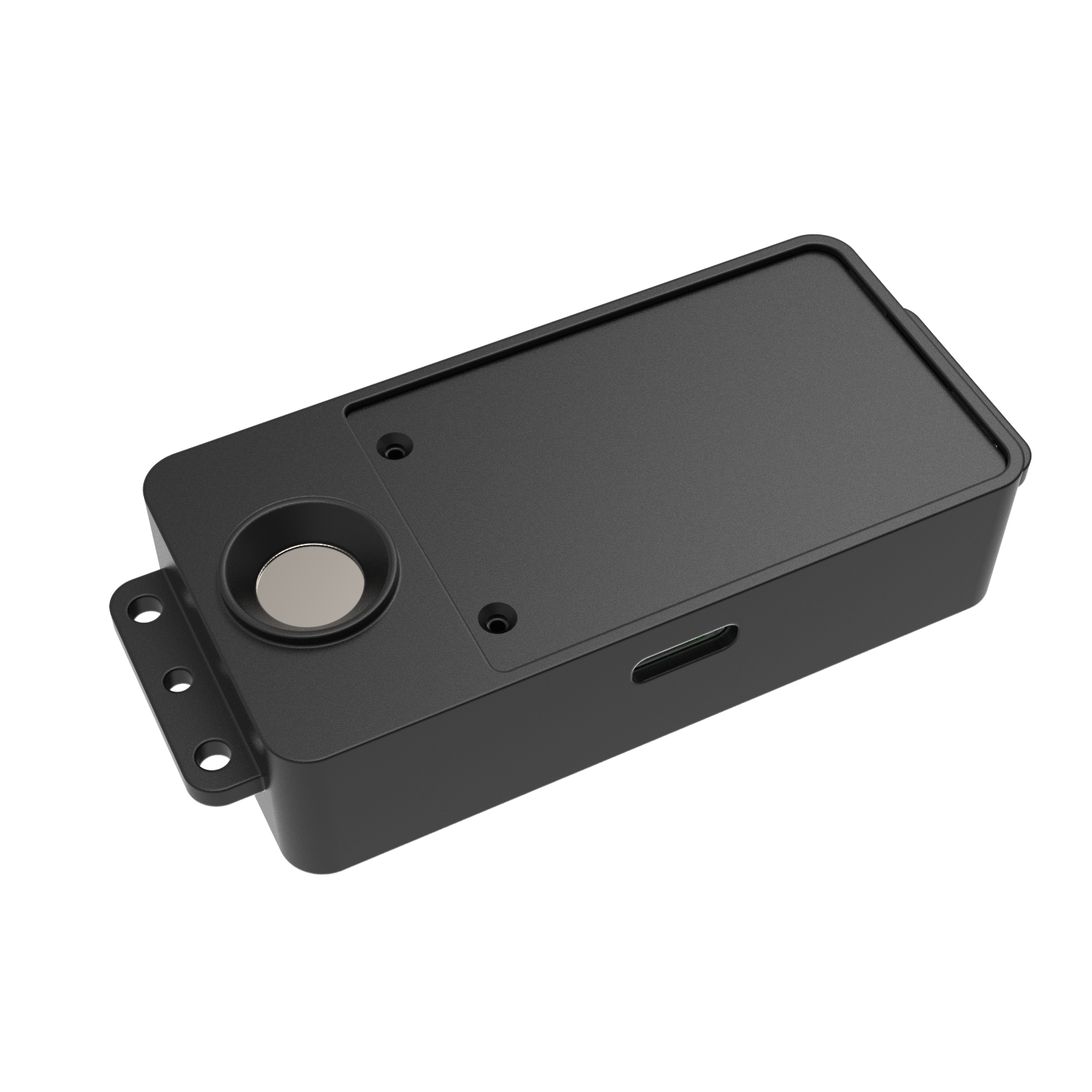

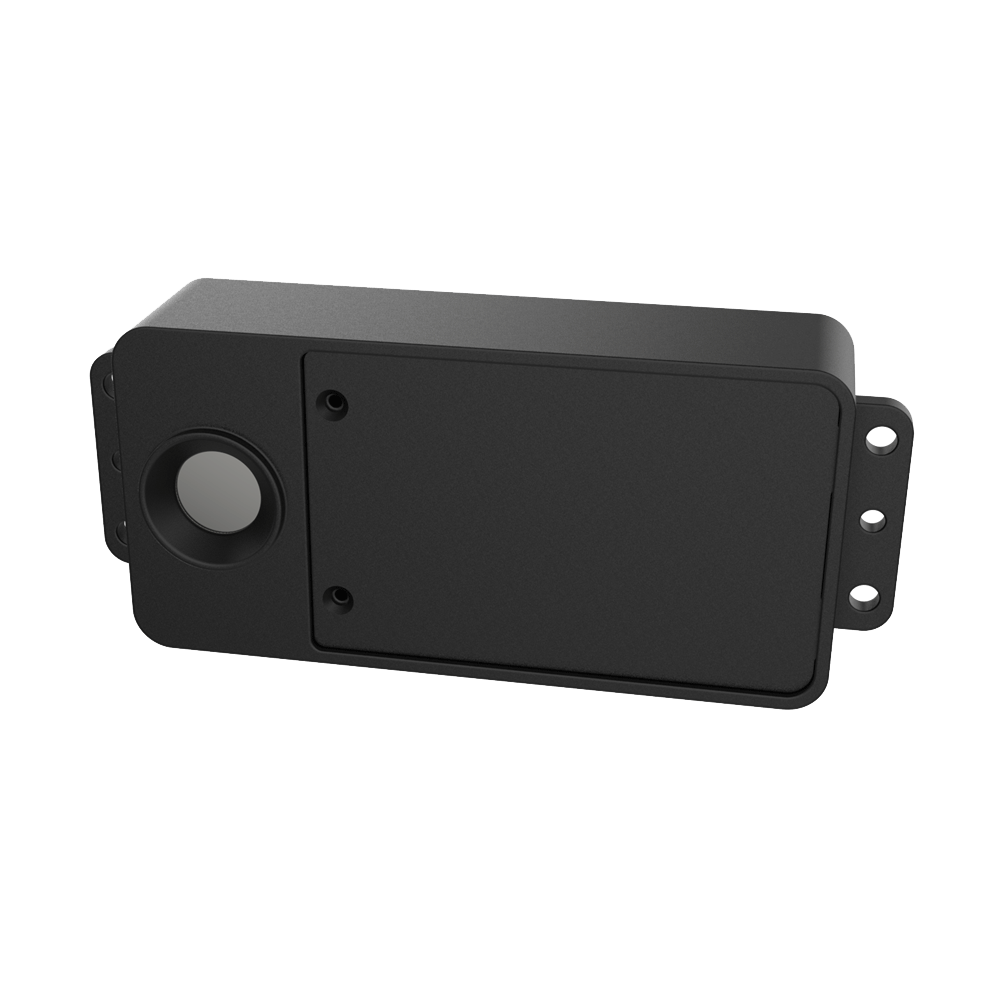

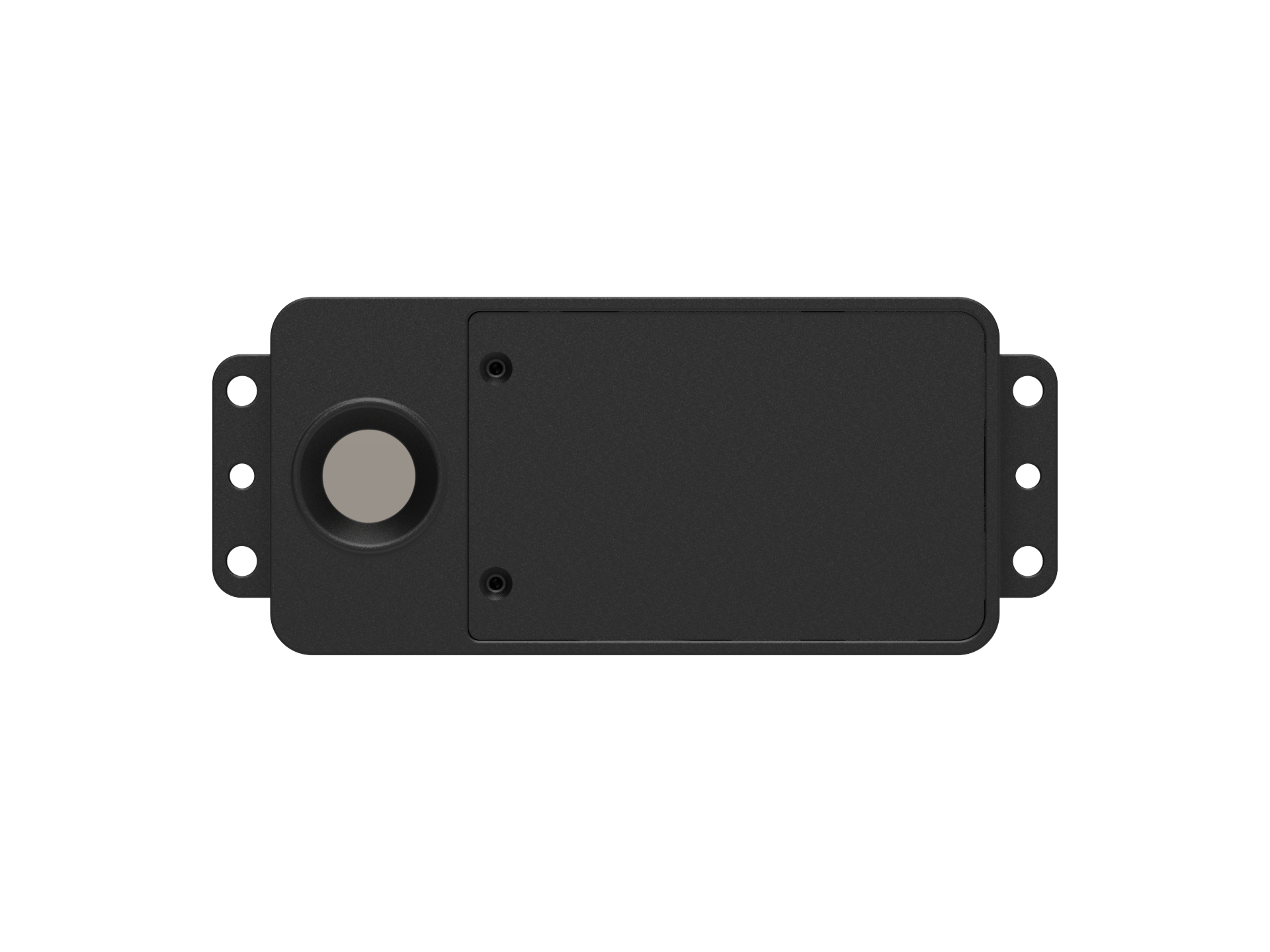

• Double hole location, convenient to install

Mounting holes on both left and right side, easy to install

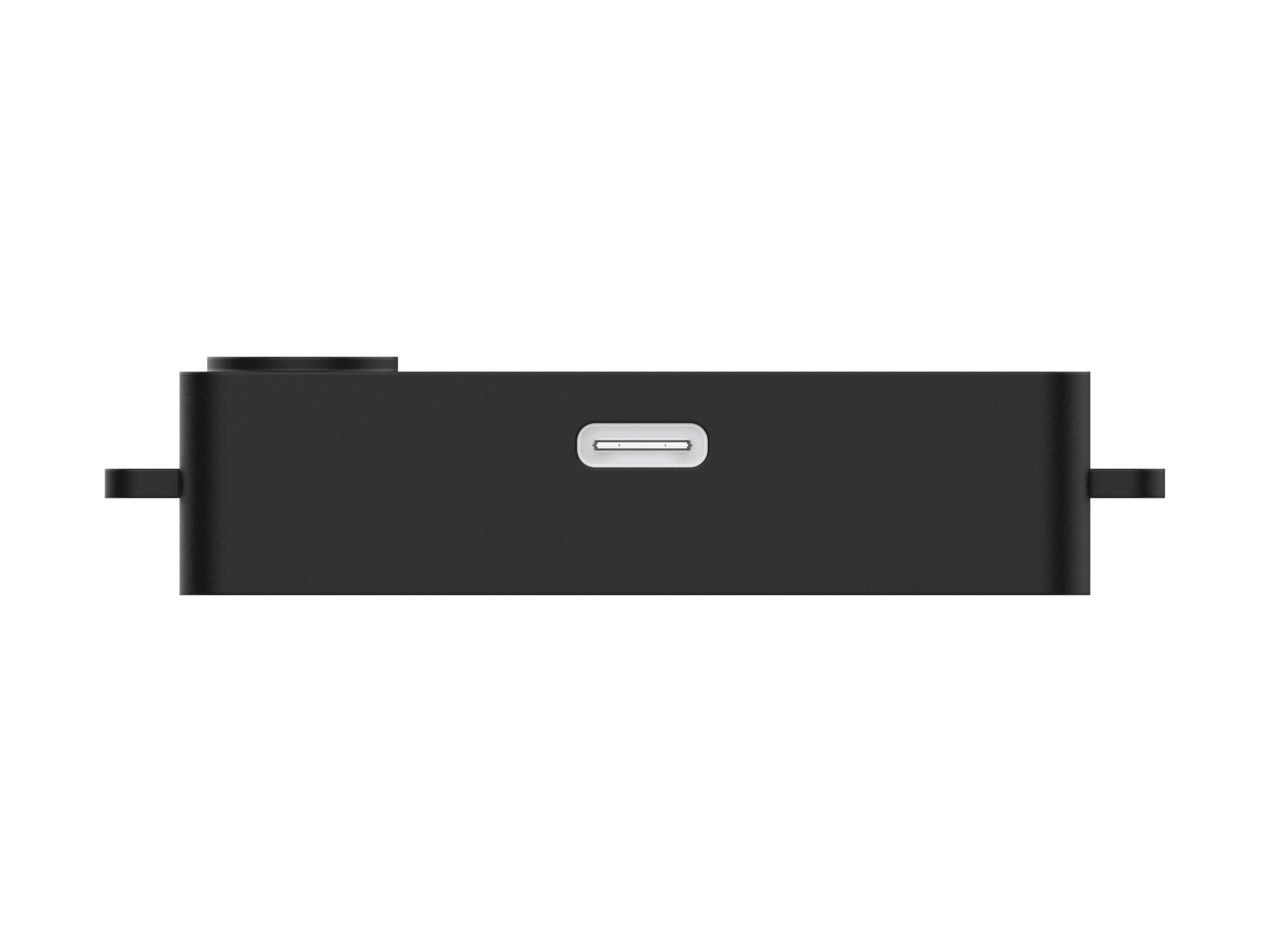

• USB Type-C interface

Adopt USB Type-C male connector for external connection, strong versatility and easy integration

• Provide SDK for full platforms

Support Android / Linux / Windows platforms, wide applicability




Applications

Media Gallery



Technical Parameters

Model

LC260

ADD TO COMPARE

Imaging and optics
Detector type WLP VOx
Infrared resolution 256 × 192
Pixel Pitch 12 μm
Wavelength range 8 to 14 μm
Field angle 56°±1°
NETD ≤50 mK
Infrared frame rate 25 Hz
Focusing mode Focus-free
Measurement and analysis
Measurement range 20 °C to 50 °C (accurate temperature measuring range: 28-40°C)
Measurement accuracy ± 0.5 °C

* All specifications are subject to the actual product. Guide sensmart reserves the right to change the technical specifications without notice or liability to you.
