In the rapidly growing renewable energy and electronics manufacturing sectors, the identification and analysis of tiny thermal anomalies is greatly important for product performance, safety, and efficiency. Thermal imaging cameras with high resolution have turn out to be a critical tool, providing high precision in revealing hidden hot spots in solar panels and electronic devices. This article shall take a closer look at how these advanced imaging devices are revolutionizing key aspects of these two industries.

High-Resolution Thermal Imaging in Electronics Manufacturing

Chip Thermal Analysis: Ensuring Optimal Performance

In the complex world of semiconductors, an infinitesimal difference in temperature in a chip could lead to degraded performance, shortened lifespan, or complete failure. High resolution thermal imaging cameras enable engineers to visualize and analyze heat distribution at the microscopic level.

Equipped with highly sensitive sensors and advanced algorithms, thermal cameras can detect temperature differences as small as a few tenths of a degree Celsius. Employed in chip thermal analysis, they can detect hotspots caused by problems such as poor heat dissipation, circuit design flaws, or manufacturing defects. For example, in the production of high-performance CPUs and GPUs, power density is extremely high and thermal imagers will be able to spot exactly where the heat prefers to accumulate. This enables the manufacturers to optimize heat sink design, improve thermal interface materials, and adjust component layout, eventually leading to improved overall performance and reliability of the chip.

Quality Control and Fault Detection

Aside from chip designing and production, high resolution thermal imaging cameras are also implemented during the quality control process. During the assembling of electronic devices, thermal imaging cameras can be utilized to observe solder joints, connectors, and other critical components. For example, poor soldering would create resistance, resulting in abnormal heating. High resolution thermal imaging cameras can easily detect these minor temperature changes, allowing manufacturers to identify and repair defective products before they are put for sale. Not only does this reduce the likelihood of product recall, but also saves a tremendous amount of cost in after-sales repairs and customer complaints.

High-resolution Thermal Imaging Cameras for Solar Panel Efficiency Inspection

Identifying Hot Spots for Optimal Energy Generation

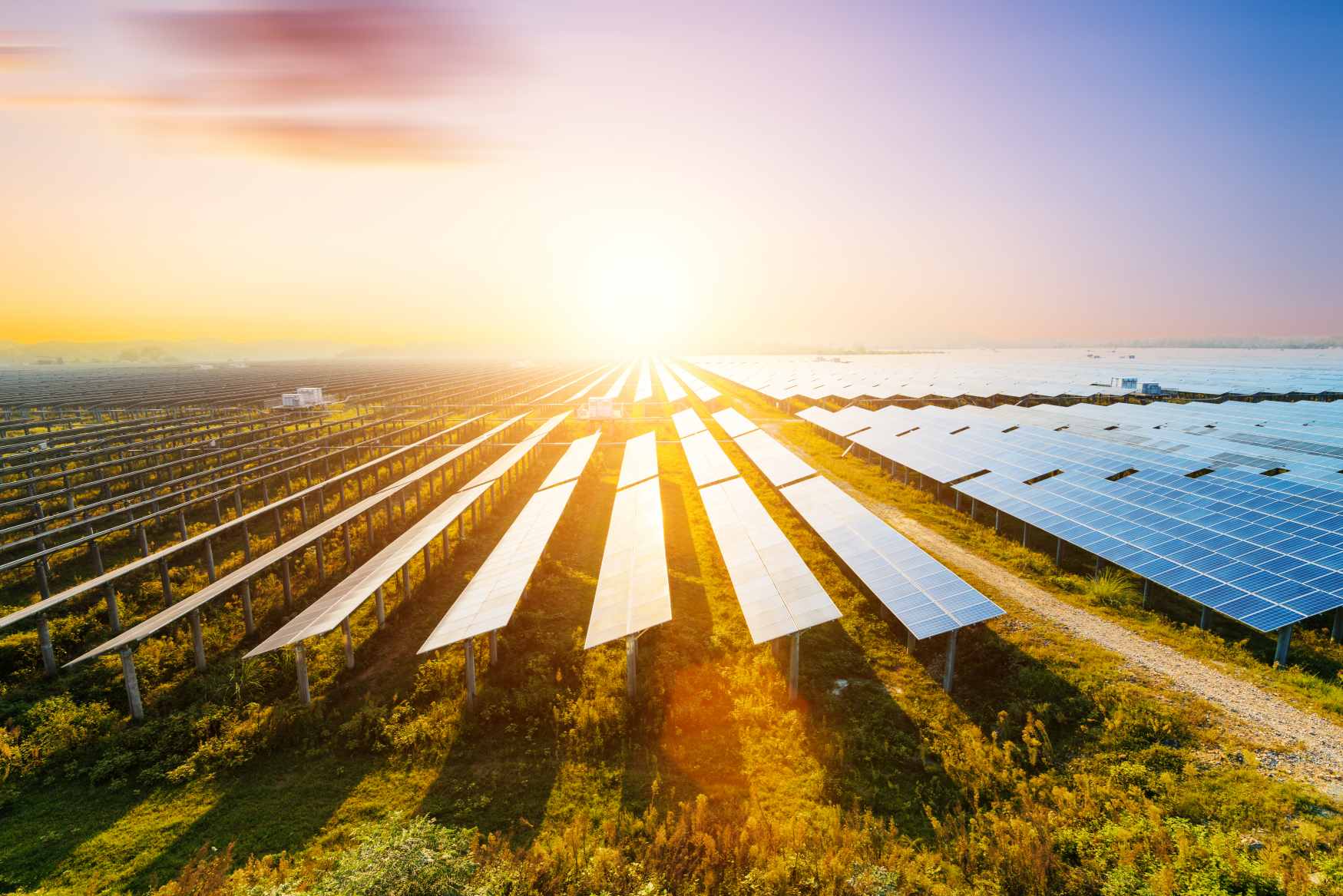

Solar panels are the cornerstone of the renewable energy industry, and the efficiency of solar panels is what makes the use of solar energy projects feasible. Thermal imaging cameras high resolution can be used to check the health and performance of solar panels. Technicians can identify hot spots, which are areas of a panel that are hotter than the rest of the panel, by capturing thermal photographs of solar arrays.

Hot spots could be a result of several different reasons, including shading, faulty cells, or poor electrical connections. Even a single faulty cell in large solar farms is capable of reducing the entire panel's overall energy output and causing permanent damage over time. With a thermal imaging camera high resolution, early diagnosis of these faults becomes possible so that they can be repaired at the earliest. For example, high-resolution thermal imaging cameras mounted on drones can quickly scan large solar array fields to provide detailed maps of heat distribution. This data allows solar farm operators to locate important maintenance tasks to ensure that panels are operating at highest efficiency and optimizing power generation.

Predictive Maintenance and Long-term Performance Assurance

Besides identifying immediate issues, high performance thermal imaging camera assists in the predictive maintenance of solar panels. By monitoring thermal images at regular intervals, operators can detect trends and changes in panel temperature distribution over time. This can be used in forecasting potential failures before they occur, hence enabling proactive replacement or repair of the components. For example, if a section of a solar panel begins to increase in temperature slowly, it can be an indication that the battery cell will degrade. With this early warning, maintenance can be scheduled during periods of low demand, minimizing downtime and ensuring the profitability and performance of solar power plants in the long term.

Technical Advantages of High Resolution Thermal Imaging Cameras

The effectiveness of high resolution thermal imaging cameras is due to their high-end technical specifications. With increased resolution comes more pixels, which are able to pick up on finer details and more precise temperature readings. Advanced software algorithms also improve the analysis process further, allowing real-time visualization, logging of data, and thermal image comparison. Some thermal imagers also have the feature of focus adjustment and zoom, which is crucial in inspecting components of different sizes, from small chips to large solar panels.

Conclusion

High resolution thermal imaging cameras are today a prized asset in the electronics manufacturing and renewable energy industries. By accurately revealing invisible hot spots, they provide manufacturers and operators with the critical information to maximize performance, increase quality control, and assure the long-term integrity of products and projects. Guide Sensmart is a maker of high-resolution thermal imaging cameras. If you would like to inquire about high-resolution thermal imaging cameras and associated equipment, please contact us.
