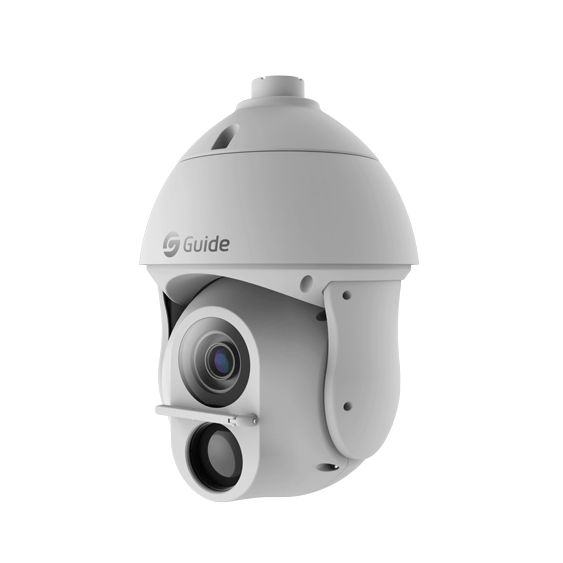

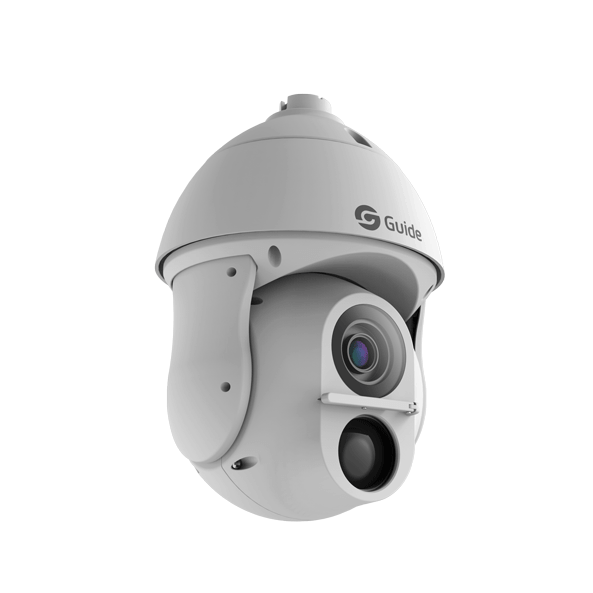

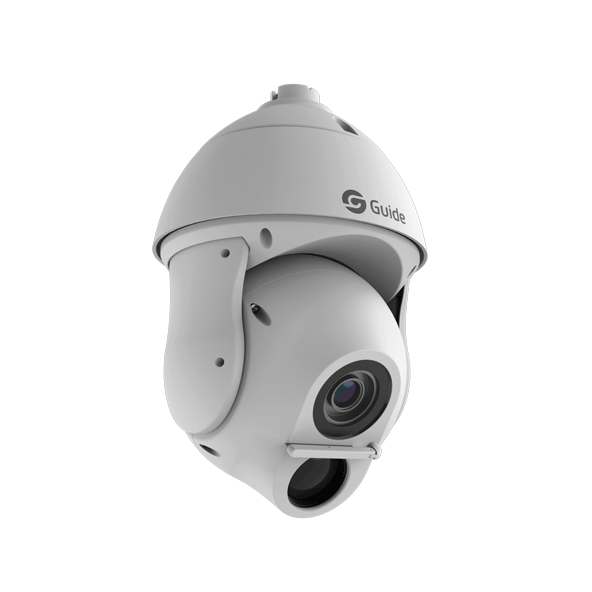

DS6013FT-P

Thermographic Thermal & Optical Bi-spectrum Network Speed Dome

DS6013FT-P series is mainly used in medium-range indoor and outdoor monitoring and temperature measurement application scenarios. The product uses vanadium oxide uncooled infrared detectors, which are not affected by the light environment, and can achieve 24-hour remote monitoring and high-precision temperature measurement. Built-in deep learning pyrotechnic recognition algorithm, with fire detection and alarm functions.


640x512IR resolution

13mmFocal Length

5.4°×37°FOV

≤40mKNETD


24-hour remote monitoring and high-precision temperature measurement

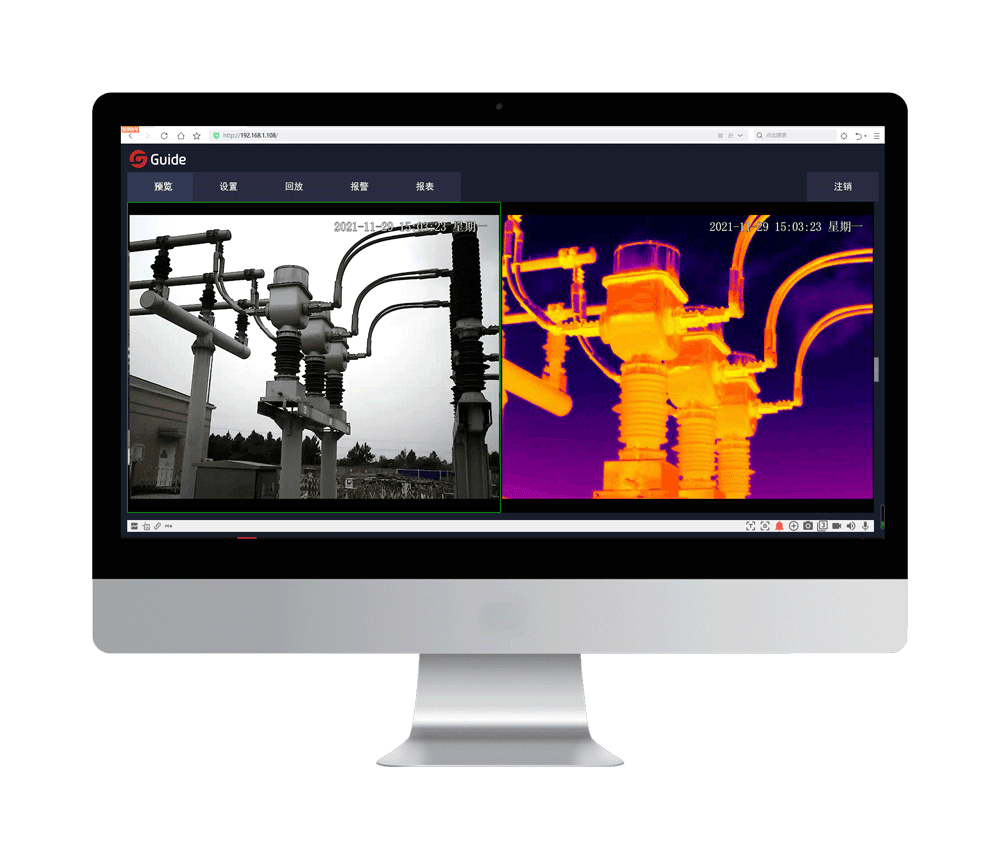

• Web-side control, no other client software is required for parameter configuration

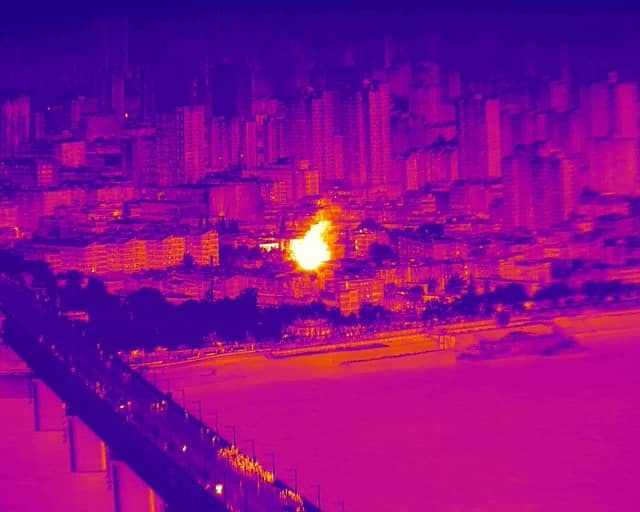

• With high-precision temperature measurement and early warning functions, fire detection and alarm functions

• Up to 300 temperature measurement preset points can be set

• Each preset point can set 12 temperature measurement objects at the same time

• Support real-time temperature analysis, historical temperature information query function

• Various behavior analysis functions such as tripwire intrusion, region intrusion etc.



Media Gallery





Technical Parameters

Model

DS6013FT-P

ADD TO COMPARE

Thermographic
Detector type VOx
Detector resolution 640 × 512
Pixel size 17μm
Wavelength range 8μm to 14μm
NETD ≤ 40mK@30°C
Thermographic camera lenses 13mm, 45.4° × 37°
Detail enhancement Supported
Noise reduction 2D/ 3D noise reduction
Image flip Supported
Pseudo colors 9 pseudo colors: White Hot, Black Hot, Fulgurite, Rainbow and so on

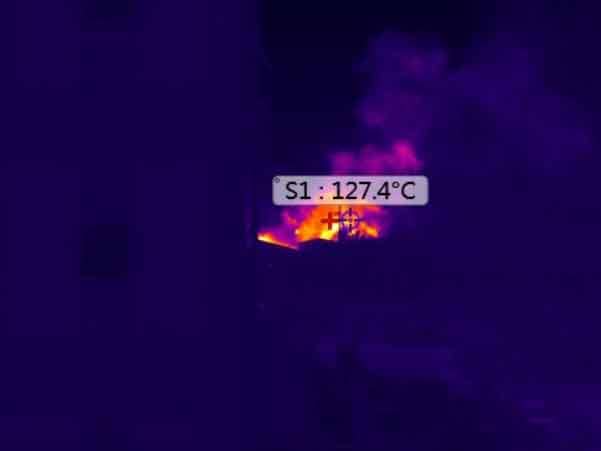

Temperature measurement
Measurement range Low temperature mode: -20°C to 150°C, high temperature mode: -20°C to 550°C
Measurement accuracy ±2°C or ±2% (whichever is greater)
Target setting Multi-preset-point temperature measuring, up to 300 temperature measuring preset points; For each preset point: spot temperature measuring: 12 spots, area temperature measuring: 12 areas, linear temperature measuring: 12 lines; Up to 12 simultaneous temperature measurements at each preset point (spot + area + line), and the area shape can be circle, square and irregular polygon
Cold/ hot spot tracking Supported
Full-screen point temperature measuring Supported
Query and export of temperature measuring information Supported
