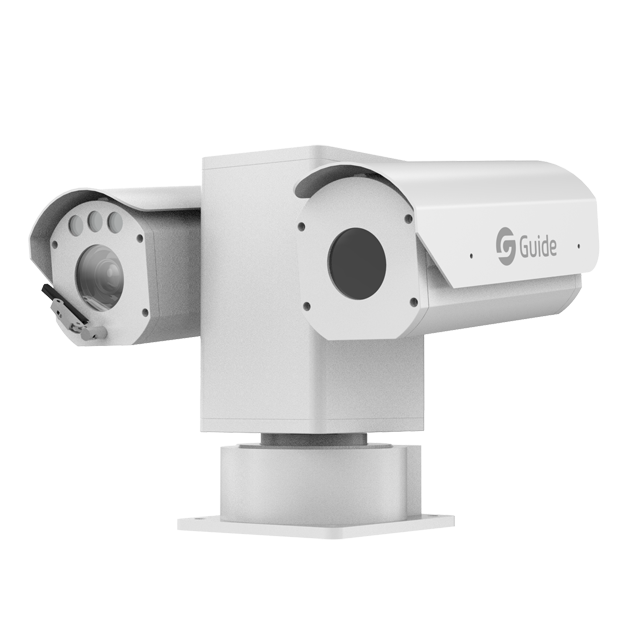

DS6025FT-L
Thermal & Optical Bi-spectrum PTZ
DS60xxFT-L series is designed for medium-range indoor and outdoor monitoring and temperature measurement. With self-developed uncooled vox microbolometer by Guide, the DS60xxFT-L series features 24-hour monitoring, sharp images and highly accurate temperature measurement in harsh weather conditions. By adopting the worm gear design, the durable DS60xxFT-L series provides precise positioning.
640×512IR Resolution
≤40 mkNETD
25mmFocal Lenth
24.5°×19.7°FOV
ADD TO COMPARE
Precise Positioning for Multiple Objects, Safe and Comprehensive
640×512 IR Resolution o 25 mm/50 mm lens
Web access for configuration
Up to 300 presets and 12 spots/lines/areas for every preset
Highly accurate temperature measurement, temperature analysis and alarm in real time and tracking of temperature history
Fire detection & alarm and detection of intrusions and tripwire
-14.jpg)

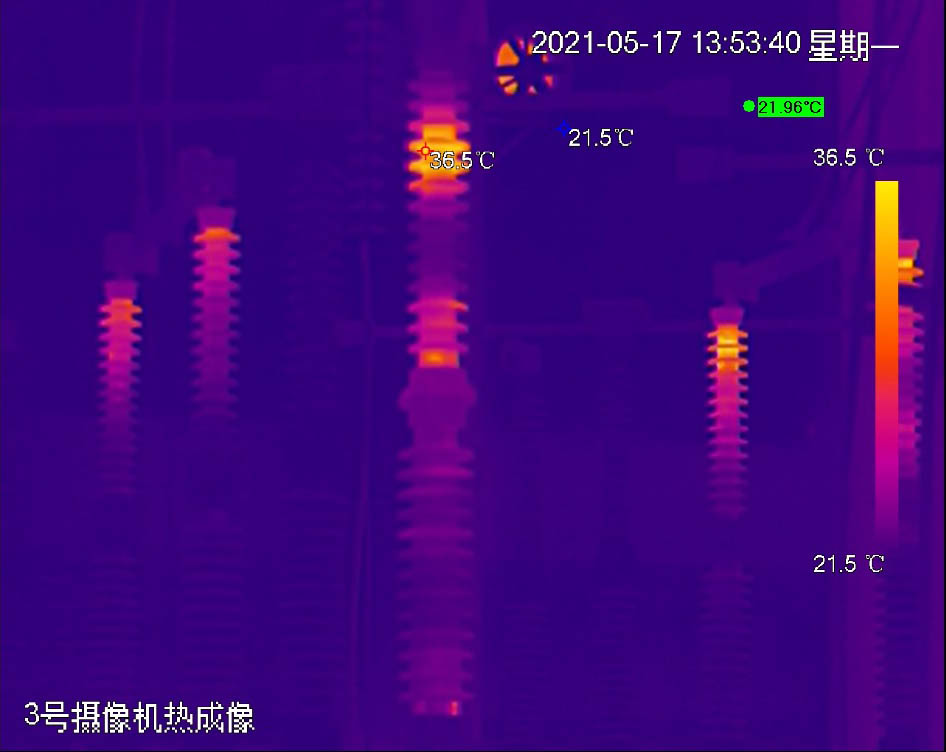

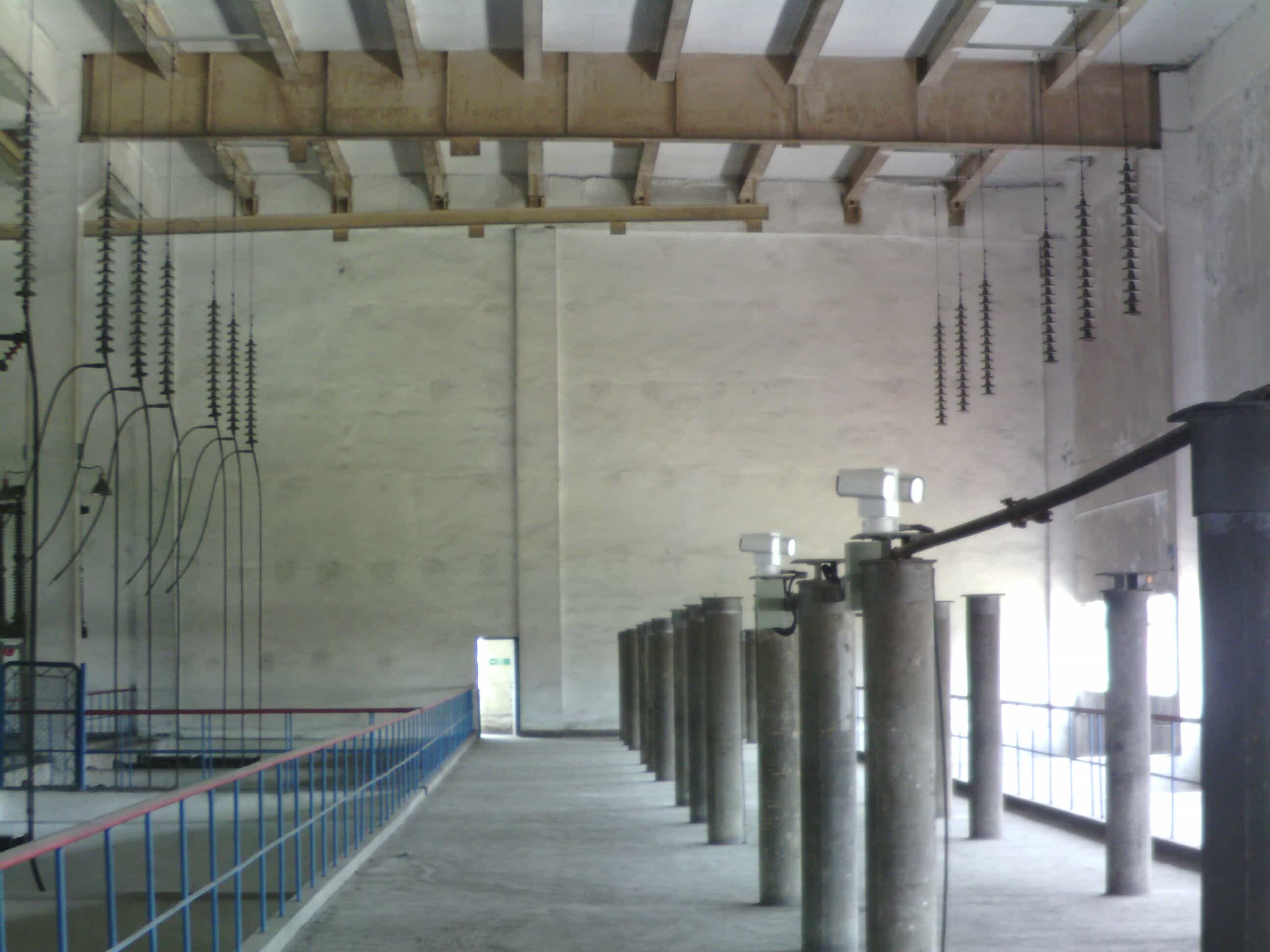

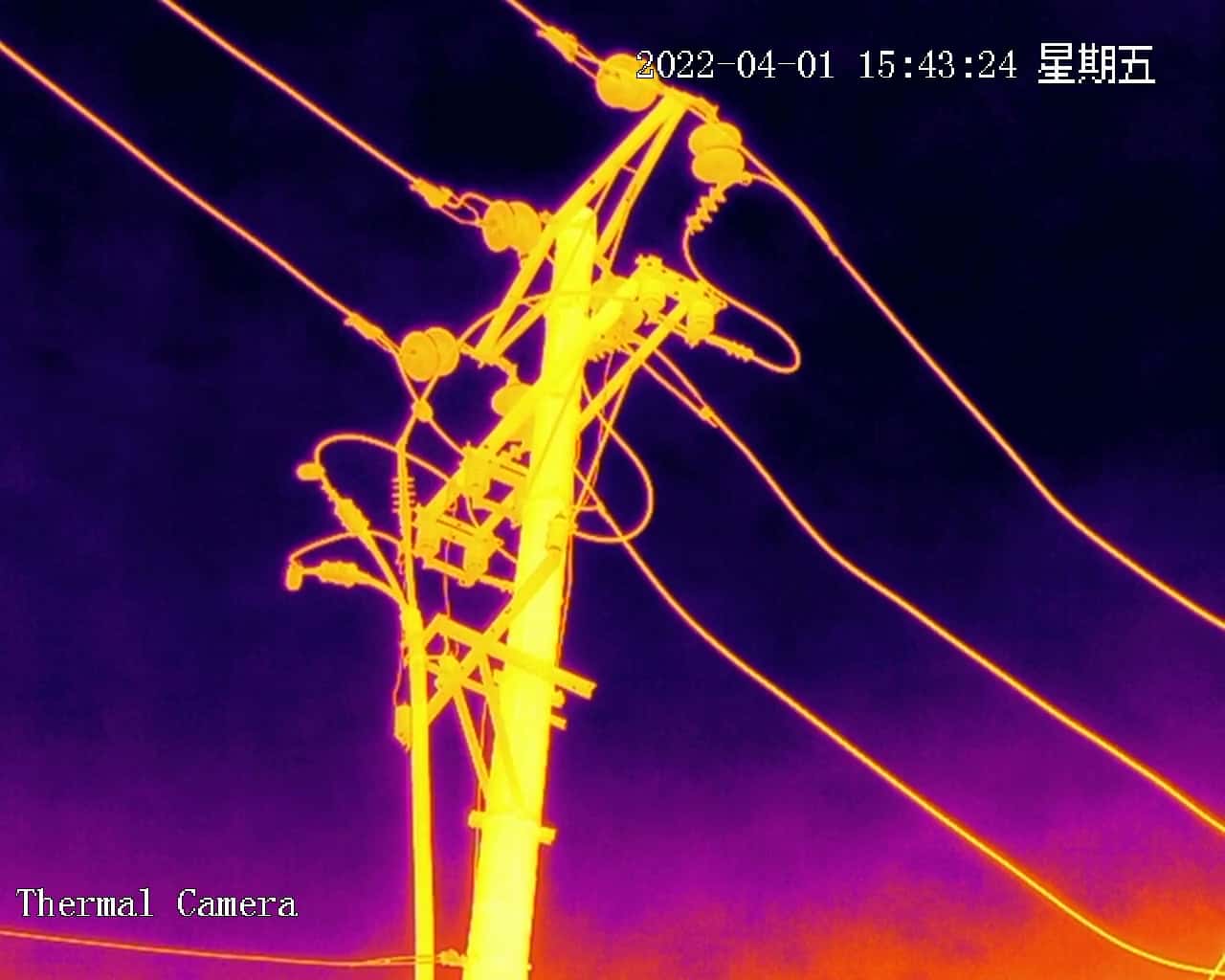

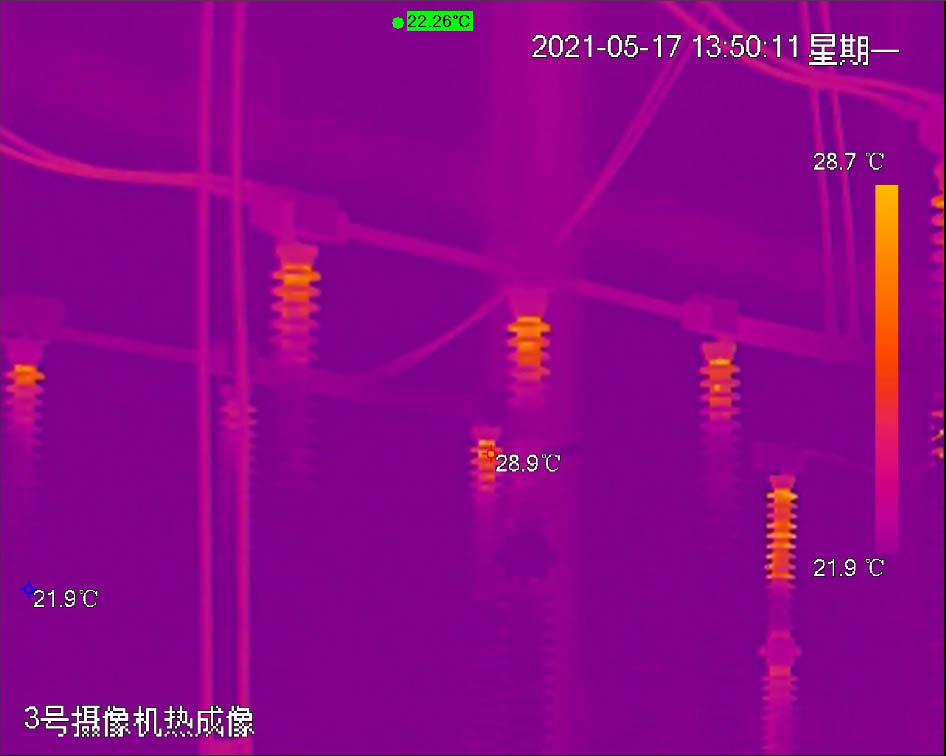

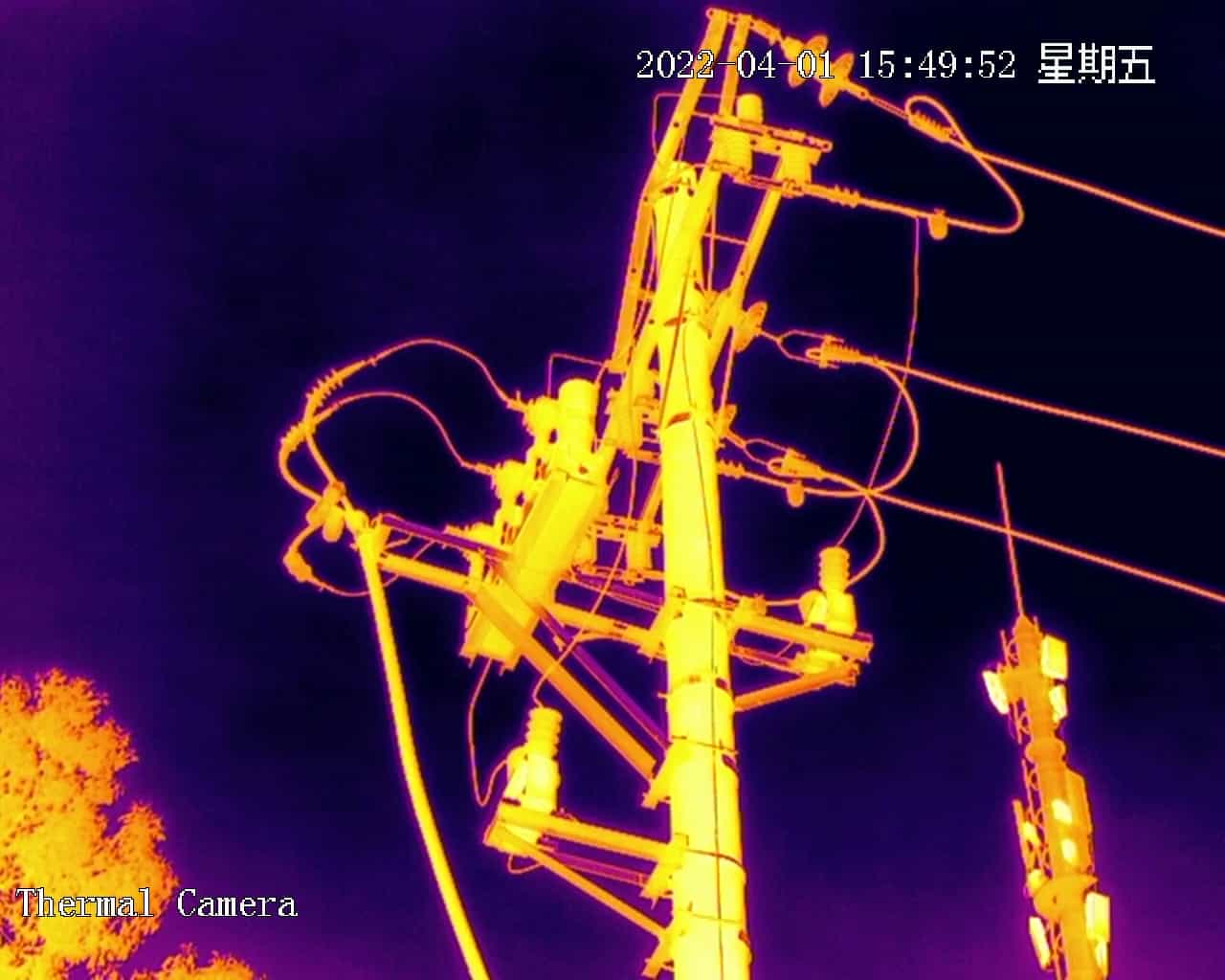

Applications
Media Gallery
Technical Parameters
Model
DS6025FT-L
ADD TO COMPARE
| Thermographic | ||||
|---|---|---|---|---|
| Detector type | VOx, 8μm to 14μm | |||
| IR resolution | 640×512, 17μm / 640×512, 12μm | |||
| NETD | ≤40mK@30°C | |||
| Lens | 25mm, 25°×20° / 25mm, 17.5°×14° | |||
| Focusing mode | Focus-free / Electric | |||
| Pseudo colors | 9 pseudo colors: White Hot, Black Hot, Rainbow and so on | |||
| Featured features | Visible light gain control, 2D/ 3D noise reduction, Backlight compensation, Wide dynamic, Strong-light photoinhibition, Image flip, Exposure compensation | |||
| Temperature measurement | ||||
|---|---|---|---|---|
| Measurement range | Low: -20°C to 150°C; High: -20°C to 550°C | |||
| Measurement accuracy | ±2°C or ±2% (whichever is greater) | |||
| Target setting | Up to 300 presets; 12 spots/ lines/ areas (circle, square or irregular polygon) for each preset; Measurement for up to 12 simultaneous spot + line + area for each preset | |||
| Measurement function | Cold/ hot spot tracking, Full-screen point temperature measuring, Query and export of information | |||
* All specifications are subject to the actual product. Guide sensmart reserves the right to change the technical specifications without notice or liability to you.
